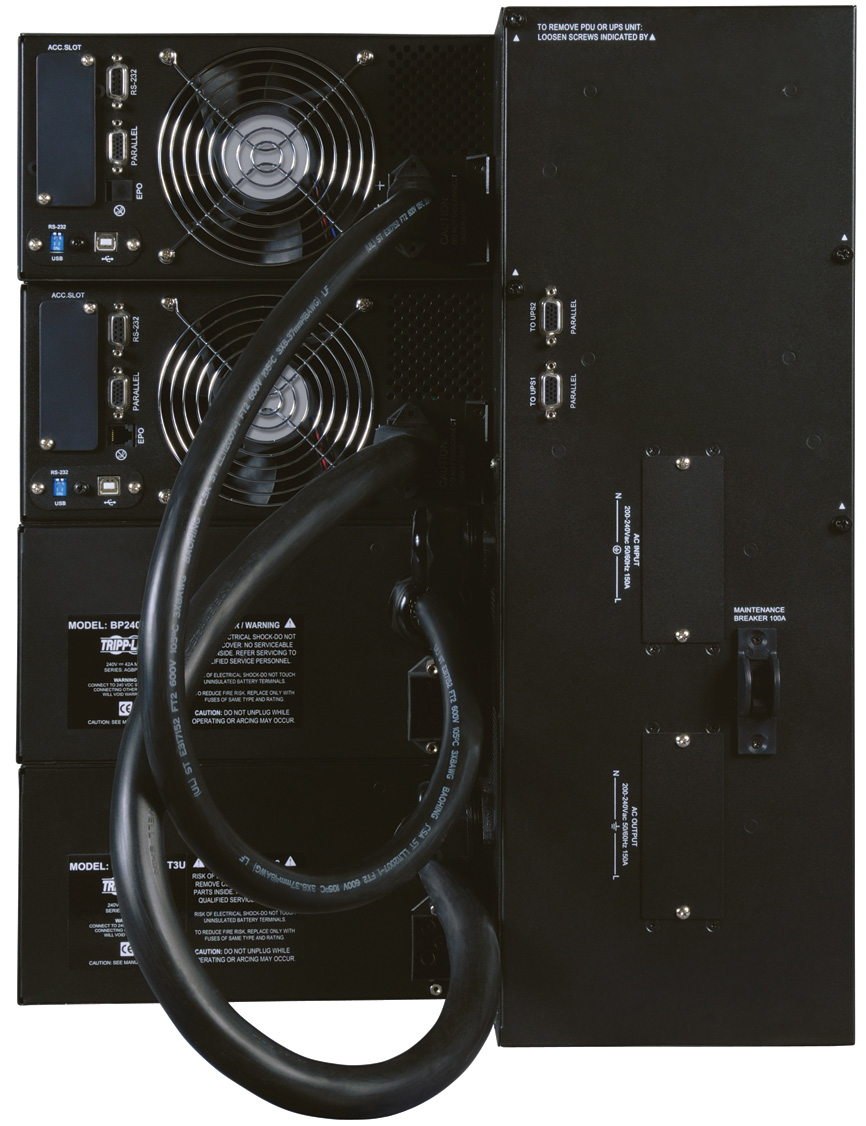

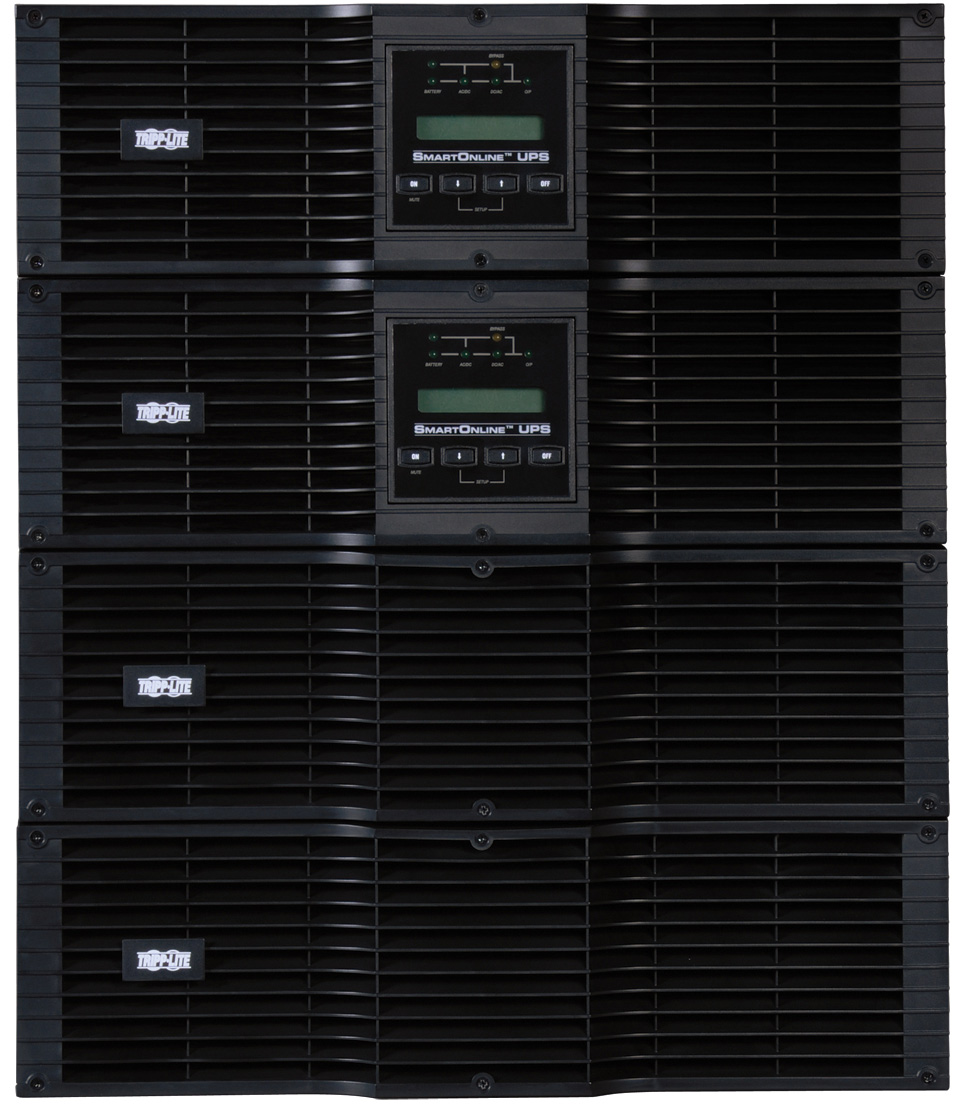

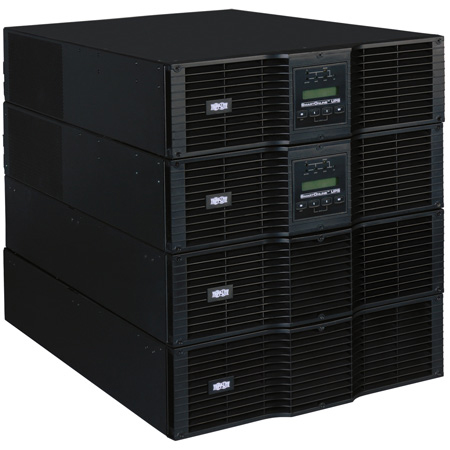

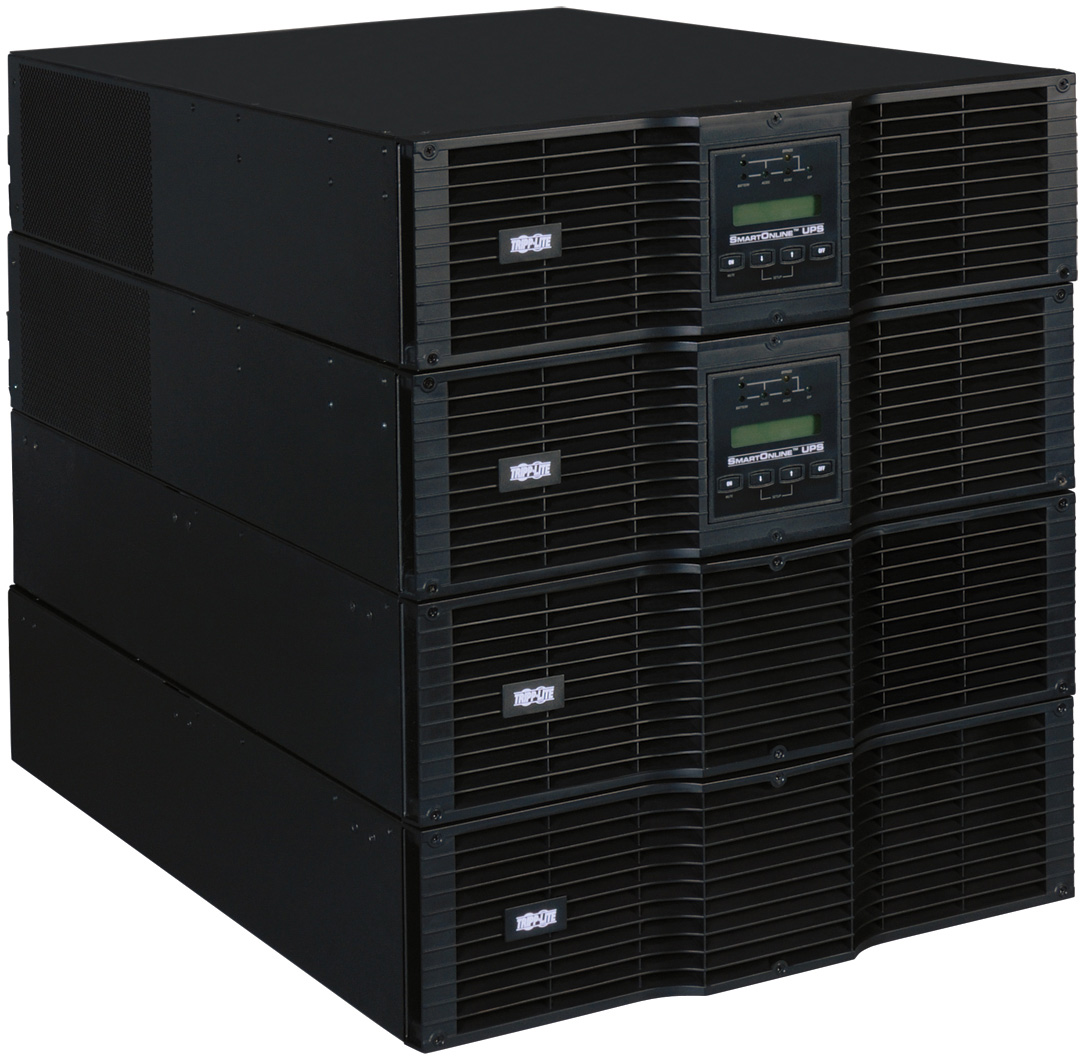

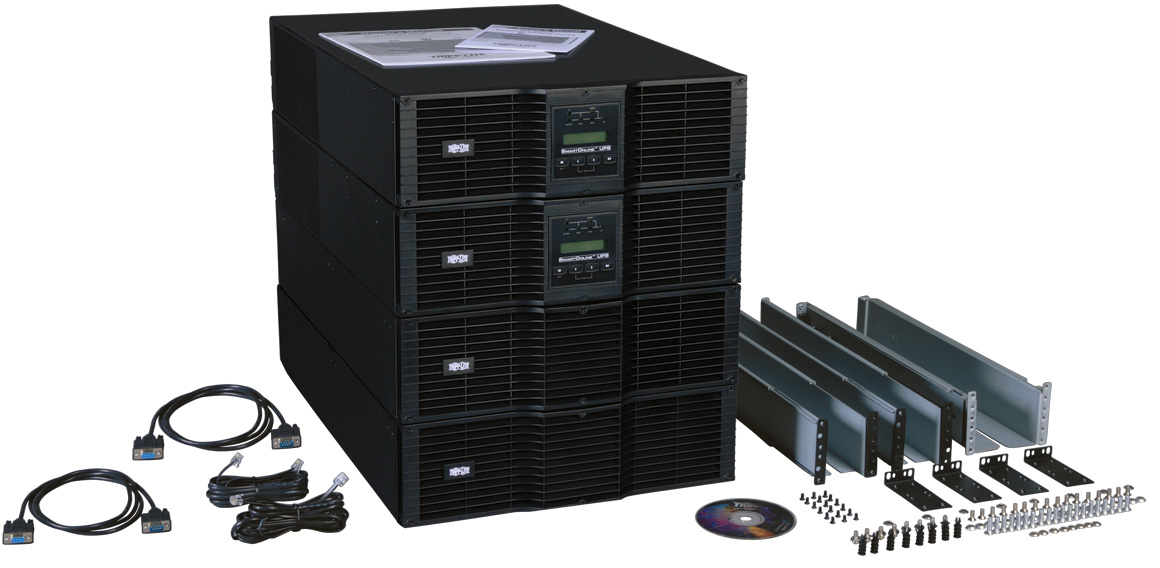

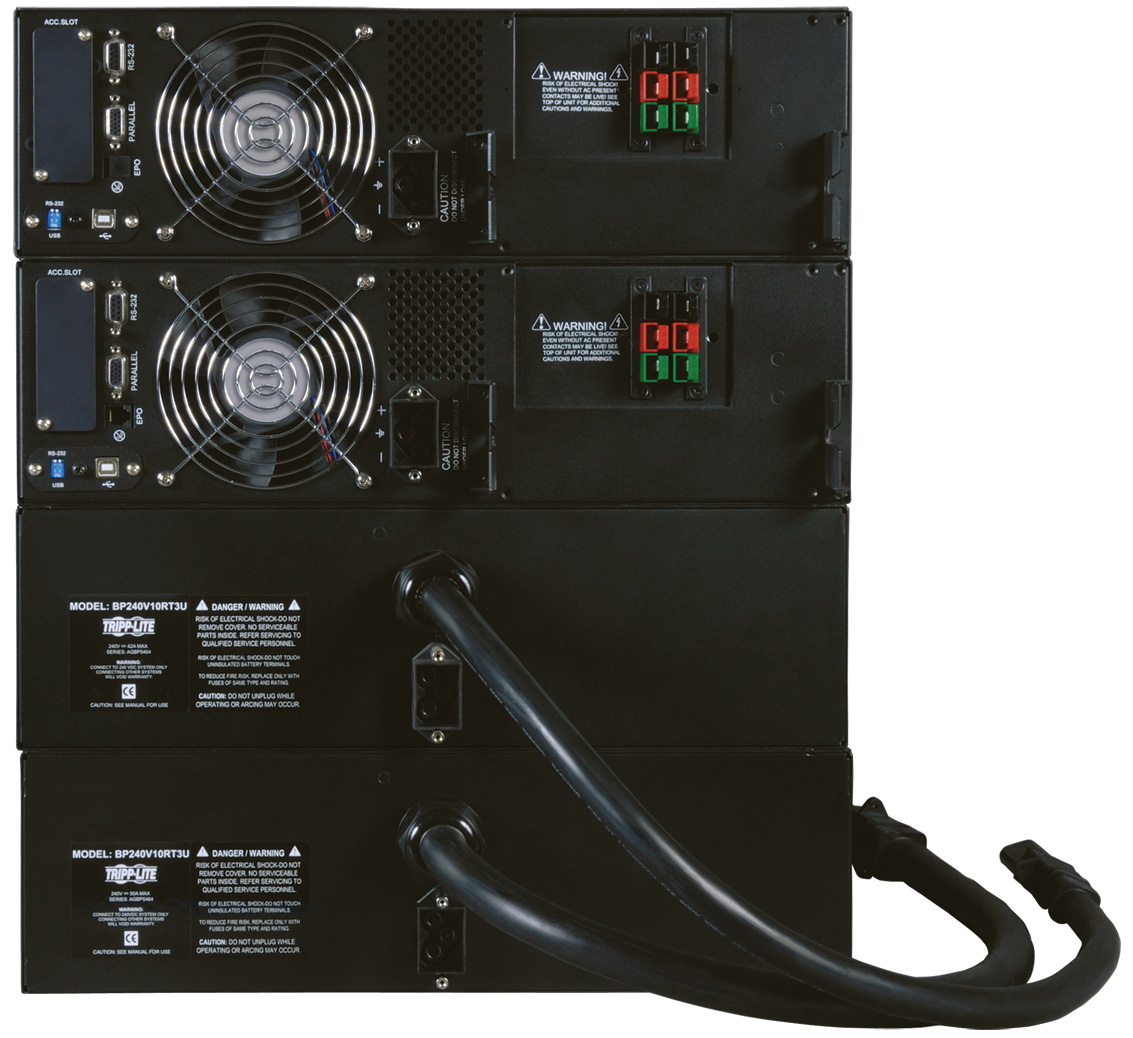

Tripp Lite SU16KRTHW 16000VA 14400W UPS Smart Online Rackmount 16kVA PDU 200-240V 12U

Manufacturer: Tripp Lite

Item #: TRL-SU16KRTHW   •   MFG #: SU16KRTHW



List Price:$13,402.80
Our Price:$8,220.38

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite SU16KRTHW 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.


    • Features

      • 16kVA / 16,000VA / 14,400W on-line double-conversion UPS, 0.9 power factor
      • 200/208/220/230/240V +/-2% 50/60Hz output, 96% Efficient Economy-mode option
      • Hot-swap power & battery modules, N+1 fault tolerance at loads up to 8kVA
      • USB, RS232 & EPO ports, support for SNMP/WEB & other card options
      • Front panel LEDs with detailed LCD monitoring and control screen
      • Expandable runtime with optional external battery packs
      • Hardwire input (3 wire), Hardwire output (3 wire)
      • Tripp Lite SU16KRTHW 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 12U total rack/tower configuration
      • Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under
      • Included Parallel PDU with manual bypass switch enables hot-swap replacement power modules at any supported load level
      • Hardwire input (3 wire) and hardwire output (3 wire) connections
      • Supports North American (L1,L2,G) 208/240v hardwire input / output, plus International 230/220/240v (L,N,PE) hardwire input / output
      • Optional SU6000XFMR2U transformer offers 120v output in North American 208/240V (L1,L2,G) input configurations
      • Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal
      • Supports 50/60Hz operation for worldwide frequency compatibility
      • Expandable runtime with optional external battery packs
      • Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
      • Battery independent restart
      • Intelligent battery management system extends battery life
      • Highly efficient economy mode option
      • Optional SNMPWEBCARD, RELAYIOCARD and RELAYIOMINI interface modules available (RELAYIOMINI requires removal of USB interface module)
      • Applications utilizing the optional network communications card require two SNMPWEBCARD accessories (install one per included power module)
      • HID-compliant USB interface
      • Includes Free PowerAlert monitoring software; PowerAlert LOCAL, PowerAlert NSA and PowerAlert NMS for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
      • Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (4 required)
      • Optional 2-9USTAND supports upright tower placement (2 required)
      • Supports Emergency Power Off (EPO) via built-in interface
      • Front panel LEDs and LCD readout with scroll controls
      • LED / LCD display panel rotates for viewing in rackmount or tower configurations
      • External battery packs are field replaceable and hot swappable
      • Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

    • Specifications

      • OUTPUT
      • Output Volt Amp Capacity (VA) 16000
      • Output kVA Capacity (kVA) 16
      • Output Watt Capacity (Watts) 14400
      • Output kW Capacity (kW) 14.4
      • Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less
      • Power Factor 0.9
      • Crest Factor 3:1
      • Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V
      • Nominal Voltage Details Voltage selection via front panel LCD interface
      • Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
      • Frequency Compatibility Details Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
      • Output Voltage Regulation (Line Mode) +/- 2%
      • Output Voltage Regulation (Economy Line Mode) +/- 10%
      • Output Voltage Regulation (Battery Mode) +/- 2%
      • Output Receptacles Hardwire
      • Output Receptacle Details Supports North American 208/240V* output (L1,L2,G) and International 230/220/240V (L,N,PE) hardwire output; *For 120V output with 208/240V (L1,L2,G) input wiring, use optional SU6000XFMR2U transformer
      • Output AC Waveform (AC Mode) Pure Sine wave
      • Output AC Waveform (Battery Mode) Pure Sine wave
      • INPUT
      • Rated input current (Maximum Load) 92A (200V), 88.4A (208V), 83.6A (220V), 80A (230V), 76.6A (240V)
      • Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
      • UPS Input Connection Type Hardwire
      • UPS Input Connection Description Supports North American 208/240V input (L1,L2,G) and International 230/220/240V (L,N,PE) input wiring
      • Recommended Electrical Service 100A @ 200V-240V (L, N, PE), or 100A @ 200V, 208V, or 240V (L1, L2, G)
      • Input Phase Single-Phase
