Tripp Lite SU3000RTXL2U 3000VA 2500W UPS Smart Online Rackmount 120V USB DB9 2URM
  • Tripp Lite SU3000RTXL2U 3000VA 2500W UPS Smart Online Rackmount 120V USB DB9 2URM
  • Tripp Lite SU3000RTXL2U 3000VA 2500W UPS Smart Online Rackmount 120V USB DB9 2URM

Questions? Ask a Markertek Expert:
800-522-2025 Email

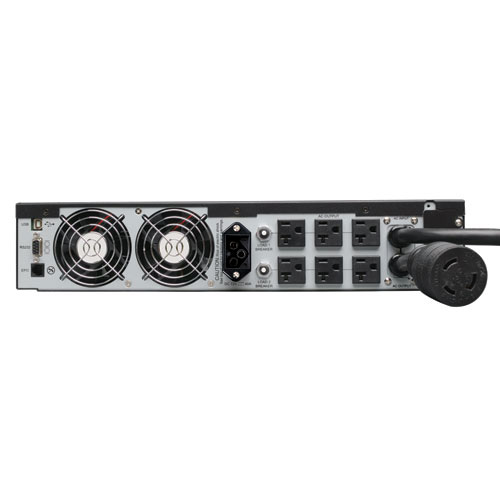

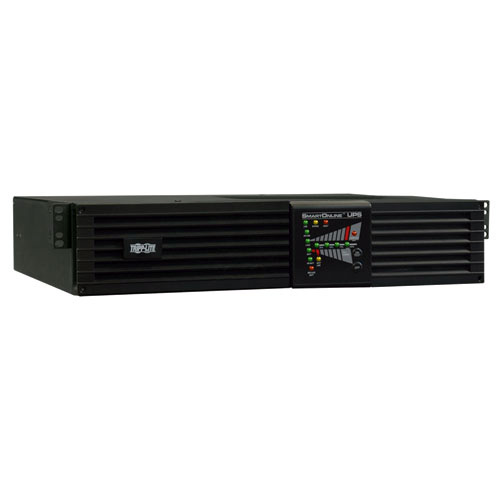

Tripp Lite SU3000RTXL2U 3000VA 2500W UPS Smart Online Rackmount 120V USB DB9 2URM

Manufacturer: Tripp Lite

Item #: TRL-SU3000RTXL2U   •   MFG #: SU3000RTXL2U



List Price:$2,120.40
Our Price:$1,300.51

no free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Shipped truck freight.


Share!





3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 26 inches (66cm). Full time sine wave 100/110/115/120/127V output with +/-2% voltage regulation. Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 70V and overvoltages to 144V. Up to 97% efficiency in optional economy mode saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA L5-30R, NEMA 5-15/20R and NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two bank PDU switching supports automated load shedding and remote-reboot of connected equipment. Multi-stage metered current monitoring and battery charge status LEDs. Mains power and voltage regulation LEDs. Audible Alarm. Self-test. Fault-tolerant auto-bypass mode. LED display panel easily rotates for better viewing in rackmount or tower configurations. Includes 4 post rackmount accessories. 2-9USTAND tower kit and 2POSTRMKITWM two post rackmount hardware accessories available.

What does Uninterruptible Power Supply (UPS) mean?
An uninterruptible power supply (UPS) provides nearly instantaneous power when the main utility power source fails, allowing either time for power to return or for the user to shut down the system or equipment normally by closing running computer system applications and using the operating system to shut down the system. The user has between five and 15 minutes to shut down a system normally or bring an auxiliary power source online to restore the power supply. In addition, most UPS systems also work to address power source electrical surges, sag voltage, voltage spikes, frequency instability, noise interference or harmonic distortion from the ideal sinusoidal wave form. If you're concerned about power failures, especially if you've lost work on your computer due to power outages in the past, you should buy a UPS. A UPS combines a surge suppressor with a big battery, and has special circuitry that detects a power failure and quickly switches over to run your equipment on its battery. The sole purpose of a UPS is to give you a few minutes at the start of a power failure to do two things:
-Save your work, and
-Shut down your computer.
Please Note: A UPS is not designed to let you continue to use your computer for hours and hours until the power comes back on. If properly chosen, a UPS will give you 5 to 10 minutes (possibly more) to save and do an orderly shutdown.


  • Features

    • Included Mounting Accessory Includes 4 post rackmount. Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND).
    • UPS AC Suppression Joule Rating 510
    • UPS AC Suppression Response Time Instantaneous
    • Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 80% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge RBC96-3U (quantity 1), Battery Access Front panel battery access door, Battery Replacement Description Hot-swappable, user replaceable batteries, Supports extended runtime with optional external battery packs
    • External Battery Pack Compatibility BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible).

  • Specifications

    • Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds
    • Output Volt Amp Capacity (VA) 3000
    • Output kVA Capacity (kVA) 3
    • Output Watt Capacity (Watts) 2400
    • Output kW Capacity (kW) 2.4
    • Power Factor 0.8
    • Crest Factor 0.125694444444444
    • Nominal Output Voltage(s) Supported 110V; 120V
    • Nominal Voltage Details 120V default
    • Frequency Compatibility 50 / 60 Hz
    • Frequency Compatibility Details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
    • Output Voltage Regulation (Line) +/- 2%
    • Output Voltage Regulation (Economy Line) +/- 10%
    • Output Voltage Regulation (Battery) +/- 2%
    • Output Receptacles (4) 5-15R; (4) 5-15/20R; (1) L5-30R
    • Load Management Receptacles Two switchable four-outlet load banks, (bank 1 - four 5-15/20R, bank 2 - four 5-15R outlets)
    • Output Circuit Breakers 15A branch rated (x2) - each breaker protects 4 outlets, L5-30R is unbreakered
    • Output AC Waveform (AC) Pure Sine wave
    • Output AC Waveform (Battery) Pure Sine wave
    • Rated input current (Max Load) 24A
    • Nominal Input Voltage(s) Supported 110V AC; 120V AC
    • UPS Input Connection Type L5-30P
    • Input Circuit Breakers 40A
    • UPS Input Cord Length 10'
    • Recommended Electrical Service 30A 120V
    • Input Phase Single-Phase
    • Full Load Runtime 5 min. (2400w)
    • Half Load Runtime 14 min. (1200w)
    • DC System Voltage (VDC) 72
    • Voltage Regulation Description Online, double-conversion power conditioning
    • Overvoltage Correction 2% output voltage regulation during overvoltages to 150
    • Undervoltage Correction 2% output voltage regulation during undervoltages to 80
    • Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)
    • Switches 2 switches control off/on power status and alarm-cancel/self-test operation
    • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
    • Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
    • LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats
    • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
    • EMI / RFI AC Noise Suppression Yes
    • UPS Power Module Dimensions 5.2" x 17.8" x 26"
    • Rack Height 3U
    • UPS Power Module Weight 73.8 lbs
    • UPS Shipping Dimensions 11.2" x 23" x 31.5"
    • Weight 112.4 lbs
