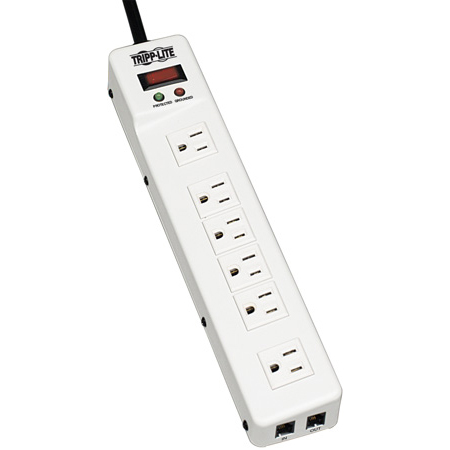

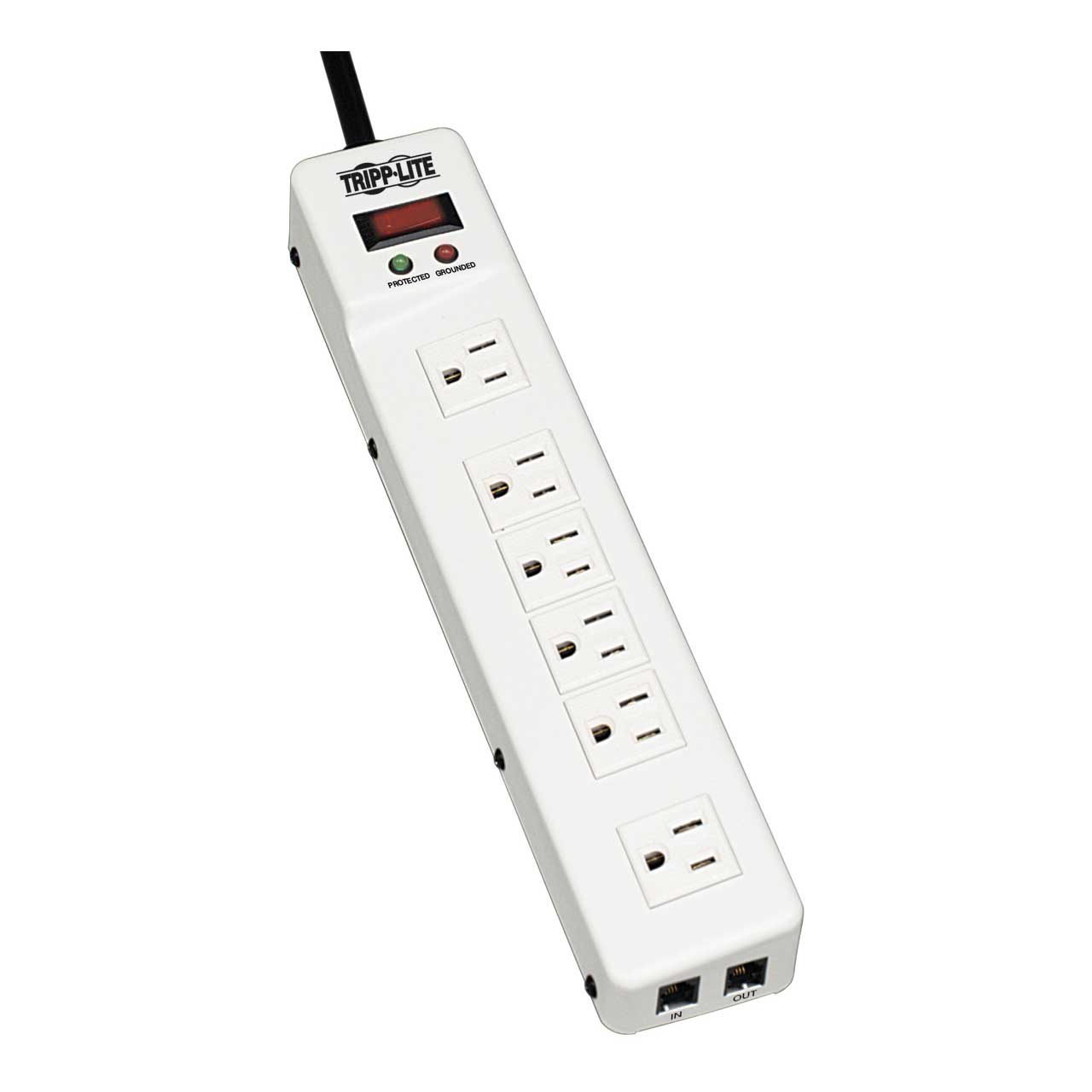

Tripp Lite TLM626TEL15 Protect It Surge Protector with 6 Right Angle Outlets 15 Foot Cord Tel/Modem Protection

TLM626TEL15 - Overview

• Features:

  • 6 right-angle outlets
  • 15 ft. cord
  • Built-in RJ-11 jacks prevent surges from damaging your telephone/DSL/modem/fax equipment; 6 ft. telephone cord included
  • Surge suppression rating: 1340 joules
  • EMI/RFI noise filtering
  • 15 amp resettable circuit breaker protects against overload
  • Diagnostic LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • Convenient keyhole slots allow secure mounting on wall or desk
  • Can accommodate up to 2 transformers without blocking adjacent outlets
  • Rugged metal case provides extra safety and durability
  • Illuminated power switch
  • $75,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
  • Automatic shutoff cuts power to outlets when the protection circuit has been compromised


• Specifications:

  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (6) 5-15R
  • Output (Watts): 1800
  • Circuit Breaker (amps): 15
  • Overload Protection: 15A resettable combo switch / circuit breaker
  • Transformer Accommodation: Supports 2 large transformers without covering adjacent outlets
  • Outlet Orientation: Single row of outlets
  • Right-Angle Outlets: Yes
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Connection Type: NEMA 5-15P
  • Input Cord Length (ft.): 15
  • Input Cord Length (m): 4.57
  • Input Cord Gauge Type: 14 gauge, SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 60000
  • Right-Angle Plug: No
  • Switches: Combination AC circuit breaker and 2 position on/off power switch
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • AC Suppression Joule Rating: 1340
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 150
  • UL1449 Let Through Rating: 400V
  • EMI / RFI Filtering: Up to 20dB
  • Telephone/DSL Protection: Yes
  • Telephone/DSL Protection Details: 1 line
  • Cable (Coax) Protection: No
  • Network (Ethernet) Protection: No
  • Shipping Dimensions (hwd / in.): 2.25 x 15 x 6
  • Shipping Dimensions (hwd / cm): 5.72 x 38.1 x 15.24
  • Shipping Weight (lbs.): 2.5
  • Shipping Weight (kg): 1.13
  • Unit Dimensions (hwd / in.): 1.5 x 12.25 x 2.25
  • Unit Dimensions (hwd / cm): 3.81 x 31.12 x 5.72
  • Unit Weight (lbs.): 1.8
  • Unit Weight (kg): 0.82
  • Material of Construction: Metal
  • Integrated Keyhole Mounting Tabs: Keyhole slots enable mounting to a variety of surfaces
  • Housing Color: Light Gray
  • Receptacle Color: Light Gray
  • Color (AC Line Cord): Black
  • Form Factors Supported: Supports floor / wall / desktop placement
  • Outlets Measurement (Center to Center): Distance between standard outlets = 30.40mm; Distance between transformer and standard outlets = 45mm
  • Keyhole Slot Mounting Measurement (Center to Center): 225mm
  • Additional International Approvals: Complies with RoHS (Restriction of Hazardous Substances Directive)
  • UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION
  • UL1363 (Power Tap): UL1363
  • FCC Part 68 (Communications): FCC Part 68
  • cUL / CSA (Canada): cUL
  • Approvals: Exceeds IEEE 587 category A&B specifications
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $75,000 Ultimate Lifetime Insurance


• Item Includes:

  • TLM626TEL15 surge suppressor
  • 6 ft. RJ-11 phone cord
  • Instruction manual and warranty information


• Warranty:

  • Lifetime


• GTIN:

  0037332128652
