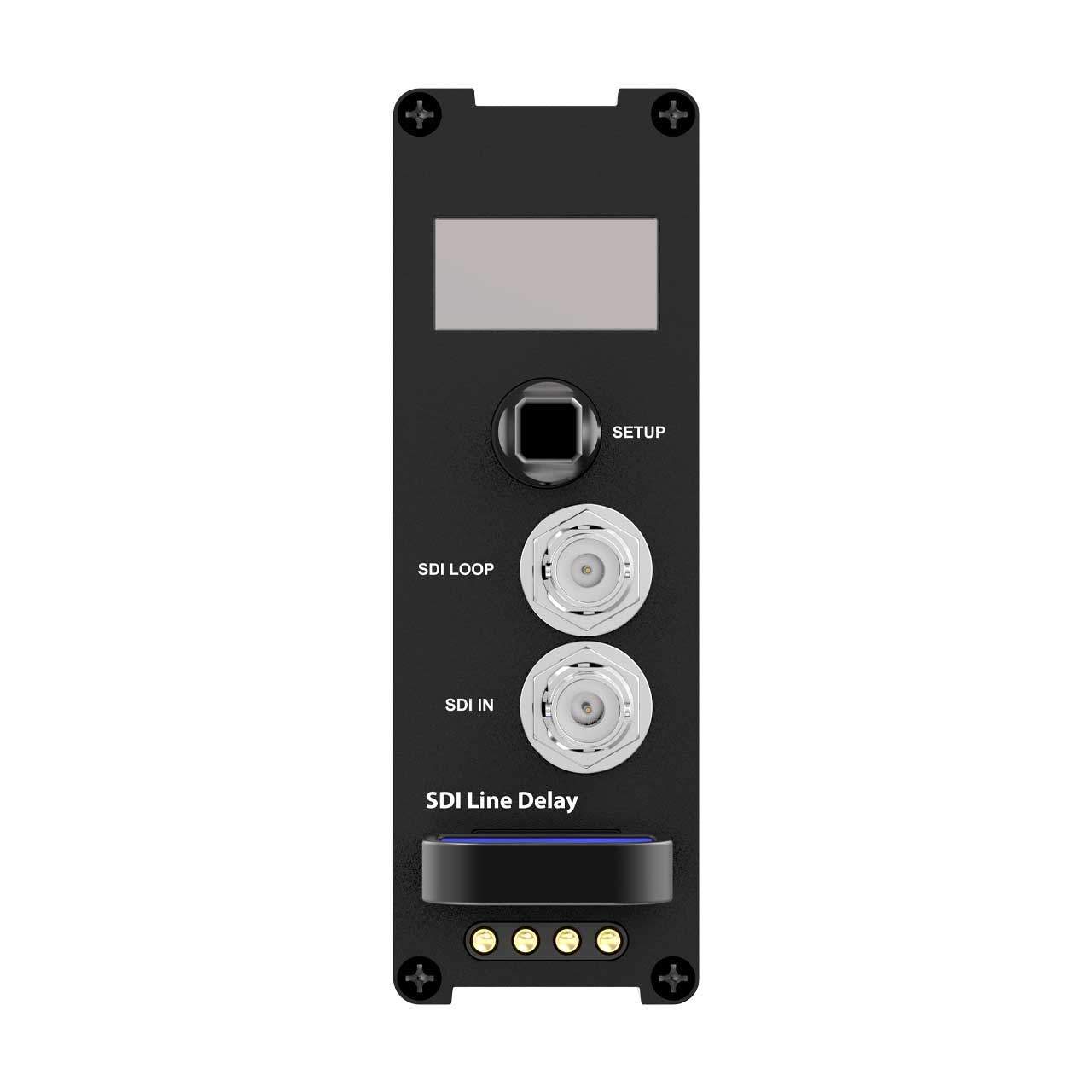

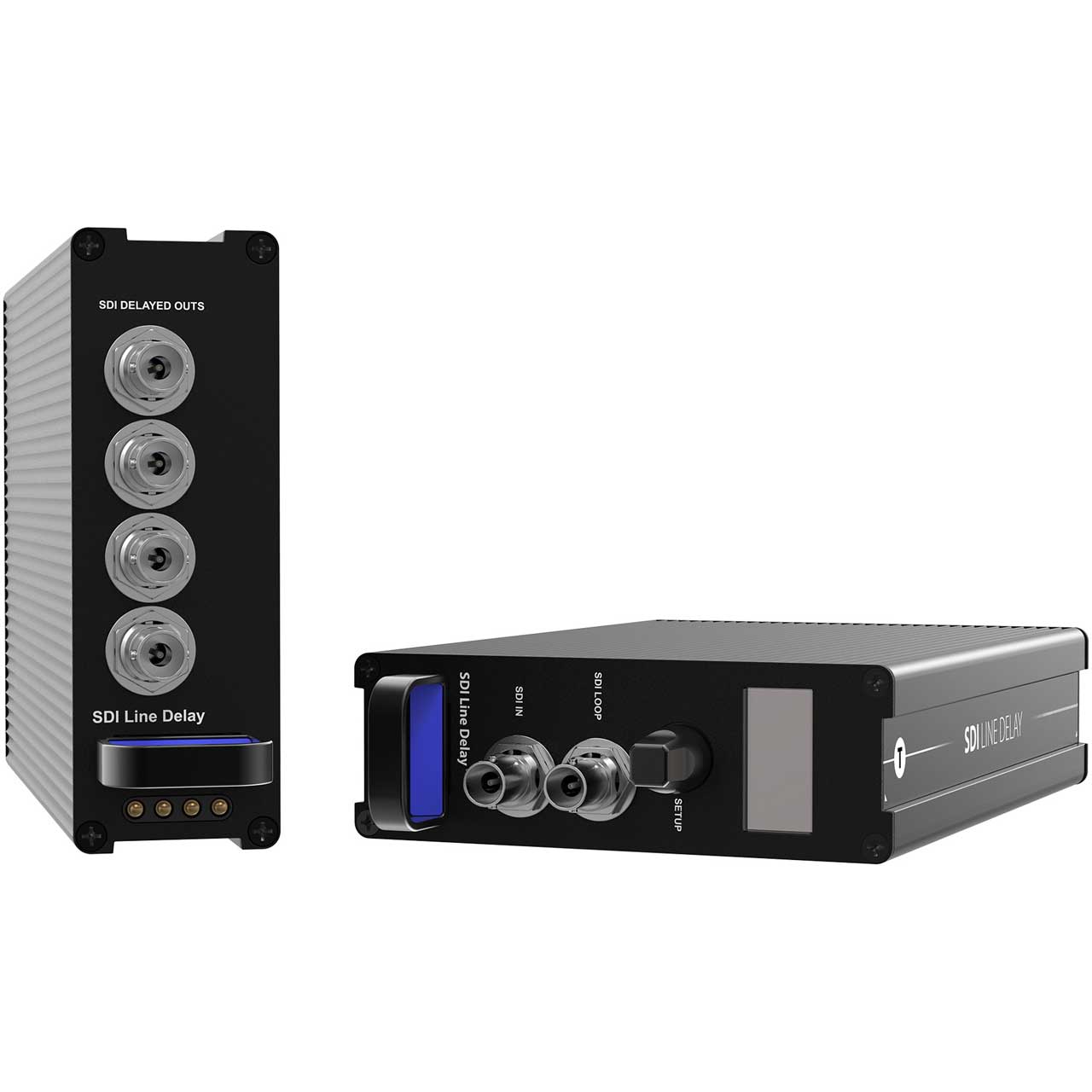

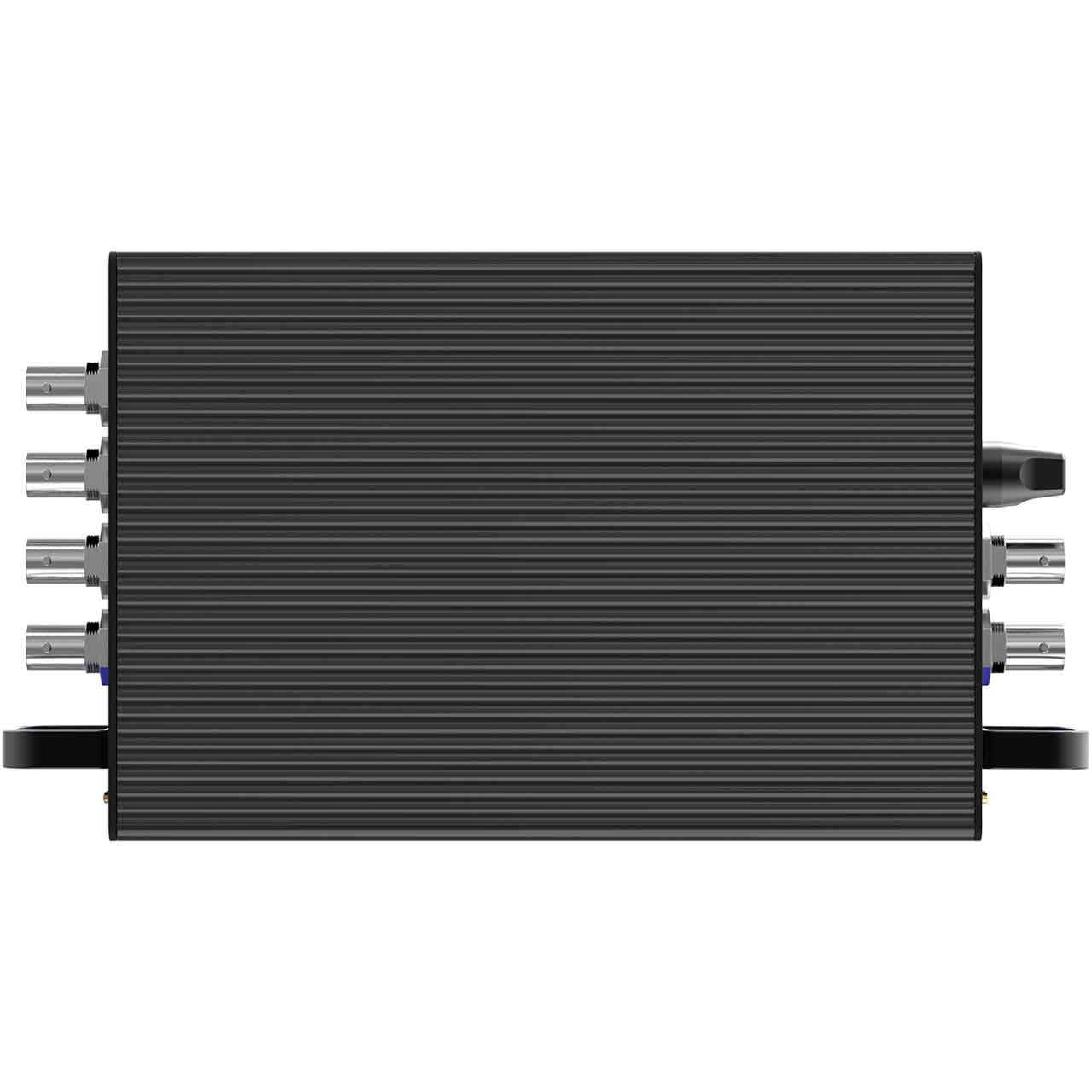

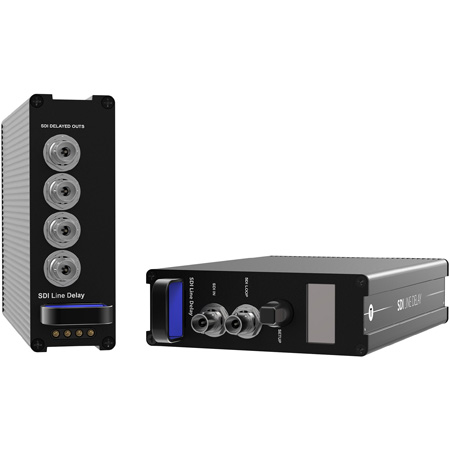

Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module
  • Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module
  • Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module
  • Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module
  • Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module
  • Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module

Questions? Ask a Markertek Expert:
800-522-2025 Email

Theatrixx XVRM-SDIDLY 3G-SDI Line Delay Rack Module

Item #: TTX-XVRM-SDIDLY   •   MFG #: XVRM-SDIDLY



List Price:$2,498.52
Our Price:$1,565.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The 3G-SDI Line Delay Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system. The Theatrixx XVRM-SDIDLY module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.


    • Specifications

      • Processing
      • Maximum Delay
      • 160 frames (2690?ms @ 60?Hz)
      • Delayed elements
      • Entire SDI payload, including audio & meta
      • Adjustment
      • By the frame or by the millisecond, using onboard OLED display and rotary wheel

        Connections
      • Video Input: 1 x 3G-SDI BNC
      • Video Loop-thru: 1 x 3G-SDI BNC (no delay)

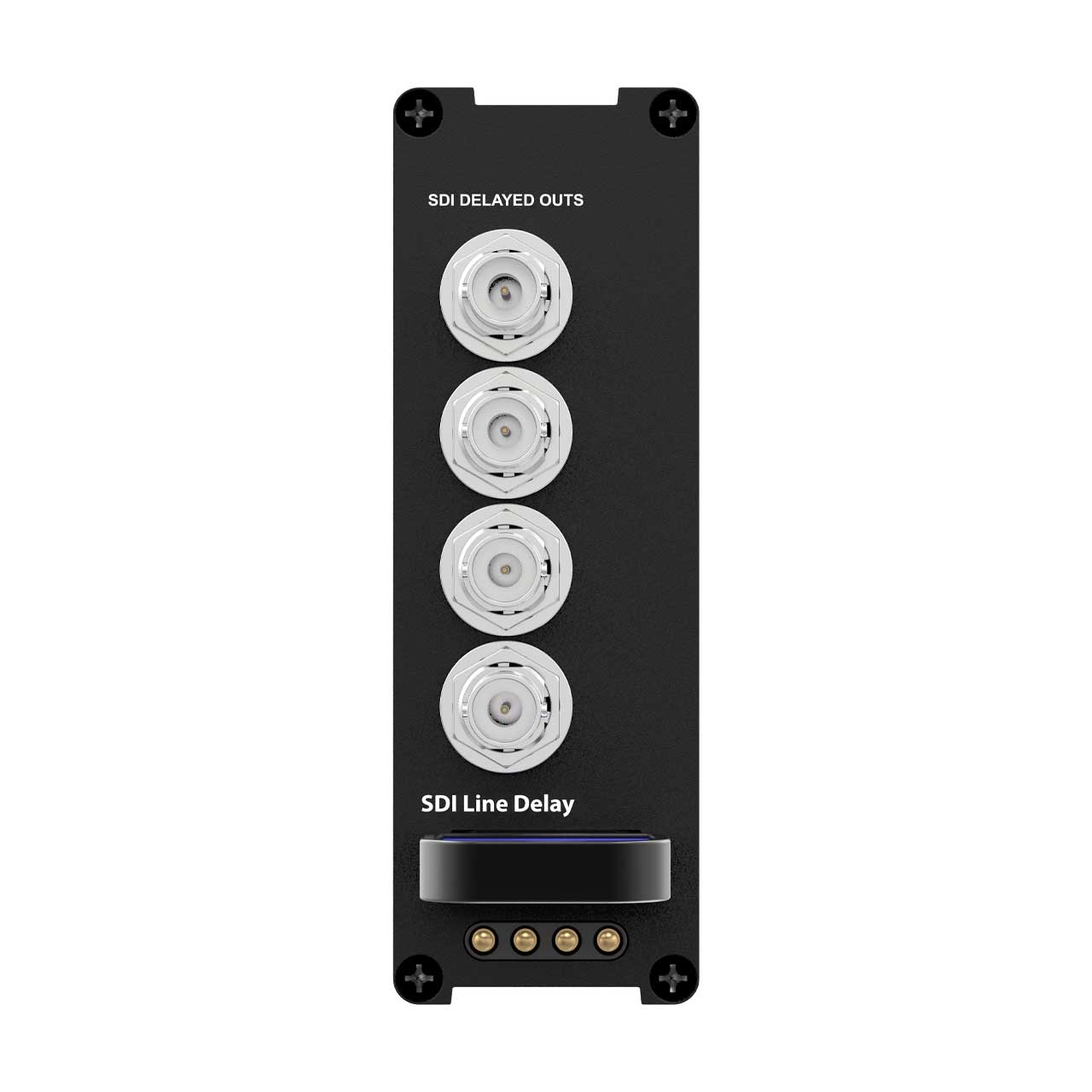

      • Video Output: 4 x 3G-SDI BNC (delayed & mirrored)

        Power Requirements
      • Power Supply
      • Reversible redundant power fed by TXVV-RF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20?W
      • Operational Voltage Range: 12?VDC

        Environmental
      • Relative Humidity: 0?% to 90?% non-condensing

        Physical
      • Width: 41?mm (1.61?in)
      • Height: 121.5?mm (4.78?in)
      • Depth: 225?mm (8.85?in)
      • Weight: 710?g (1.56?lbs)

        Supported Signals
      • 3G Formats: 1920x1080?p @ 60/50?fps
      • SD Formats: 720x480?i @ 60?fps, 720x576?i @ 50?fps
        HD Formats:
      • 1920x1080?p @ 30/25/24?fps
      • 1920x1080?i @ 60/50?fps
      • 1280x720?p @ 60/50?fps

        Embedded Audio
      • Up to 16 channels, 24?bit, 48?kHz
      • SMPTE Standards
      • ST425?M Level A & B, ST424?M, ST292?M, ST259?M

        Certification
      • This device complies with the following international standards
      • FCC Part 15 Class A
      • EN 60950-1
      • EN 55022

    • Item Includes

      • 1x Theatrixx Reversible Module 3G-SDI Line Delay
