Theatrixx XVVAUDIO2SDI xVision Converter HDMI/SDI + Audio Embedder to SDI - Edison Out

ITEM #: TTX-XVVAUDIO2SDI MFG #: XVVAUDIO2SDI

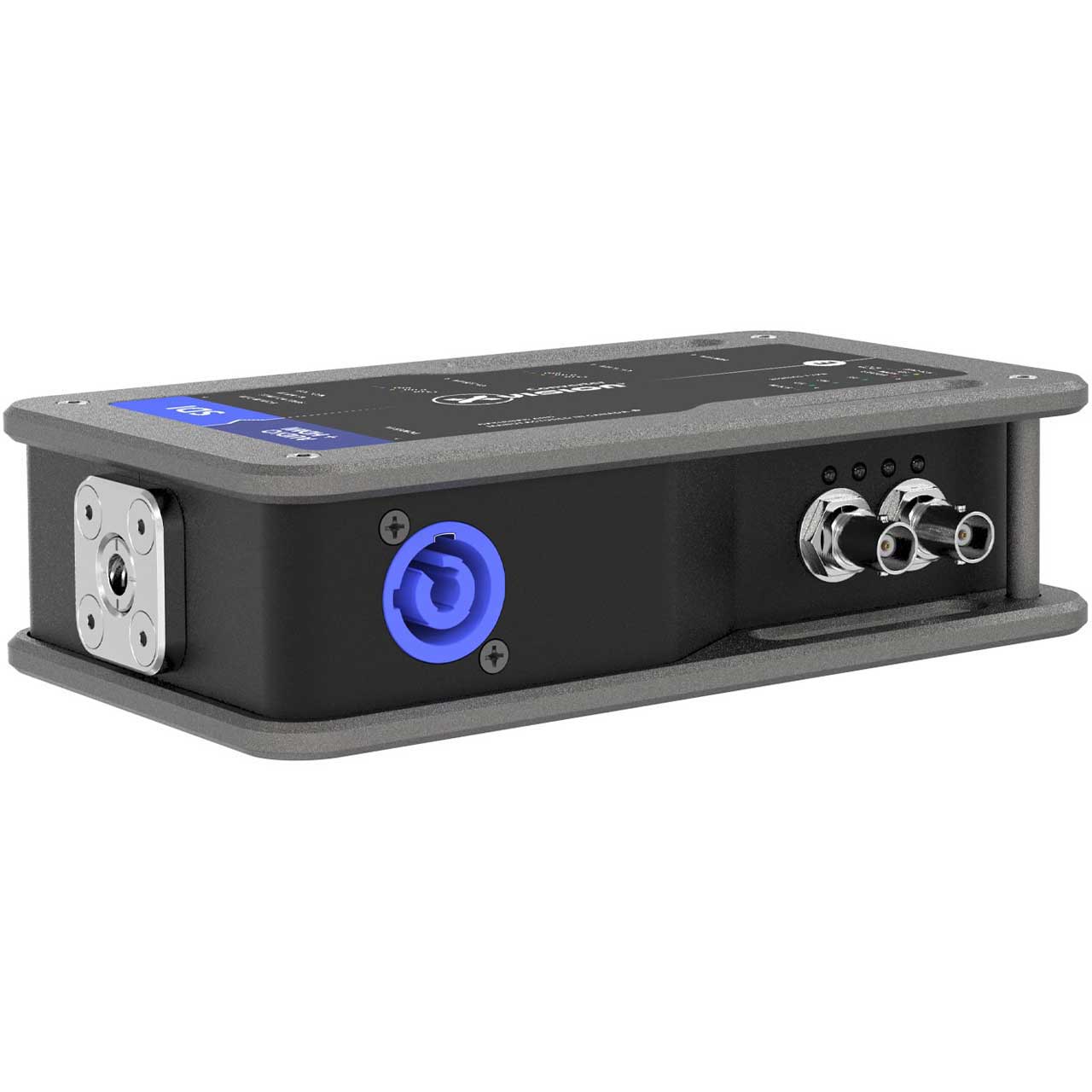

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$705.00

Availability: In Stock
iAvailability Description Popup


    XVVAUDIO2SDI - Overview

    Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

    Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

    Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVAUDIO2SDI xVision Video Converter.

    • Features:

      • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector..Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • Locking HDMI port prevents accidental disconnection.
      • Professional balanced -4dB XLR analog audio inputs each with a 3-segment LED meter.
      • Combines analog audio with incoming HDMI or SDI into a reclocked SDI output - with automatic input detection.
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections
      • Video Input: Auto switching between 1 x 3G/HD/SD SDI, BNC & 1 x HDMI 1.4 type A with locking system
      • Audio Input: 2 x Balanced + 4dB XLR (analog) each with a 3-segment LED meter
      • Video Output: 1 x 3G/HD/SD SDI BNC

        Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • Embedding to: SDI Channels 1 & 2
      • SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M

        Physical
      • Height: 50 mm (1.97 in)
      • Depth: 180 mm (7.08 in)
      • Width: 107 mm (4.21 in)
      • Weight: 1 kg (2.2 lbs)
      • Alternate Form Factor: Also available as a Reversible Module

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

        Power Requirements
      • Power SupplyL Built-in power supply, PowerCON input Edison Nema 5-15 output (loop-thru)
      • Power Consumption: 15W
      • Voltage Range: 100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes:

      • 1x xVision Converter SDI Audio Embedder
      • 1x AC Mains to PowerCON cable
