tvONE 1T-CL-322-US North American 16 Button 2-Gang Wall Mounted Control Panel

ITEM #: TV1-1T-CL-322-US MFG #: 1T-CL-322-US

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$605.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1T-CL-322-US - Overview

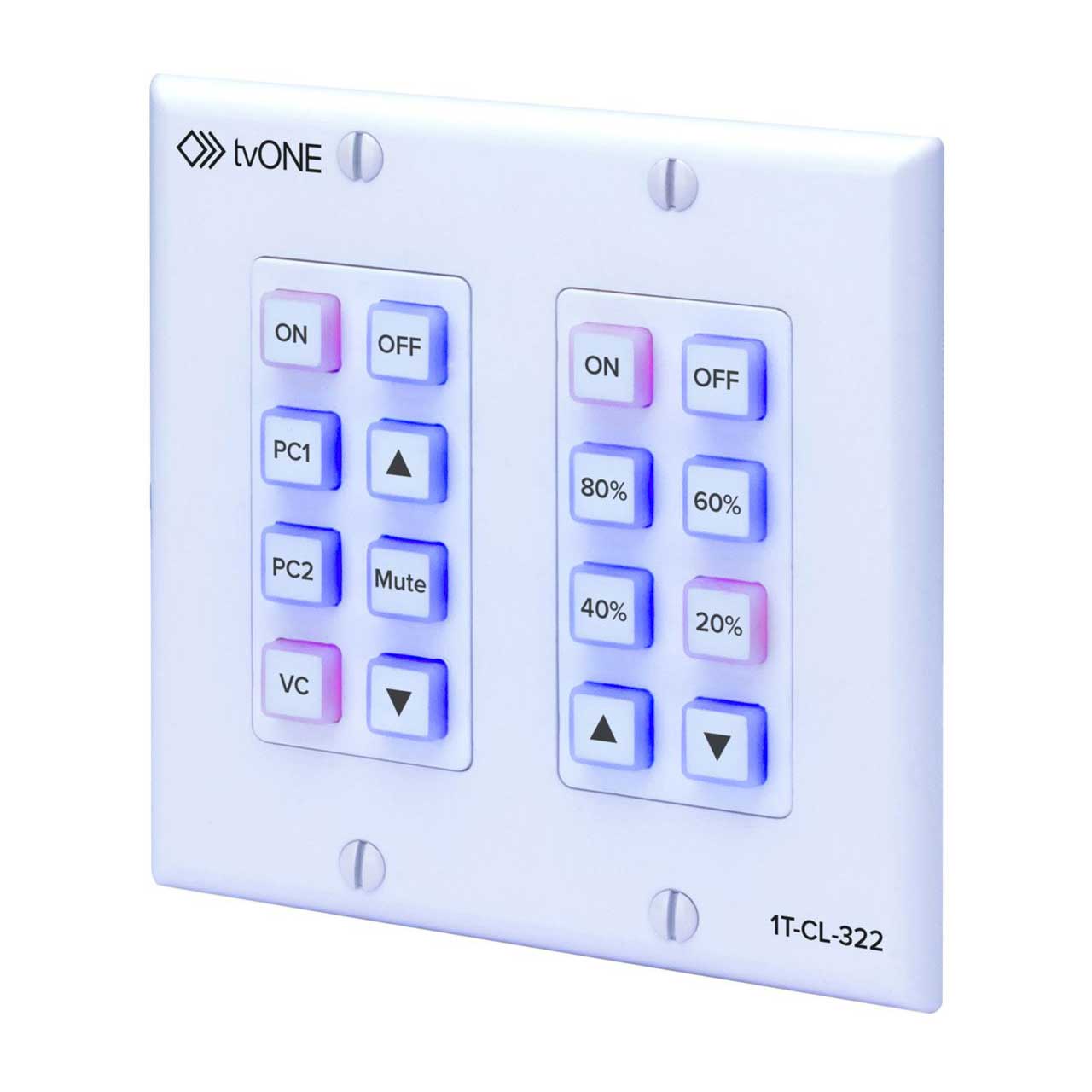

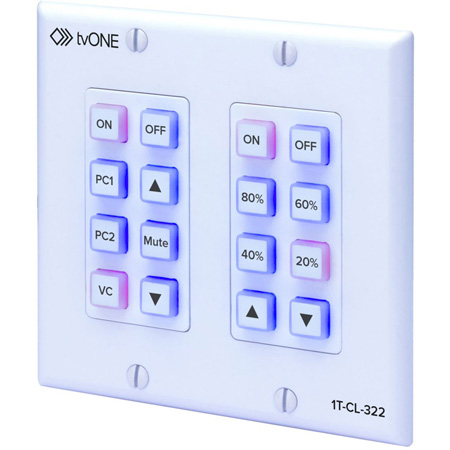

    The tvONE 1T-CL-322-US Control Panel is an easy to use cost effective Ethernet based solution for system automation and remote control. It is designed to be highly flexible but simple to install for both experienced system integrators and the smart home user. The control panel consists of 16 LED backlit buttons, each programmable for either a single function or for recalling a sequence of commands in a macro. Each macro can be executed with a single button push, recalling up to 16 of the 128 stored commands, allowing the user to create and easily recall complex scenes or presets.

    The unit controls equipment via a single Ethernet port which can be set to Static or DHCP. PoE (Power over Ethernet) is supported which allows for greater flexibility in system design and installation. In addition to the Ethernet port, a relay output can be used to trigger mechanical devices such as motorised curtains, screens or projector hoists adding another level of environmental control.

    • Features:

      • 16-programmable buttons
      • Ethernet port
      • 1-Programmable relay
      • Supports PoE Power over Ethernet
      • WebUI interface for setup
      • Supports up to 128-commands
      • Up to 32-macros each containing
      • up to 16-commands
      • 2-color LED backlit buttons 0-100%

    • Specifications:

      • Data Connection: Ethernet 10/100Mbps via RJ45 Connector
      • Output: Ethernet 1x RJ45 Connector
      • Relay: Terminal block (supports DC 0 to 24V/8A)
      • Programming: Web Interface or Telnet
      • Application: Network discovery tool

        Physical Characteristics

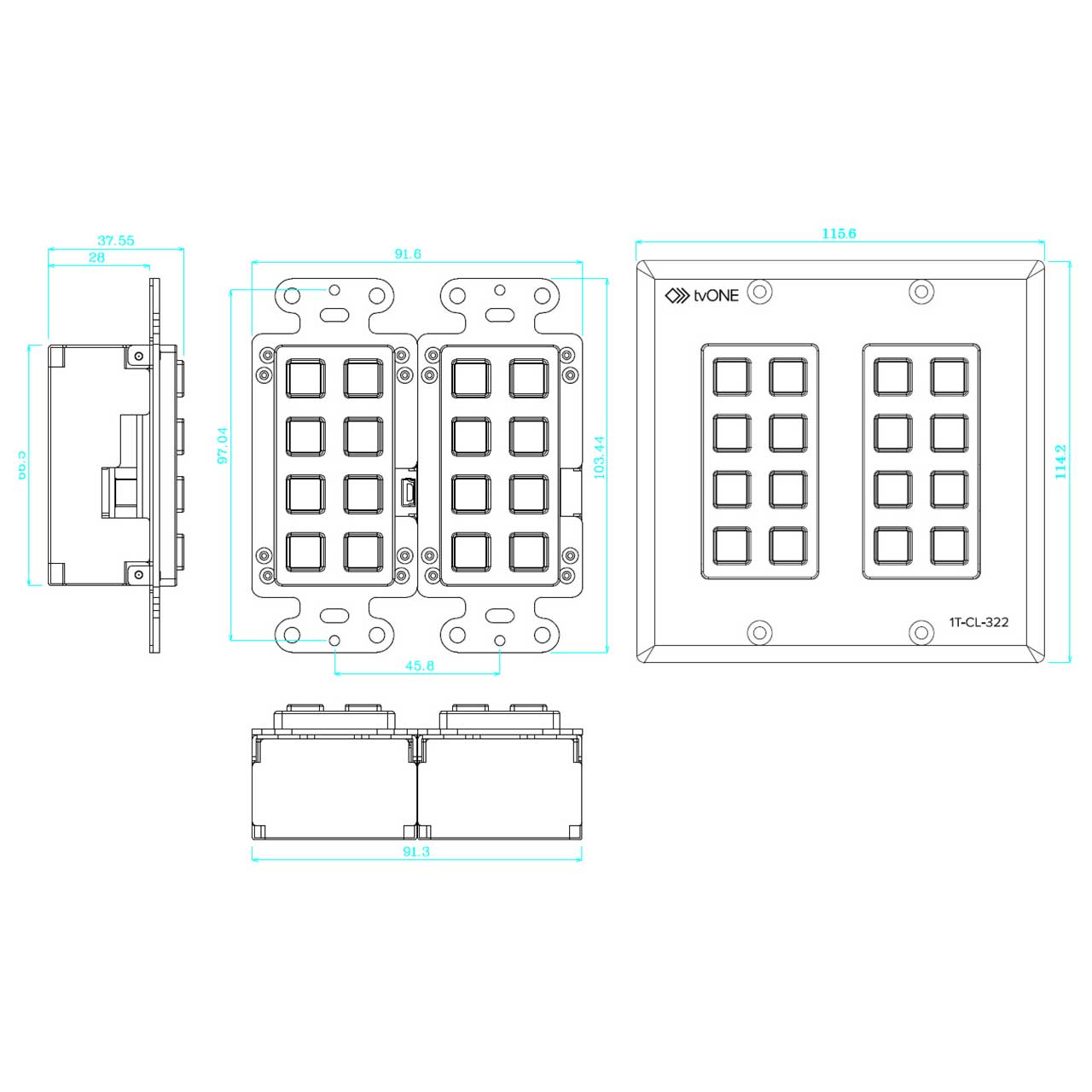

      • Size (H x W x D): 5.7" x 1.6" x 3.4" (114mm 116mm 47mm)
      • Weight (Net): 8.4oz (238g)
      • DC adaptor: 5V 2.6A CE/FCC/RoHS/UL
      • Power over Ethernet: PoE PD 48V
      • Front panel: Plastic
      • Chassis: Pressed Aluminium
      • Buttons: Silicon 2x color LED
      • Operating Temperature: +32° to +104° F (0° to +40° C)
      • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
      • Operating Humidity: 20% to 90% Non-Condensing
