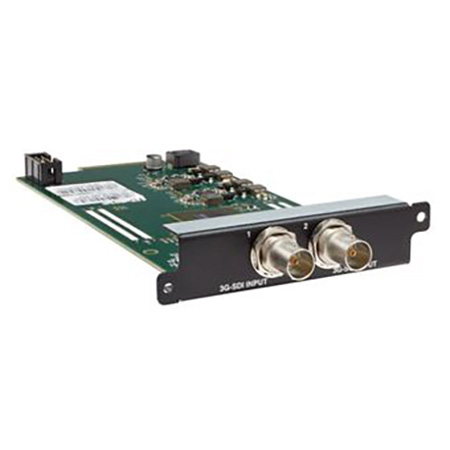

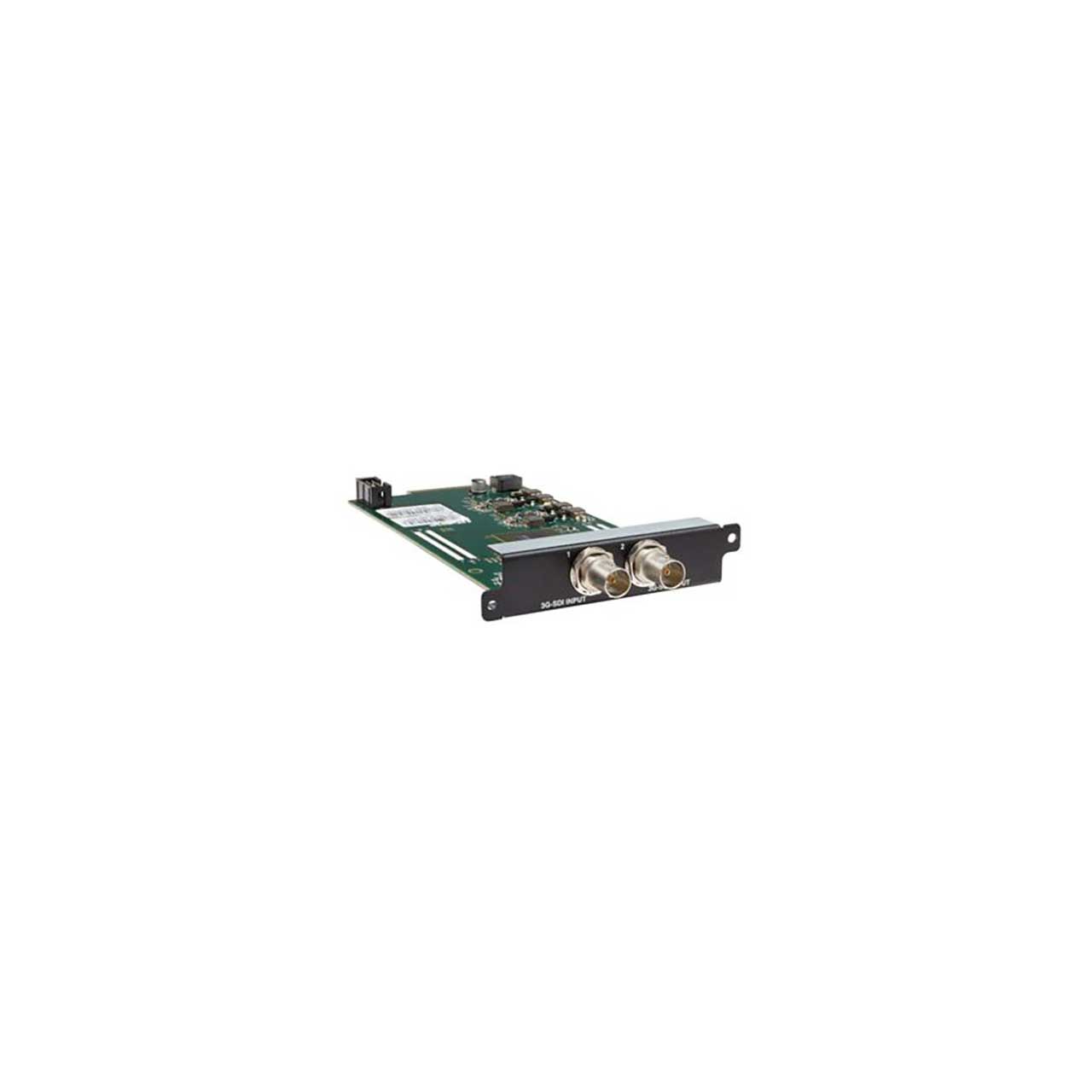

tvONE CM-3GSDI-2IN CORIOmaster Broadcast Input Module - Dual 3G-SDI BNC Inputs for 3G/HD/SDI for CORIOmaster Only

CM-3GSDI-2IN - Overview

• Features:

  • Dual 3G/HD/SD SDi
  • Full size BNC connectors


• Specifications:

  • Input Connectors: 2 x BNC
  • 3G-SDI: 1080p 60/59.94 SMPTE424M-A 2.97/2.967Gbps < 0.3 UI jitter
  • HD-SDI: 720p, 1035i, 1080i (reduced quality with this because quad input is 4:2:0), 1080p SMPTE292M 1.485/1.4835Gbps < 0.2 UI jitter
  • SD-SDI: (526/625 lines) SMPTE259M-C 270Mbps < 0.1 UI jitter
  • Color Format Support: SDI 4:2:2
  • Color Depth: 20-bit


  • Resolution Support
  • 720x487i (59.94Hz), 720x576i (50Hz), 1280x720p (23.98, 24, 5, 29.97, 30, 50, 59.94,
  • 60Hz), 1920x1080i (50, 59.94, 60Hz), 1920x1080P (23.98, 24, 25, 29.97, 30, 50,
  • 59.94, 60Hz)

    Audio
  • Supported Sampling Rate: 48KHz
  • Sample Size: 24 bits
  • Supported Channels: 1 Stereo pair on each input


• Item Includes:

  • 1x tvONE CM-3GSDI-2IN CORIOmaster Broadcast Input Module - Dual 3G-SDI BNC Inputs for 3G/HD/SDI
