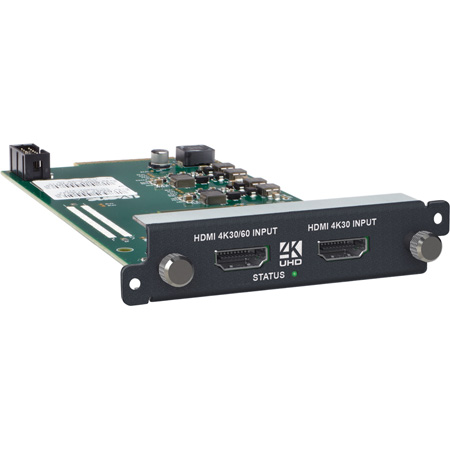

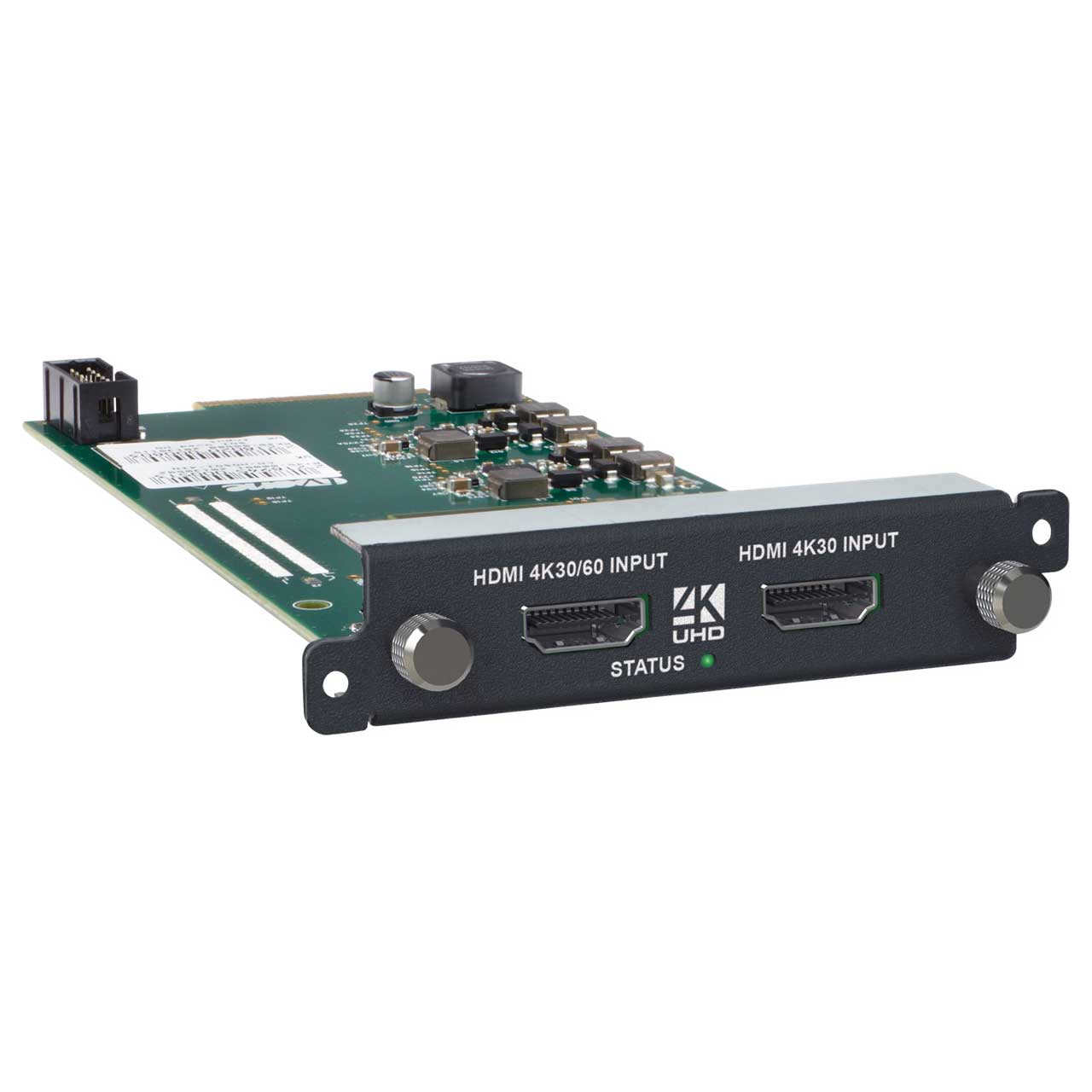

tvONE CM-HDMI-4K-2IN 2-Input 4K 30/60 HDMI Module for CORIOmaster - up to 4096x2160/60p

CM-HDMI-4K-2IN - Overview

• Features:

  • Dual 4K30 or single 4K60 HDMI Inputs
  • HDMI 2.0 (for 3840 x 2160 4:2:0 @ 50Hz, 59.94Hz & 60Hz) HDMI 1.4 (for other resolutions)
  • HDCP 1.4


• Specifications:

  • Inputs: 2 x 4K30 or 1 x 4K60

    Resolution Support
  • 640x480p(60, 72, 75, 85Hz)
  • 720x487i (59.94Hz)
  • 720x480i (59.94Hz)
  • 720x480p (59.94Hz)
  • 720x576i (50Hz)
  • 720x576p (50Hz)
  • 800x600p (56, 60, 72, 75, 85Hz)
  • 980x980p (75Hz)
  • 1024x768p (60, 70, 75, 85Hz)
  • 1152x864p (70, 75Hz)
  • 1280x720p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • 1280x768p (60, 75, 85Hz)
  • 1280x800p (60, 75, 85Hz)
  • 1280x960p (60, 85Hz)
  • 1280x1024p (50, 60, 75, 85Hz)
  • 1360x768p (60Hz)
  • 1400x900p (60Hz)
  • 1400x1050p (50, 60, 75Hz)
  • 1440x900P (60, 75, 85Hz)
  • 1600x900p (60Hz)
  • 1680x1050p (60Hz)
  • 1920x720p (60Hz)
  • 1920x1080i (47.96, 48, 50, 59.94, 60Hz)
  • 1920x1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • 3840x2160p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • 4096x2160p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • Compatibility: HDMI 2.0 (for 3840 x 2160 4:2:0 @ 50Hz, 59.94Hz & 60 Hz) HDMI 1.4 (for other resolutions) HDCP 1.4
  • Color Space: BT.601 on standard resolutions BT.709 for 720p, 1080i, 1080p and 2160p

    Audio
  • Supported Sampling Rate: 48KHz
  • Sample Size: 24 bits
  • Supported Channels: 1 Stereo pair on each input


• Item Includes:

  • 1x tvONE CM-HDMI-4K-2IN 2-Input 4K 30/60 HDMI Module for CORIOmaster - up to 4096x2160/60p
