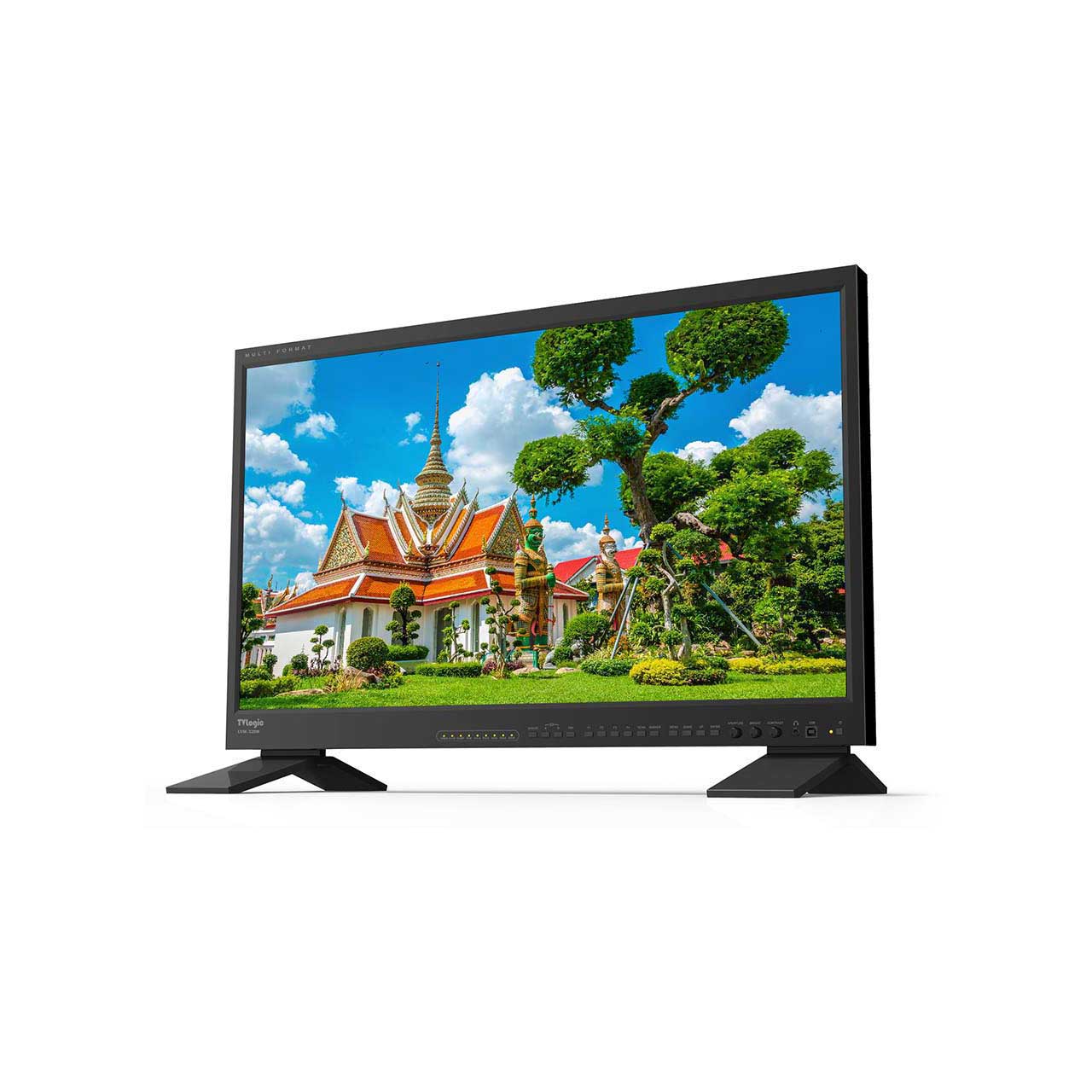

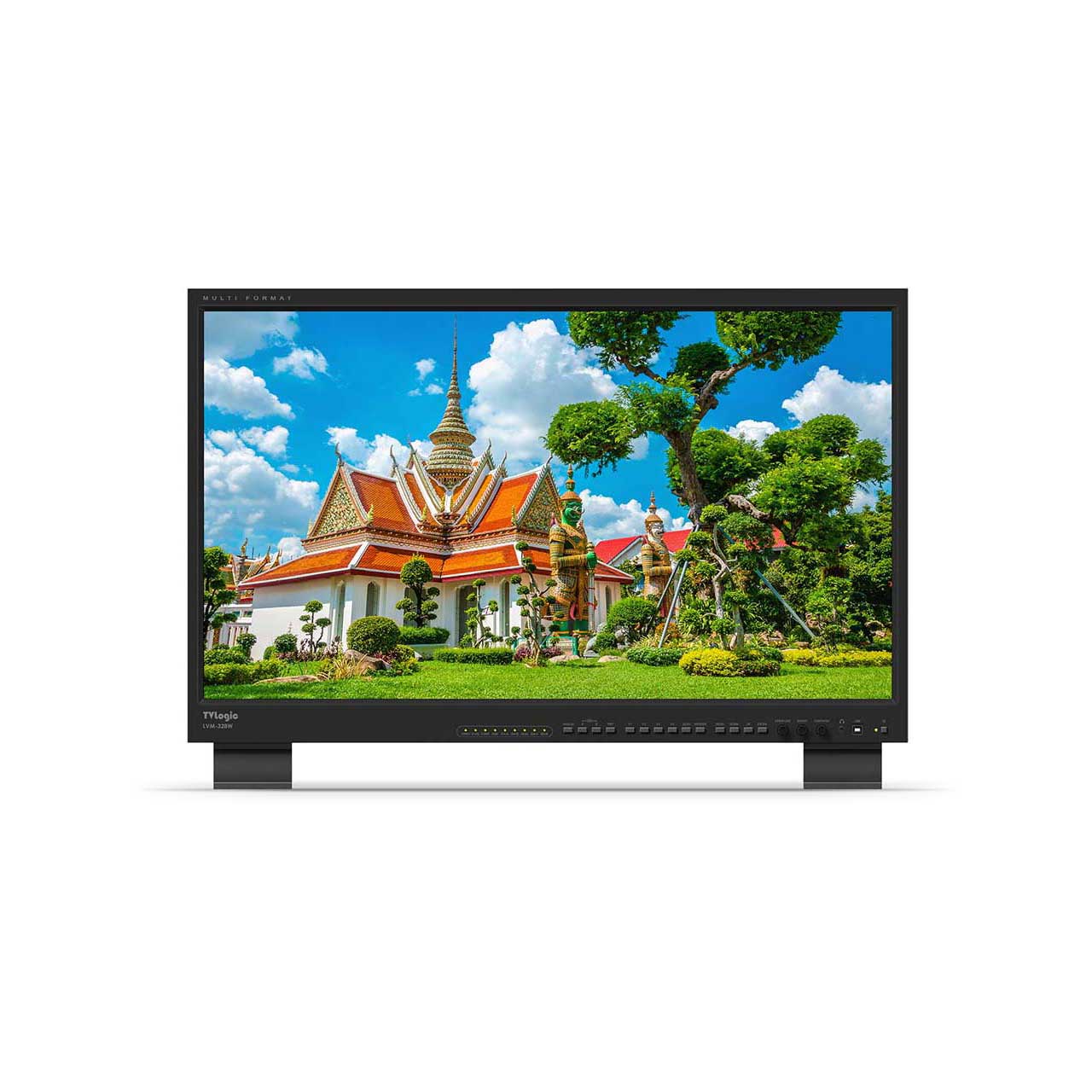

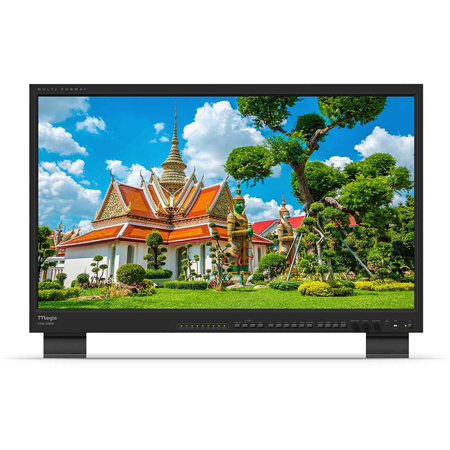

TV Logic LVM-328W 32-Inch 1920x1080 Resolution Broadcast QC-Grade Video Monitor

LVM-328W - Overview

• Features:

  • 32" Full HD Resolution (1920 x 1080)
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Timecode Display
  • Blue/Mono Only
  • Luma(Y') Zone Check
  • Various Scan Modes
  • Closed Caption (CC-608, CC-708, OP42/47)
  • Fast Mode
  • Focus Assist
  • Marker
  • H/V Delay
  • Range Error
  • User Aspect
  • Dynamic UMD


• Specifications:

  • Display Spec
  • Size: 31.5"
  • Resolution: 1920 X 1080 (16 : 9)
  • Pixel Pitch: 0.364mm
  • Color Depth: 16.7M
  • Viewing Angle: 178°(H) / 178°(V)
  • Luminance: 400cd/m2
  • Contrast Ratio: 1200 : 1
  • Display Area: 698(H) x 393(V) mm

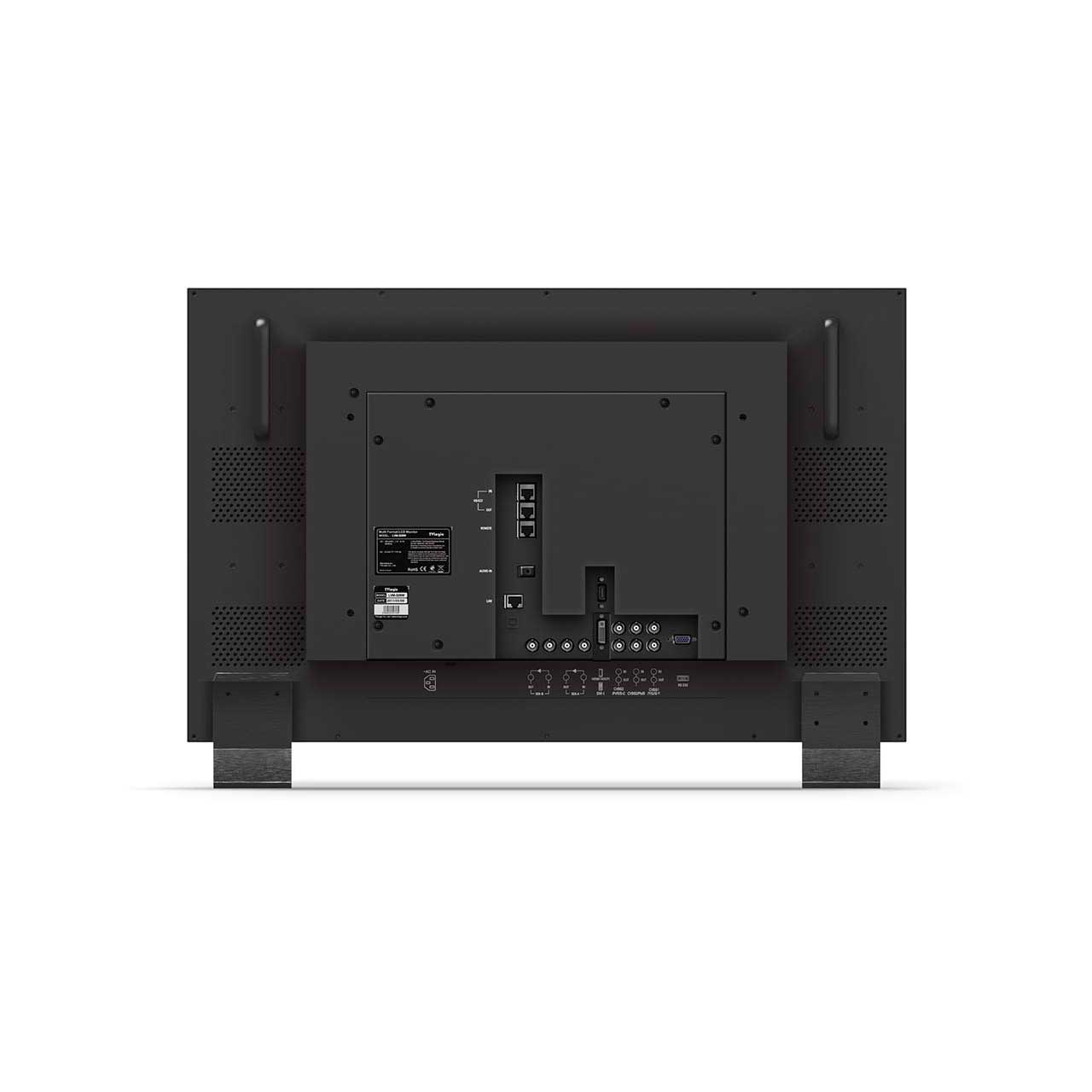

    Inputs
  • 3x BNC: Analog Input
  • 2x BNC: 3G-SDI A/B Channel Input
  • 1x HDMI: HDMI Input
  • 1x DVI: DVI Input

    Outputs
  • 3x BNC: Analog Output
  • 2x BNC: 3G-SDI Output

    Input Signal
  • Analog: CVBS / S-Video / Component Video / RGB(D-TV)
  • 3G SDI: 2.970Gbps
  • HD SDI: 1.485Gbps
  • SD SDI: 270Mbps
  • HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/160 0x1200
  • DVI Analog: 640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080
  • DVI DP: 640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080/1920x1200
  • DVI DH: 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)

    SDI Input Signal Formats
  • SMPTE 425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
  • SMPTE 372: Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
  • SMPTE 296: 720p (60/59.94/50)
  • SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE 260: 1035i (60/59.94)
  • SMPTE 125: 480i (59.94)
  • ITU-R BT.656: 576i (50)
  • 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

    Audio
  • Audio In: Embedded Audio/Analog Stereo (Phone Jack)
  • Audio Out: Analog Stereo (Phone Jack)

    FPGA Functions
  • 1:1 Pixel Mapping Modes for SD/HD, Blue Only, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Waveform/Vector

    Closed Caption
  • CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

    Calibration
  • TVLogic Color Calibration Utility

    Other Functions
  • REMOTE: GPI (RJ45)
  • REMOTE: TVLogic's specification
  • USB: Firmware update by USB cable
  • Ethernet: Ethernet Control support

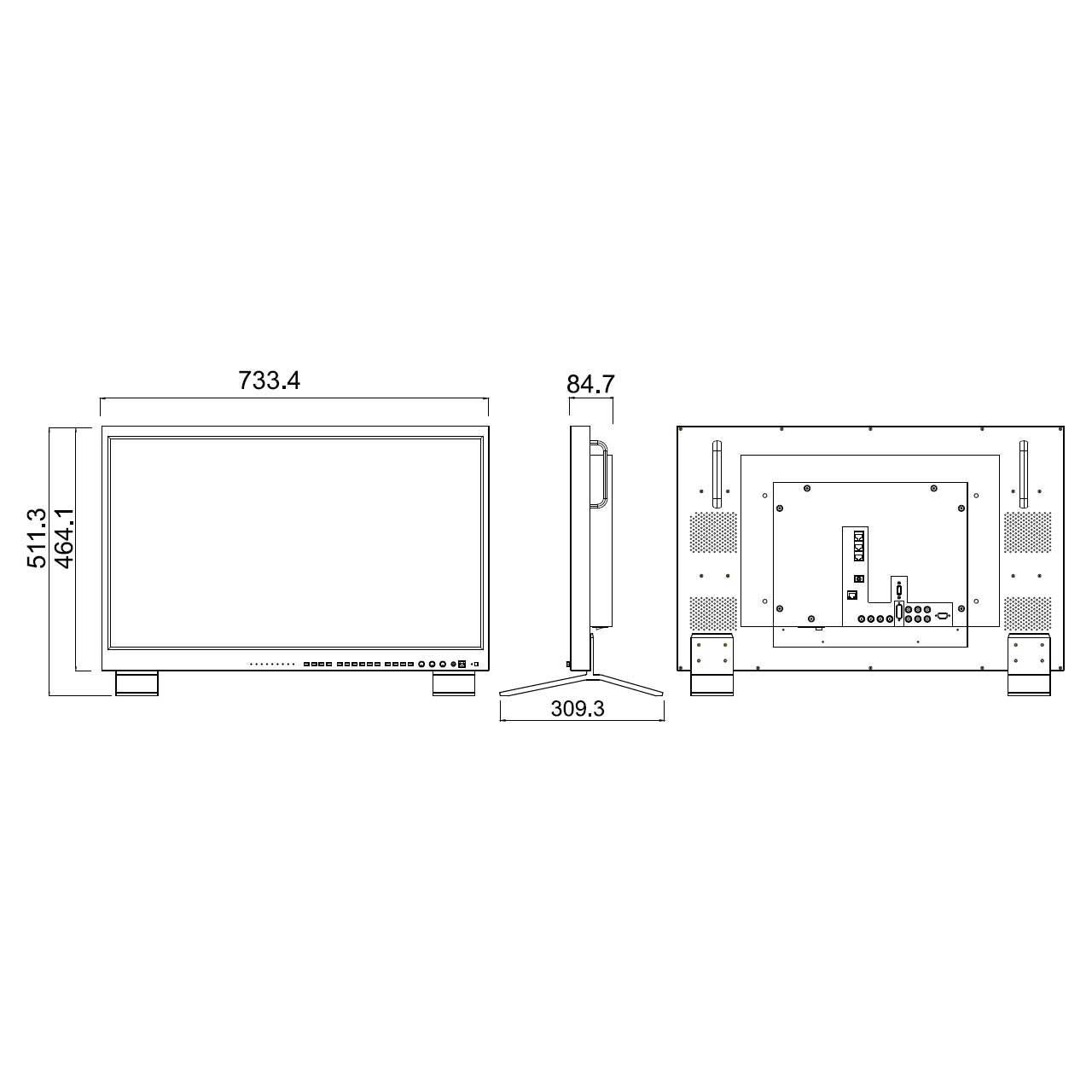

    Dimensions
  • Main Body Dims 28.87 x 18.27 x 3.33 (inch).
  • With Body: 28.87 x 20.13 x 12.18 (inch).
  • Weight: 30.42Ib
