TVLogic R-7D 2RU 12G-SDI Supported Dual 7 Inch LCD UHD 4K Ready Rackmount Video Monitor

ITEM #: TVL-R-7D MFG #: R-7D

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4,365.00

Our Price:

$3,928.50

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    R-7D - Overview

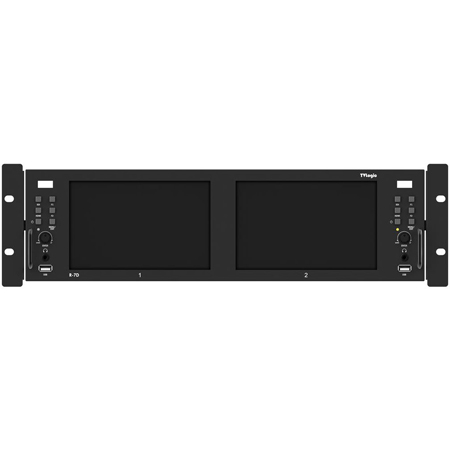

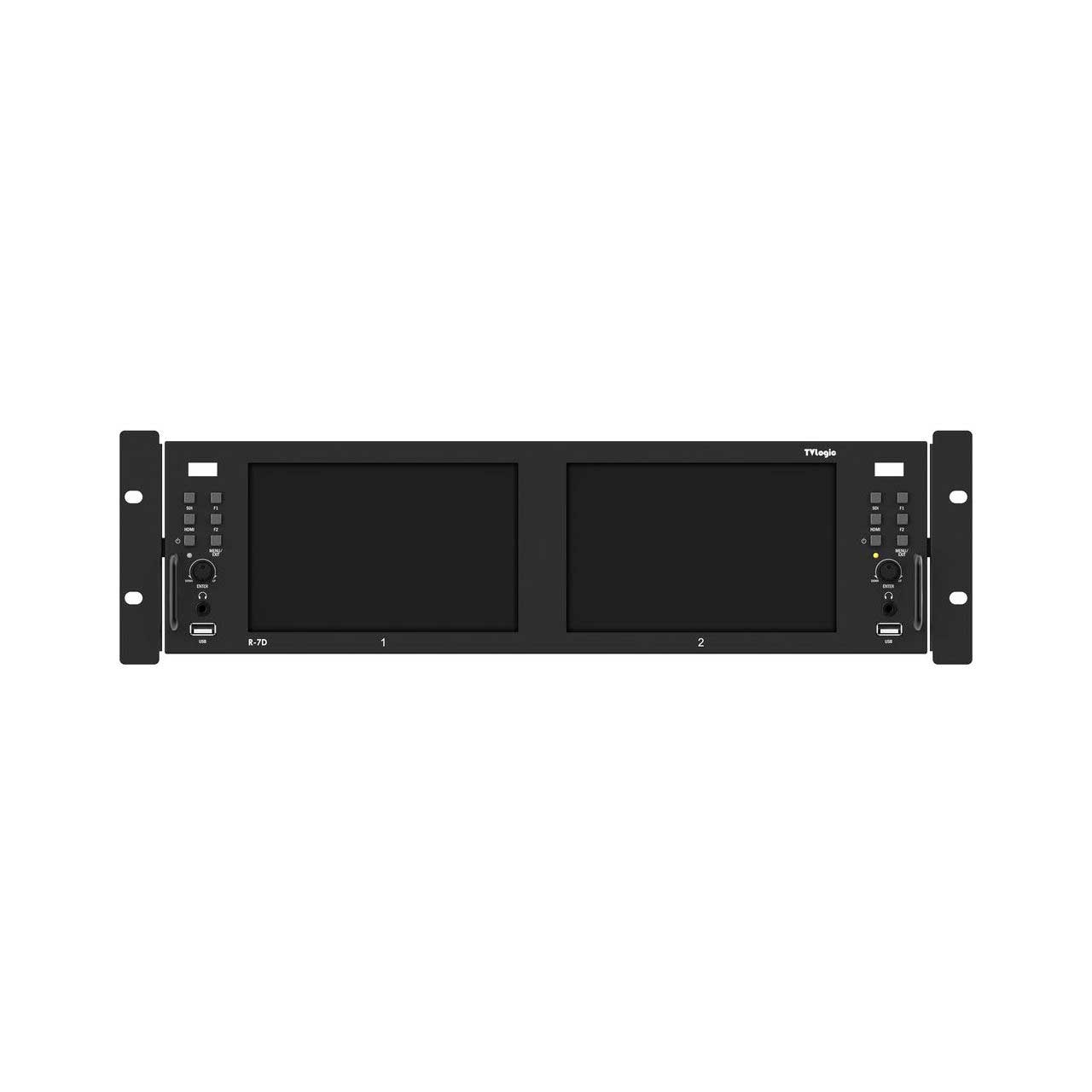

    Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.

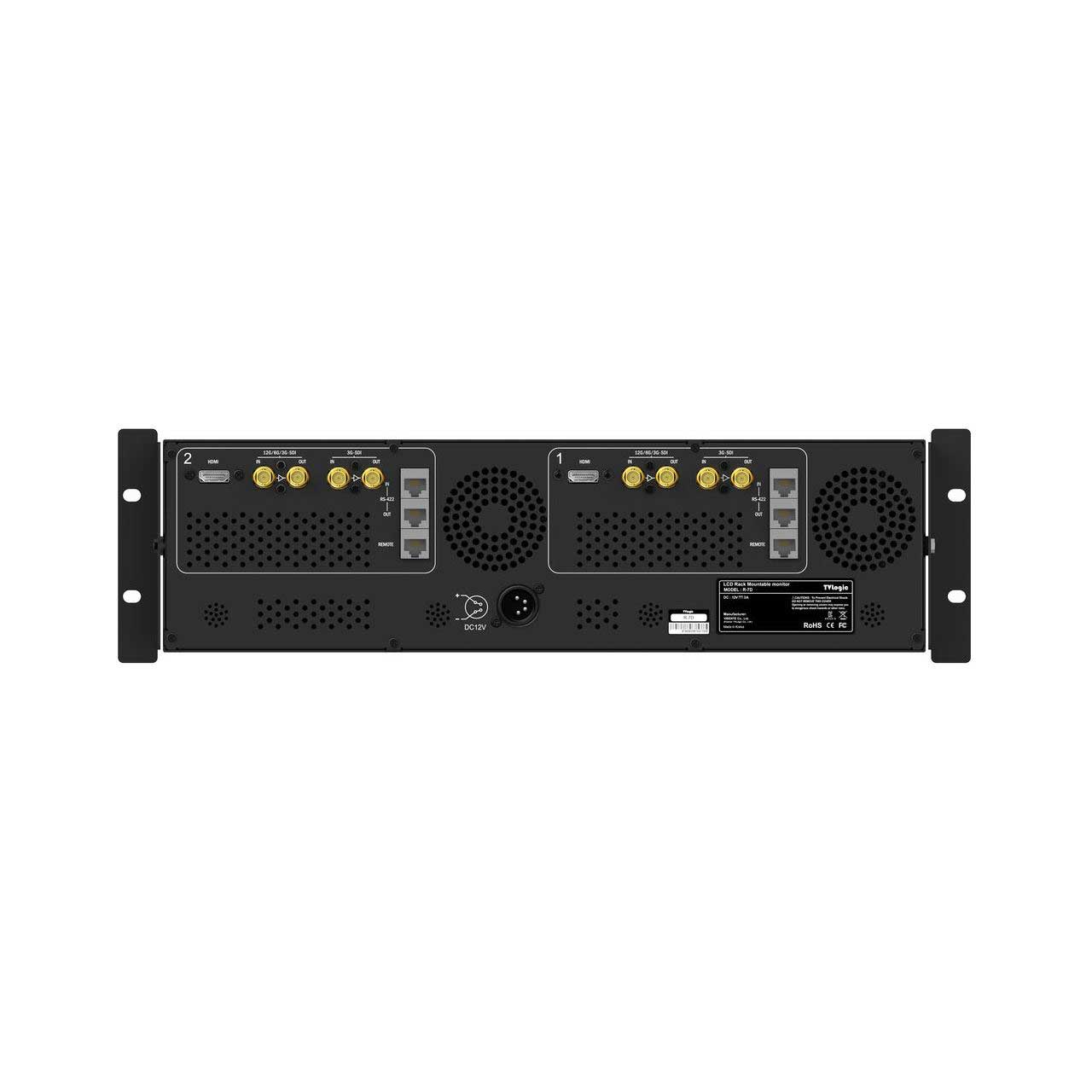

    Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a 12 VDC power adapter is included. A rackmount kit is included to mount the dual monitors onto a standard rack

    • Features:

      • Two 7" 1920 x 1200 resolution displays in an ultra-slim 3 RU design
      • 12G-SDI, 3G-SDI, and HDMI/O
      • Up to UHD 4K60 signal input
      • 160° viewing angle
      • 500 cd/m² brightness
      • 1200:1 contrast ratio
      • Headphone outputs
      • USB inputs for 3D LUT import
      • 4-pin XLR power input
      • 12 VDC power adapter included
      • Rackmount kit included

    • Specifications:

      • Panel Type: LCD
      • Display Size: 7.0"
      • Screen Area: 6.0 x 3.7"
      • Resolution: 1900 x 1200
      • Aspect Ratio: 16:10
      • Viewing Angle: Horizontal: 160°, Vertical: 160°
      • Touchscreen: No
      • Maximum Brightness: 500 cd/m2
      • Contrast Ratio: 1200:1
      • Dot Pitch: 0.07875 x 0.07875 mm
      • Bit Depth / Color Support: 6-Bit+FRC (16.7 Million Colors)
      • HDR Compatibility: Hybrid Log Gamma
      • Pixels Per Inch (ppi): 323 ppi
      • Image Controls: Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
      • Video I/O: 1x BNC (12G-SDI) Input, 1x BNC (3G-SDI) Input, 1x HDMI Input, 1x BNC (12G-SDI) Loop Output, 1x BNC (3G-SDI) Loop Output.
      • Embedded Audio: HDMI/SDI
      • Audio I/O: 2x 1/8" / 3.5 mm Headphone Output
      • Built-In Speaker: None
      • Power I/O: 1x XLR 4-Pin (1.85 A / 12 VDC) Input
      • DC Input Power: 12 VDC at 1.85 A
      • Power Consumption: 22 W
      • Other I/O: 2x USB-A 2.0 Input
      • Media/Memory Card Slot: None
      • Wi-Fi: None
      • Dimensions: 16.9 x 5.2x 2", Excluding Bracket, 18.9 x 5.2x 2.9", Including Bracket.
      • Weight: 5.42 lb
      • Operating Temperature: 32 to 104°F
      • Storage Temperature: -4 to 140°F

    • Item Includes:

      • TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors
      • Power Cable
      • Power Adapter
      • Rackmount Kit
      • Limited 1-Year Manufacturer Warranty
