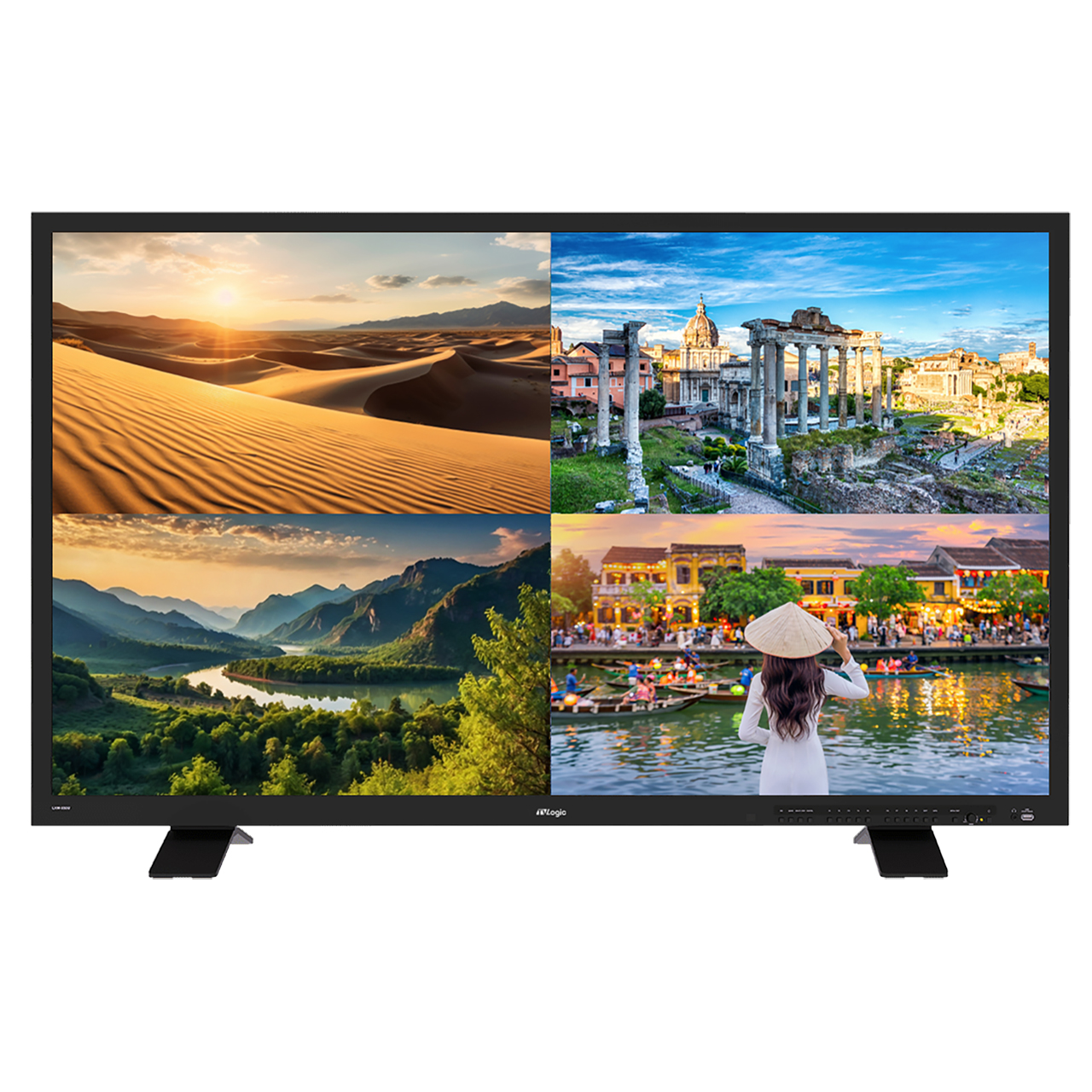

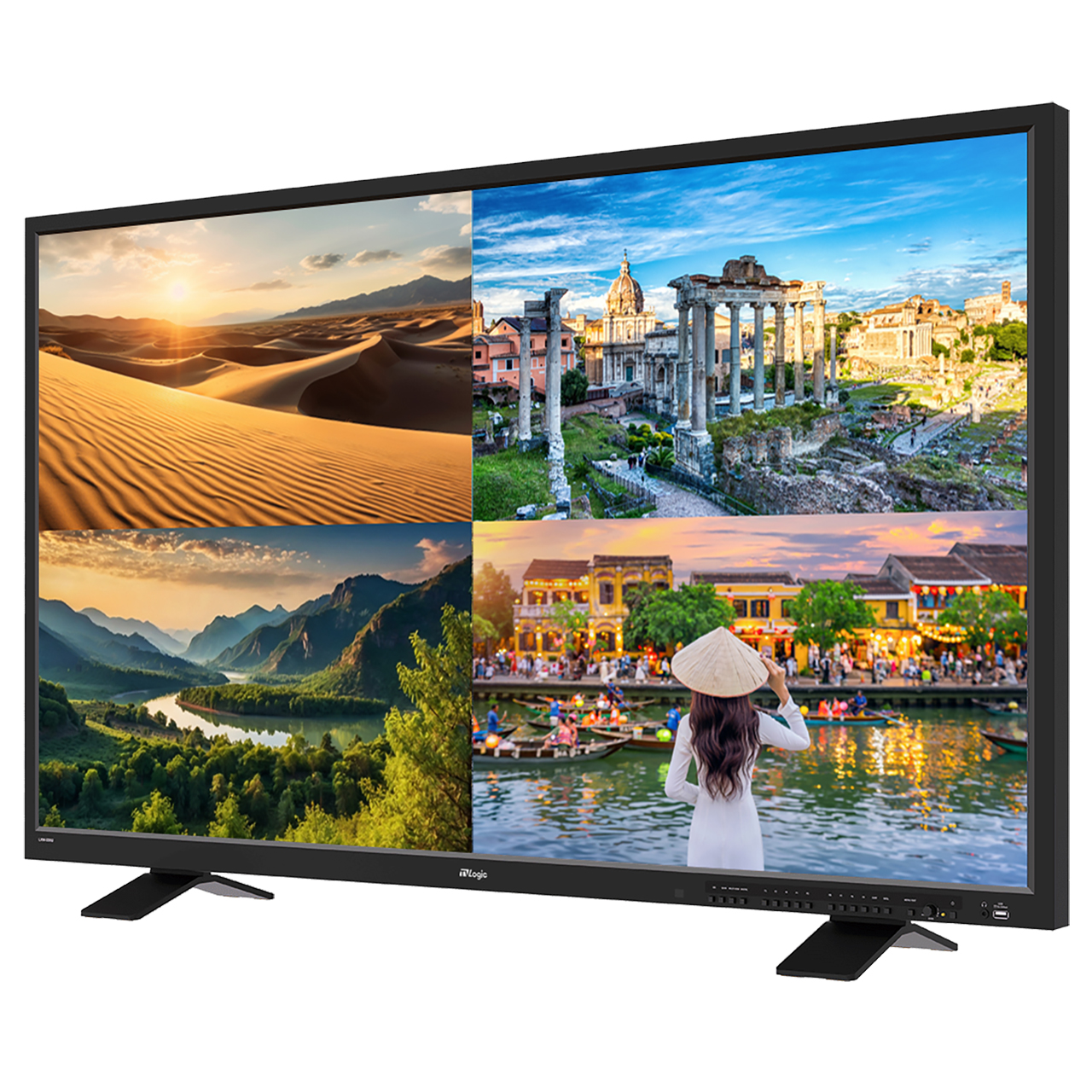

TVLogic LXM-550U 55-Inch 4K UHD 12G-Quad Multi-View Broadcast Monitor

Name: TVLogic LXM-550U 55-Inch 4K UHD 12G-Quad Multi-View Broadcast Monitor
Brand: TVLogic
SKU: TVL-LXM-550U
Price: 9742.50 USD
Availability: InStock

ITEM #: TVL-LXM-550U MFG #: LXM-550U

TVLogic

List Price:

$10,825.00

Our Price:

$9,742.50

Add to Wish List Leasing Options

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025

Shipment of this item is subject to a separate oversized-package carrier surcharge.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LXM-550U - Overview

TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware and software solutions!

The TVLogic LXM series LXM-550U incorporates x4 12G-SDI inputs, x4 12G-SDI outputs, Reference (External Sync) input, HDMI 2.0 input, x2 SFP inputs & a Processed Monitor Output.

These 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

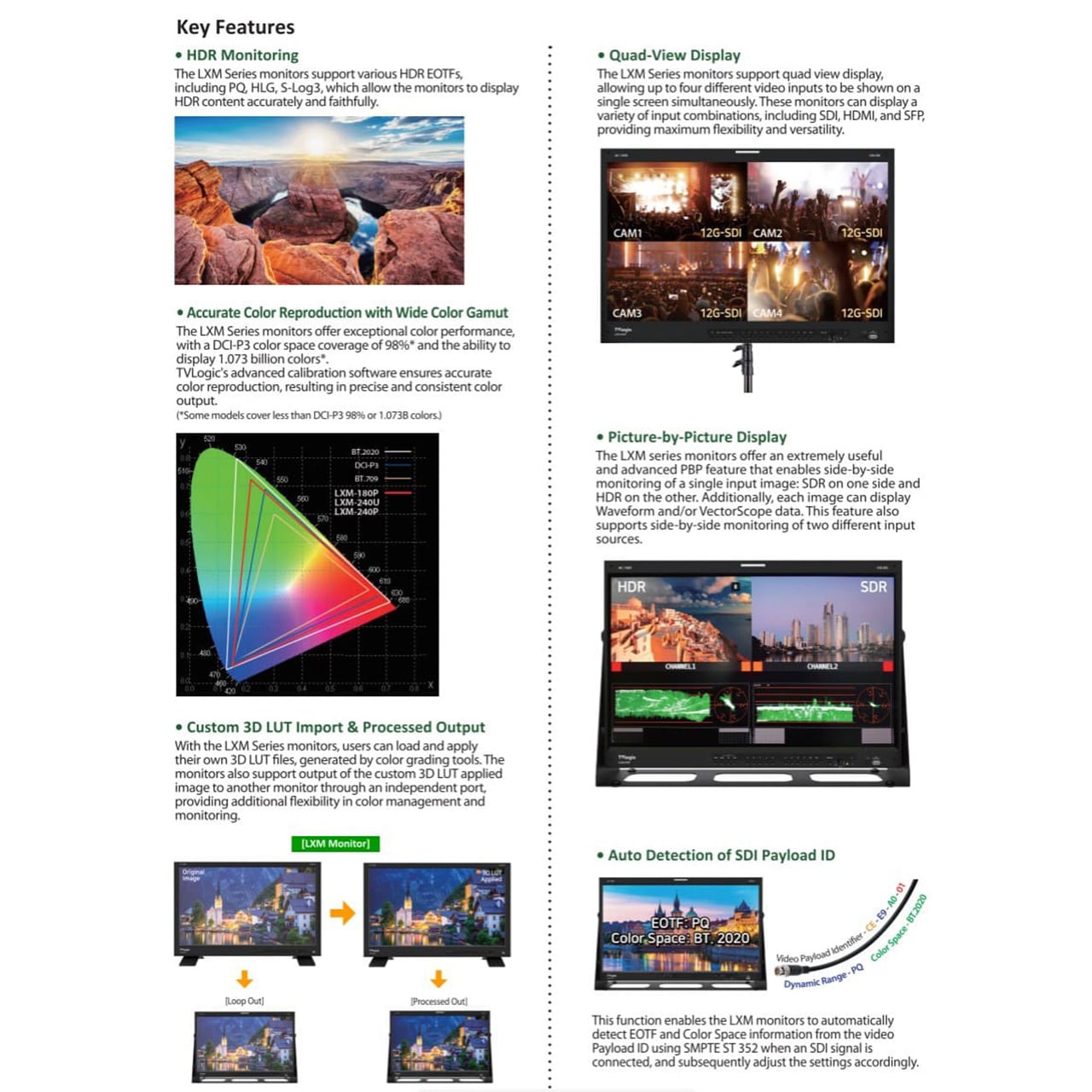

Features:
- HDR EOTF (PQ, HLG)
- HDR vs SDR Comparison Display
- Custom 3D LUT Import by USB Flash Drive
- Quad-View, Picture-by-Picture Display
- Various Conversion Output
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB)/Vector Scope/Histogram
- Audio Level Meter/Phase Meter/Loudness(LKFS) Meter
- Image Capture & Overlay
- Closed Caption (CC-608, CC-708, OP47)
- Timecode Display
- Marker
- Focus Assist
- Blue/Mono Only
- H Flip, V Flip
- Scan/User Aspect
- Dynamic UMD/Tally
Specifications:
- Size: 54.6"
- Resolution: 3840 x 2160 (16:9)
- Pixel Pitch: 0.315mm (H) x 0.315mm (V)
- Color Depth: 1.07B Colors (10 bit)
- Viewing Angle: 178° (H)/178° (V)
- Luminance of White: 700cd/m²
- Contrast Ratio: 1100:1
- Display Area: 1209.6mm (H) x 680.4mm (V)

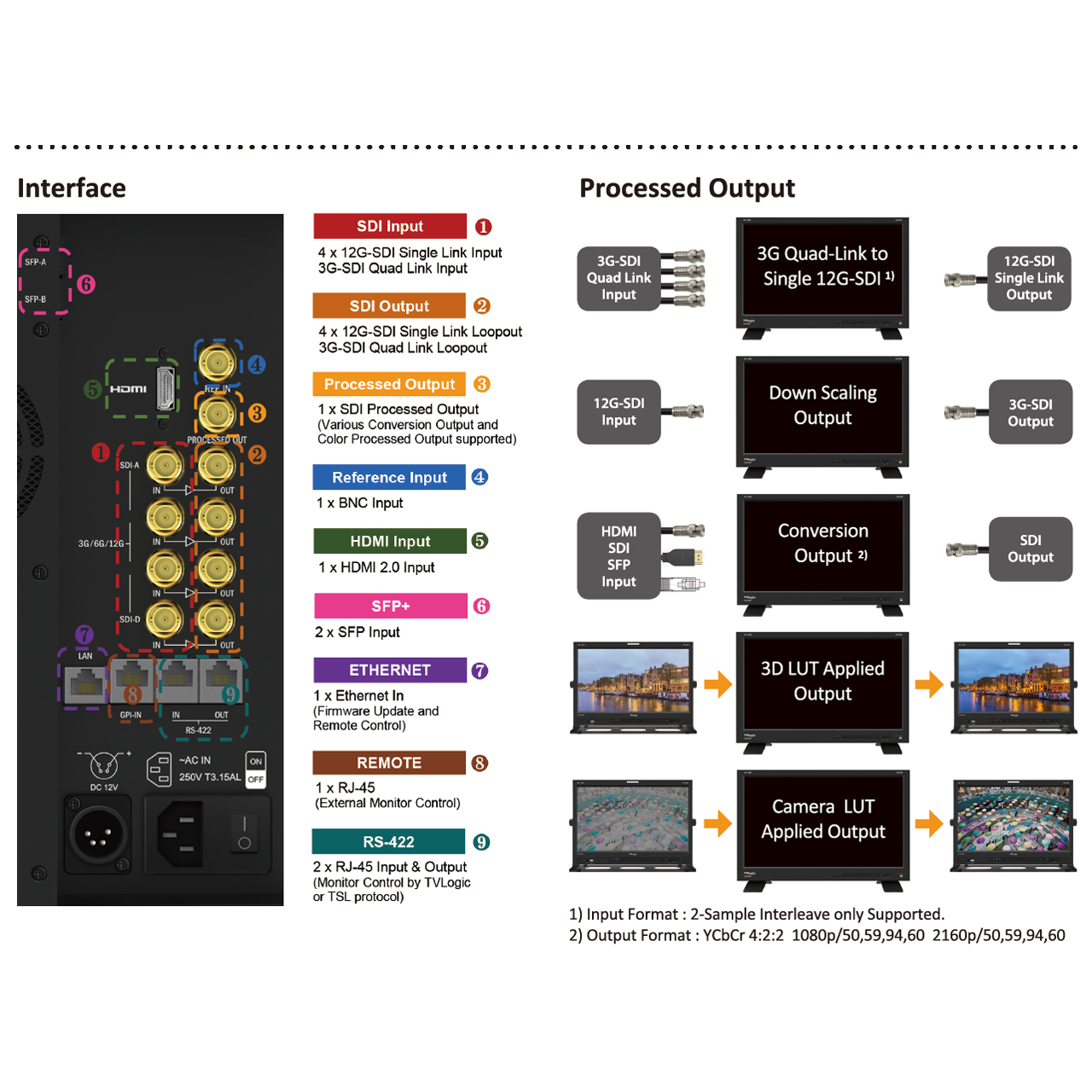

  Inputs
- 4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Input
- 1x HDMI: HDMI 2.0 Input
- 2x SFP: SFP A/B Channel Input
- 1x BNC: Reference Input

  Outputs
- 4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output
- 1x BNC: Processed Output

  Input Signals
- 12G-SDI: 12Gb/s
- 6G-SDI: 6Gb/s
- 3G-SDI: 2.970Gb/s
- HD-SDI: 1.485Gb/s
- HDMI 2.0: 480p/720p/1080p/2160p

  SDI Input Signal Formats
- SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)
- SMPTE ST 2081: 3840x2160 (30/25/24p)
- SMPTE ST 2036-1: 3840x2160 (23.98/24/25/29.97/30/50/59.94/60p)
- SMPTE-425M-A/B:
  - 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
  - 1080i (60/59.94/50)
- SMPTE-274M:
  - 1080i (60/59.94/50)
  - 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- SMPTE-296M: 720p (60/59.94/50)
- SMPTE-260M: 1035i (60/59.94)
- SMPTE-125M: 480i (59.94)
- ITU-R BT.656: 576i (50)
- SMPTE ST 2048-2: 2048x1080 (23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)

  Remote Control & Update
- 1x LAN: RJ45 Input(Ethernet), Firmware Update & Remote Control
- 1x REMOTE: RJ45 Input, GPI Control
- 2x RS-422: RJ45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
- 1x USB: USB A type, Firmware Update

  General
- Power: AC 100V - 240V (50~60Hz)
- Power Consumption: 154W
- Operating Temperature: 32°F - 95°F
- Storage Temperature: -4°F - 140°F
- Dimensions (Main Body): 49.68" x 29.37" x 3.20"
- Dimensions (with Stand): 49.68" x 31.27" x 9.64"
- Shipping Dimensions: 55.51" x 16.14" x 41.34"
- Weight (with stand): 75.39lbs
Item Includes:
- 1x AC Power Cord
- 1x Stand
