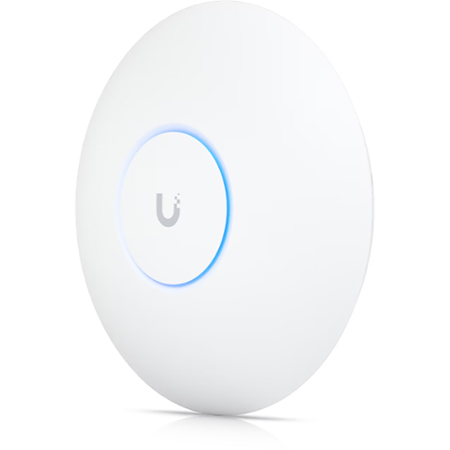

Ubiquiti U7-PRO-MAX Ceiling-Mounted WiFi 7 AP with 8 Spatial Streams & 6GHz Support with Dedicated Spectral Scanning

U7-PRO-MAX - Overview

• Features:

  • Wireless Meshing
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Advanced Radio Management
  • Real-Time Spectral Analysis
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN


• Specifications:

  Overview
  • WiFi Standard: WiFi 7
  • Spatial Streams: 8
  • Coverage Area: 160m² (1,750ft²)
  • Max. Client Count: 500+
  • Uplink: 2.5GbE
  • Mounting: Ceiling, Wall (Pro Mount Included)
  • Power Method: PoE+

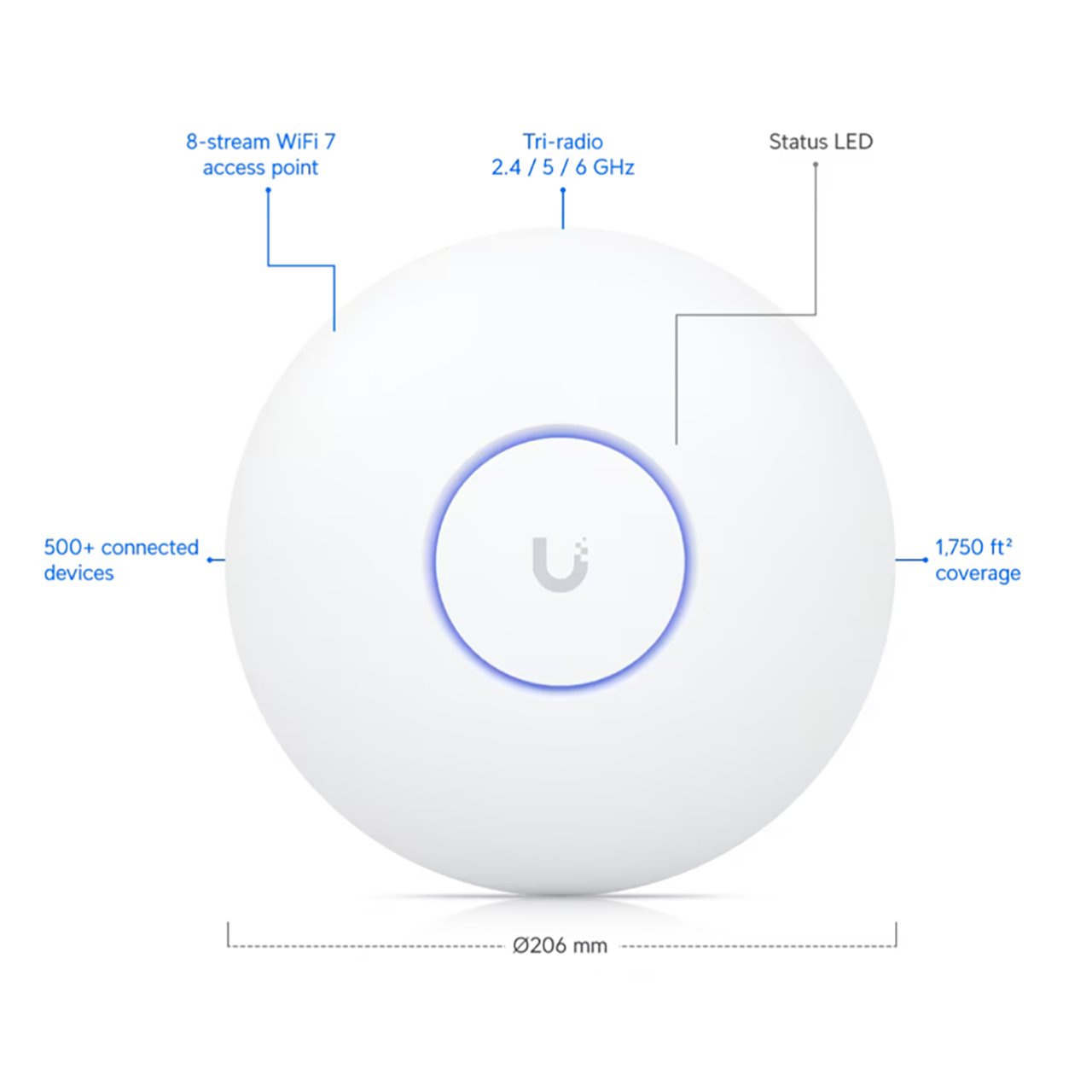

  • Dimensions: Ø8.1 x 1.8" (Ø206 x 46mm)


    Performance
  • MIMO:
    - 6GHz: 2 x 2 (DL/UL MU-MIMO)
    - 5GHz: 4 x 4 (DL/UL MU-MIMO)
    - 2.4GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rates
    - 6GHz: 5.8Gbps (BW320)
    - 5GHz: 8.6Gbps (BW240)
    - 2.4GHz: 688Mbps (BW40)
  • Antenna Gain
    - 6GHz: 5.9dBi
    - 5GHz: 6dBi
    - 2.4GHz: 4dBi
  • Max. TX Power
    - 6GHz: 23dBm
    - 5GHz: 29dBm
    - 2.4GHz: 23dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    - 802.11be (WiFi 7): 6GHz: 7.3Mbps to 5.8Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5GHz: 7.3Mbps to 8.6Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    - 802.11ax (WiFi 6/6E): 7.3Mbps to 4.8Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    - 802.11ac (WiFi 5): 6.5Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

    Hardware
  • Max. Power Consumption: 25W
  • Supported Voltage Range: 44V - 57V DC

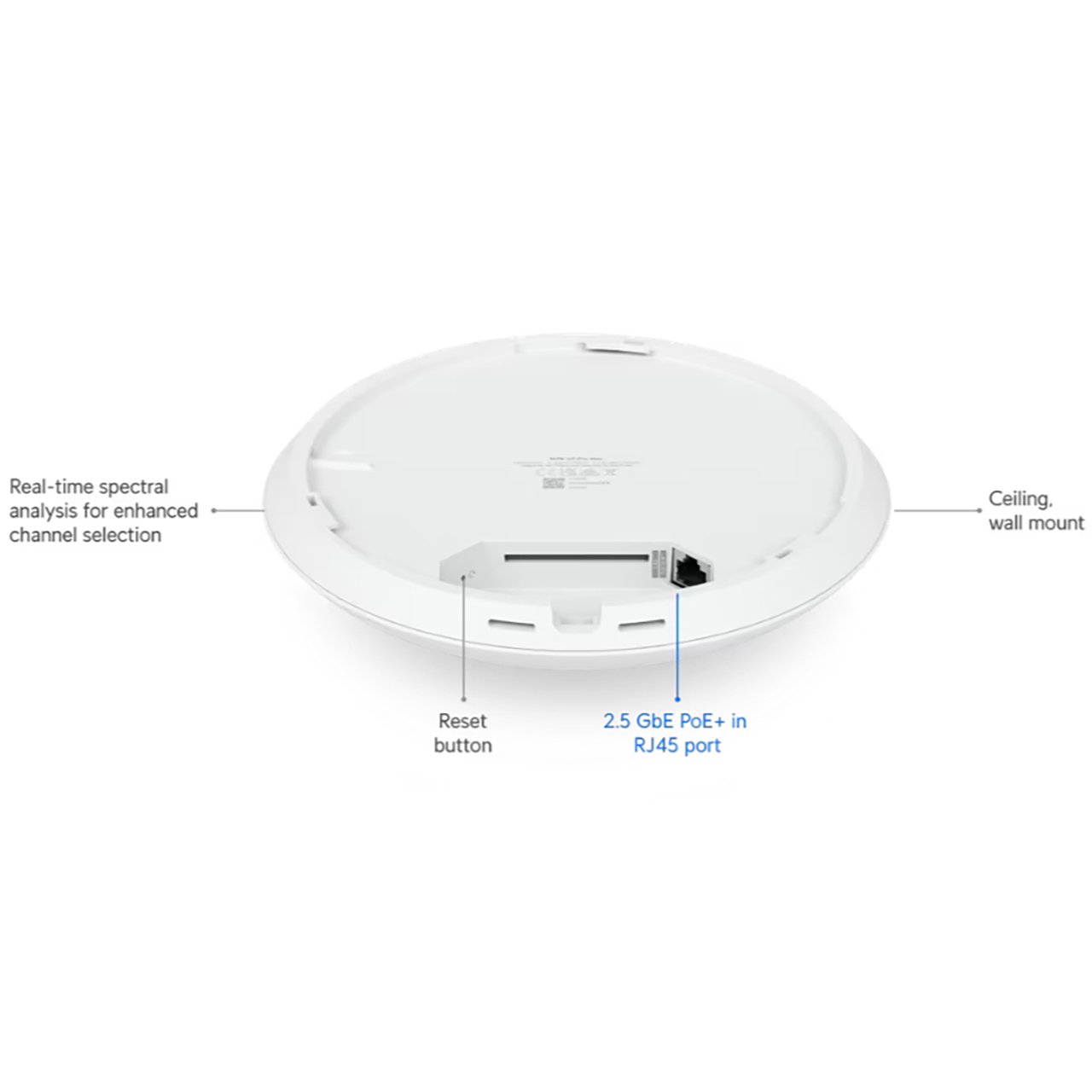

  • Networking Interface: 1x 1/2.5GbE RJ45 port
  • Weight: 1.5lbs (680g)
  • Management: Ethernet
  • Enclosure Material: Polycarbonate, aluminum
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, Anatel
  • Operating Frequency US/CA:
    - 2400MHz - 2472MHz
    - U-NII-1: 5150MHz - 5250MHz
    - U-NII-2A: 5250MHz - 5350MHz
    - U-NII-2C: 5470MHz - 5725MHz
    - U-NII-3: 5725MHz - 5850MHz
    - U-NII-5 to U-NII-8 : 5925MHz - 7125MHz
  • Worldwide:
    - 2400MHz - 2483.5MHz
    - 5150MHz - 5725MHz
    - 5925MHz - 7125MHz
  • Ambient Operating Temperature: -22°F - 122°F (-30°C - 50°C)
  • Ambient Operating Humidity: 5% - 95% noncondensing


• Item Includes:

  • 1x Ubiquiti U7-PRO-MAX Ceiling-Mounted WiFi 7 AP with 8 Spatial Streams & 6 GHz Support with Dedicated Spectral Scanning
