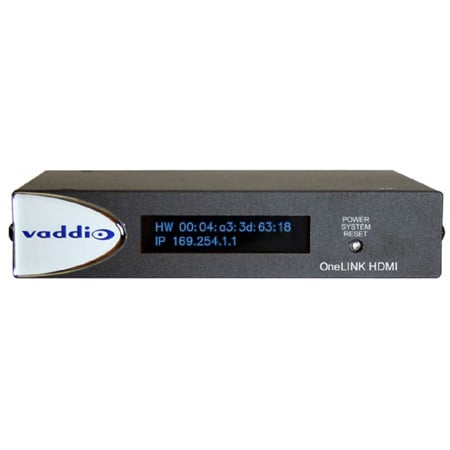

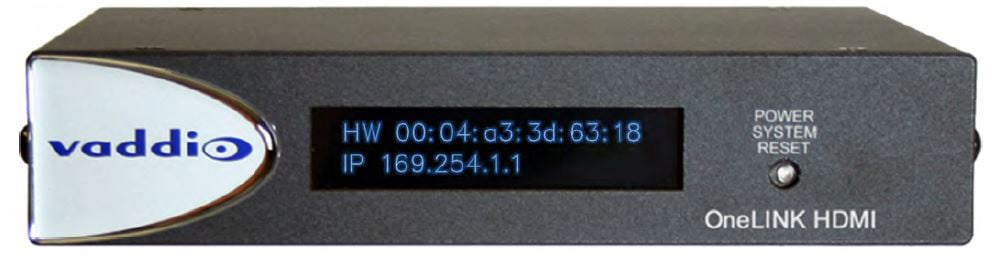

Vaddio 999-9590-000 OneLINK for Vaddio RoboSHOT HDMI Cameras

ITEM #: VAD-999-9590-000 MFG #: 999-9590-000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VAD-999-9590-000

999-9590-000 - Overview

Vaddio's 999-9590-000 OneLINK System for RoboSHOT HDMI cameras is an HDBaseT camera extension system that extends HDMI video, power and control on a single Cat-5e/6 cable at distances of up to 328' (100m). OneLINK allows for simplified, economical and faster installations. The OneLINK system sends and regulates power to the camera, provides bidirectional control channels for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 (and up to 2160p/30 for the future).

The system consists of the small OneLINK EZIM (EZCamera Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the RoboSHOT HDMI camera's Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable, a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2-gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.

From one end to the other, the OneLINK system provides system integrators with an easy to install, simple and elegant, single cable camera extension solution, which exemplifies Vaddio's main tenet; The Art of Easy.

  • Features:

    • Single Cat-5e/6 camera extension system using HDBaseT
    • Extends HDMI Video, power and control (RS-232 and Ethernet) up to 328' (100m) on a single Cat-5e/6 cable
    • Includes OneLINK HDMI Interface
    • Includes OneLINK HDMI EZIM (camera-end) and camera cables
    • Power Supply and AC Cord Set
    • Camera Mount and Mounting Hardware also included (camera not included)

  • Specifications:

    • Video Support
    • HDMI resolutions up to 1080p/60 for the RoboSHOT HDMI cameras. The OneLINK
    • architecture will support up to 2160p/30.for the future.

      RS-232 Support
    • Pass-through

      Ethernet Support
    • Pass-through

      Camera Power Support
    • 12 VDC, 3 Amp at EZIM

      Cabling Distances
    • Up to 328' (100m) over Cat-5e/6

      OneLINK Interface Power Supply
    • 48 VDC, 1.36 Amp

      Connectors on OneLINK Interface
    • OneLINK Port on Shielded RJ-45F, HDMI Output Receptacle, Ethernet on shielded RJ-45F
    • with LEDs, RS-232 on shielded RJ-45 connector, Power in on 5.5mm OD x 2.5mm ID Coaxial
    • connector (positive Center), IR Forward on 3-pin Phoenix-style connector

      Connectors on OneLINK EZIM
    • OneLINK Port on Shielded RJ-45F, HDMI Input Receptacle, Ethernet on shielded RJ-45F
    • with LEDs, RS-232 on shielded RJ-45 connector, Power out on EIAJ-04 connector

      OneLINK Interface Dimensions (H x W x D - not including Space-time)
    • 1.72" (43.7mm) H x 8.375" (212.7mm) W x 6.00" (152.4mm) D
    • OneLINK EZIM Dimensions (H x W x D) 3.861" (98.07mm) H x 4.310" (109.47mm) W x 1.24" (31.5mm) D

      OneLINK Interface Weight
    • 1.553 lbs. (703.1g)
    • OneLINK EZIM Weight
    • 0.553 lbs. (249.5g)

      Operating Temperature/Humidity
    • 0°C (32°F) to 40°C (104°F), 20% to 80% Relative Humidity
    • Storage Temperature -20°C (-4°F) to +60°C (140°F)

  • Item Includes:

    • (1) OneLINK HDMI Interface.
    • (1) OneLINK EZIM for the camera side.
    • (1) 48 VDC, 1.36 Amp Switching Power Supply
    • (1) AC Cord Set
    • (1) 12­" (305mm) HDMI Cable
    • (1) 12­" (305mm) EIAJ-04 to EIAJ-04 Power Cable
    • (2) 12­" (305mm) Cat-5e Patch Cables for Ethernet and RS-232
    • (2) 6-32 x .188 Black Phillips flat head screws to attach the EZIM to the underside of the RoboSHOT Wall Mount
    • (1) Quick Start Guide for OneLINK

  • GTIN:

    0840077502256
