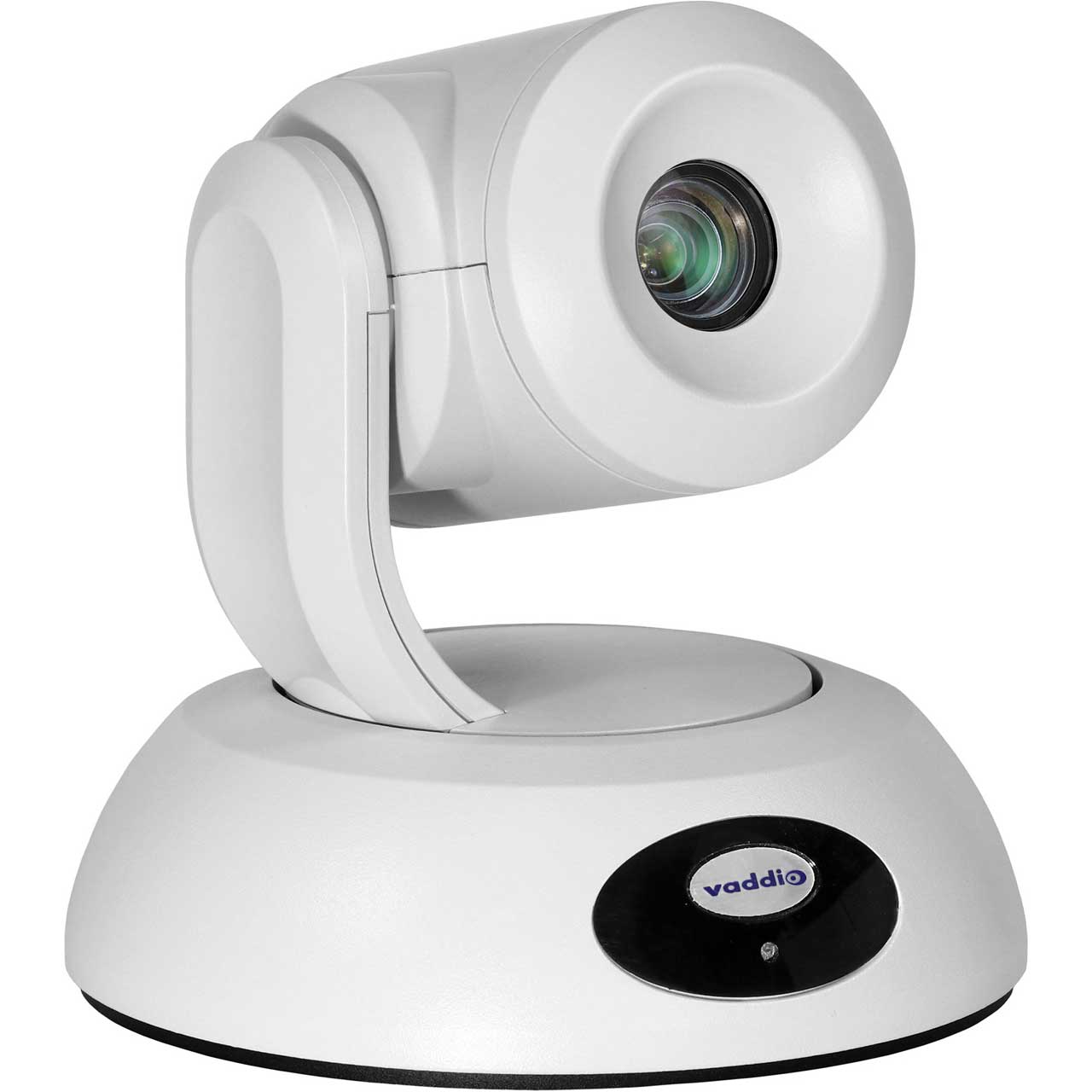

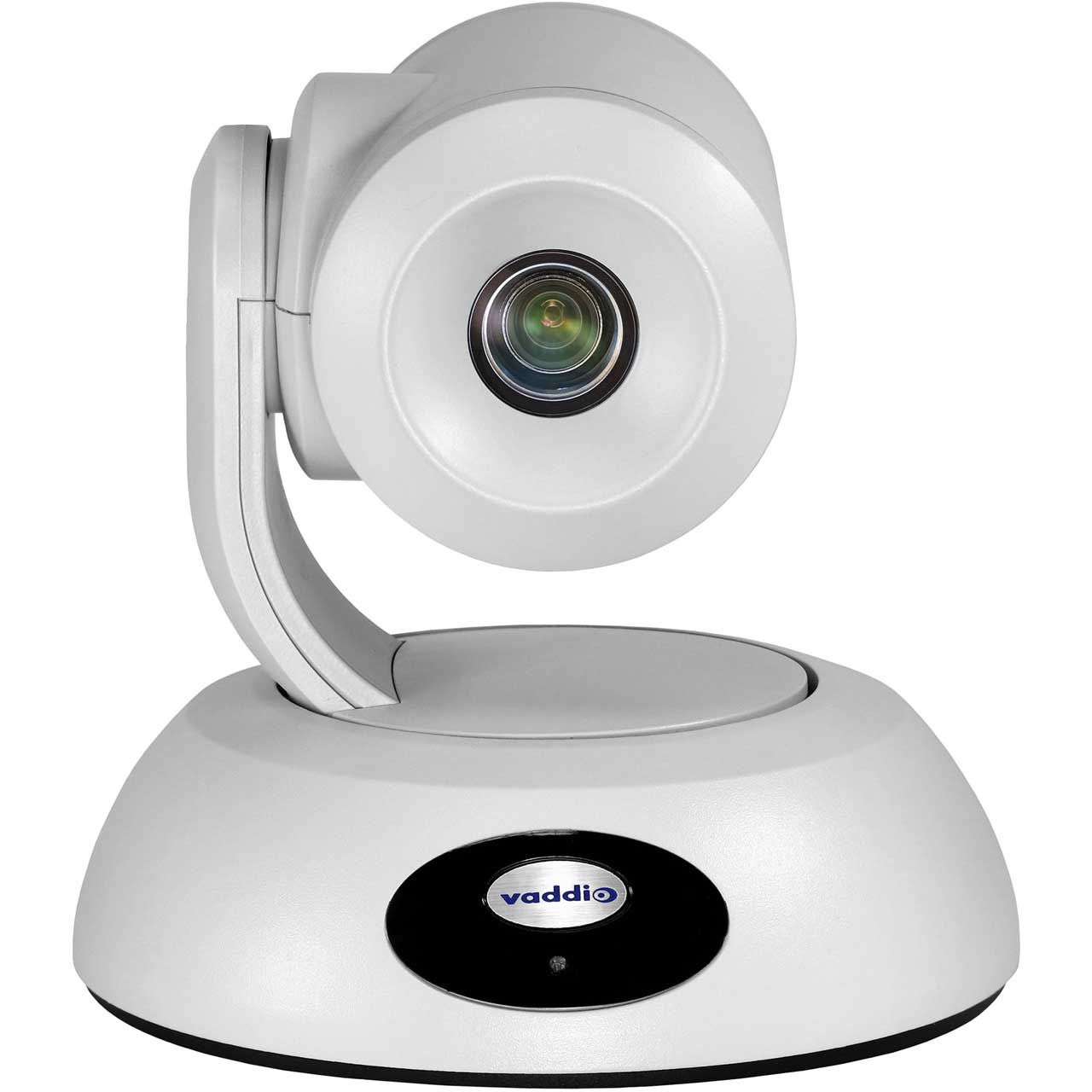

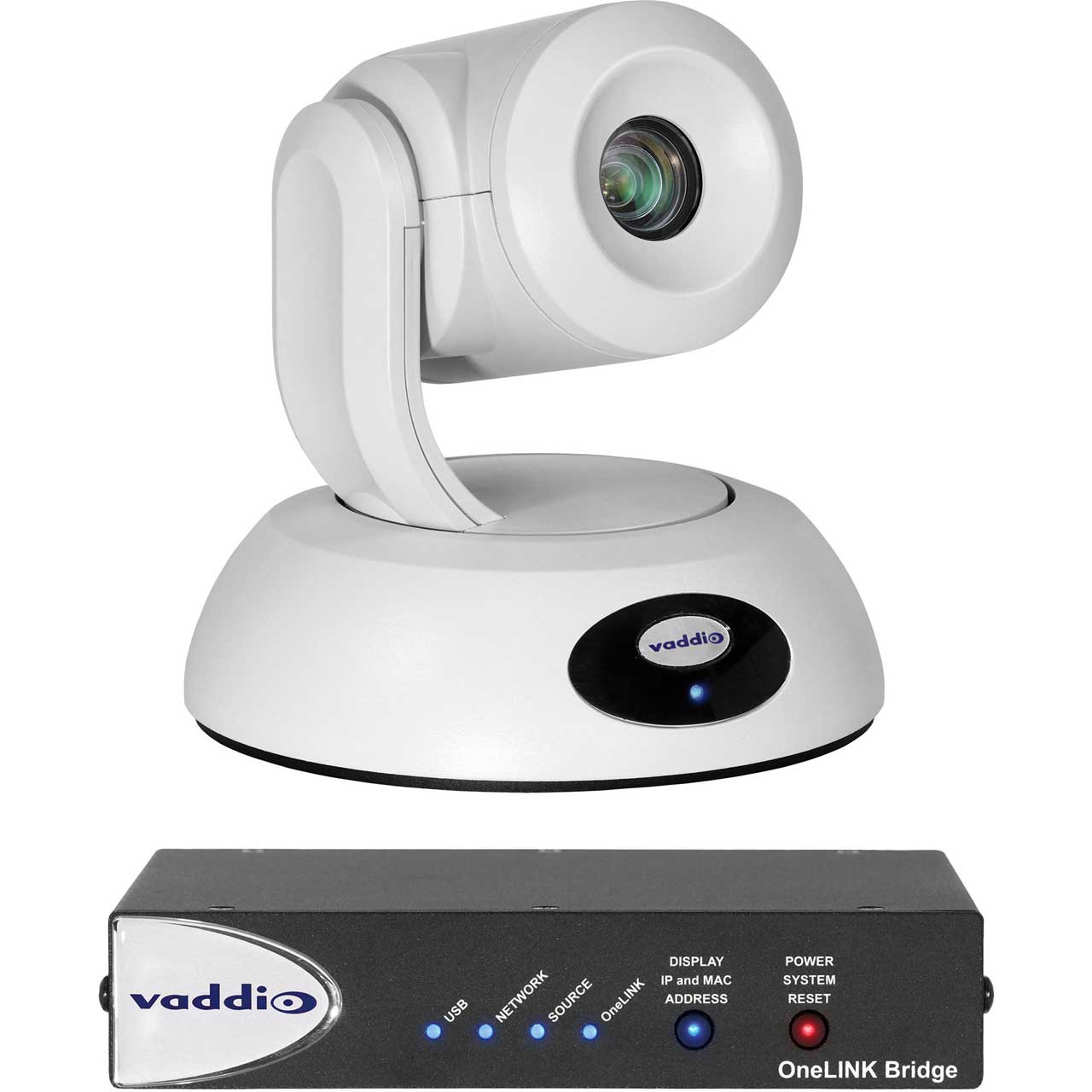

Vaddio RoboSHOT 30E HDBT OneLINK Bridge HDMI PTZ Streaming Camera System 3G-SDI - 30x Zoom - White

999-99630-200W - Overview

• Features:

  • MADE IN THE USA!
  • 30x Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous HDBaseT, HDMI and IP H.264 streaming
  • Remote IP Management
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Bridges audio and video for easy soft-client conferencing
  • Simultaneous HDMI, USB 3.0, IP Streaming, and 3G-SDI outputs
  • Configurable audio matrix with AEC
  • Up to 1080p/60 resolution available over uncompressed USB


• Specifications:

  • Color: White
  • Certifications: CE Approved, FCC Approved
  • Dimensions (WxHxD): 7.05 x 6.94 x 6.75" (17.91 x 17.63 x 17.15cm)
  • Weight: 4.85Lbs (2.2kg)
  • Signal Type: HDMI, RS-232, IP-Streaming, 3G-SDI, Audio, USB 3.0
  • Power Type: OneLINK
  • Output Ports: HDMI, USB 3 Type B, IP-Streaming, 3G-SDI
  • Zoom: 30x
  • Max Resolution: 1080p/60
  • Field of View: 70.2° Wide End to 4.1° Tele End
  • Estimated Room Size: Large Conference Room, Large Venue
  • Minimum Illumination: 1.0 Lux (F1.6), 100+ Lux Recommended
  • Browser-based User Interface for Remote Control: Built-in
  • Control Method: Web UI, Telnet, RS-232 and IR Remote
  • OneLINK Compatibility: Native
  • OneLINK Bridge adds: 328 ft (100 M) Power, Video, Control Extension, HDMI, 3G-SDI, USB 3.0, Audio Mixer
  • PTZ Motors: Silent BLDC Direct Drive Motors
  • Tri-Sync Motion: Yes
  • Pan and Tilt Range: Pan: ±160°, Tilt: +90° to -30°
  • Pan and Tilt Speed: 0.35°/sec to 120°/sec
  • Pixels: 8.51 Megapixel (8.57 Total MP)
  • Top Resolution: 1080p/60
  • Invertible: Yes
  • Focus System: Auto, Manual
  • Gain: Auto, Manual
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Preset Positions: 16 + Custom Home Position
  • White Balance: Auto, Manual, One-Push
  • Warranty: 2 years
  • Power Supply: 48 VDC, 1.36 A
  • Quick-Connect Compatibility: No
  • Distance: 328' (100m)


• Item Includes:

  • 1x RoboSHOT 30E HDBT camera (black or white)
  • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
  • 1x Vaddio IR Remote Commander

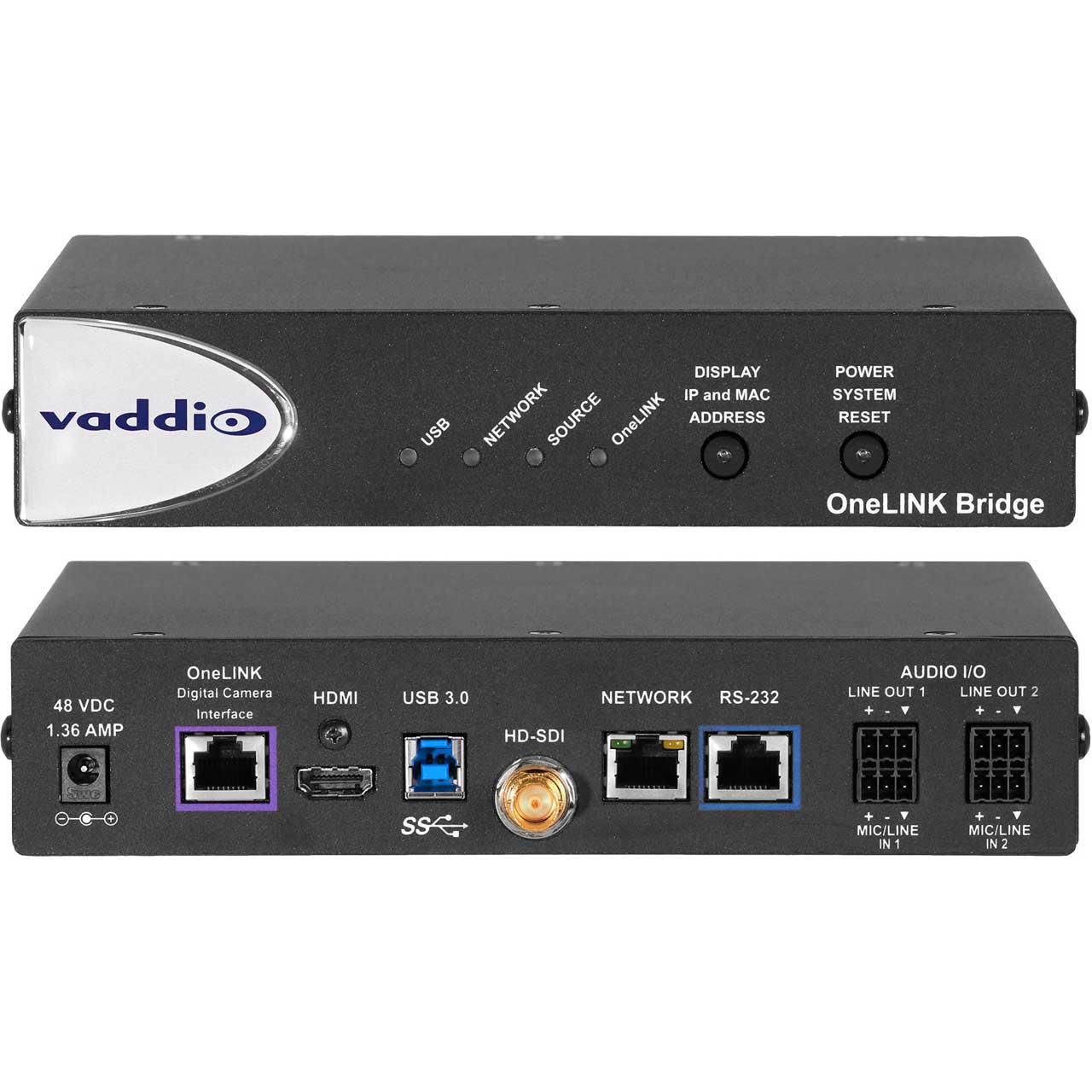

  • 1x OneLINK Bridge Interface
  • 1x 48V power supply with AC cord set(s)
  • 1x EZCamera RS-232 Control Adapter
  • 1x Quick-Start Guides
  • 4x 3-position phoenix-style connectors
  • 1x 6' (1.8m) USB 3.0 cable, type A to B


• Warranty:

  • 2 years


• GTIN:

  0840077504533
