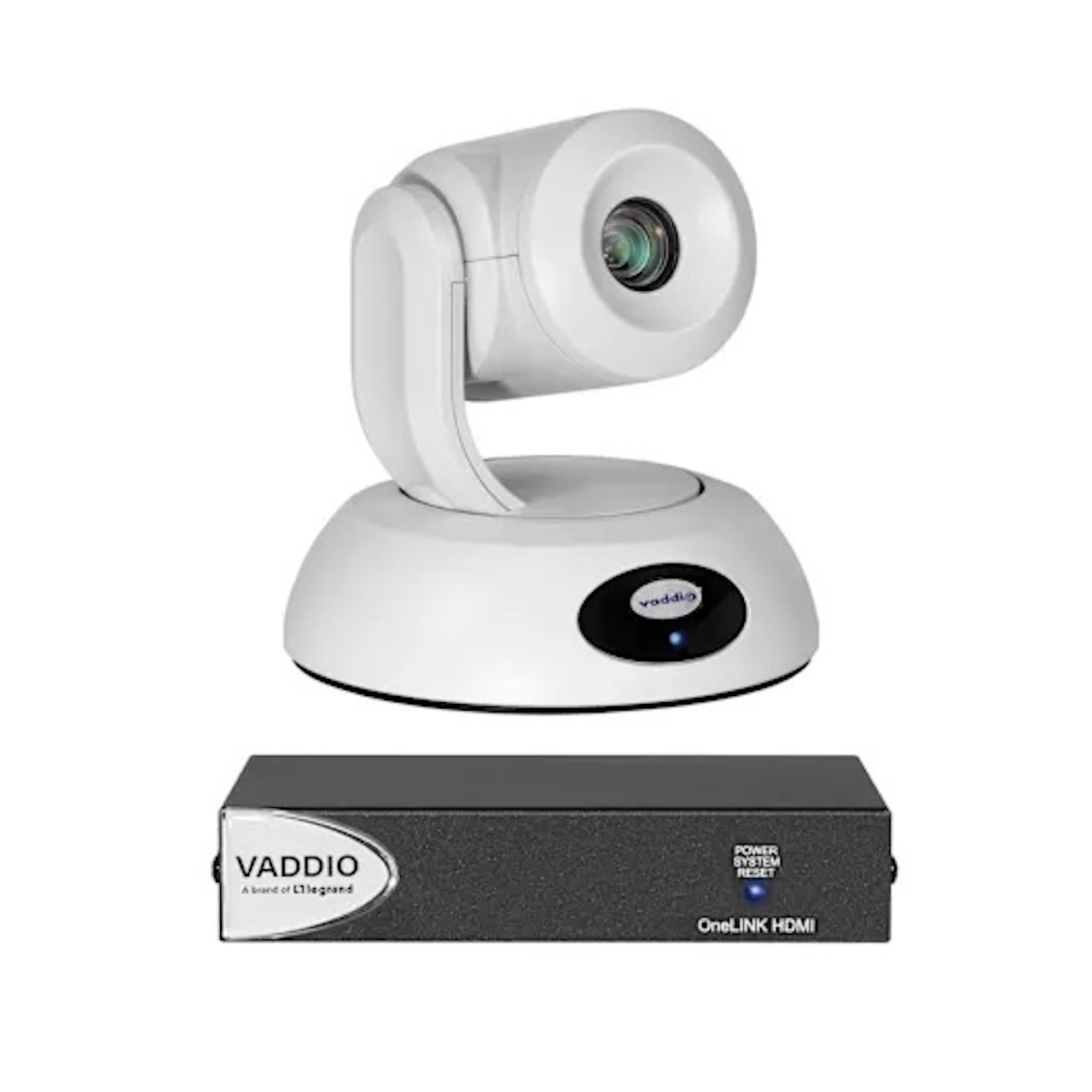

Vaddio 999-99635-300W 4K 30E HDBT OneLINK Bridge PTZ Camera System - Includes RoboSHOT 4K 30E HDBT PTZ Camera - White

ITEM #: VAD-99999635300W MFG #: 999-99635-300W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$8,254.00

Our Price:

$7,428.60

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


999-99635-300W - Overview

Striking, high-definition video image quality!

The Vaddio 999-99635-300W 4K 30E HDBT OneLINK Bridge PTZ Camera System combines the professional-grade RoboSHOT Elite PTZ camera with the OneLINK Bridge Extension System. RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 2160p/30 video, even in dim lighting conditions. RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control. The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. Along with the bridging capabilities, the system's OneLINK Bridge Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328ft (100m) on a single Cat-5e/6 cable.

  • Features:

    • 4K30 Video Resolution
    • 30x Optical Zoom
    • 1/2.5-type Exmor R CMOS sensor
    • 70.2° horizontal field of view
    • Simultaneous HDbaseT, HDMI, SDI Outputs
    • Remote IP Management
    • Simple, clutter-free camera extension with HDBaseT technology
    • Power, video and control over a single Cat-5e cable up to 230ft (70m), or over a Cat-6 cable up to 328ft (100m)
    • Bridges audio and video for easy soft-client conferencing
    • Simultaneous HDMI, USB 3.0 and 3G-SDI outputs
    • Configurable audio matrix with AEC
    • Up to 1080p/60 resolution available over uncompressed USB
    • Kensington Lock Capable

  • Specifications:

    • Dimensions (LxWxH): 6.75" x 7.05" x 6.94" (17.1cm x 17.9cm x 17.6cm)
    • Distance: 328" (833.1cm)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Product Weight: 4.85lbs (2.2kg)
    • Shipping Dimensions (LxWxH): 20" x 15" x 19" (508mm x 381mm x 482.6mm)
    • Shipping Weight: 15lbs (6.8kg)
    • 3rd Party Control:
      - RS-232
      - Telnet
    • Bridged Signal: Audio and Video
    • Browser-based User Interface for Remote Control: Built in
    • Camera Type: PTZ
    • Color: White
    • Control Method:
      - IR Remote
      - RS-232
      - Telnet
      - Web UI
    • Estimated Room Size: Medium or large room
    • Extension System: With OneLINK Bridge
    • Extension Type: Camera
    • Field of View: 70.2° Wide End to 3.1° Tele End
    • Field of View Wide: 70.2° Wide End to 3.1° Tele End
    • Field of View Wide: Greater than 70
    • Focus System:
      - Auto
      - Manual
    • Gain:
      - Auto
      - Manual
    • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
    • Invertible: Yes
    • Max Resolution: 2160p 30
    • Minimum Illumination:
      - 1 Lux F1_6
      - 100 lux recommended
    • OneLINK Bridge Adds:
      - 328ft (100m) Power Video Control Extension
      - 3G-SDI
      - Audio Mixer
      - HDMI
      - USB 3.0
    • OneLINK Compatibility: Native
    • Output Ports:
      - 3G-SDI
      - HDMI
      - USB 3.0 Type B
    • Pan and Tilt Range:
      - Pan: ±150°
      - Tilt: +90° - -30°
    • Pan and Tilt Speed: 0.35°/sec - 120°/sec
    • Pixels: 8.51 Megapixel
    • Power Cord: US Cord
    • Power Supply: 136A
    • Power Type: OneLINK
    • Preset Positions: 16 Custom Home Position
    • PTZ Motors: Silent BLDC Direct Drive Motors
    • Quick-Connect Compatibility: No
    • Signal Type:
      - 3G-SDI
      - Audio
      - HDMI
      - RS-232
      - USB 3.0
    • Solution Type: Camera with Extension
    • TAA Compliant: Yes
    • Tri-Sync Motion: Yes
    • White Balance:
      - Auto
      - Manual
      - One Push
    • Zoom:
      - 30x zoom
      - 20x optical zoom + 10x IntelliZoom

  • Item Includes:

    • 1x RoboSHOT 4K 30E HDBT camera in White
    • 1x Thin Profile Wall Mount in black with mounting hardware and installation manual
    • 1x Vaddio IR Remote Commander
    • 1x OneLINK Bridge Interface
    • 1x 48V power supply with AC cord set(s)
    • 1x EZCamera RS-232 Control Adapter
    • 4x 3-position phoenix-style connectors
    • 1x 6ft (1.8m) USB 3.0 cable, type A to B
