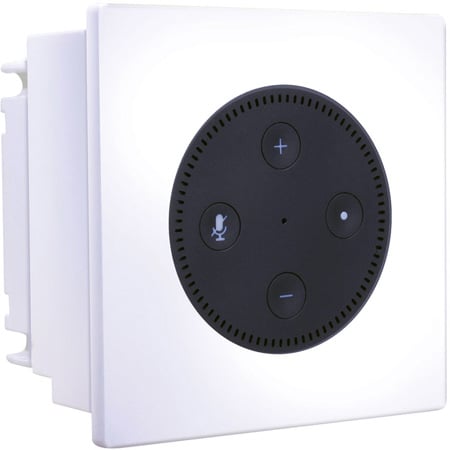

Vanco SPOTFD1 Spot for Dot Voice-Activated In-Wall Amplifier Station

ITEM #: VCO-SPOTFD1 MFG #: SPOTFD1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VCO-SPOTFD1

SPOTFD1 - Overview

Vanco's SPOTFD1 Spot For Dot is a wall mount station for the Amazon Echo Dot (2nd generation) with a built in 80-watt amplifier to deliver music and information amplified to any set of speakers. The unique design also allows audio input from a variable line level source, such as a phone, tablet or TV (headphone or variable audio output) to be connected and played through the amplifier to almost any kind of speaker(s). Perfect for a 2 channel setup with Alexa voice control available at any time. For a clean look with no wiring exposed, the Spot For Dot is a great solution. Include one in every room for wireless distributed audio! Spot For Dot mounts within a standard 2x4 stud wall at least 3 5/8" depth, and can be tapped into the main electrical wiring for a seamless appearance.

Please Note: Echo Dot not included, sold separately.

Note: It is recommended that you use a professional electrician to install the Spot for Dot due to the power requirements.

  • Features:

    • An Amplified in-wall Solution that powers and is controlled by the Amazon Echo Dot
    • Encloses and flush mounts the Amazon Echo Dot
    • Can be used with almost any in-wall, in-ceiling, or in-room speaker
    • 25 Watts x 2 Channels 8 Ohm
    • 40 Watts x 2 Channels 4 Ohm
    • 110-240 V 50/60Hz
    • Can support up to 4 speakers being connected through a single amp
    • Aux line in from any audio source such as a TV
    • White and almond faceplates included
    • Amazon Echo Dot (2nd generation) sold separately

  • Specifications:

    • AMP
    • Amp Power Output: 25W x 2 (RMS @ 8Ω), 40W x 2 (RMS @ 4Ω)
    • Speaker Terminal: 4-Pin Screw Terminal Connector
    • Variable Audio Input: 3.5mm Stereo Jack
    • Audio Input Formats: Analog
    • Total Harmonic Distortion (THD): Less than 1%
    • Signal to Noise: Dot input 91db AUX input 101db
    • Frequency Response: 20-20khz +- 1db
    • Adjustable Volume: Fixed (requires variable audio source)
    • Line Level Input Sensitivity: Dot: 410mV AUX 652mV

      Power
    • Amperage: 15a
    • Voltage: 110v-240v
    • Certifications: ETL, cETL, CE, FCC, PSE, RCM, & RoHS
    • Termination: 3-Wire Screw down
    • Grounding: Yes

      Dimensions
    • Dimension (WxDxH): 5" x 5" x 4"
    • Weight: 1.31 lbs

  • Item Includes:

    • Spot For Dot
    • Manual
    • Factory Reset Tool
    • Cut-out Template

  • GTIN:

    0741835110723
