The Vigilink G812 is a high-performance edge blending and projection mapping processor designed for precise image warping, seamless multi-projector setups, and curved screen applications. With advanced processing capabilities, flexible connectivity, and intuitive control, the G812 is the ideal solution for professional AV installations.
Versatile Input and Output Support
- Inputs: 2x HDMI, 1x DP, 1x VGA
- Input Resolutions: Up to 7680x1200 @30Hz and 4096x2160 @60Hz with 4:4:4 chroma sampling
- Output Resolutions: Up to 2048x1080 @60Hz for high-quality visuals
Advanced Image Processing
- 10-bit processing for superior image clarity
- Motion-adaptive deinterlacing and low-angle smoothing
- 3:2/2:2 pull-down support for enhanced video playback
- Non-VESA standard input timing support for maximum compatibility
Precision Edge Blending & Geometry Alignment
- Advanced warp technology for curved screen blending and alignment
- 17x9 grid control points with 120x68 pixel position adjustments
- Linearity Grid Line Adjustment and "W" type Corner Wall correction
- Multiple control options: Remote, WebGUI, USB, and Ethernet
Optimized Color Management & Black Level Control
- Independent RGB gamma correction for seamless blending
- Per-output color correction for precise adjustments
- 9-region black level uplift to ensure uniform brightness across displays

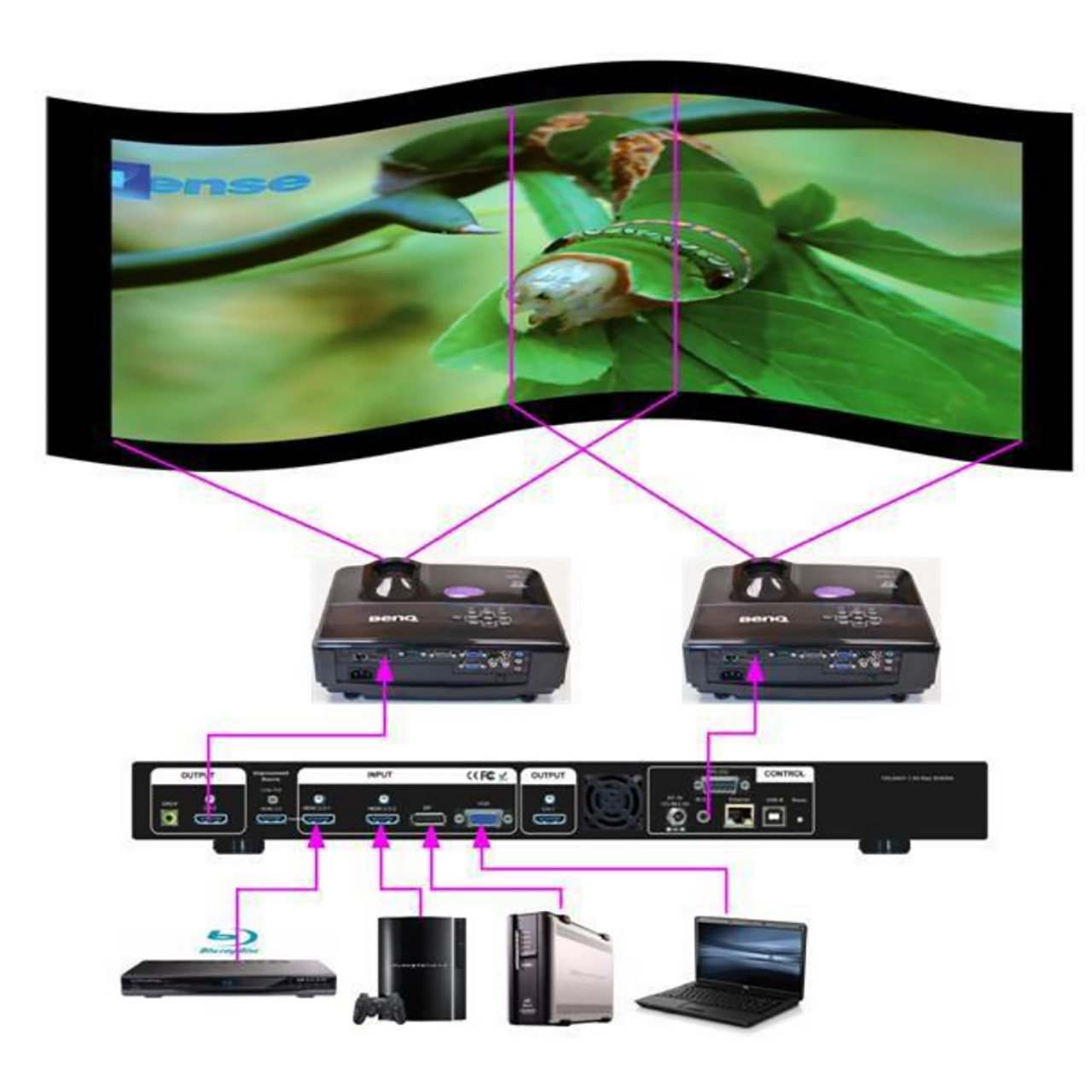

Multi-Projector Integration & Video Wall Functionality
- HDMI 2.0 loop-out for daisy-chaining multiple units up to 7680x1200 @30Hz
- Built-in video wall functionality for image cropping and projector alignment
- No need for external splitters or video distributors
Reliable, Flexible, and Cost-Effective
- Dual power supply options: AC (100V-240V) and DC (12V 2A)
- Designed for 24/7 operation with low-latency processing
- Easy configuration with programmable EDID and custom timing support
The G812 is the ultimate solution for edge blending, projection mapping, and immersive multi-screen displays, delivering unmatched precision and performance.
