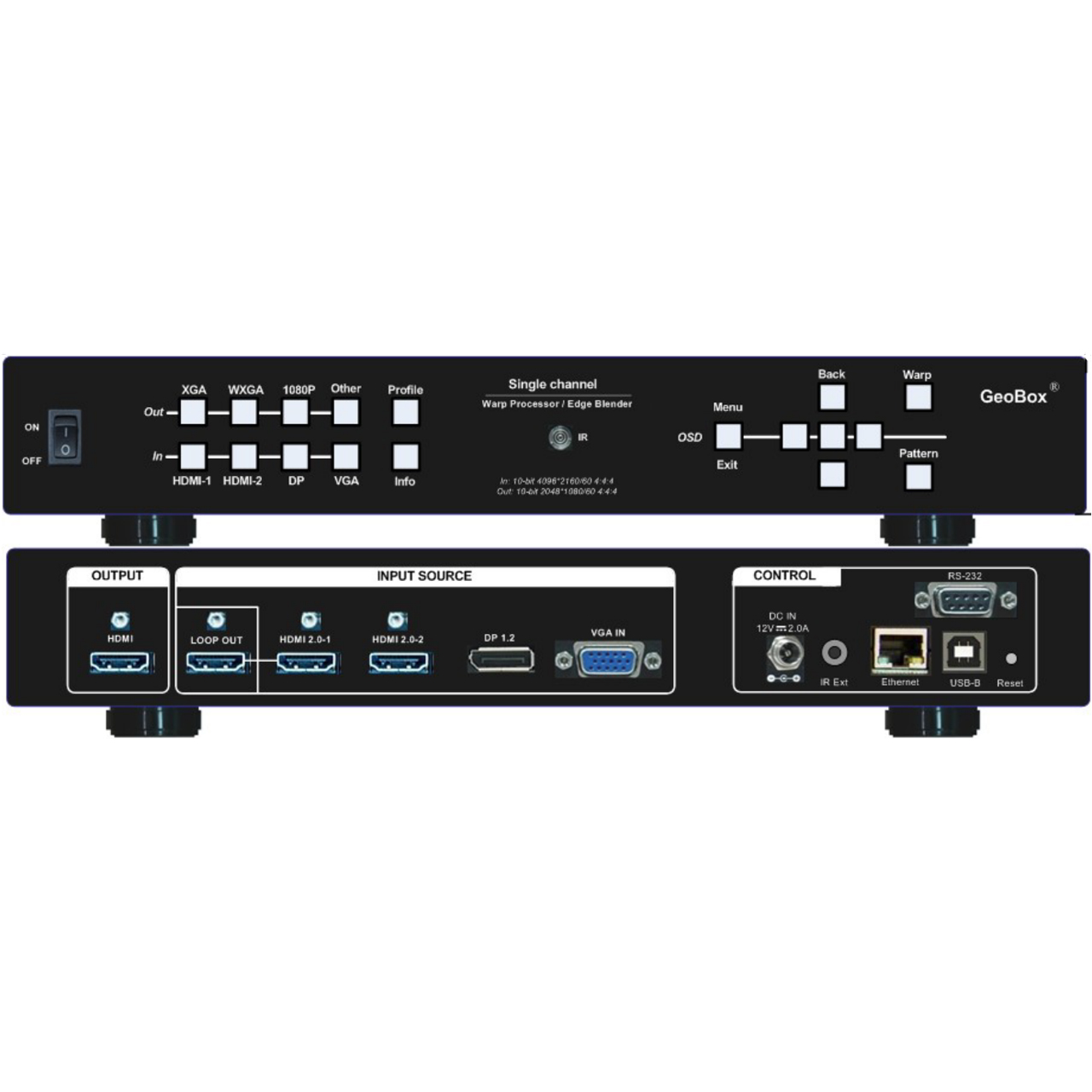

VigilLink GeoBox M811 Single Channel 4K In/2k Out Modular HDMI Edge Blending Processor with PIP/POP

M811 - Overview

• Features:

  • Single Channel Version
  • Modulerized design of edge blending processor
  • Up to 120x68 warp control point
  • Embedded video wall function, no image splitter is required

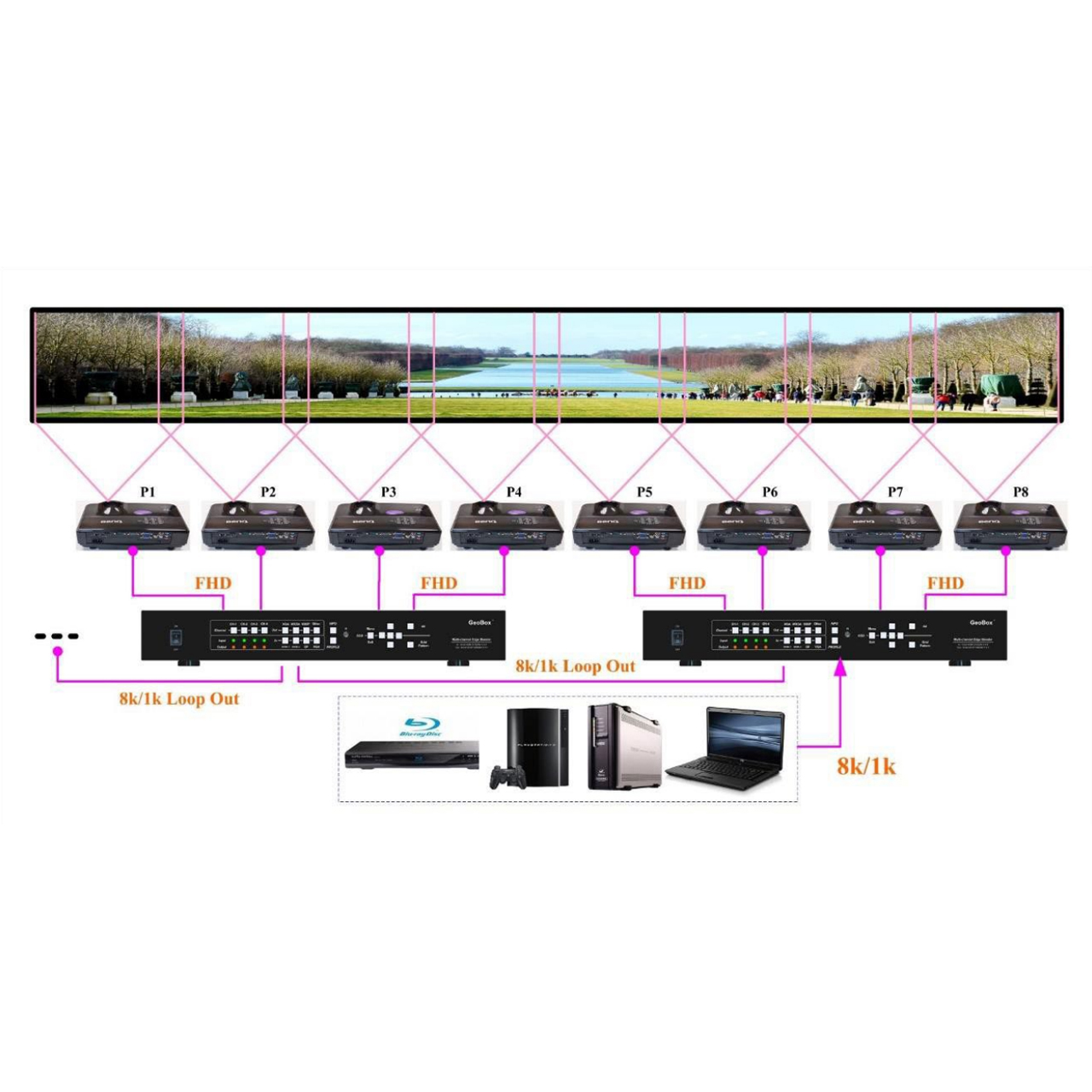

  • 4K loop out port for daisy chain connection in cascade application
  • Easy configuration via IR remote, PC tool, or WebGUI
  • Linear Grid Line Adjustment for precise line movement
  • "W" Shape Corner Wall Adjustment for 90-degree corner alignment
  • 3D motion adaptive de-interlace
  • Frame lock function to get perfect synchronized outputs in all channels
  • Free-run mode provides a continuous signal to the output. No source searching is required in the projector when the input source change
  • Support xvYCC & 8/10/12-bit deep color processing
  • Support High Dynamic Range (HDR) input signal and convert it to SDR in the output
  • Individual color and white balance adjustment in each processing channel
  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/60 input
  • Selectable and programmable EDID in the range: H=1024-3840, V=720-2400
  • User can save up to 5 settings and can be recalled by remote controller, RS


• Specifications:

  • Channels: 1
  • Processor: Single Module Processor
  • Processing Module:
    - Input: 2x HDMI2.0b, 1x DP1.2a and 1x VGA
    - Output: 1x HDMI1.4
    - Loop output: 1x HDMI2.0b for daisy chain connection
  • HDCP Compliance:
    - Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
    - Output: HDCP V1.4
  • Input Resolution:
    - 76802160 30Hz, 76801200 @60Hz, 4096*2160 60Hz
    - Supports progressive and interlaced RGB/YUV signal
    - 4:4:4 Chroma sampling
    - Up to 30 Color bits
    - Support non-VESA standard input timings
  • Outputs:
    - 15 selectable Outputs: HDMI1.4 up to WUXGA, 2048*1080/60, progressive 4:4:4 RGB
    - 2 frames system latency: 33ms (@V=60Hz)
  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
  • Working Environment: 113°F (45°C), 10-90% RH
  • Control:
    - Keypads, IR, RS232, USB, Ethernet
    - Save up to 5 system settings. System settings can be stored and backed up on a PC
  • Power Supply: DC 12V 3.3A
  • Power Consumption: 28.5 BTU/h (8.4W)
  • Dimensions (Body Only):
    - Without Protruding Parts: 11.9" x 6.5" x 1.7" (302.26mm x 165.1mm x 43.18mm)
    - With Protruding Parts: 11.9" x 6.9" x 2.2" (302.26mm x 175.26mm x 55.88mm)
  • Weight (Body only): 3.3 lbs


• Item Includes:

  • 1x VigilLink M811 Single Channel 4K In/2k Out Modular HDMI Edge Blending Processor with PIP/POP
  • 1x Power Cord
  • 1x Remote Control


• Warranty:

  • 6-Year Limited Warranty
