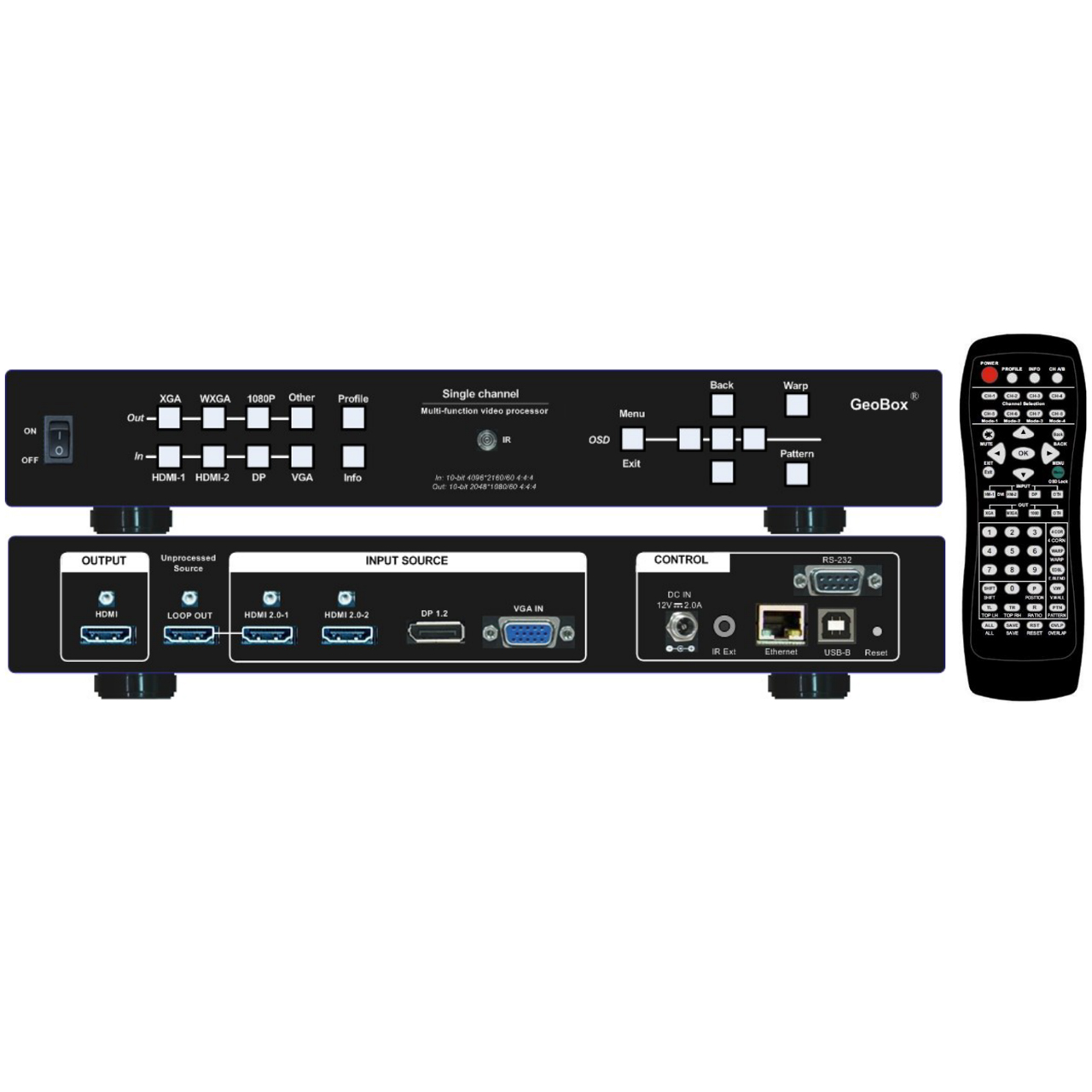

VigilLink GeoLink M811lite Single Channel 2K HDMI Warping HDMI Processor with PIP/POP/Rotation/Image Cropping

M811LITE - Overview

• Features:

  • Modulerized design of edge blending processor
  • Up to 120x68 warp control point
  • Embedded video wall function, no image splitter is required.
  • 4K loop out port for daisy chain connection in cascade application.
  • Easy configuration via IR remote, PC tool, or WebGUI.
  • Supports Linearity Grid Line adjustment for quick H&V line position alignment
  • Image split, cropping, and position adjustment
  • Selectable grid pattern size from 8-120 pixels in the H&V direction
  • Selectable grid pattern color with optional transparency to see background image for external pattern
  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
  • 3D motion adaptive de-interlace
  • Support xvYCC & 8/10/12-bit deep color processing
  • Individual color adjustment in each processing channel
  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment


• Specifications:

  • Input:
    - 2x HDMI 2.0b
    - 1x DP1.2a
    - 1x VGA
  • Output:
    1x HDMI 1.4b
  • Loop Output: 1x HDMI 2.0b for Cascade
  • HDCP Compliance:
    - Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
    - Output: HDCP V1.4
  • Input Resolution:
    - 7680x2160 @30Hz
    - 5760x1200 @60Hz
    - 4096x2160 @60Hz
  • Input Signal:
    - Progressive and interlaced RGB/YUV signal
    - 4:4:4 Chroma sampling
    - Up to 30 Color bits
    - Supports non-VESA standard input timings for easy connection with various signal sources.
  • Output Resolution:
    - Up to 2048x1080/60, progressive 4:4:4 RGB
    - 15 selectable output resolutions
  • Latency:
    - 2 frames system latency: 33ms (@V=60Hz)
  • Selectable and Programmable EDID: In the range: H=1024-3840, V=720-2400
  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
  • Working Environment: 113°F (45°C), 10-90% RH
  • Control: Keypads, IR, RS232, USB, Ethernet
  •
    - DC: 12V 2A
    - Max. Power consumption: 12V/0.7A, 8.4W
  • Dimensions: 11.93" x 6.46" x 1.73" (303.02mm x 164.08mm x 43.94mm)
  • Weight: 5.5 lbs (2.49 kg)


• Item Includes:

  • 1x VigilLink M811 Single Channel 4K In/2k Out Modular HDMI Edge Blending Processor with PIP/POP
  • 1x Power Cord
  • 1x Remote Control


• Warranty:

  • 6-Year Limited Warranty
