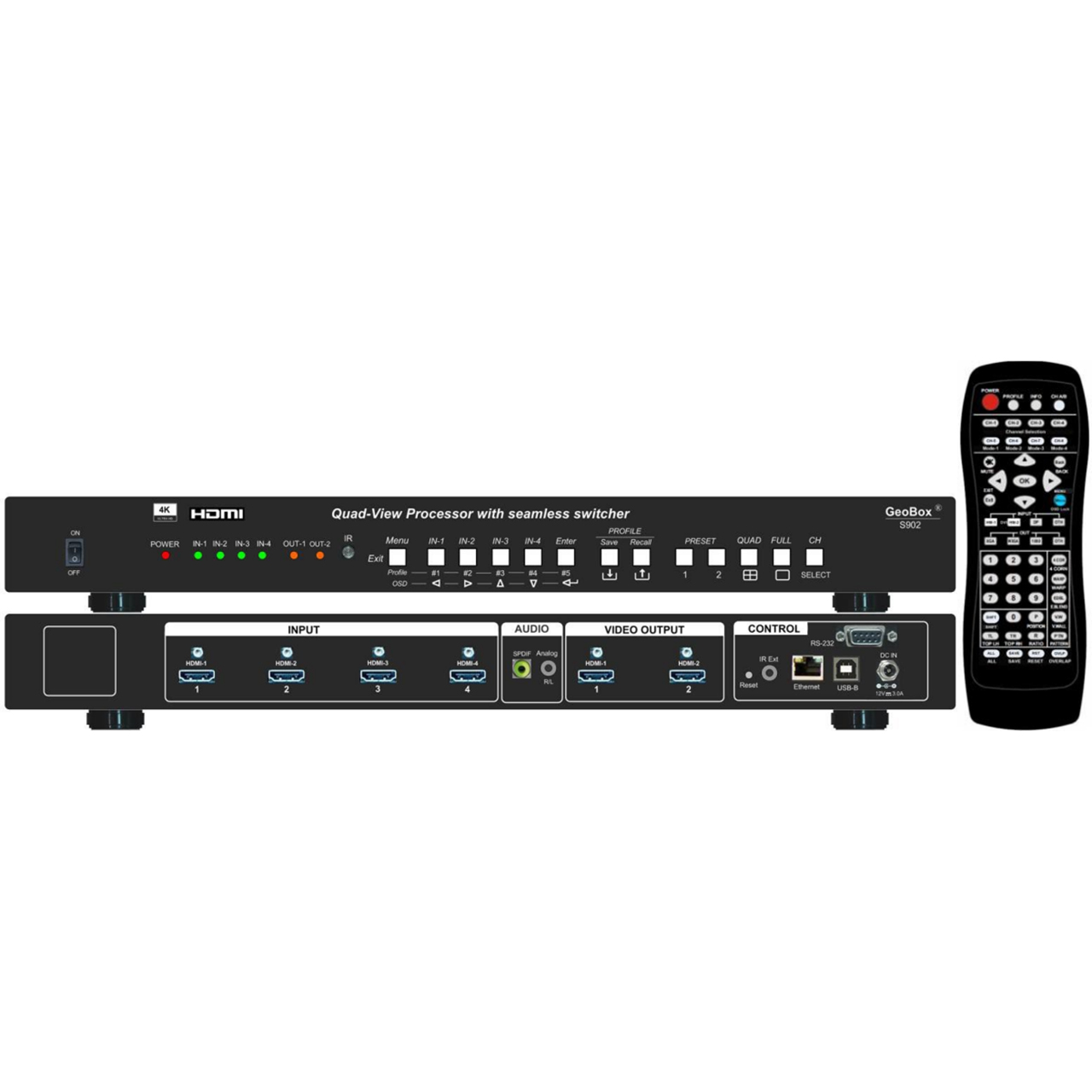

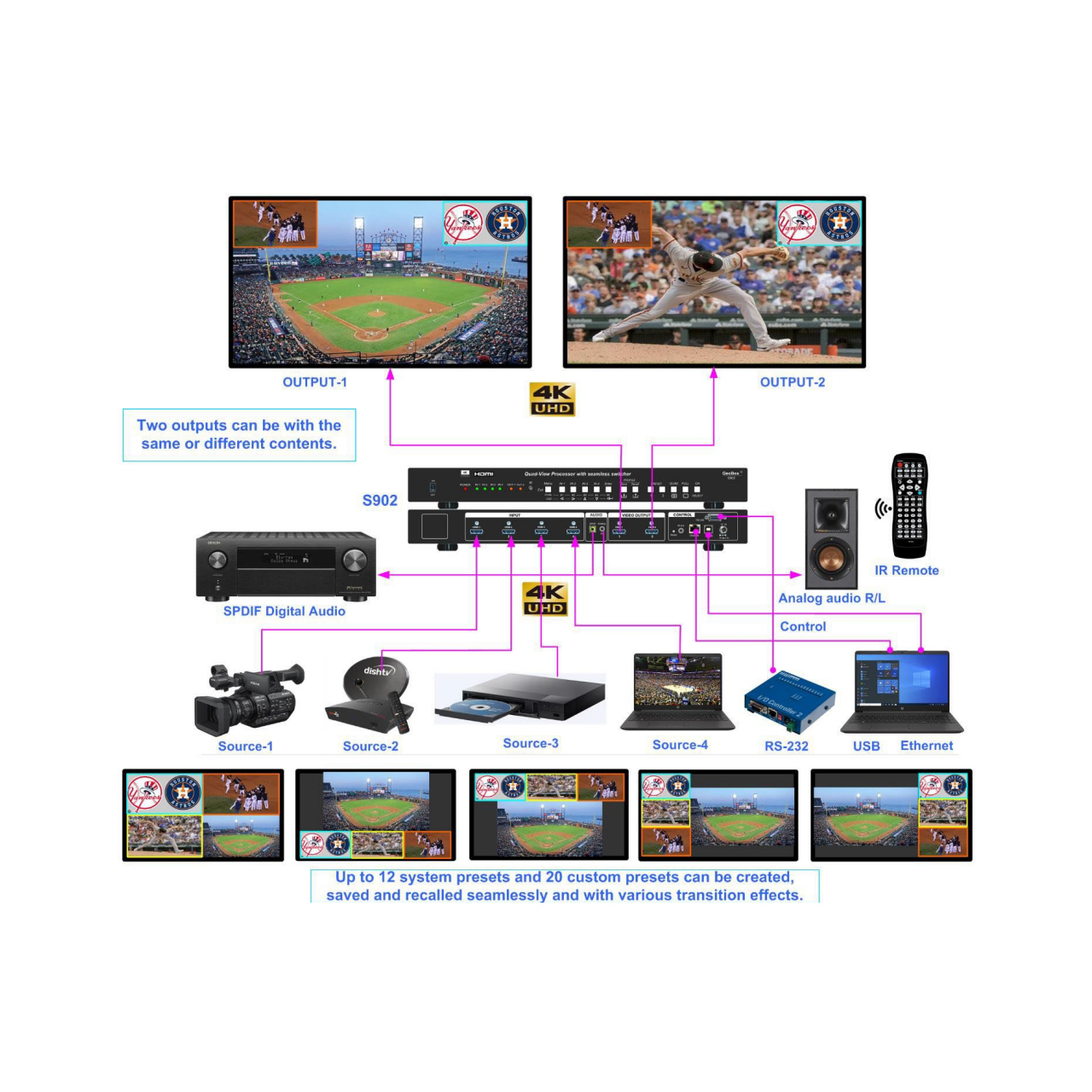

The VigilLink S902 is a powerful 4x2 UHD Quad-View processor, allowing users to simultaneously display up to four 4K/60 sources on one or two UHD displays. Designed for maximum flexibility and efficiency, this device provides a cost-effective solution for efficiently managing and routing multiple high-resolution sources across dual displays.
With 12 preset multi-view layouts and 20 customizable Profile Presets, users can tailor their display configurations to meet various application needs.
Advanced Connectivity & Customization
Equipped with four HDMI 2.0 inputs and two HDMI 2.0 outputs, the S902 supports CEA video standard timings up to 4096x2160 @60Hz with 4:4:4 chroma sampling. Each output can accommodate up to four independent windows, allowing users to assign input sources to multiple windows, adjust image positioning, resizing, cropping, and color settings, overlap windows with adjustable display prioritization and apply 16 transition modes, including seamless switching, fade-in/out, dissolve, and wipe.
Versatile Audio & Control Options

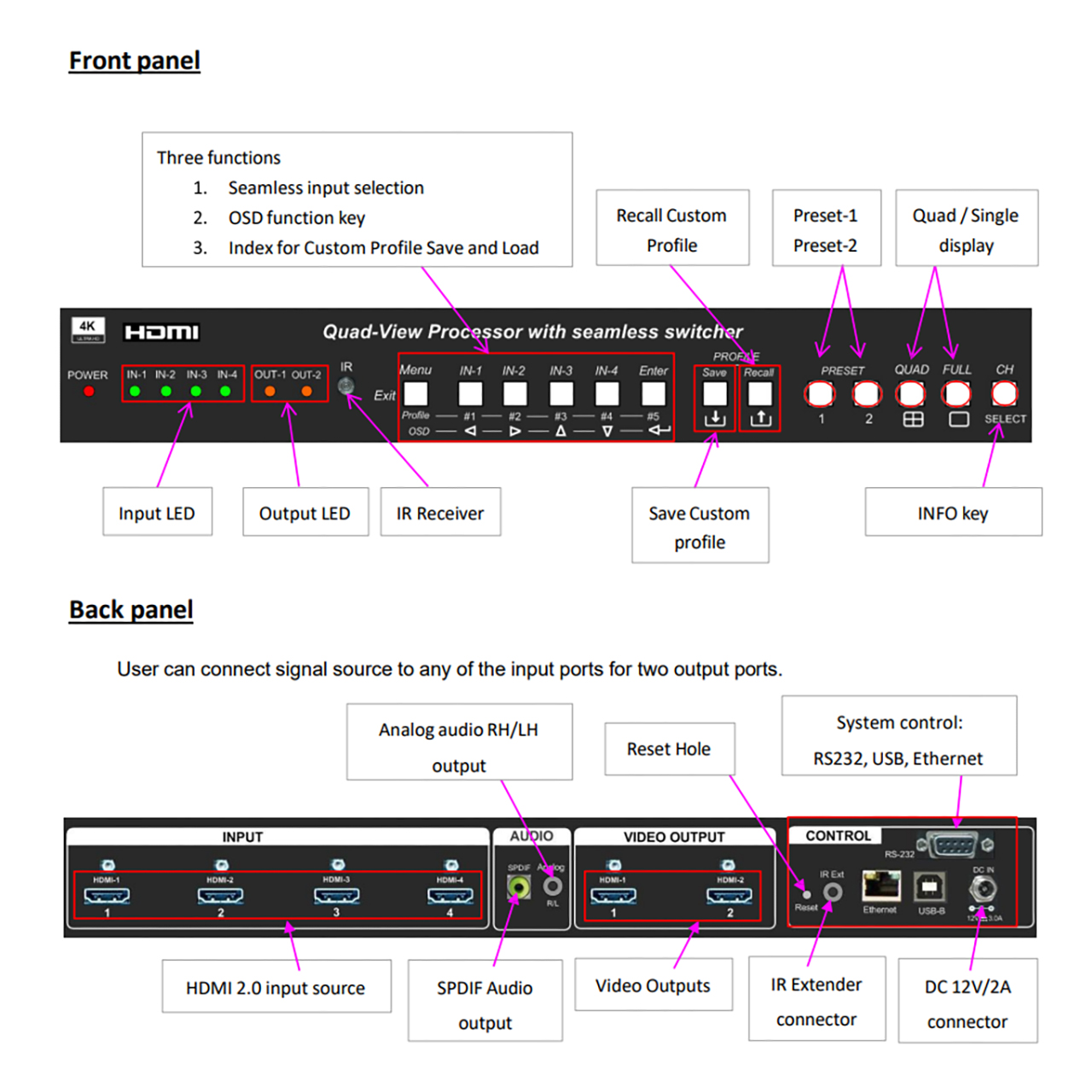

The S902 integrates HDMI-embedded audio, RCA SPDIF digital audio, and analog 3.5mm stereo outputs, enabling users to assign specific audio sources to each output as needed. Control is made simple with multiple interface options, including IR remote control, Front-panel push buttons, USB, WebUI, Ethernet and quick recall of up to 20 custom Profile Presets.
Reliable Performance for 24/7 Operation
Built for continuous use, the S902 delivers exceptional reliability, flexibility, and ease of configuration for professional environments.
Ideal Applications
- Digital Signage
- Security & Surveillance Systems
- Education & Training
- Conference Rooms & Presentation Halls
- Video Post-Production & Editing Studio
