VigilLink GeoBox UD101 Single Channel 4K60/8K30 HDMI Edge Blending with with PIP/POP and Multiview

ITEM #: VGL-UD101 MFG #: UD101

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,761.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

UD101 - Overview

The VigilLink UD101 is a powerful video processor designed for advanced projection applications, offering seamless edge blending, geometry alignment, and multi-view display.

Inputs
4 ports, including HDMI 2.0 and DisplayPort

Resolution Support
- Up to 7680x2160 @30Hz and 7680x1200 @60Hz with 4:4:4 color sampling
- DisplayPort input supports 7680x4320 @30Hz

Advanced Processing
- 10-bit high-end processor for superior video clarity
- Motion-adaptive de-interlacing, low-angle smooth algorithm, and 3:2/2:2 pull-down
- Programmable EDID to optimize input timing

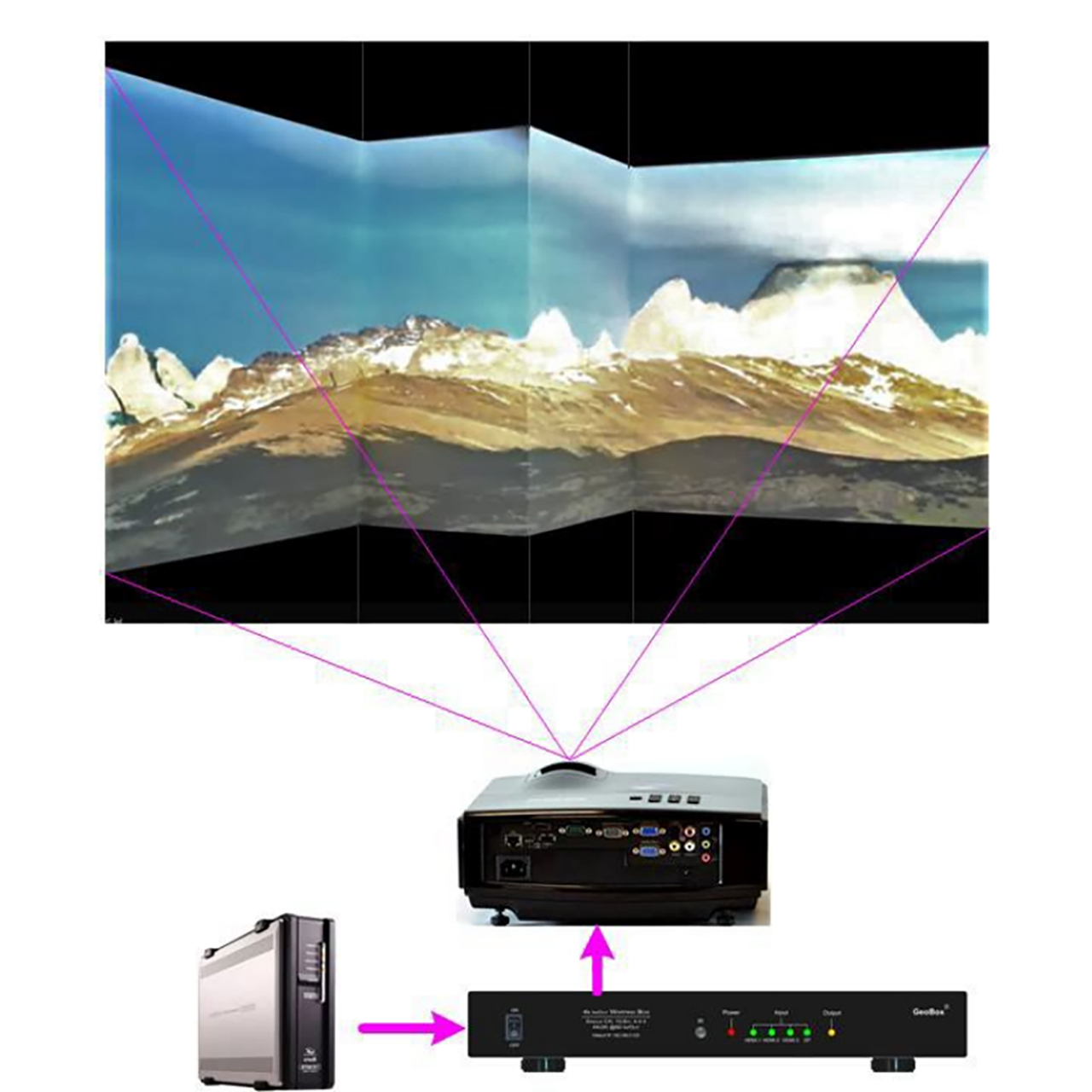

Geometry Alignment
Up to 17x9 control points via multiple control methods (front panel, IR remote, USB, WebGUI, Ethernet)

Precision Color Control
- RGB gamma correction for fine-tuned edge blending
- Independent color correction for each output
- 9-region black level uplift for projector light leakage compensation
- Real-Time Adjustments for instant optimization

HDMI Loop-Out
Daisy-chain multiple units for large-scale displays

Video Wall Function
- Crop and allocate source images for each projector
- Set overlap pixels for edge blending

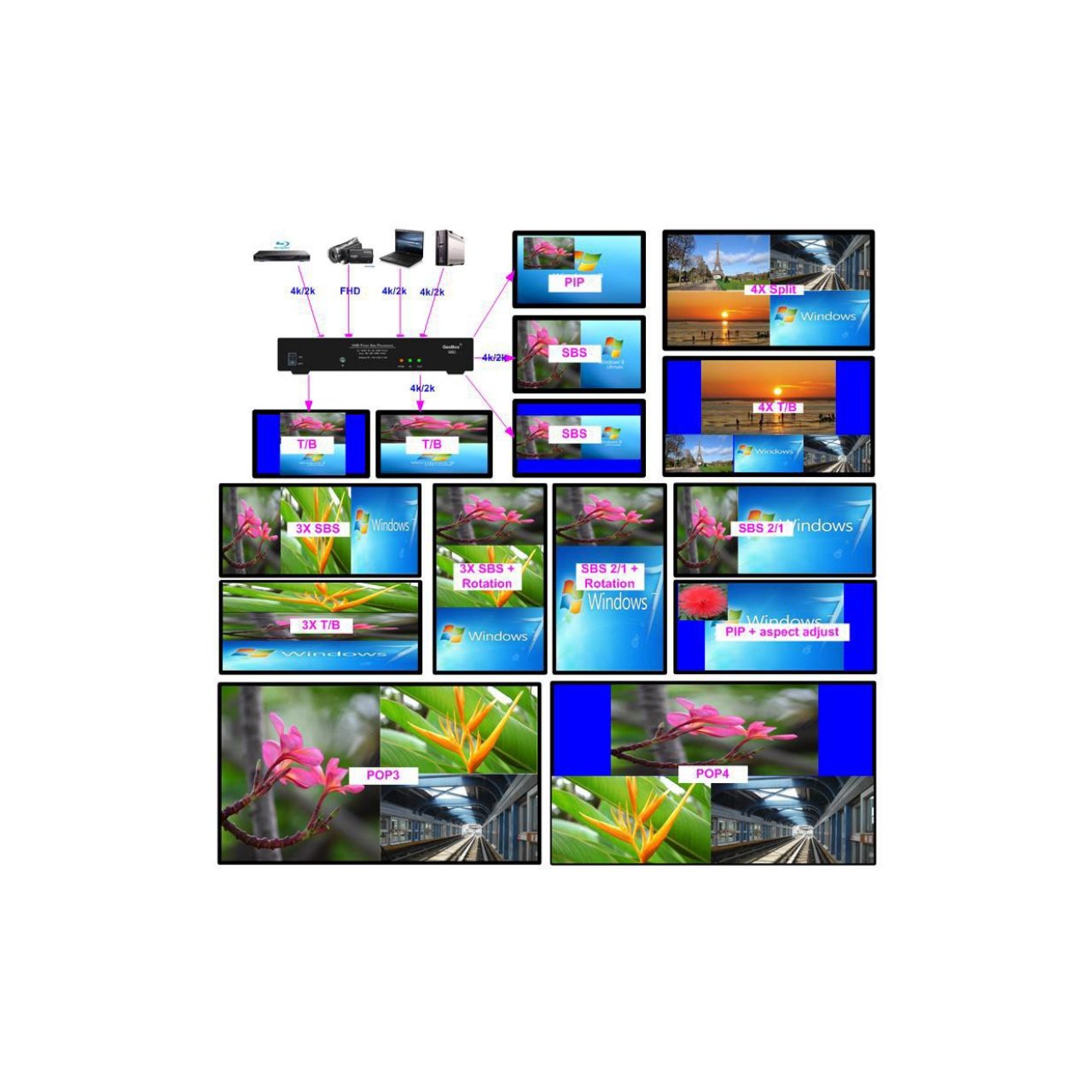

Multi-Window Display
- PIP (Picture-in-Picture), POP (Side-by-Side), and 3/4 Split View Multiviewer
- PIP size adjustable from 320x180 to 1920x1200
- Display up to 16 input sources from a single UD104

Ideal for Projection & Simulation Applications
The UD100 is perfect for:
- Simulation & Training Systems
- Multi-Projector Edge Blending
- Large-Scale Display Walls
- Flexible Projection with Portrait Mode Support
- Laser Projector Integration Without Installation Angle Limitations

  • Features:

    • Single Channel Version

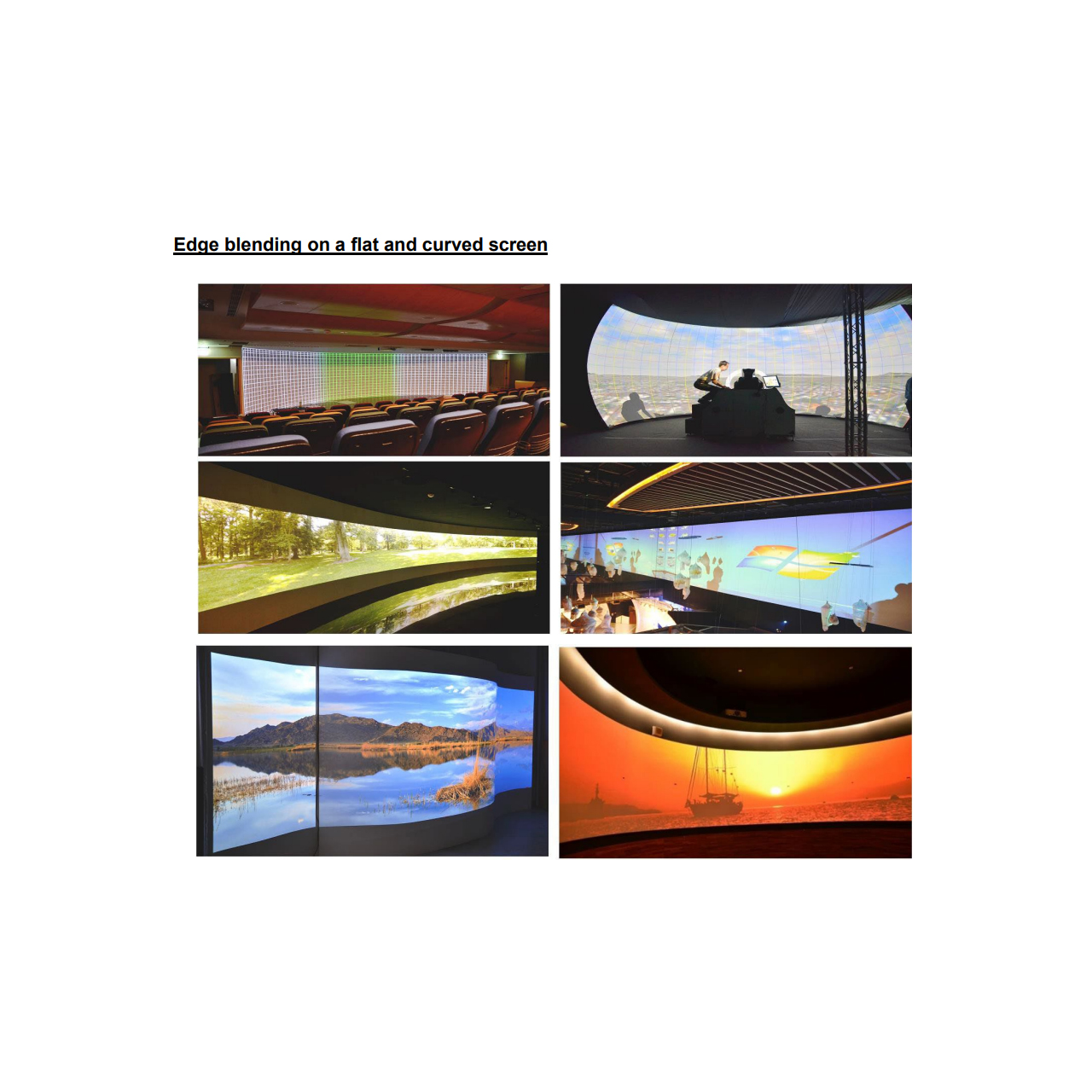

    • Control 4k UHD projector edge blending on flat, curved and 360 degree screen
    • Support max input of 4096x2160@60hz or 7680x2160@30hz and true 4K output
    • Modularized design to control from one to four projectors in one box
    • Support multiple unit cascade through HDMI loop through for controlling more than four projectors
    • Supports progressive and interlaced RGB/YUV signal, 4:4:4 chroma sampling, up to 30 color bits
    • Supports non-VESA standard input timings for easy connection with various signal
    • 16 selectable outputs: HDMI 2.0 up to 4096 x 2160 @60Hz, progressive 4:4:4 RGB
    • Embedded video wall function for image split, cropping, edge blending overlap pixel setting, and aspect ratio adjustment
    • Selectable geometry alignment grid size from 8-120 pixels in the H&V direction. The default is 32 x 32 pixelsSelectable grid pattern color with optional transparency to allow the user to apply an external test pattern
    • 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/2k 60Hz input signal


  • Specifications:

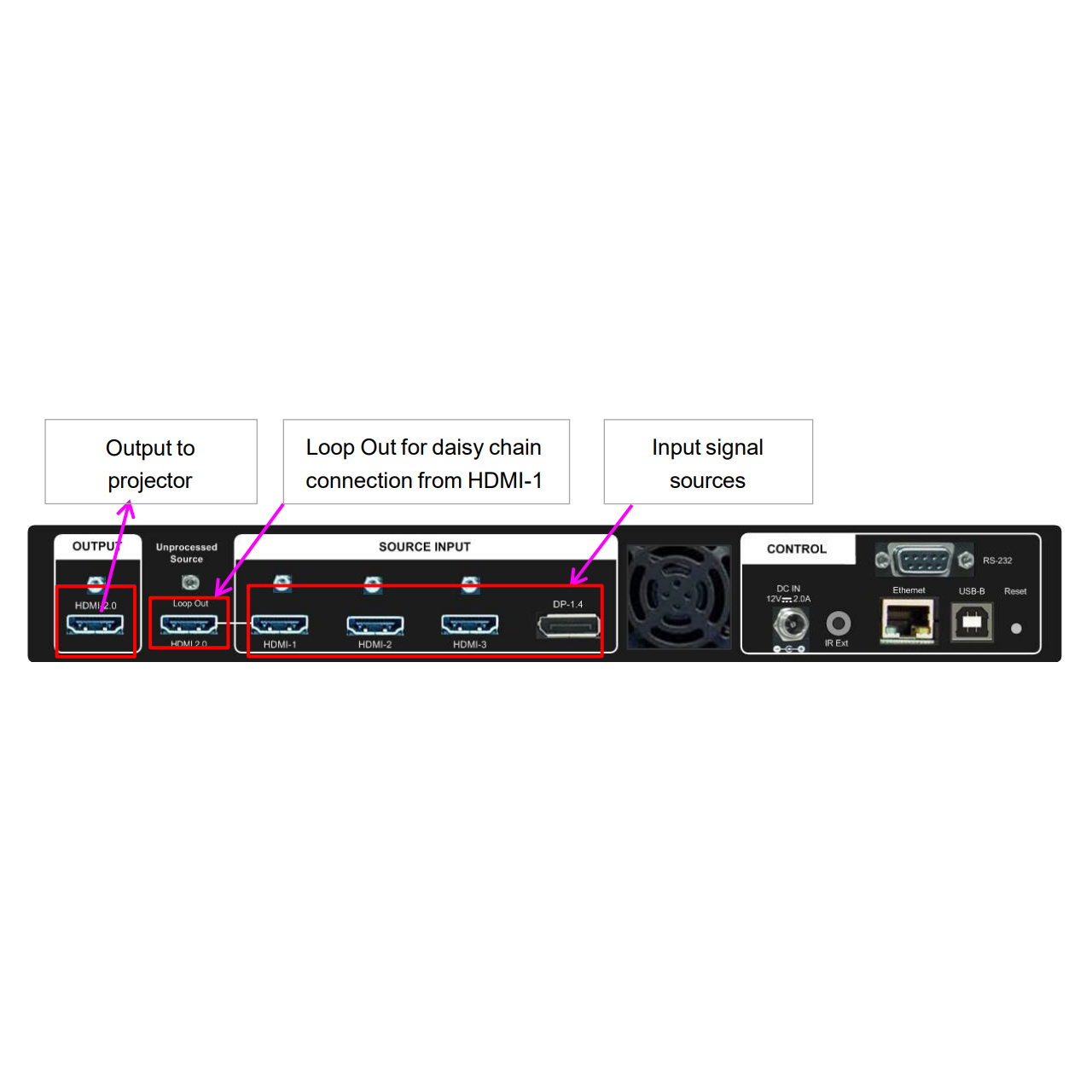

    • Input
    • 3x HDMI 2.0b, 1x DP1.4
    • Input resolution:
      - DisplayPort: 7680 x 4320 @30Hz
      - HDMI: 7680 x 2160 @30Hz, 7680 x 1200 @60Hz, 4096 x 2400 @50Hz, 4096 x 2160 @60Hz
    • HDCP compliance:
      - Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
      - Output: HDCP V2.0/V1.4

      Output
    • 1x HDMI 2.0
    • Loop output: 1x HDMI 2.0b for audio, monitoring, and daisy chain connection
    • 16 selectable outputs: HDMI 2.0 up to 4096 x 2160 @60Hz, progressive 4:4:4 RGB
    • 2 frames system latency: 33ms (@V=60Hz)

      Physical
    • Working Environment: 104°F, 10-90% RH
    • Control: keypads, IR, RS232, USB, Ethernet
    • System settings can be stored and backup in the PC
    • Power Supply: DC 12V 2A-5A
    • Power Consumption: DC 12V/1.1A, 13.2W
    • Dimensions: 11.9" x 7.5" x 1.6" (302.26mm x 190.5mm x 40.64mm)
    • Weight: 6.4 lbs (2.9 kg)


  • Item Includes:

    • 1x VigilLink UD101 Single Channel 4K60/8K30 HDMI Edge Blending with with PIP/POP and Multiview
    • 1x Power Cord
    • 1x Remote Control


  • Warranty:

    • 6-Year Limited Warranty
