VigilLink VLCT-4485IP 4-Inch 720x720 Touch Screen IP Wall Control System Wallplate

Name: VigilLink VLCT-4485IP 4-Inch 720x720 Touch Screen IP Wall Control System Wallplate
Brand: VigilLink
SKU: VGL-VLCT-4485IP
Price: 1340.00 USD
Availability: InStock

ITEM #: VGL-VLCT-4485IP MFG #: VLCT-4485IP

VigilLink

Our Price:

$1,340.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLCT-4485IP - Overview

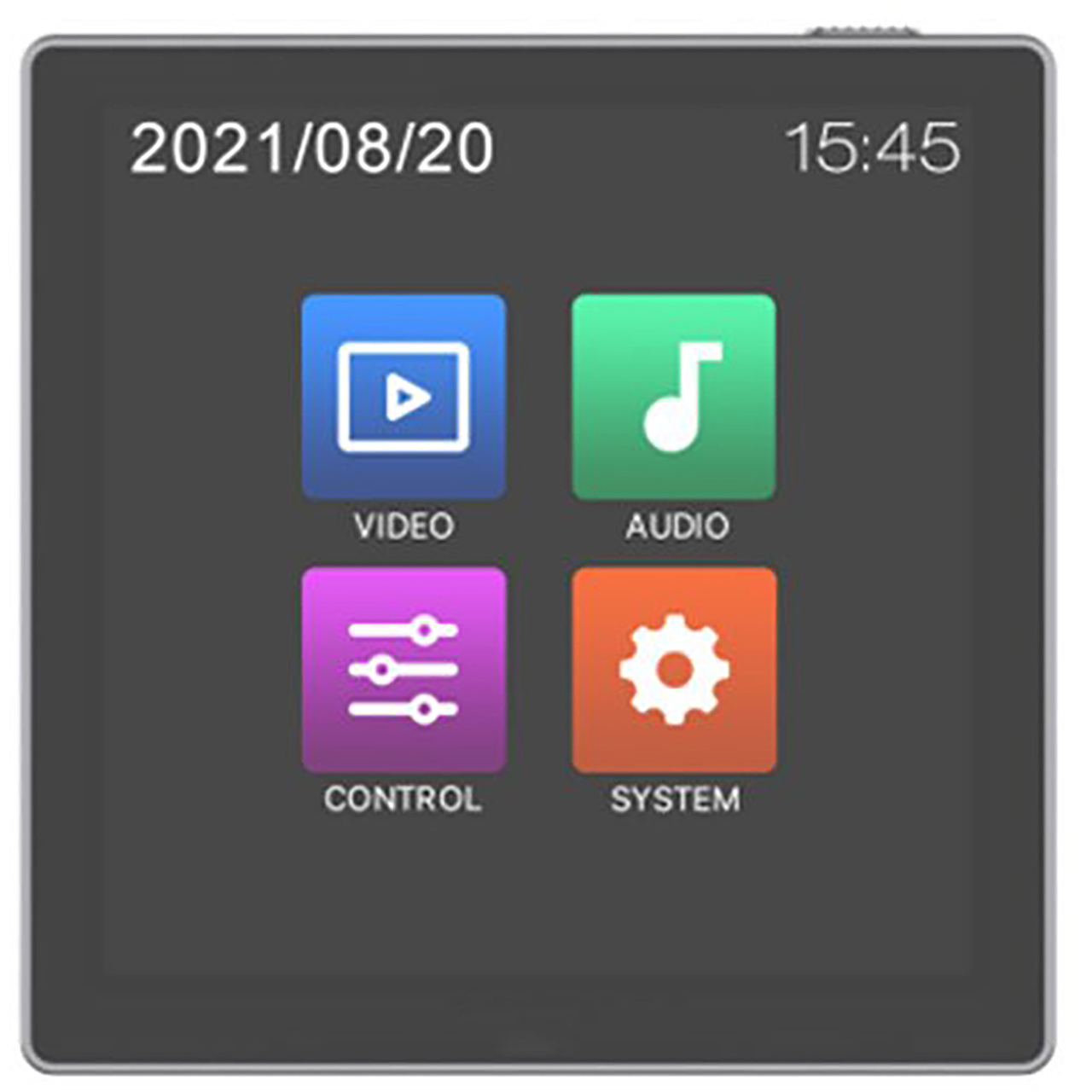

The VigilLink VLCT-4485IP programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel wall-plate (standard 86 box design) is equipped with a capacitive touch screen with a resolution of 720*720, and it supports one RS-485 serial port.

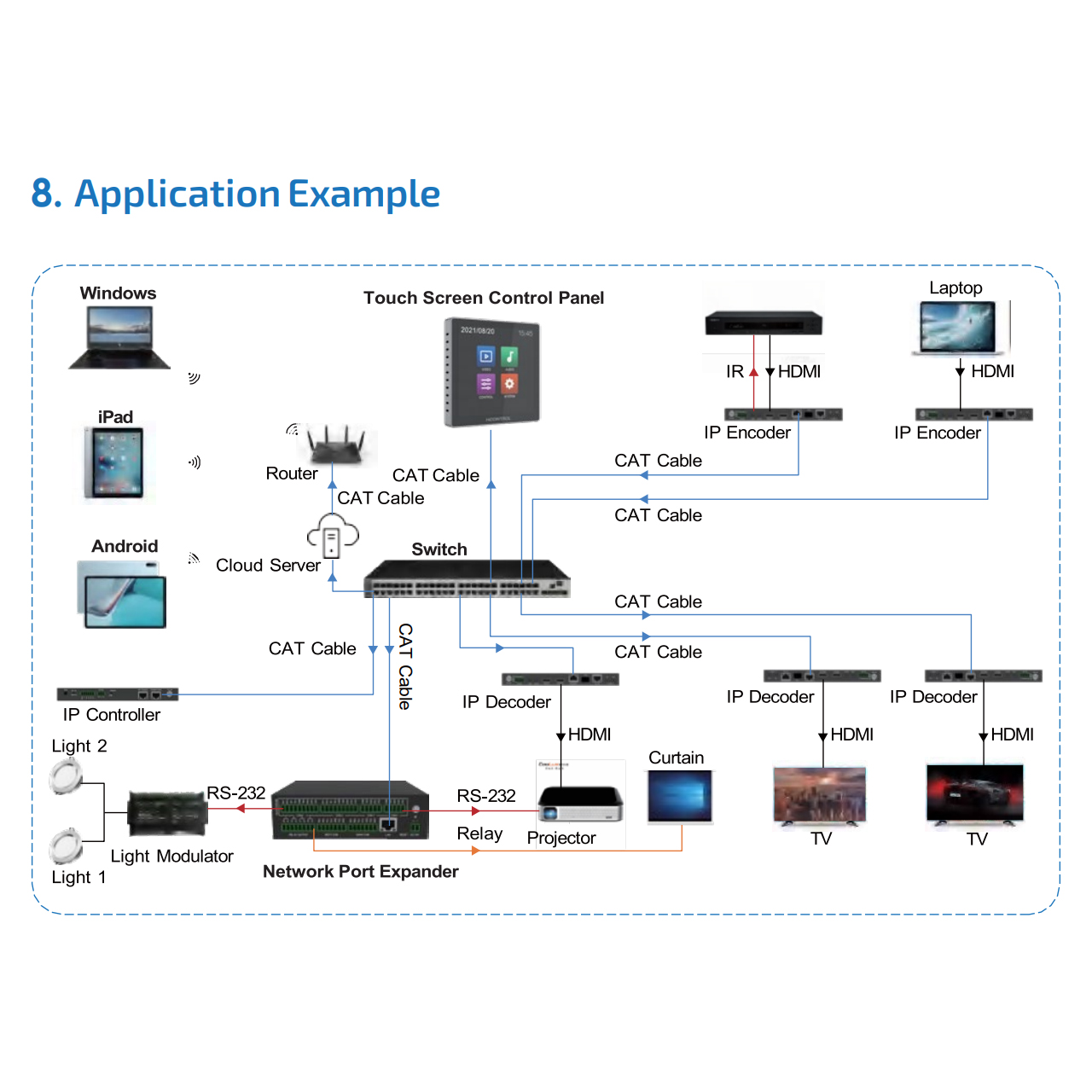

It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi- functional halls, training centers, show room, broadcasting studios and industrial automation.

Features:
- ARM Cortex-A53 architecture 1.8Ghz main frequency
- Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM
- 720*720 (1:1) resolution, standard 86 box wall-plate design
- One machine with two modes can be used as touch screen central control or user terminal
- Supports one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
- Supports access to the host system management web page with a password
- Compliant with industry-standard network communication protocols (TCP/IP, HTTP, UDP, Websocket)
- With 1 Gigabit network port, the highest rate is up to 1G/bps
- Supports POE function or independent DC 24V/1A power supply
- Interface and function configuration via central control software
- Supports remote control, remote O&M, and online upgrade
- Supports factory reset
Specifications:
- CPU: ARM Cortex-A53 1.8GHz
- Operation Systeme: Android 9
- RAM: 2GB DDR4 RAM
- Flash Memory: 8GB EMMC Flash
- Resolution: 720x720
- Touch Type: Capacitive Touch Screen

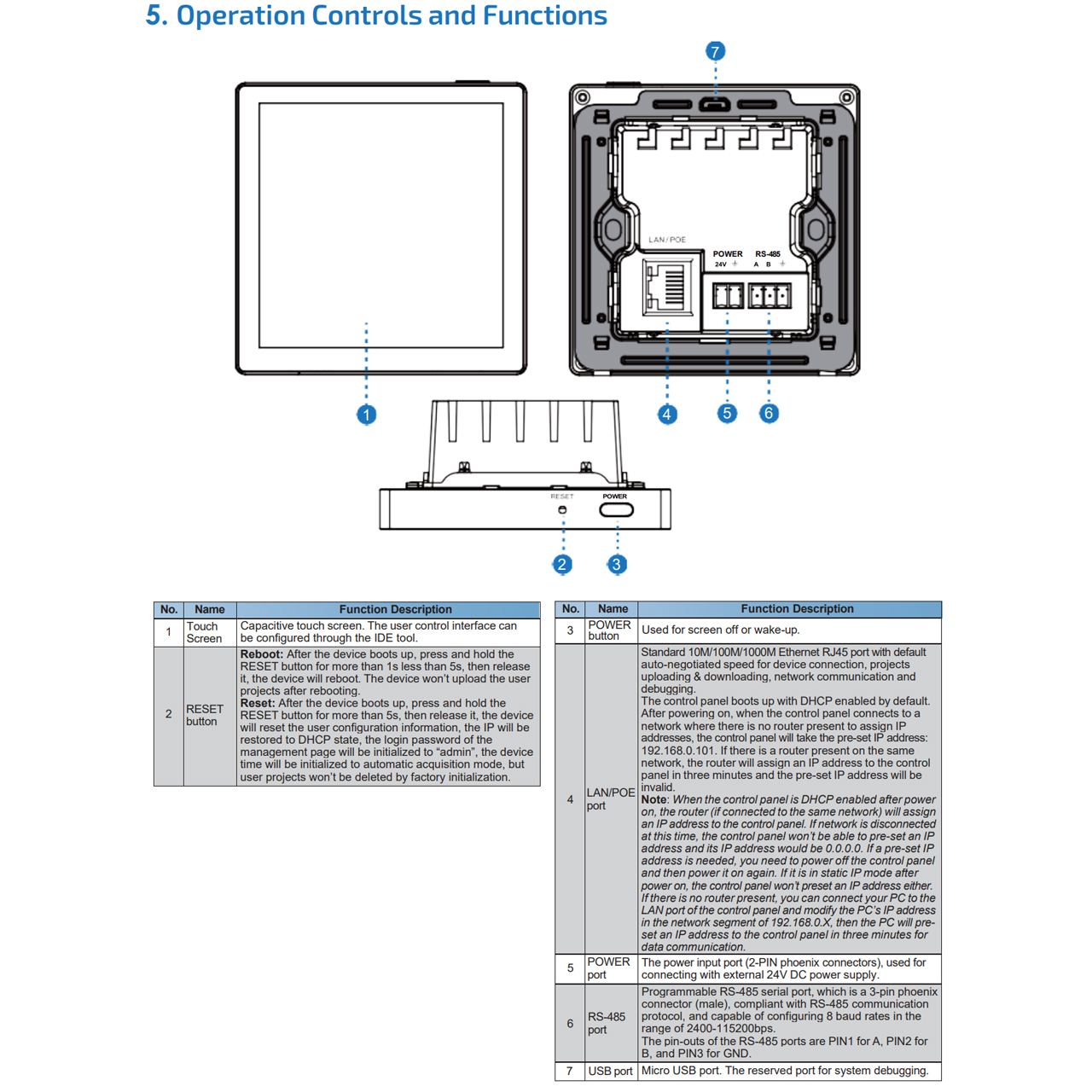

  Connection
- CPU: ARM Cortex-A53 1.8GHz

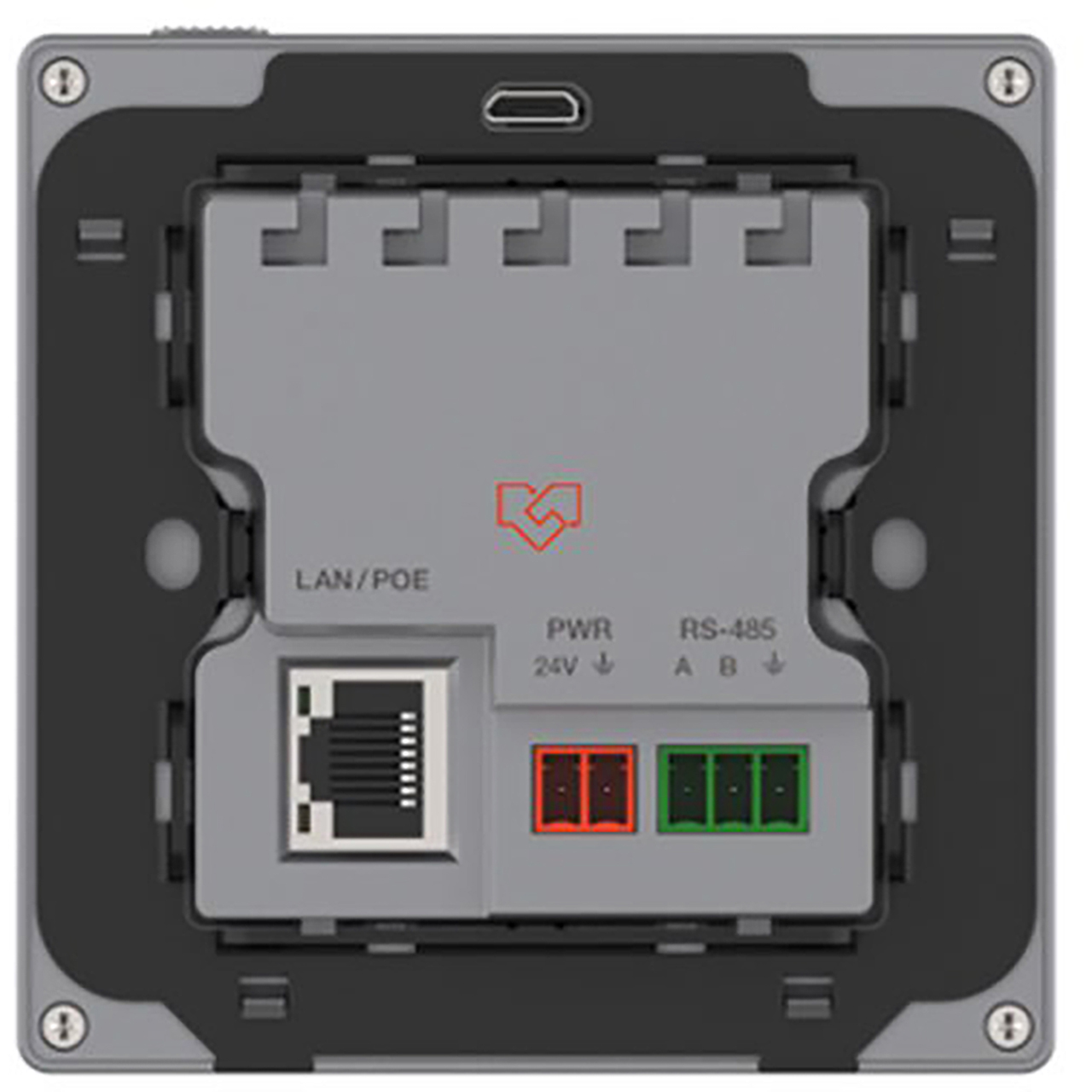

- LAN/POE: 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function
- Power: 1x 2-pin Phoenix Connectors, for power supply
- Debug: 1x Micro USB, system debugging port

  Mechanical
- Housing:
  - Front Panel - Touch Screen
  - Rear Case - Plastic
- Color:
  - Front Panel - Black
  - Rear Case - Gray
- Dimensions: 3.38" x 1.49" x 3.38" / 86 x 38mm x 86mm
- Weight: 0.41 lb / 186g
- Power Supply:
  - Input: AC100 - 240V 50/60Hz
  - Output: DC 12V/1A
- Power Consumption: 5W
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Relative Humidity: 20 - 90% RH (Non-condensation)
Item Includes:
- 1x Programmable Touch Screen Control Panel (Wall-plate)
- 1x 3pin-3.81mm Phoenix Connectors (male)
- 1x 24V 1A Multinational Power Supply (2pin-3.81mm Phoenix Connector)
- 1x User Manual
Warranty:
- 6 Years
