VigilLink's VLEX-DH10GF is a new technology of IP transit which designed for highquality, IP routable, AV extension, in order to build up a dual-link encoder and decoder in dual link mode to expand 4K60 4:4:4 uncompressed signals with no aspect ratio change and no distortion during signal transmission. The unit is flexible to operate with different link mode to fulfill the requirement of the environment. Dual link type transmitter and receiver could able to expand 4K60 uncompressed signals simultaneously in both Transmitter and Receiver mode. With Bidirectional audio, is able to achieve 2 way live chat with low latency. Seamless transition between two sources of same resolution in fast switch mode, with only 3 frames black when transit between 2 sources of different resolutions.
Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used). Multiple control and data signals may also be transmitted along with the audio and video, including USB (HID only), and Ethernet.
Multiple transmitter and receiver may be combined with one or more 10-Gigabit fiber Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. The integrated USB hub of each Transceiver can function as a simple point to point KVM extension or freely routed between any two endpoints. This type of USB KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios.

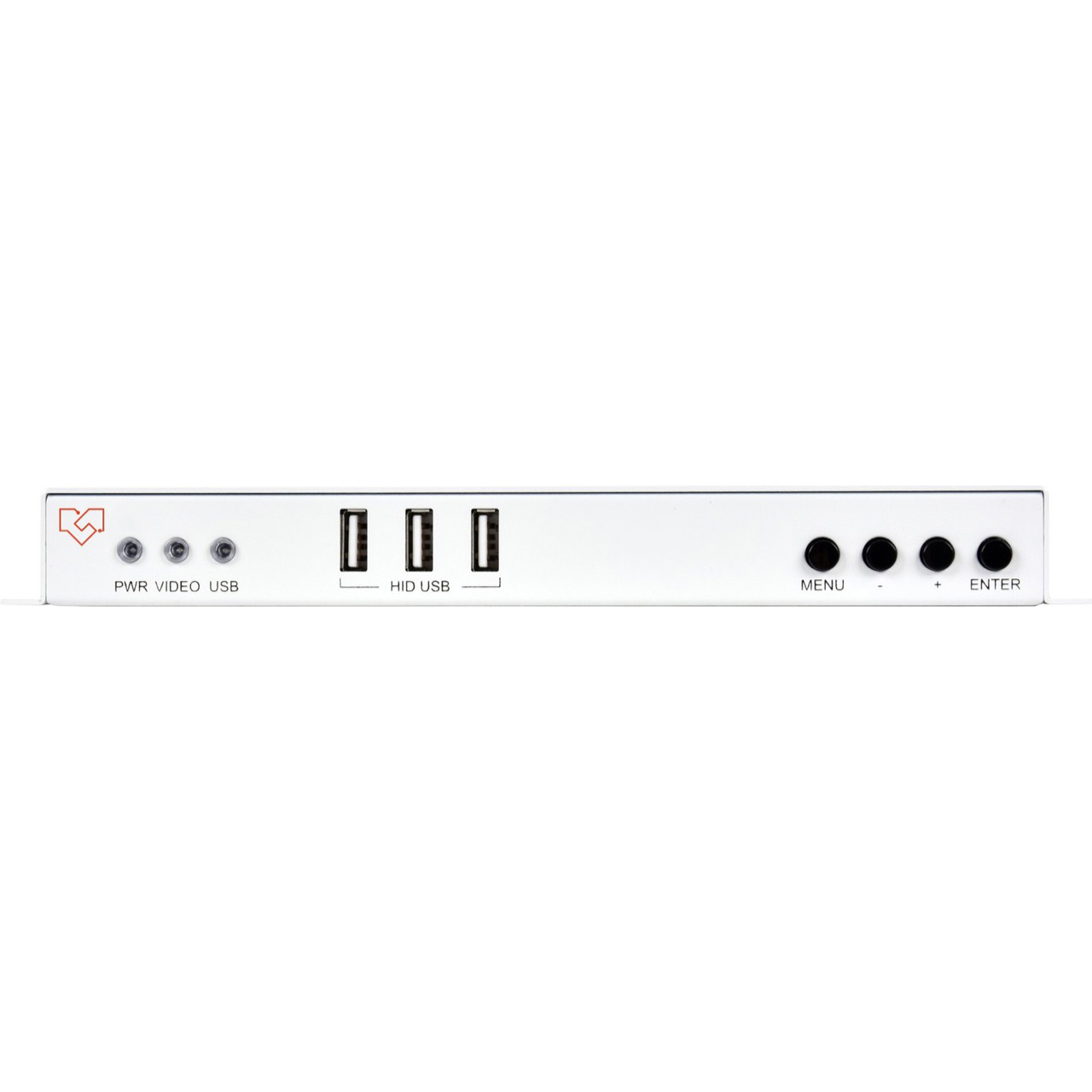

The built-in EDID and HDCP management functionality enables the unit to fit into every situation. Basic confi guration of the unit can be achieved via front panel buttons with an OSD (On-Screen Display). Advanced control requires the optional IP Master Controller, or control software, and a LAN connection Fiber transmission is inherently immune to electromagnetic interference from industrial equipment, RF systems, fluorescent ballasts, and high-voltage cabling, making the VLEX-DH10GF the preferred choice for broadcast control rooms, secure government facilities, healthcare, and manufacturing environments.
Applications:
• Video, Audio, LAN, IR, and USB (HID only) over fiber extension
• Long distance data and video transmission immune to RF interference
• Point-to-Point Secure Video Conferencing
• Hotel or convention center display
• Multi-monitor broadcast
• Distributed video matrix system
• Distributed video wall system
• Remote KVM system control
Please Note: Transmitter is required and sold seperately. SFPs are NOT included and are also sold seperately. Images are for reference only.
