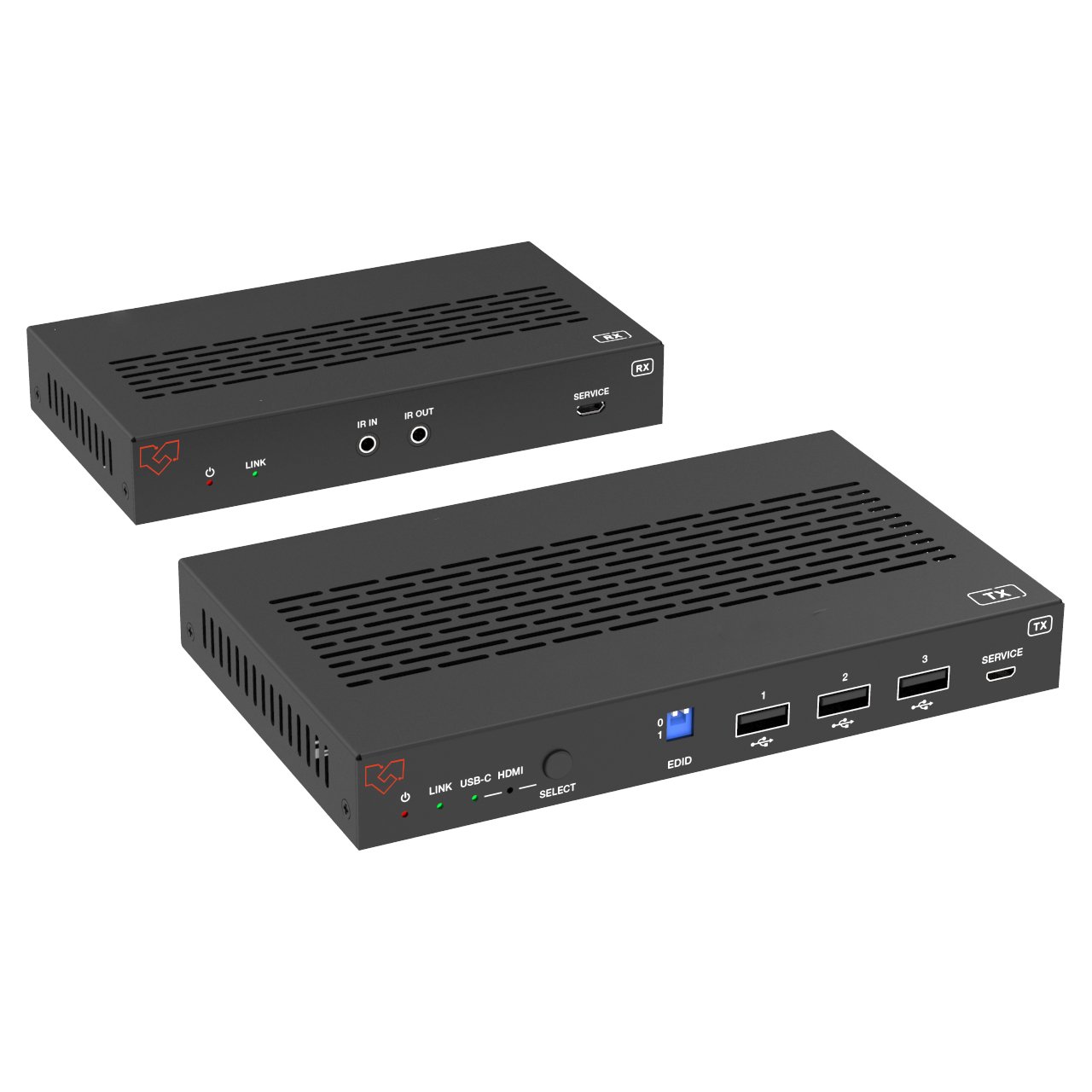

VigilLink VLEX-HT3070CU HDBaseT 3.0 4K@60Hz 4:4:4 USB-C/HDMI 2.0 Extender with USB - 18Gbps - 229 Foot/70m

VLEX-HT3070CU - Overview

• Features:

  • Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth
  • HDBaseT 3.0 VS300R chipset based design
  • Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
  • Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or 131ft/40m for 4K@60Hz over a single CAT6A/7 cable

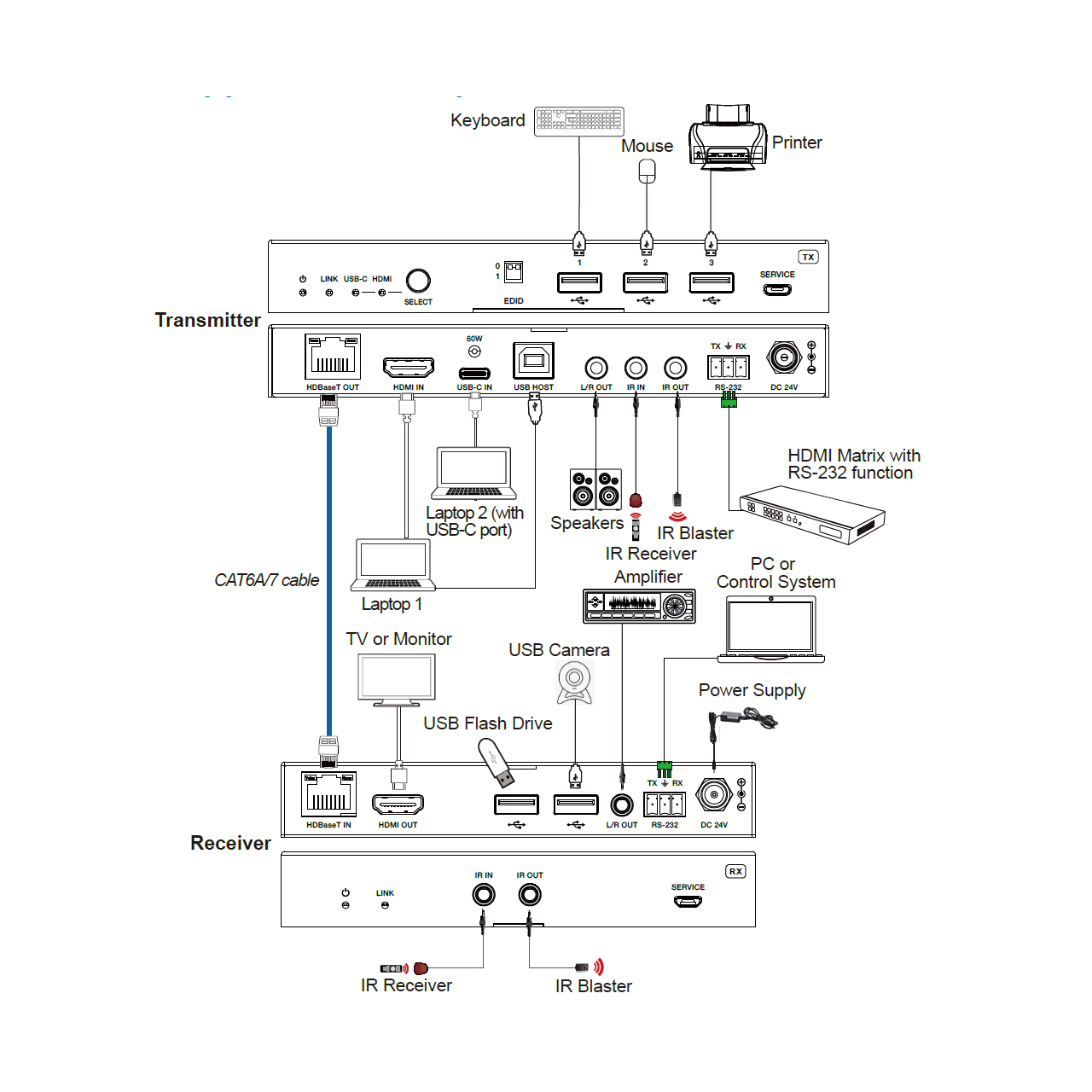

  • TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
  • RX features with 1x HDMI output, 2x USB 2.0 clients
  • USB-C and HDMI signal inputs support auto or manual switching mode
  • Auto switching supports HDMI 5V or signal detection selection
  • USB-C supports DP-ALT mode for A/V, USB 2.0 data, and power charging up to 60 watts
  • TX/RX USB-A client ports VBUS on or off depending on USB host is connected or not
  • HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
  • 4K to 1080p downscaling features on HDMI output, no frame rate conversion
  • Both TX and RX support analog audio de-embedding
  • RS-232 signal pass-through and guest-mode control
  • Supports bi-directional IR signal pass-through, USB 2.0 signal transmission
  • Advanced EDID management
  • Each USB-A port provides power up to 5V/500mA
  • Supports bi-directional 24V POC, with POC switch
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDCP 2.2
  • HDCP Compliance: USB 2.3
  • USB Compliance: USB 2.0
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K @ 60Hz 4:4:4
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12-bit
  • IR Level: 12Vp-p
  • IR Frequency: Wideband 20K - 60kHz
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Audio Formats:
    - HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    - 3.5mm Analog Audio: LPCM 2CH
  • Transmission Distance:
    - 4K60: 131ft (40m)(CAT6A/7)
    - 4K30/1080p: 230ft (70m)(CAT6A/7)
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connection

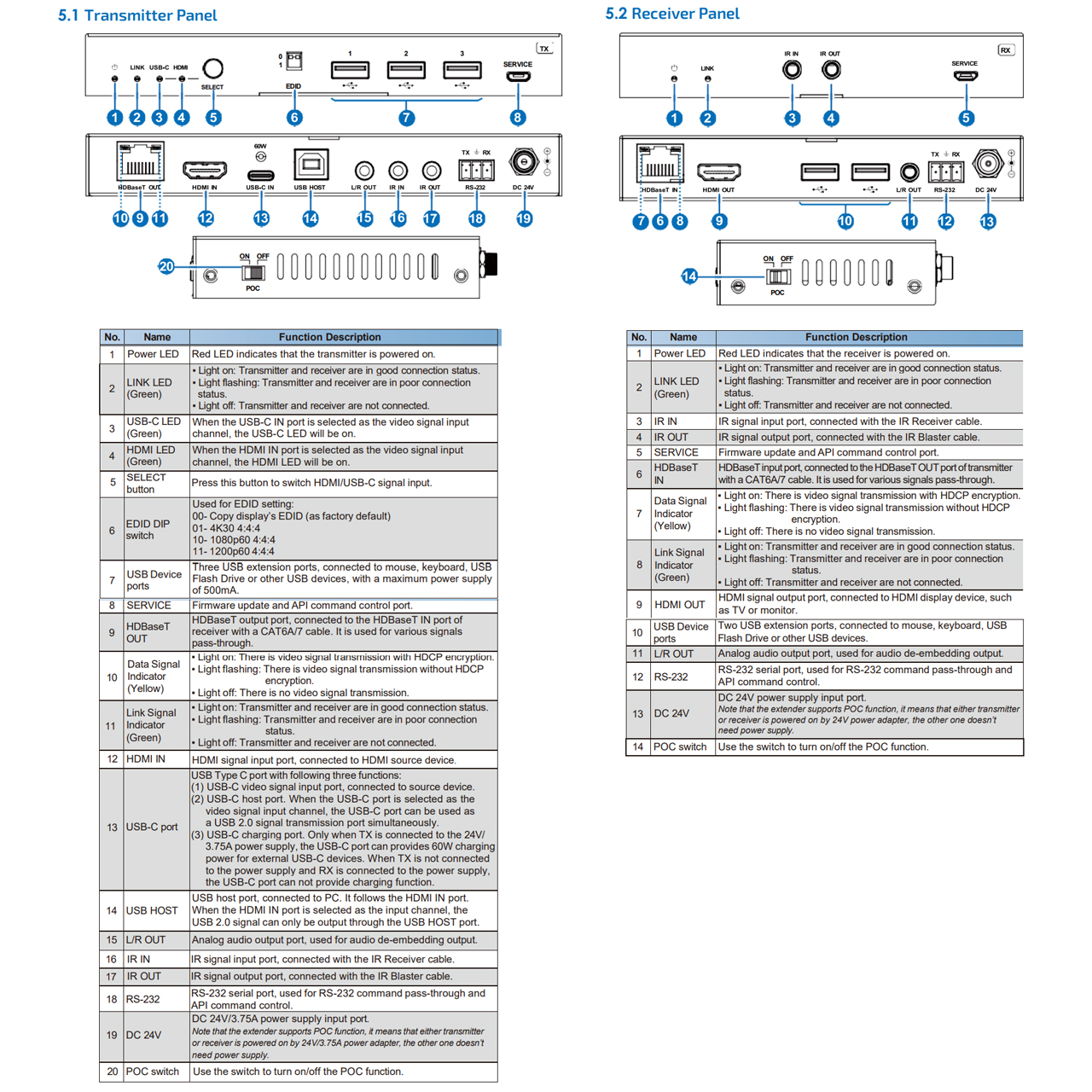

  • Transmitter Inputs:
  • - 1x HDMI IN (Type A, 19-pin female)
  • - 1x USB-C IN (USB Type C, 24-pin female)
  • Transmitter Outputs:
  • - 1x HDBaseT OUT (RJ45, 8-pin female)(RJ45 connector)
  • - 1x L/R OUT (3.5mm Stereo Mini-jack)
  • Transmitter Controls:
  • - 1x IR IN (3.5mm Stereo Mini-jack)
  • - 1x L/R OUT (3.5mm Stereo Mini-jack)
  • - 1x RS-232 (3pin-3.81mm Phoenix jack)
  • - 1x SERVICE (Micro USB, 5-pin female)
  • - 1x USB HOST (USB Type B)
  • - 3x USB DEVICES (USB Type A)
  • Receiver Inputs: 1x HDBaseT IN (RJ45, 8-pin female)
  • Receiver Outputs:
  • - 1x HDMI OUT (Type A, 19-pin female)
  • - 1x L/R OUT (3.5mm Stereo Mini-jack)
  • Receiver Controls:
  • - 1x IR IN (3.5mm Stereo Mini-jack)
  • - 1x IR OUT (3.5mm Stereo Mini-jack)
  • - 1x RS-232 (3pin-3.81mm Phoenix jack)
  • - 1x SERVICE (Micro USB, 5-pin female)
  • - 2x USB DEVICES (USB Type A, 4-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions TX/RX: 6.69" x 4.01" x 0.86" (170mm x 102mm x 22mm)
  • Weight:
    - Transmitter: 0.93lbs (425g)
    - Receiver: 0.96lbs (437g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption (max):
    - 94.32W (Power supply from TX, 60W USB-C charging, POC to RX)
    - 10.8W (Power supply from TX or RX, without USB-C charging)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

  • 1x 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
  • 1x 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Wideband Receiver Cable (1.5 meters)
  • 2x 3pin-3.81mm Phoenix Connector (male)
  • 4x Mounting Ear
  • 8x Machine Screw (KM3*4)
  • 1x 24V/3.75A Desktop Power Supply
  • 1x User Manual


• Warranty:

  • 6 Years
