VigilLink VLHA-ERAD HDMI 2.0 18Gbps 4K2K eARC Audio Adapter - HDMI 2.0b and HDCP 2.3 Compliant

VLHA-ERAD - Overview

• Features:

  • HDMI 2.0b and HDCP 2.3 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
  • Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
  • Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True
  • HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

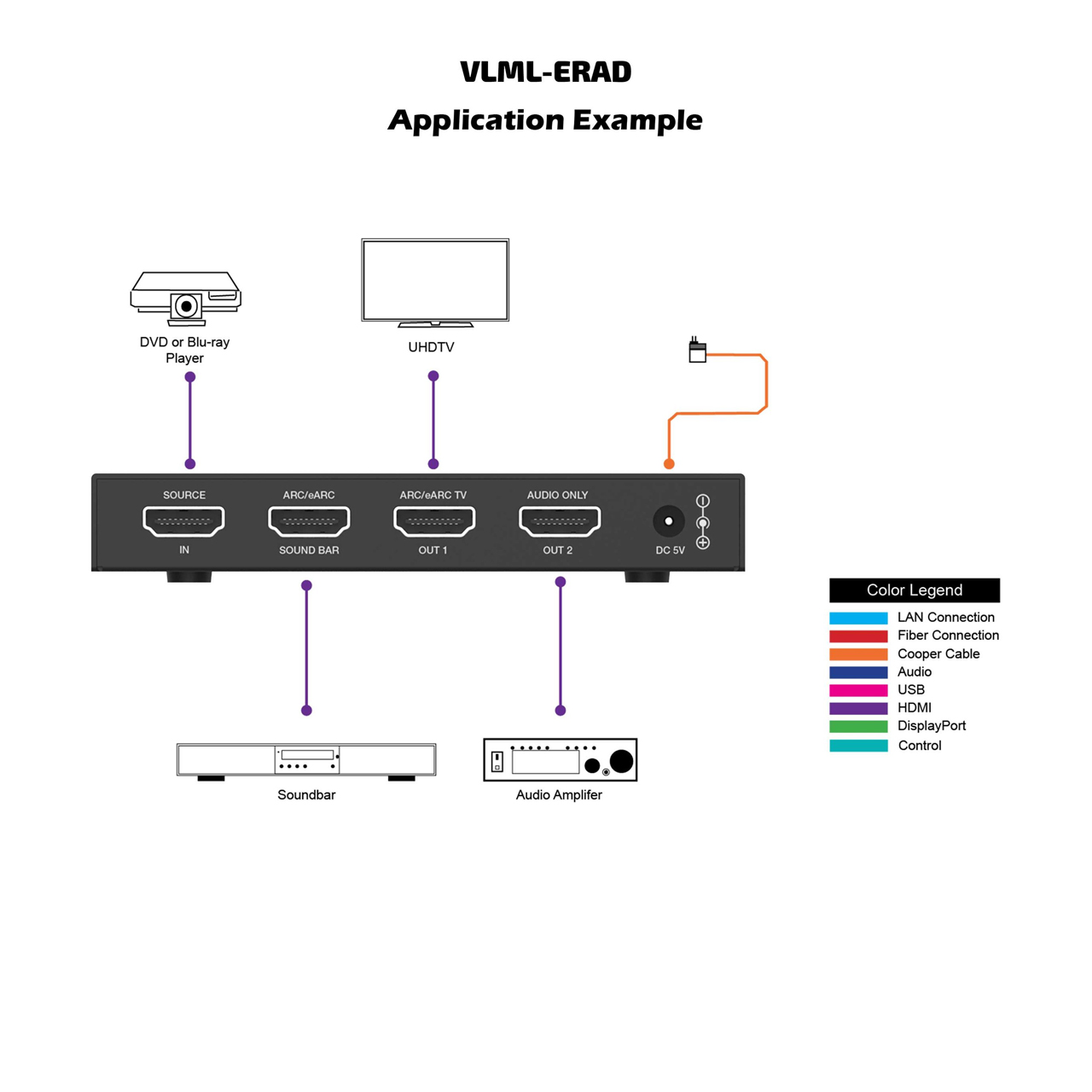

  • Perfect solution for SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers
  • Dedicated HDMI port for outputting audio only when connecting with legacy AVR without eARC/ARC function
  • Built-in Equalizer, Retiming, and Driver
  • Auto EDID management
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
  • Color Depth: 8-bit,10-bit,12-bit
  • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • HDMI Audio Format: PLPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

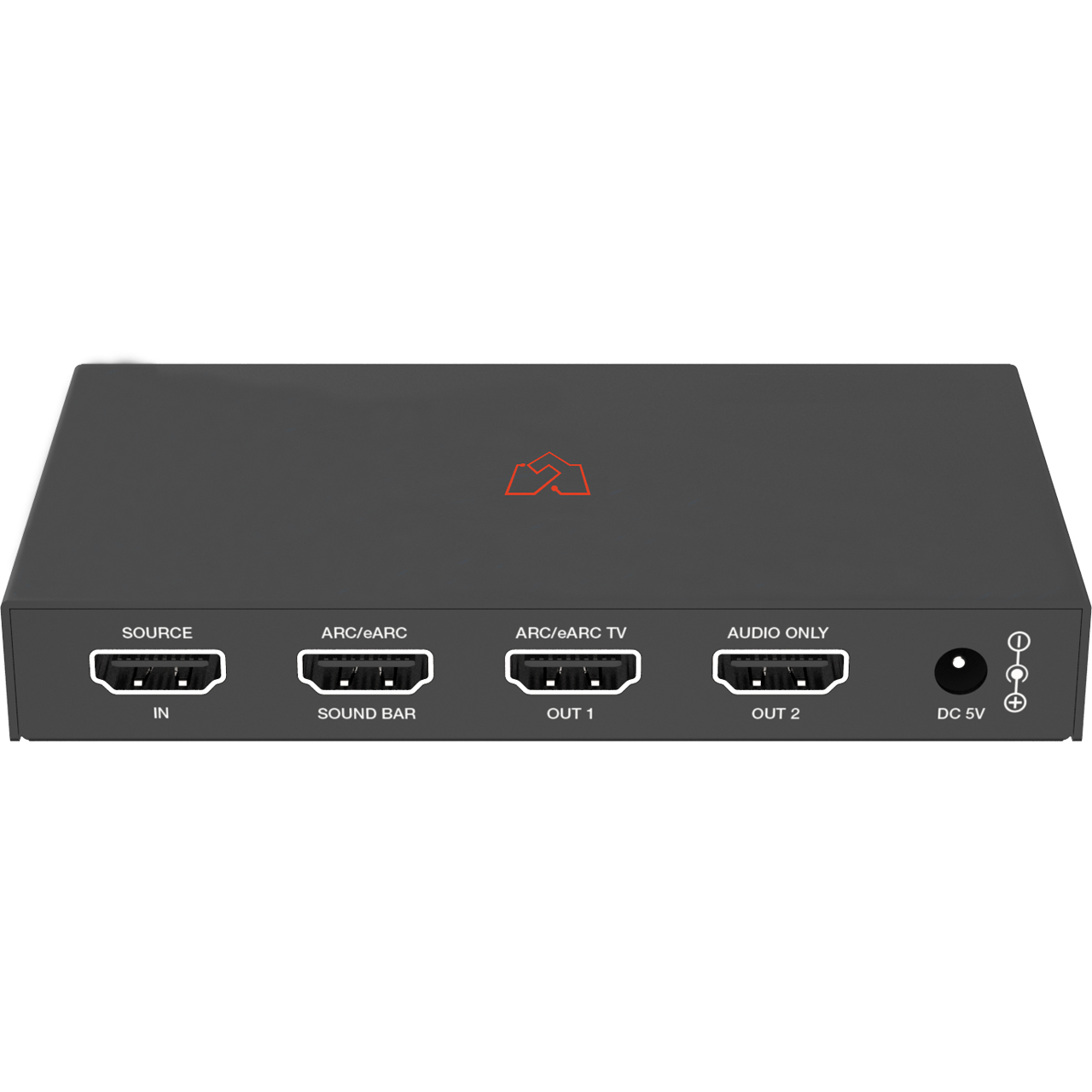

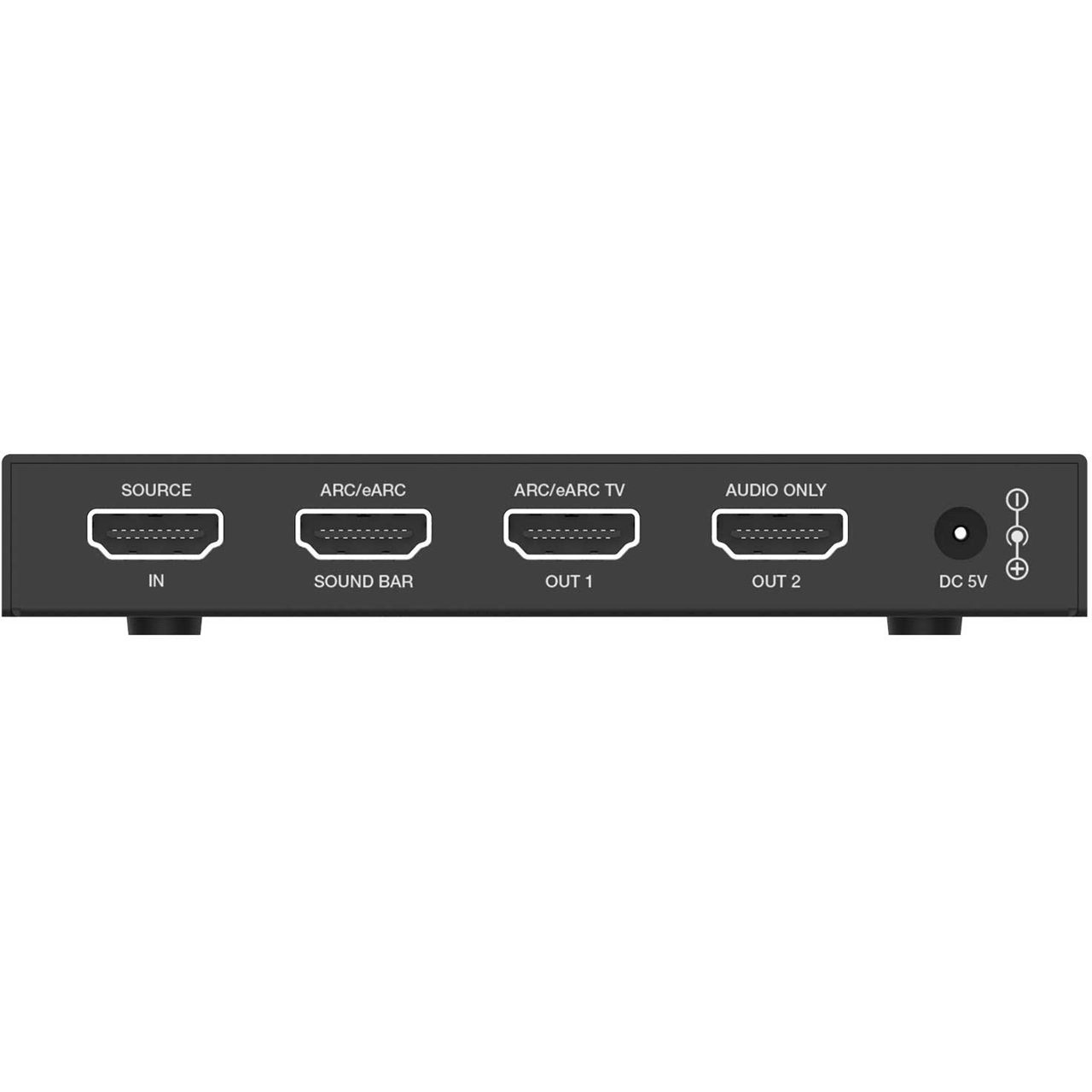

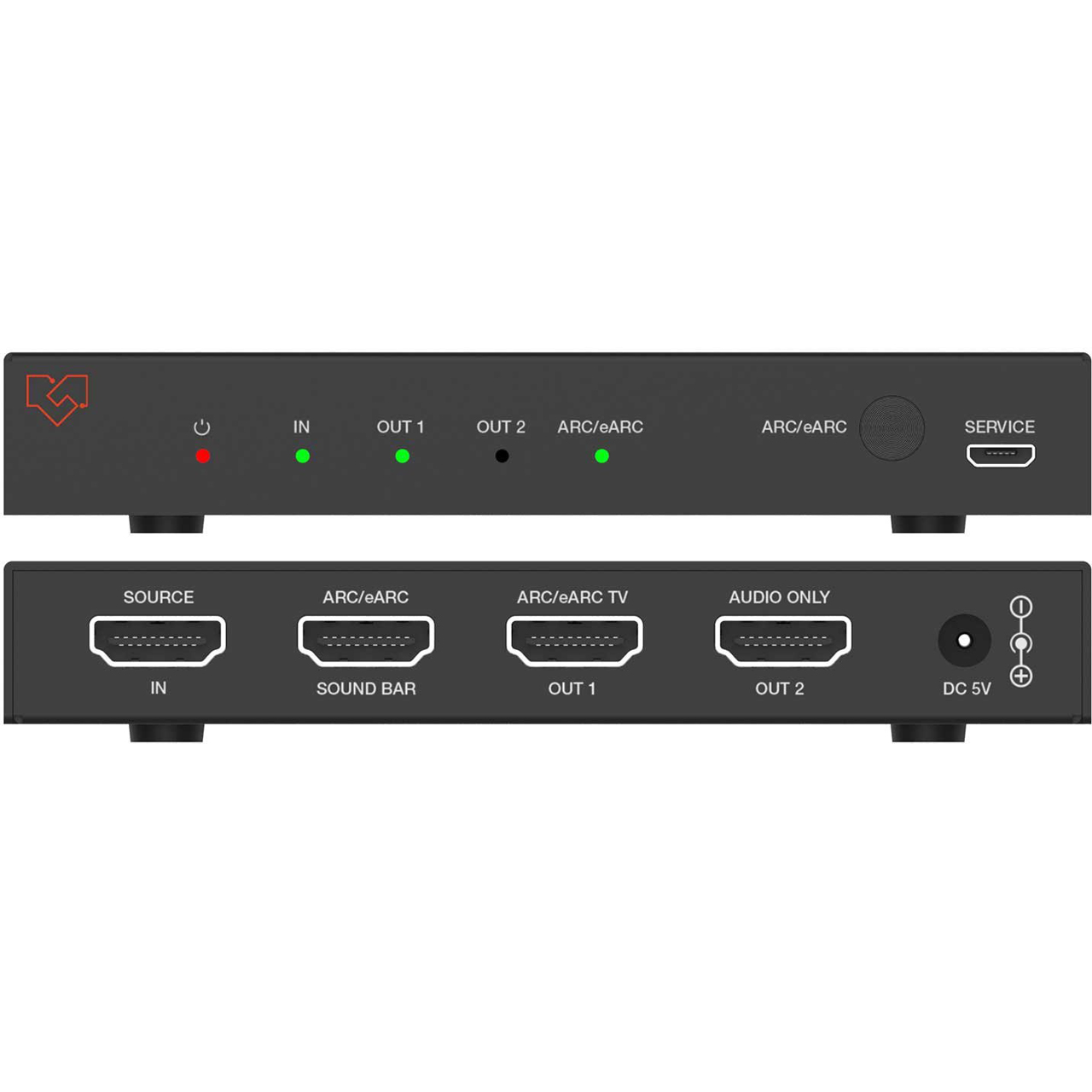

    Connections
  • Input: 1x HDMI IN [Type A, 19-pin female]
  • Output:
    - 1x HDMI SOUND BAR [Type A, 19-pin female]
    - 2x HDMI OUT [Type A, 19-pin female]

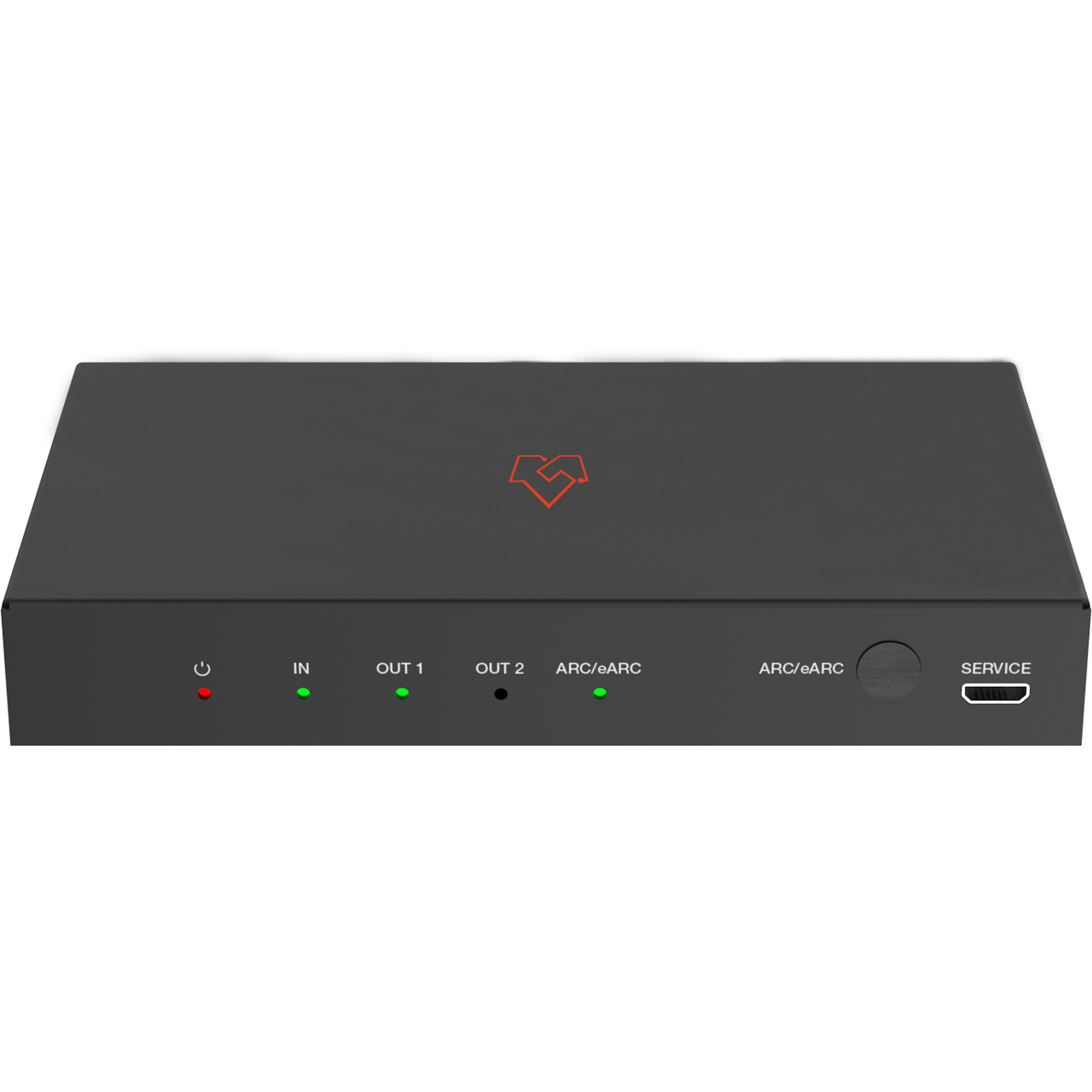

  • Control: 1x SERVICE [Micro USB, Update port]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 4.72" x 2.75" x 0.63" / 120mm x 70mm x 16mm
  • Weight: 0.462 lbs / 210g
  • Power Supply: DC 5V/1A
  • Power Consumption: 2.28W (Max)
  • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
  • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 4K HDMI ARC/eARC Audio Adapter
  • 1x 5V/1A American Standard Power Adaptor
  • 1x User Manual


• Warranty:

  • 6 Years
