VigilLink VLHA-EREX HDMI 2.0 18Gbps 4K2K eARC Audio Extractor - HDMI 2.0b and HDCP 2.3 / 1.x Compliant

VLHA-EREX - Overview

• Features:

  • HDMI 2.0b and HDCP 2.3 / 1.x compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
  • Supports VESA format up to QSXGA@60Hz
  • HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supports PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
  • Built-in Equalizer, Retiming, and Driver
  • Dedicated HDMI output for audio only with 720p
  • Black screen

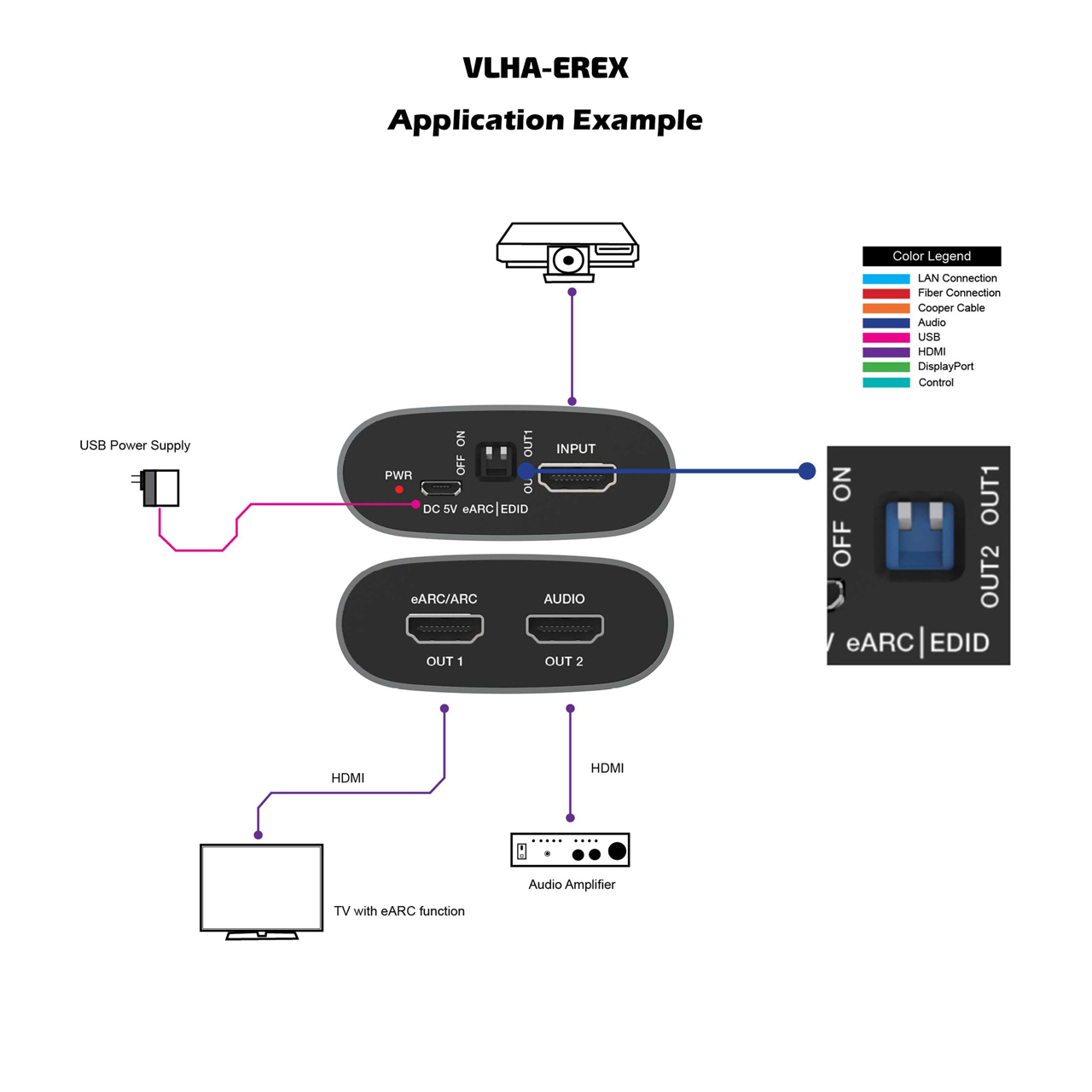

  • Supports eARC/ARC audio (from TV) extract to HDMI audio output
  • Supports CEC function and advanced EDID management


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.3 / 1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4k2k@60Hz 4:4:4
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p@60Hz)
    - 8-bit (4K2K@60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDMI Audio Format: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
  • ESD Protection: Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)

    Connections

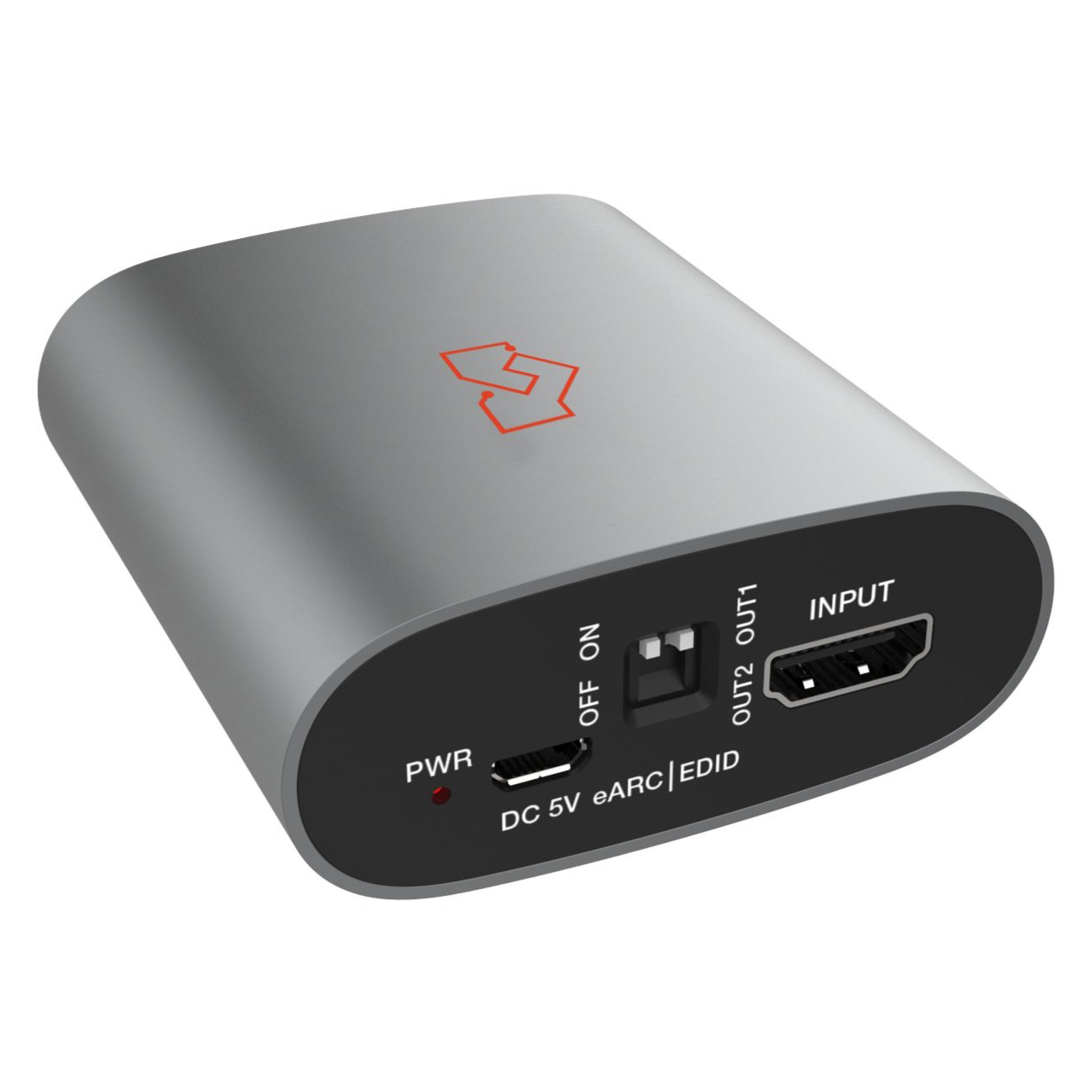

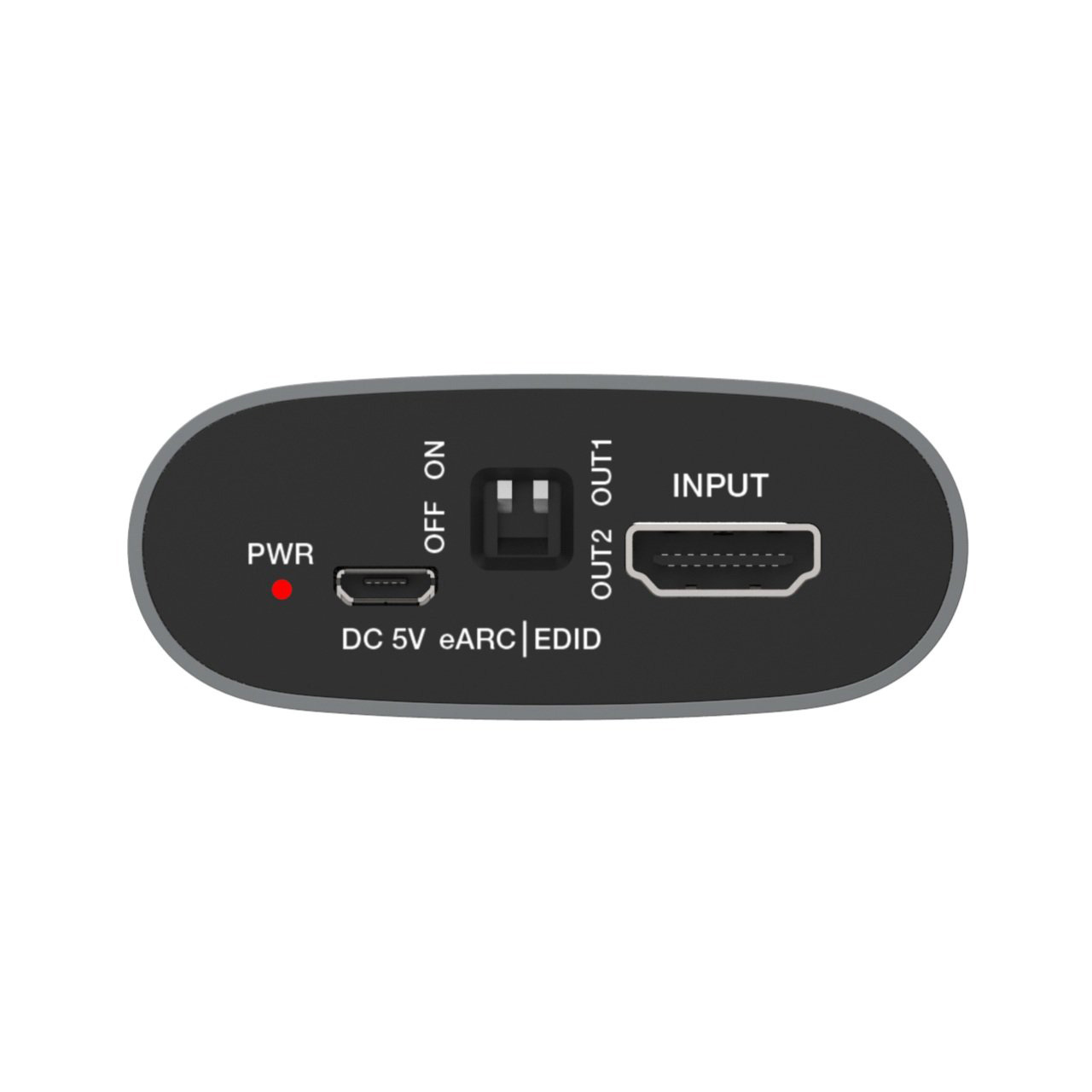

  • Input: 1x HDMI Type A [19-pin female]

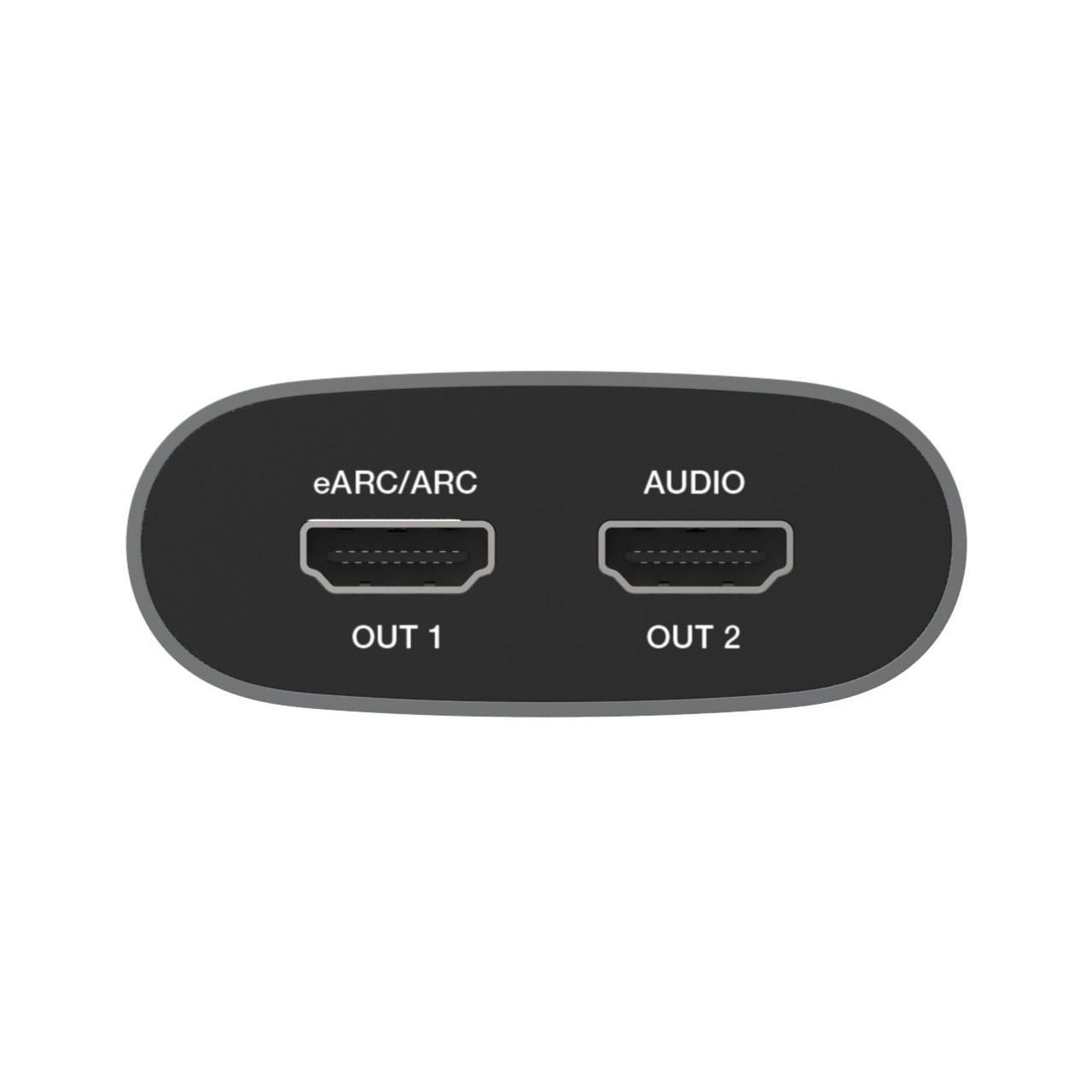

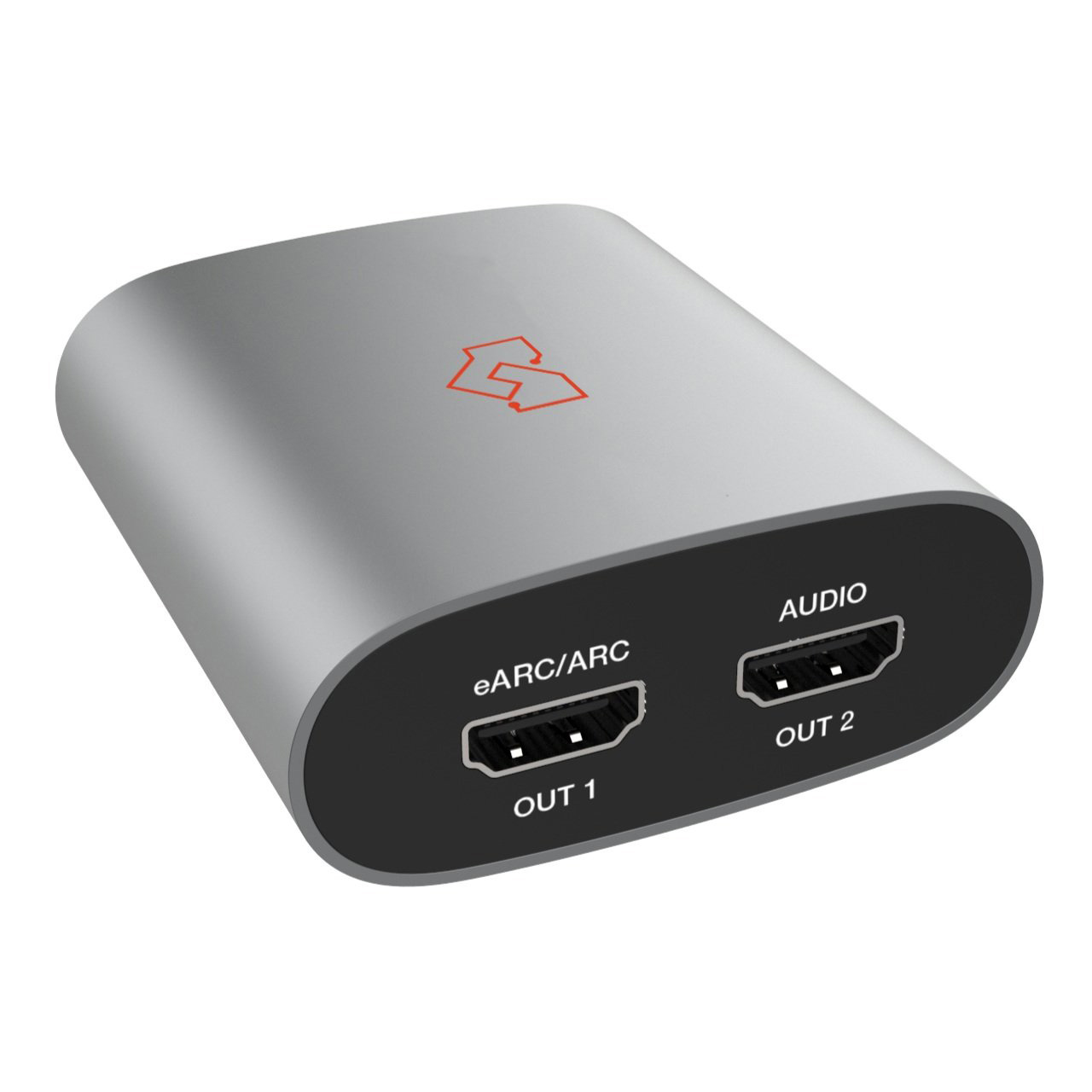

  • Output: 2x HDMI Type A [19-pin female]

    Mechanical
  • Housing: Aluminum Enclosure
  • Color: Silver
  • Dimensions: 2.56" x 2.75" x 1.06" / 65mm x 70mm x 27mm
  • Weight: 0.182 lbs / 83g
  • Power Supply: USB 5V / 500mA
  • Power Consumption: 1.75W (Max)
  • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
  • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps HDMI eARC Extractor
  • 1x USB Cable (USB-A to Micro USB)
  • 1x User Manual


• Warranty:

  • 6 Years
