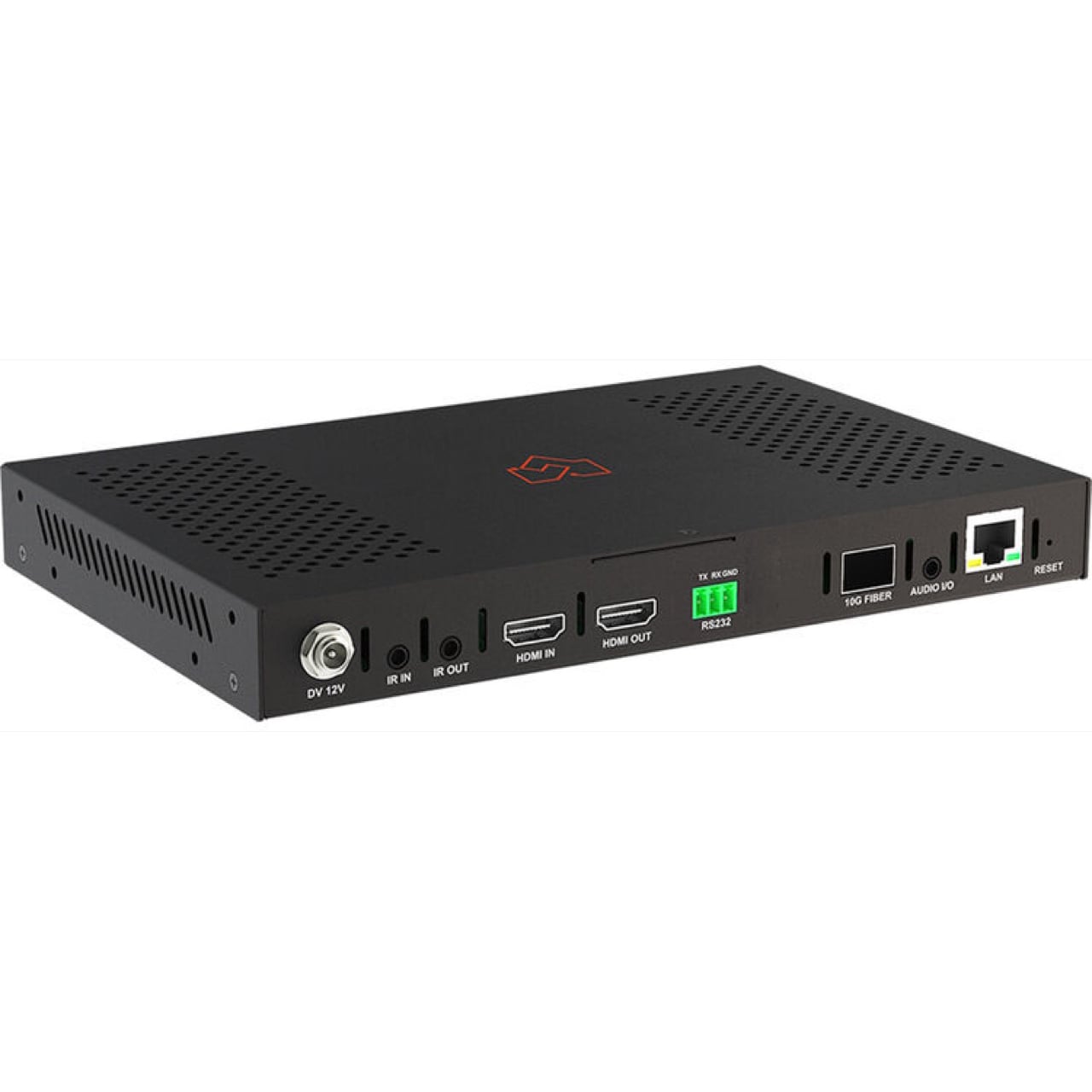

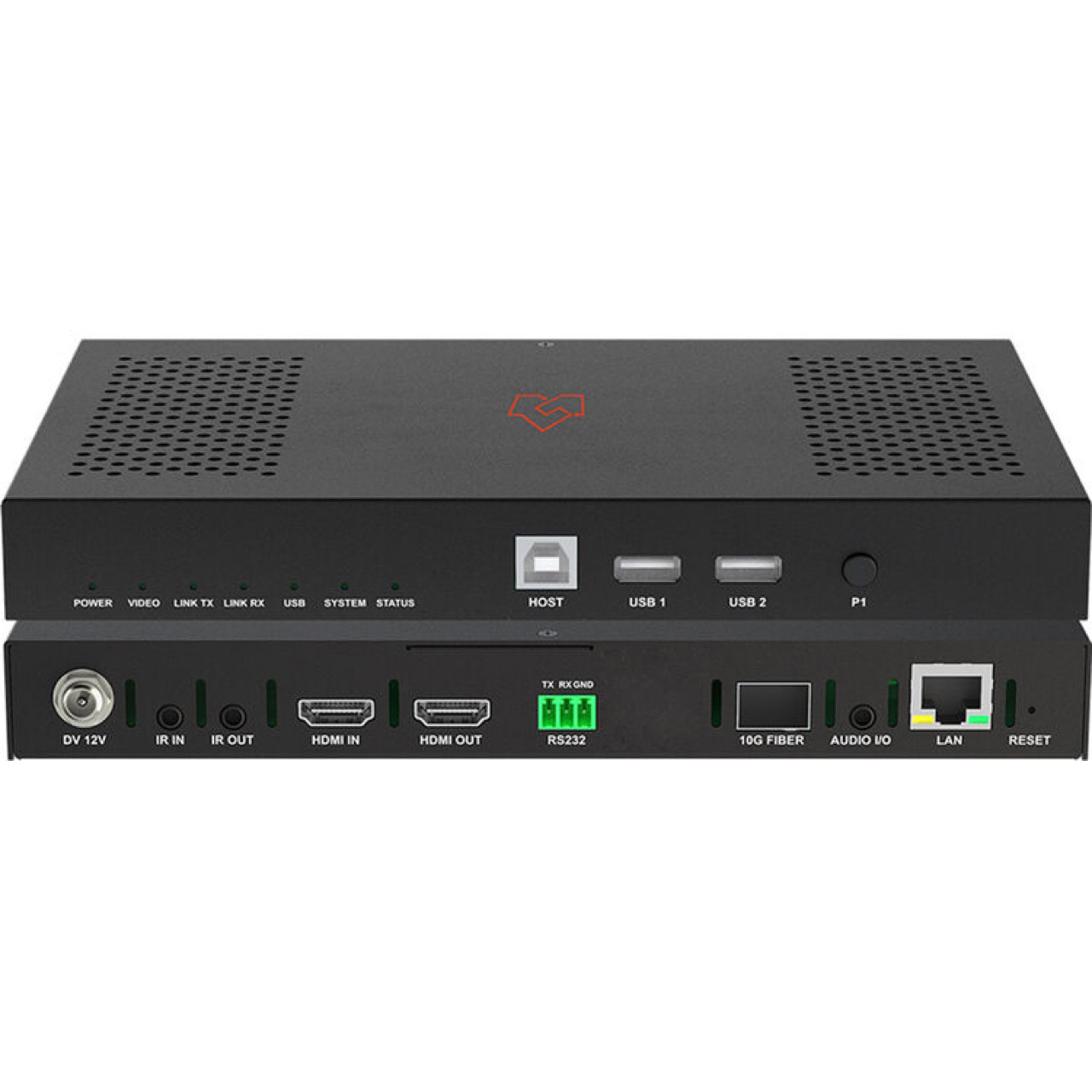

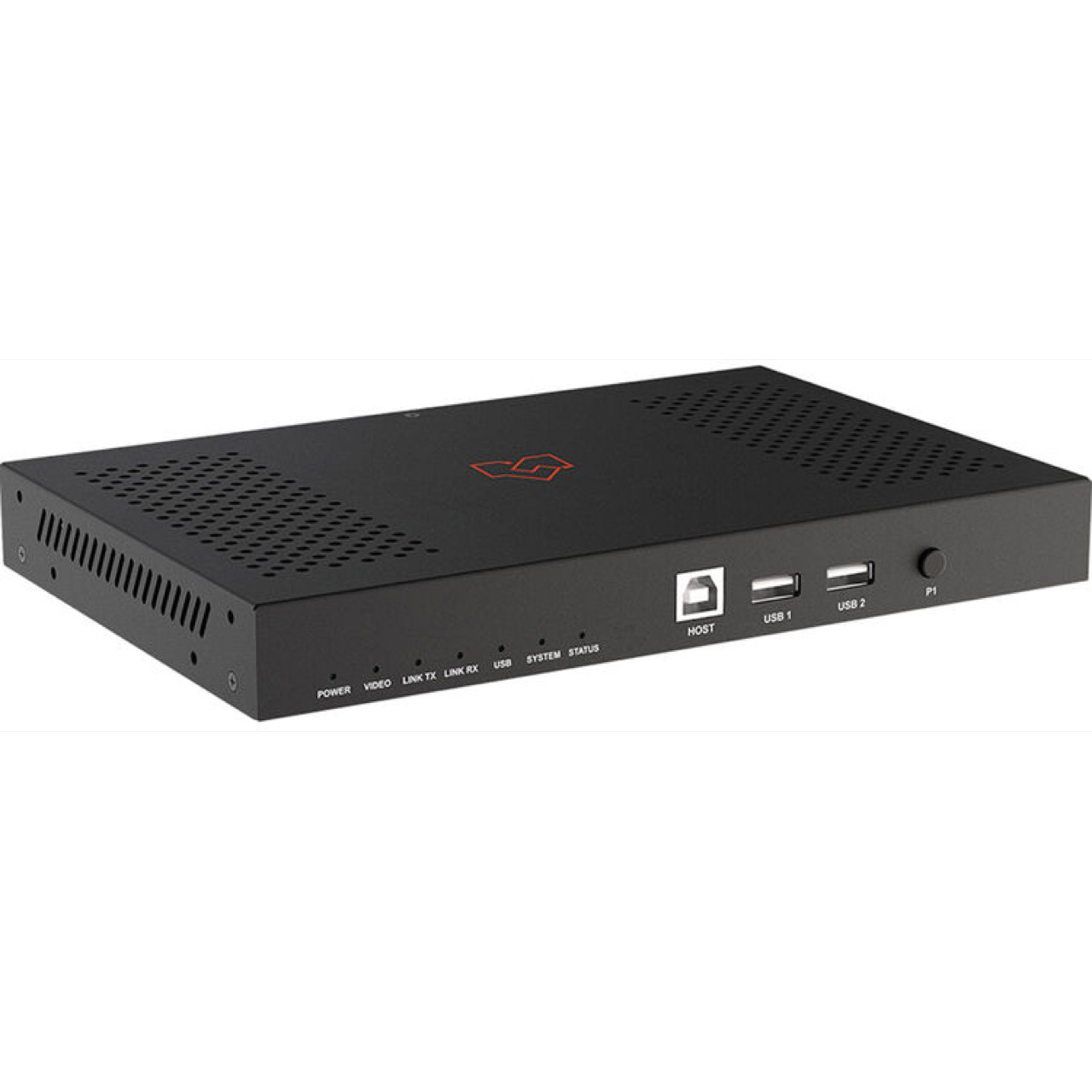

VigilLink VLIP-SDUDFR-TRX SDVoE 4K HDMI with Videowall and Multiview USB 2.0 & Dante Fiber Transceiver - Up to 984 Feet

VLIP-SDUDFR-TRX - Overview

• Features:

  • Point-to-point transmission up to 984ft (300m) through the 10GbE small-form-pluggable (SFP+) port
  • HDMI 2.0 and HDCP 2.2 compliant
  • Lossless distribution of most timing formats
  • Able to transmit and receive video simultaneously
  • Bandwidth needed: 4K signals at about 6Gbps - 8Gbps, 1080p signals at about 3.2Gbps
  • Light compression when the raw data rate exceeds the 10Gb Ethernet bandwidth
  • Support input and output resolutions up to 4K@60Hz 4:4:4 8-bit, 4K@60Hz 4:2:2 10-bit and 4K@60Hz 4:2:0 12-bit (HDR)
  • Supports Dante stream output to the network, providing a separate end-to-end streaming system for Dante network audio
  • Support USB 2.0 extension with Icron USB extension solution for control of keyboard, mouse, webcam, flash drive, speaker, other USB devices, etc
  • Zero-frame latency and seamless switching

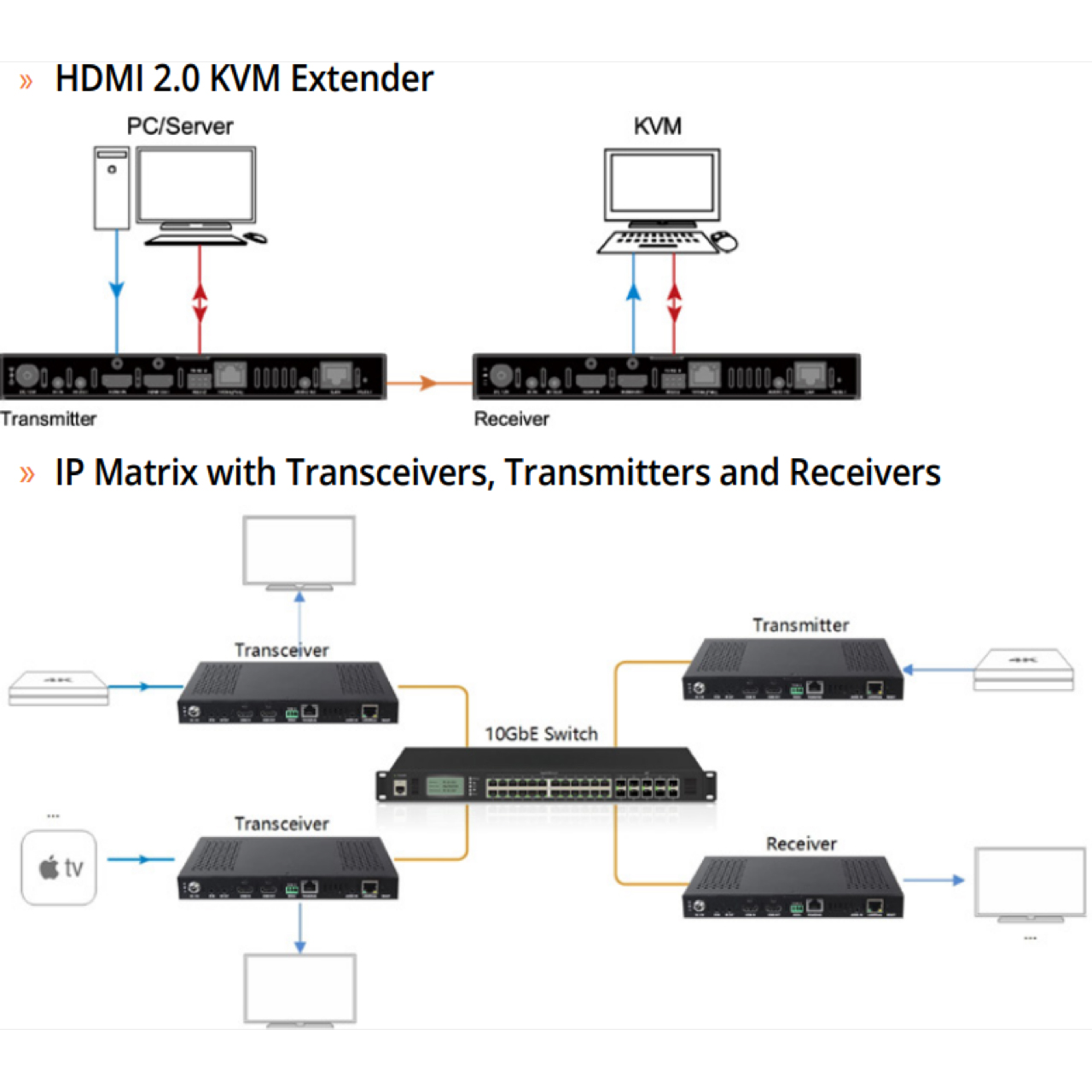

  • Video wall and Multi-view support
  • Local HDMI loopout
  • Independent analog audio input and output at 2 channels, 24 bits @ 48kHz/channel
  • Support bi-directional IR and RS-232, allowing control of remote source and display devices.
  • Work with the Windows PC configurator for device control and management
  • Device upgrade via BlueRiver Manager Tool and/or SDVoE Product Updater


• Specifications:

  Video
  • Input Video Port:
    - 1x HDMI
    - 1x SFP+ (10GBase-SR)
  • Input Video Type: HDMI 2.0 with HDCP 2.2 (HDCP output follows input)
  • Supported Input Resolutions:
    - Min.: 640x480 @ 60Hz
    - Max.: 4096x2160 @ 60Hz
  • Input Video Signal: 0.5~1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Video Impedance: 100Ω
  • End-to-End Latency: Zero-frame latency
  • Output Video Port:
    - 1x HDMI
    - 1x RSFP+ (10GBase-SR)
  • Output Video Type: 4K UHD uncompressed or lightly compressed IP stream
  • Supported Output:
    - Min. Resolutions: 640x480 @ 60Hz
    - Max. Resolutions: 4096x2160 @ 60Hz

    Audio
  • Input Audio Port:
    - 1x HDMI
    - 1x SFP+ (10GBase-SR)
    - 1x 3.5mm jack
  • Input Audio Format:
    - HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1
    - 3.5mm jack: Unbalanced stereo audio
  • Output Audio Port:
    - 1x 10G BASE-SR (SFP+) port
    - 1x LAN (Dante)
  • Output Audio Format:
    - HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1
    - 3.5mm jack: Unbalanced stereo audio

    Other
  • Power Supply: 12V 2A DC
  • Power Consumption: 12W (Max)
  • ESD Protection: Human body model: ±8kV (air-gap discharge)/±4kV (contact discharge)
  • Product Dimensions: 8.46" x 0.98" x 5.52" (215mm x 25mm x 140.2mm)
  • Net Weight: 1.78lbs (0.81kg)
  • Control Method: LAN, IP control box, PC Configurator, AptoVision BlueRiver API
  • Transmission Distance:
    - Multimode Optical Fiber: 984ft (300m)


• Item Includes:

  • 1x SDVoE 10G HDMI 4K60 4:4:4 over IP Transceiver - Up to 984 Feet


• Warranty:

  • 6 Year Limited Warranty


• GTIN:

  0810119591227
