VigilLink VLIP-SDUFR-TRX SDVoE 4K HDMI with Videowall and Multiview USB 2.0 Fiber Transceiver - Up to 984 Feet

ITEM #: VGL-VLIPSDUFRTRX MFG #: VLIP-SDUFR-TRX

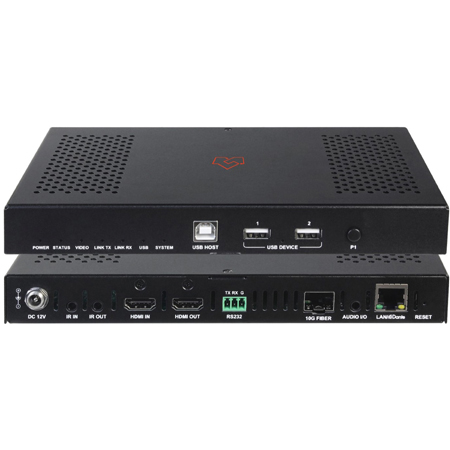

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,567.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLIP-SDUFR-TRX - Overview

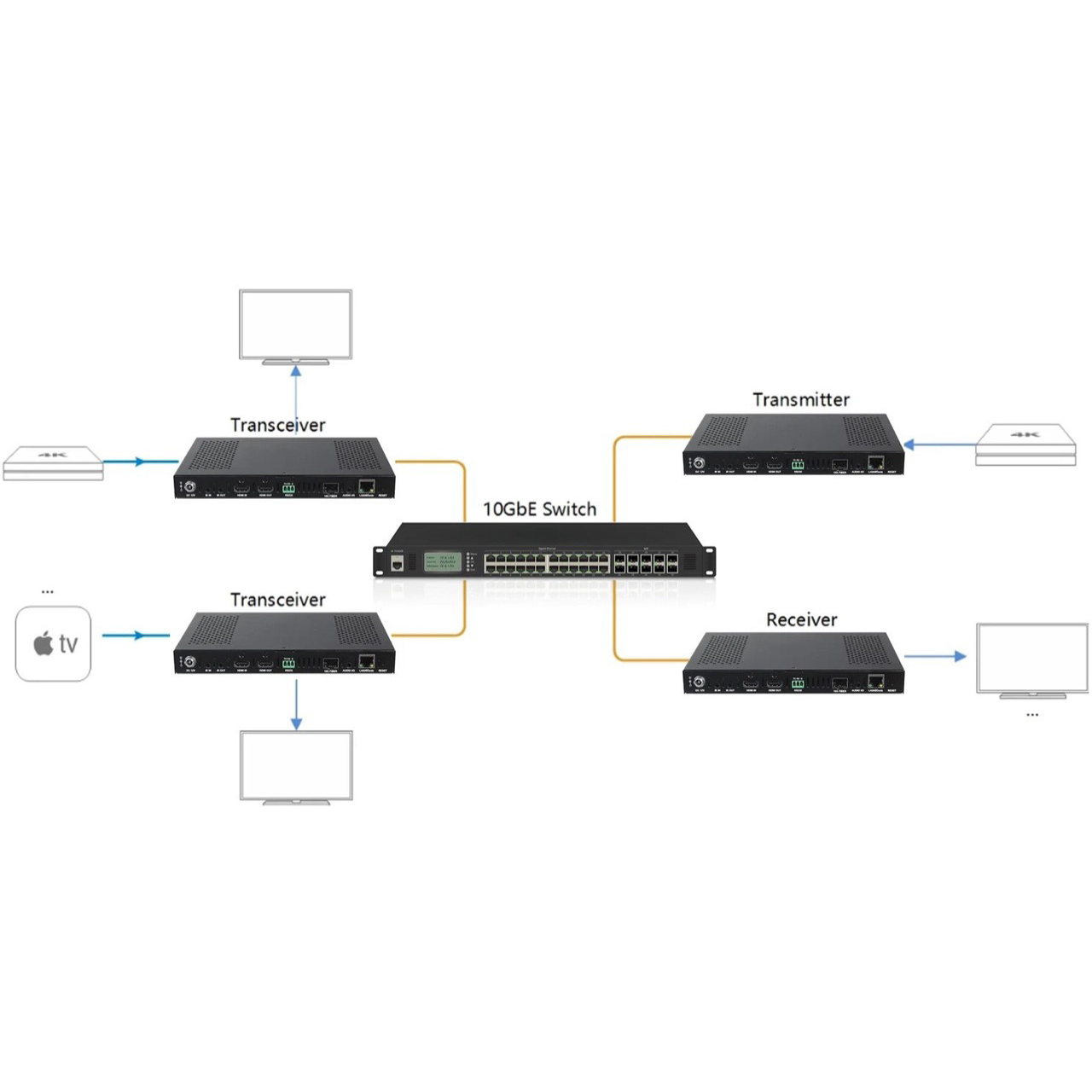

The VigilLink VLIP-SDUFR-TRX AVoIP transceiver is an all-in-one AV-over-IP solution designed to deliver the highest-quality, uncompressed 4K and zero-frame audio/ video extension over a standard 10G Copper Network Switch with instant switching, Video Wall, and Multi-view functions. A flexible transceiver design (one box can be set to encoder or decoder) is offers convenience during installation and inventory control.

Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC, and 1G Ethernet.

Integrated Dante support enables two-channel audio distribution across networked audio systems.

The unit supports advanced HDMI content, including HDR (High Dynamic Range), full-color depth, and multi-channel HD bitstream audio.

  • Features:

    • Point-to-point transmission up to 984ft (300m) over fiber
    • HDMI 2.0b and HDCP 2.2 compliant
    • Supports video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
    • Flexible transceiver design (Encoder or Decoder within a single box)
    • Encoder or Decoder mode set via Button or API
    • Encoder supports HDMI Loop out
    • Supports HDR10, Dolby Vision, HLG, 3D
    • Supports Dolby TrueHD, Dolby Atmos, DTS-HD, DTS:X
    • Zero-Frame latency operating mode
    • Signal extension, seamless switching, Matrix, Video Wall up to 9x9, Multiview up to 25 windows
    • Bidirectional analog audio transmissions between Encoder and Decoder
    • Bi-directional IR and RS-232 control pass-through
    • USB 2.0 (KVM), CEC routing control
    • IR, RS-232, TCP/IP, Web GUI control
    • Standard POE supported (802.3at PD device)


  • Specifications:

      Video/Audio
    • Input Port:
      - 1x HDMI
      - 1x Unbalanced Stereo Audio
      - 1x 10GBase-SR
    • Supported Input:
      - Min. Resolutions: 640x480 @ 60Hz
      - Max. Resolutions: 4096x2160 @ 60Hz
    • Supported Audio:
      - Pass-thru support
      - LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192kHz
      - Dolby True HD, up to 7.1,192kHz
      - DTS-HD Master, up to 7.1,192kHz
      - Dolby Digital AC-3 (DVD format)
      - DTS version 1 (DVD format)
    • Dante Audio Stream: 2 channel PCM, 24 bits, 44.1/48/88.2/96Ksps
    • Output Ports:
      - 1x HDMI
      - 1x Unbalanced Stereo Audio
      - 1x 10GBase-SR
      - 1x Dante, GbE
    • Output Ports:
      - 1x HDMI
      - 1x Analog Audio
      - 1x 10GBase-T
      - 1x 10GBase-SR

      Mechanical and Control
    • Ethernet: PC Configurator: for configuring, controlling and upgrading
    • RS232: PC Configurator: for testing and upgrading
    • Power Supply: 12V DC converter (with lock) with US pin
    • ESD Protection: Human body model: ±8kV (air-gap discharge)/±4kV (contact discharge)
    • Product Dimensions: 8.46" x 8.46" x 5.52" (140mm x 215mm x 25mm)
    • Control Method: LAN, IP control box, PC Configurator, AptoVision BlueRiver API
    • Transmission Distance: 984ft (300m)


  • Item Includes:

    • 1x SDVoE 4K HDMI with Videowall and Multiview USB 2.0 Fiber Transceiver


  • Warranty:

    • 6 Year Limited Warranty


  • GTIN:

    0810119591272
