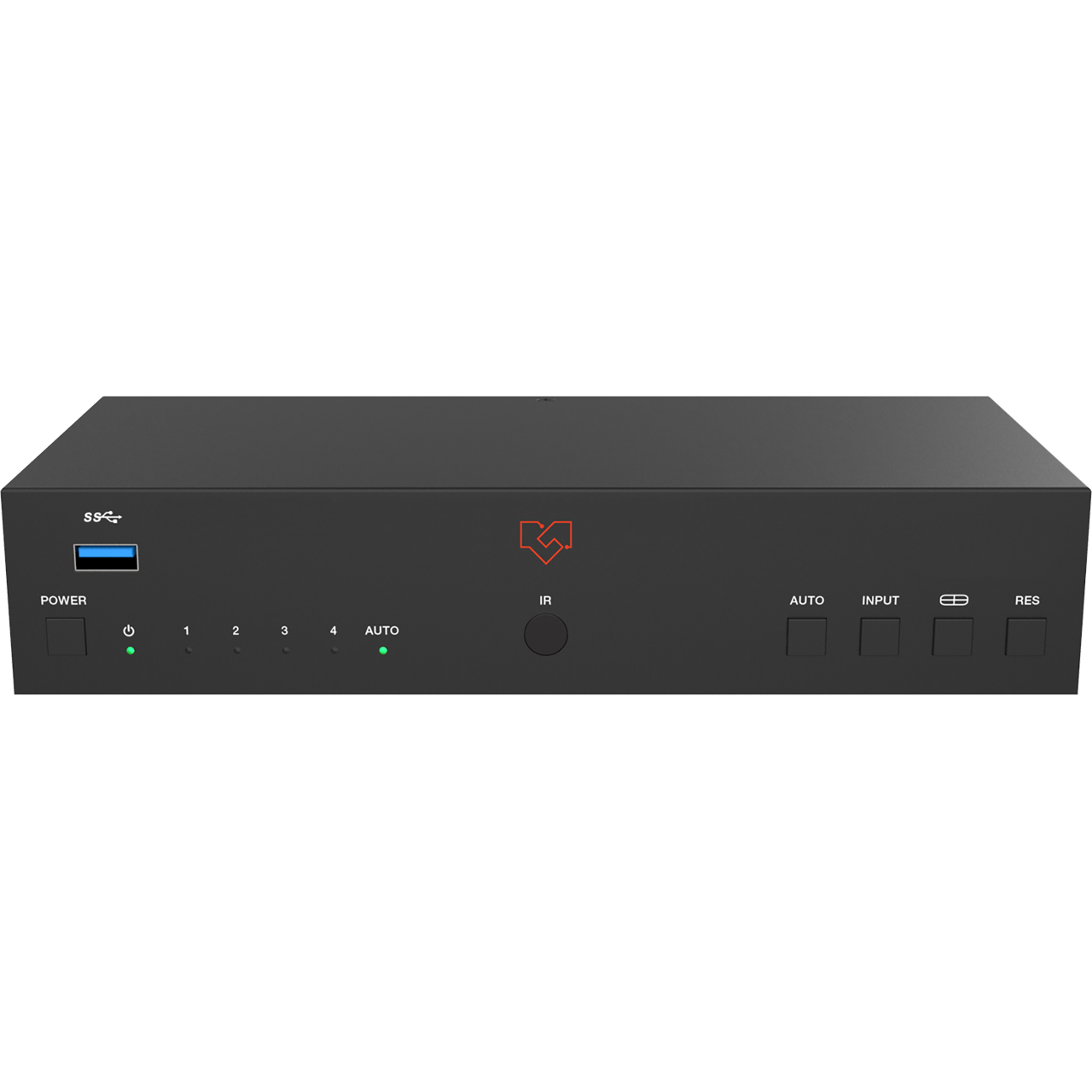

VigilLink VLKV-H2041M 4x1 4K60 HDMI Seamless KVM Switcher with Multiviewer - HDCP 2.2 and HDCP 1.x Compliant

ITEM #: VGL-VLKV-H2041M MFG #: VLKV-H2041M

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$742.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLKV-H2041M - Overview

VigilLink VLKV-H2041M 4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input.

This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.

This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM function. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.

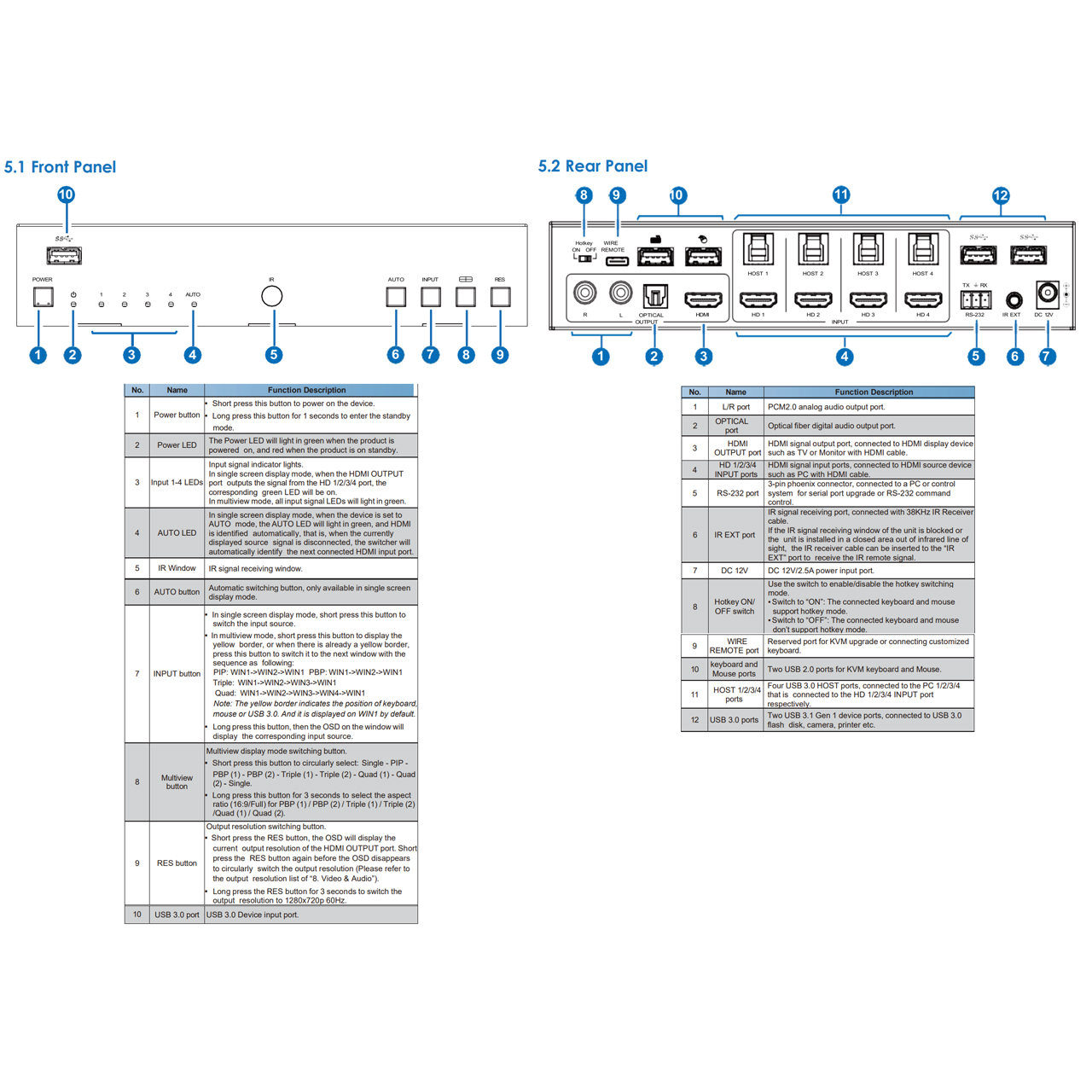

This device can be controlled via front panel buttons, IR remote, keyboard/ mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands.

  • Features:

    • HDCP 2.2 and HDCP 1.x compliant
    • Supports 18Gbps uncompressed video bandwidth
    • Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
    • Supports LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
    • Seamless switching between input channels and combined multiple images on single UHD monitor
    • Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
    • Seamless switching in single screen display mode
    • Fast switching in multiview display mode

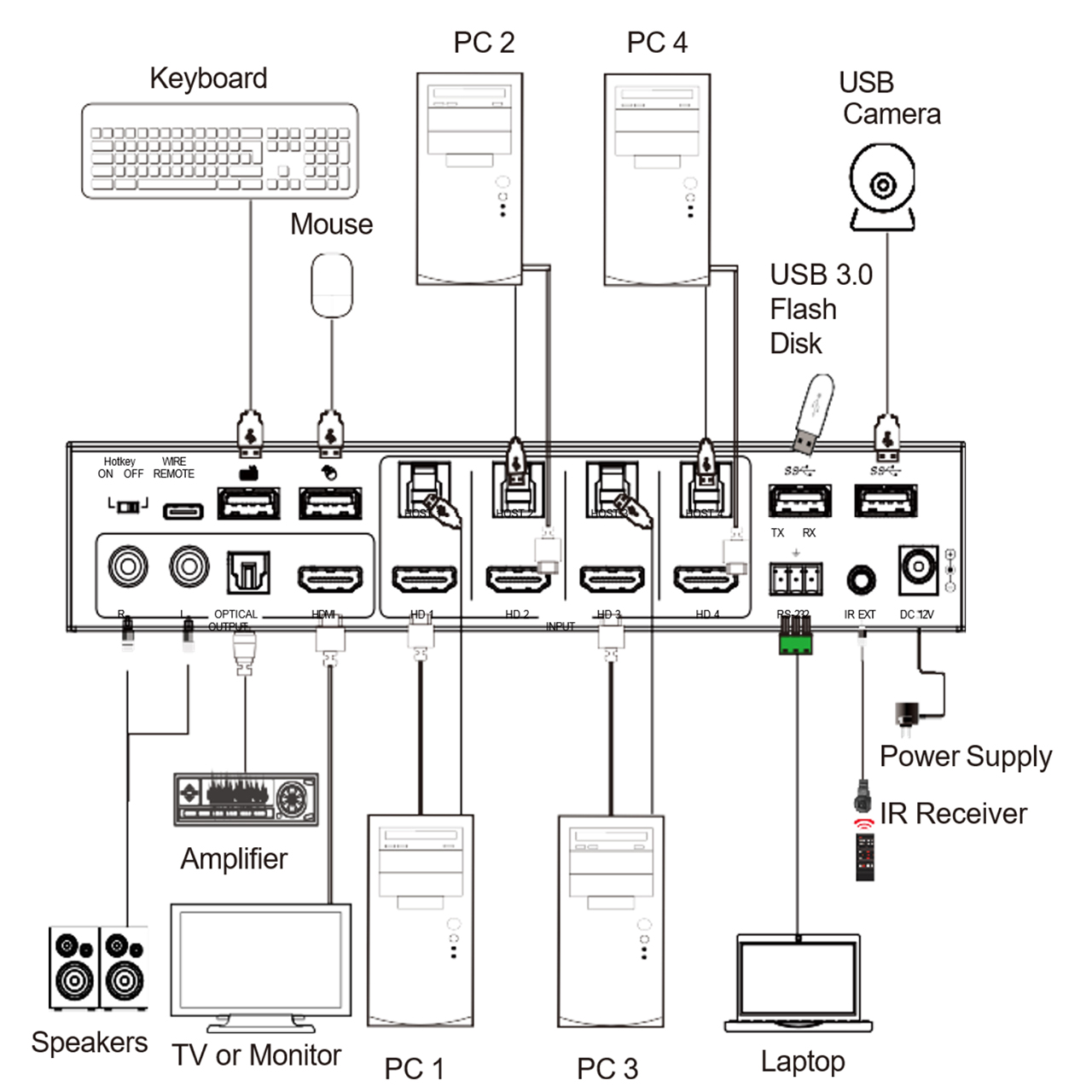

    • Using only 1 set of keyboard, mouse and monitor to control 4 computers
    • Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers
    • Supports multimedia, wireless keyboards and mouse
    • Audio de-embedding via analog and optical fiber audio ports
    • Supports volume control and independent audio selection
    • Supports OSD navigation for advanced setting
    • EDID management
    • Control via front panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands
    • Compact design for easy and flexible installation

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2 / 1.x
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
    • IR Level: 5Vp-p
    • IR Frequency: Fixed frequency 38KHz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8/10/12bit
    • Audio Formats:
      - HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, DTS, DTS-96/24, DTS High Res, DSD
      - Analog Audio [3.5mm L/R]: PCM2.0
      - SPDIF (OPTICAL): Dolby Digital/Plus, DTS 5.1, PCM2.0
      **Note: It does not support HBR audio.
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

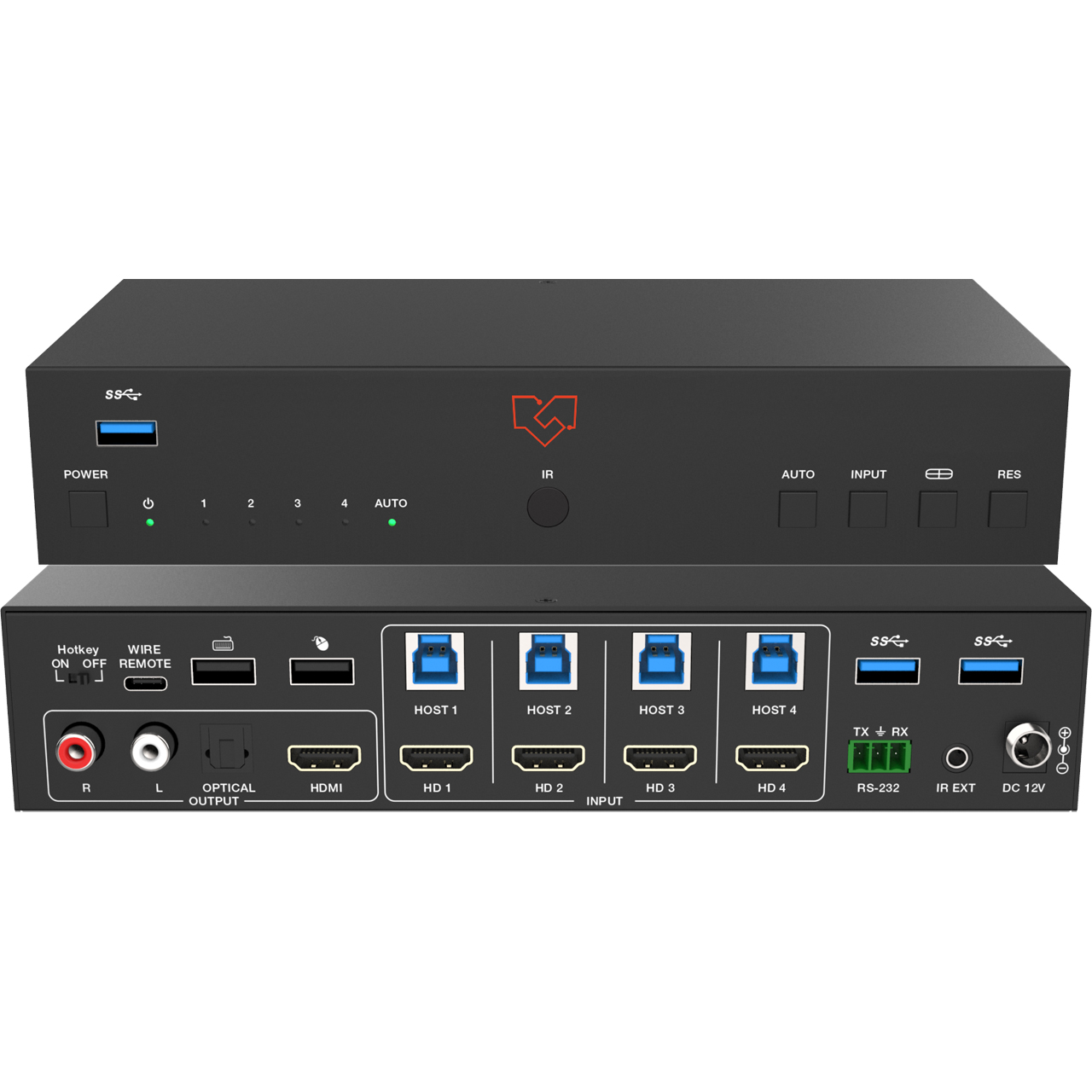

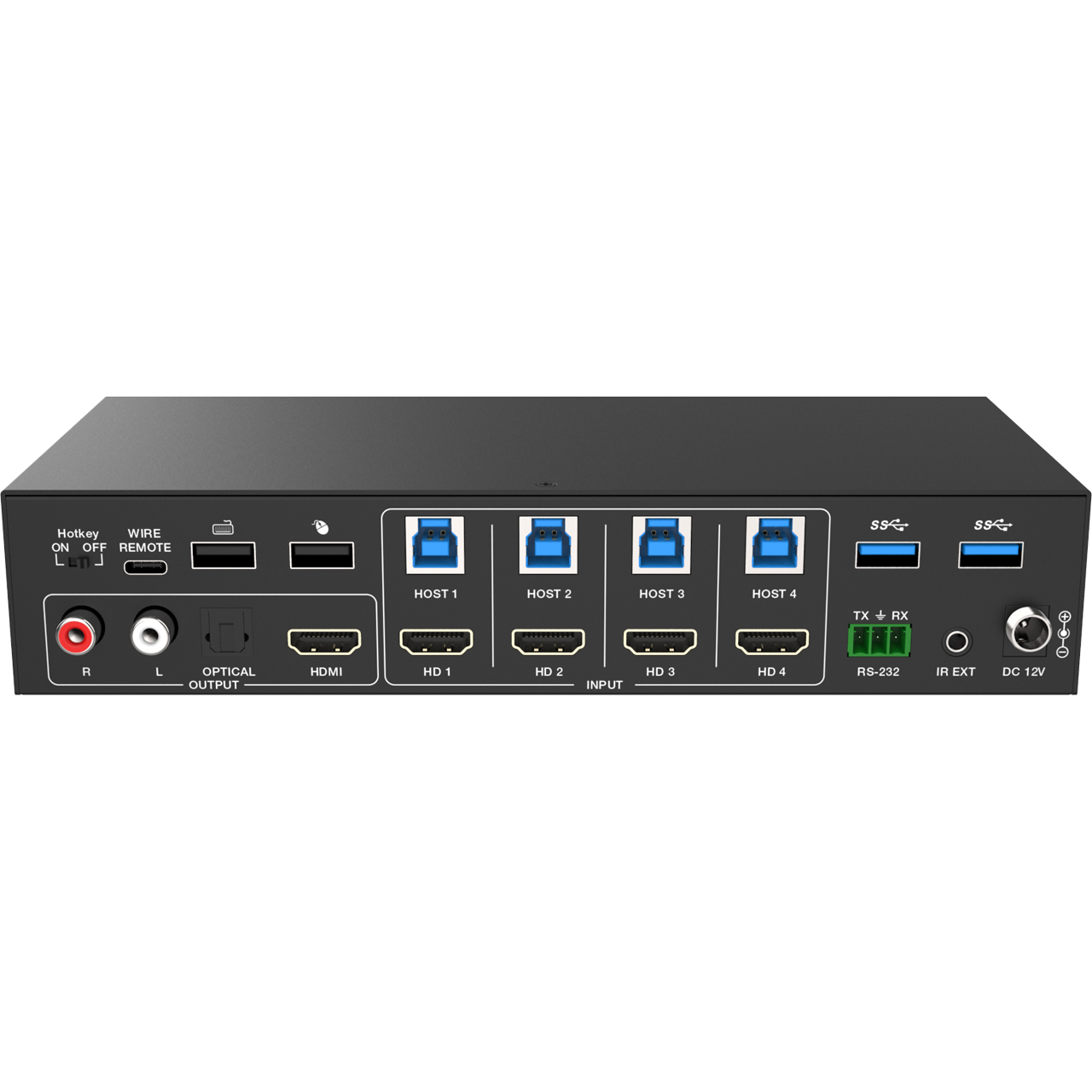

      Connection
    • Input: 4x HDMI IN (Type A, 19-pin female)
    • Output:
      - 1x HDMI OUT (Type A, 19-pin female)
      - 1x L/R OUTPUT (RCA)
      - 1x OPTICAL OUTPUT (S/PDIF)
    • Control:
      - 1x RS-232 (3pin-3.81mm phoenix connector)
      - 1x IR EXT (3.5mm Stereo Mini jack)
      - 4x USB 3.0 HOST (USB Type B)
      - 2x USB 2.0 DEVICE (USB Type A)
      - 3x USB 3.0 DEVICE (USB Type A)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 8.66" x 6.89" x 1.18" (220mm x 100mm x 44mm)
    • Weight: 0.97lbs (443g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 18.48W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

  • Item Includes:

    • 1x 4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher
    • 1x IR Remote
    • 1x 3pin-3.81mm Phoenix Connector (male)
    • 1x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
    • 2x Mounting Ear
    • 4x Machine Screw (KM3*4)
    • 4x USB Cable (USB 3.0 AM to BM, 1.8 meters)
    • 1x 12V/2.5A Locking Power Supply
    • 1x User Manual

  • Warranty:

    • 6 Years
