VLSP-AS14H20 - Overview

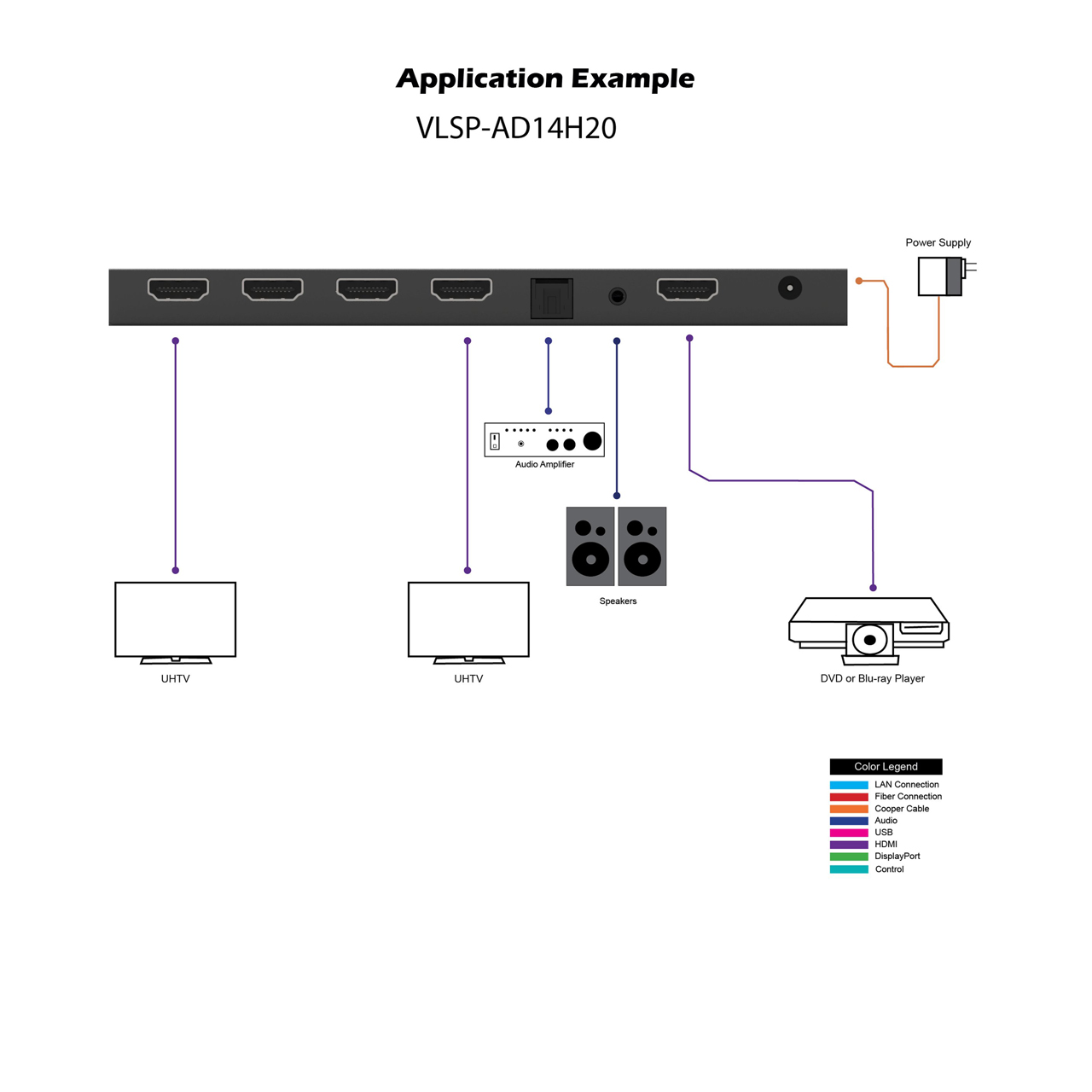

The VigilLink VLSP-AS14H20 1x4 HDMI 2.0 Splitter simultaneously routes one HDMI source to four HDMI displays. Supporting resolutions up to 4K2K @ 60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog output(s) by selecting COPY, AUTO modes EDID settings. Output(s) supports bypass and downscale (4K->1080p) functions.

Features:
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Supports HDMI resolution the maximum up to 4K2K @ 50/60Hz (4:4:4)
- Supports digital and analog audio extract output from HDMI source.

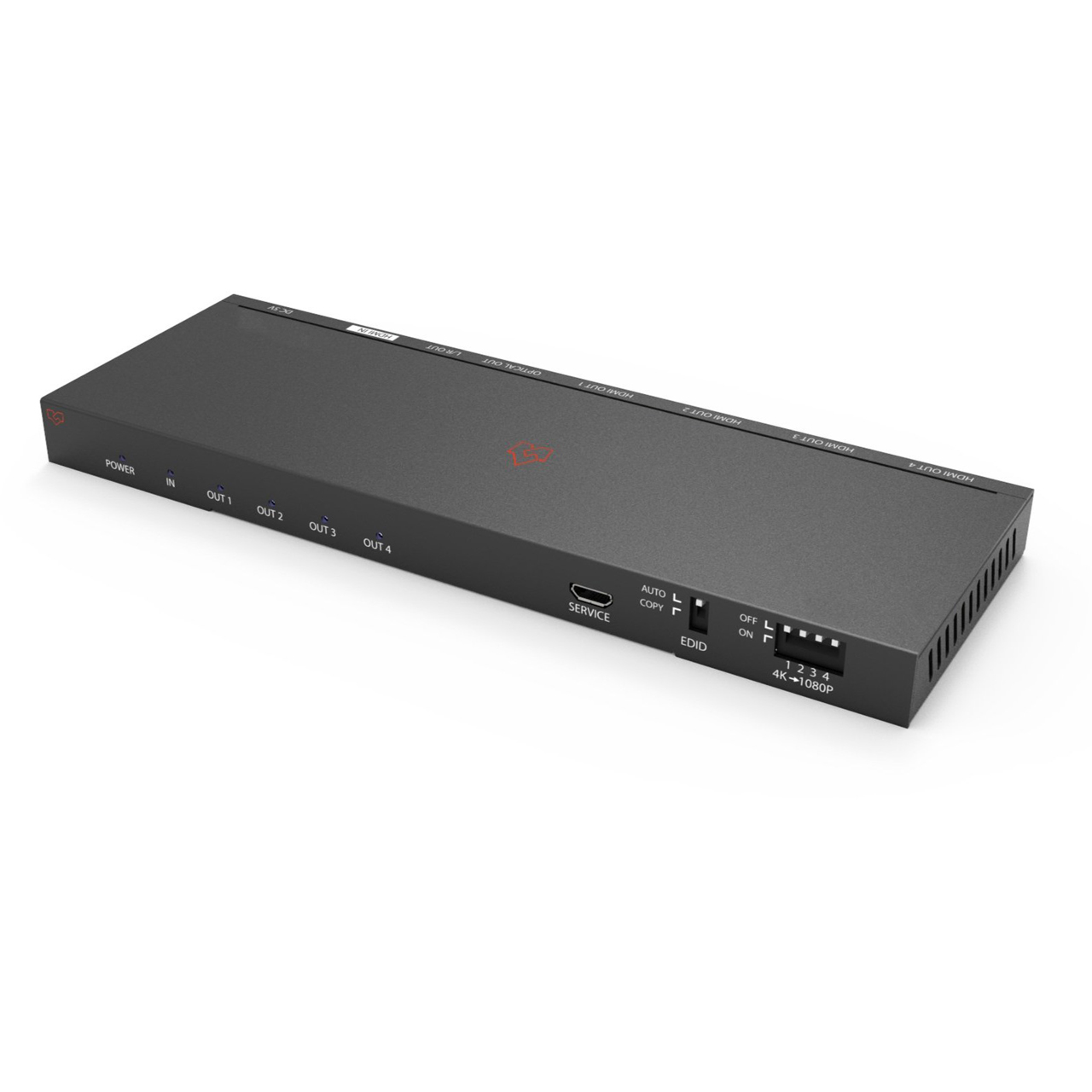

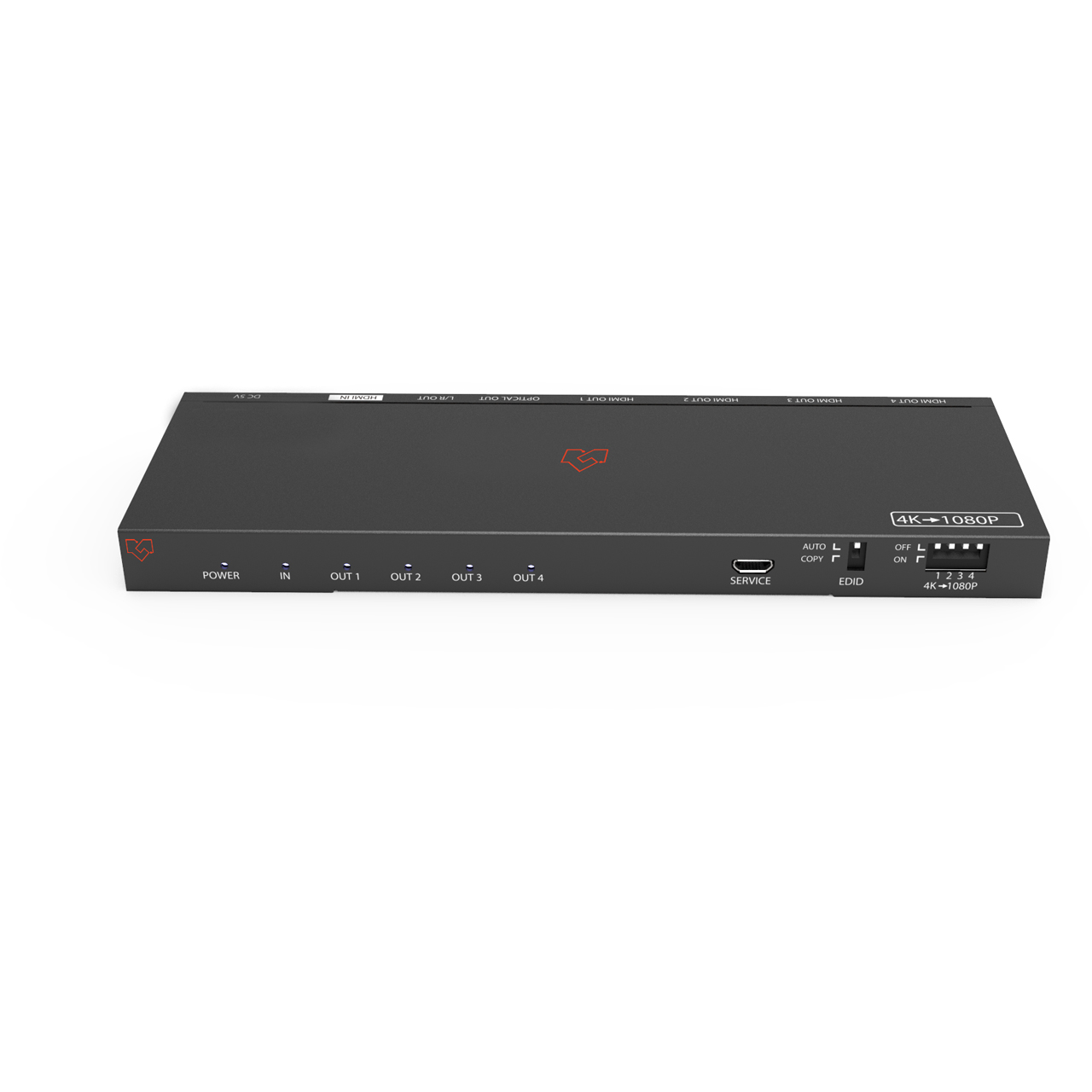

- Supports output bypass and 4K->1080P downscale function via dial switch on panel.
- EDID can be selected COPY and AUTO modes via dial switch on panel.
- Supports analog audio PCM 2.0.
- Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2 and HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolution: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K @ 50/60Hz (4:4:4)
- Color Depth: 4K60Hz 8-bit, 1080P 12-bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- L/R Audio Formats: PCM 2.0
- Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
- ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

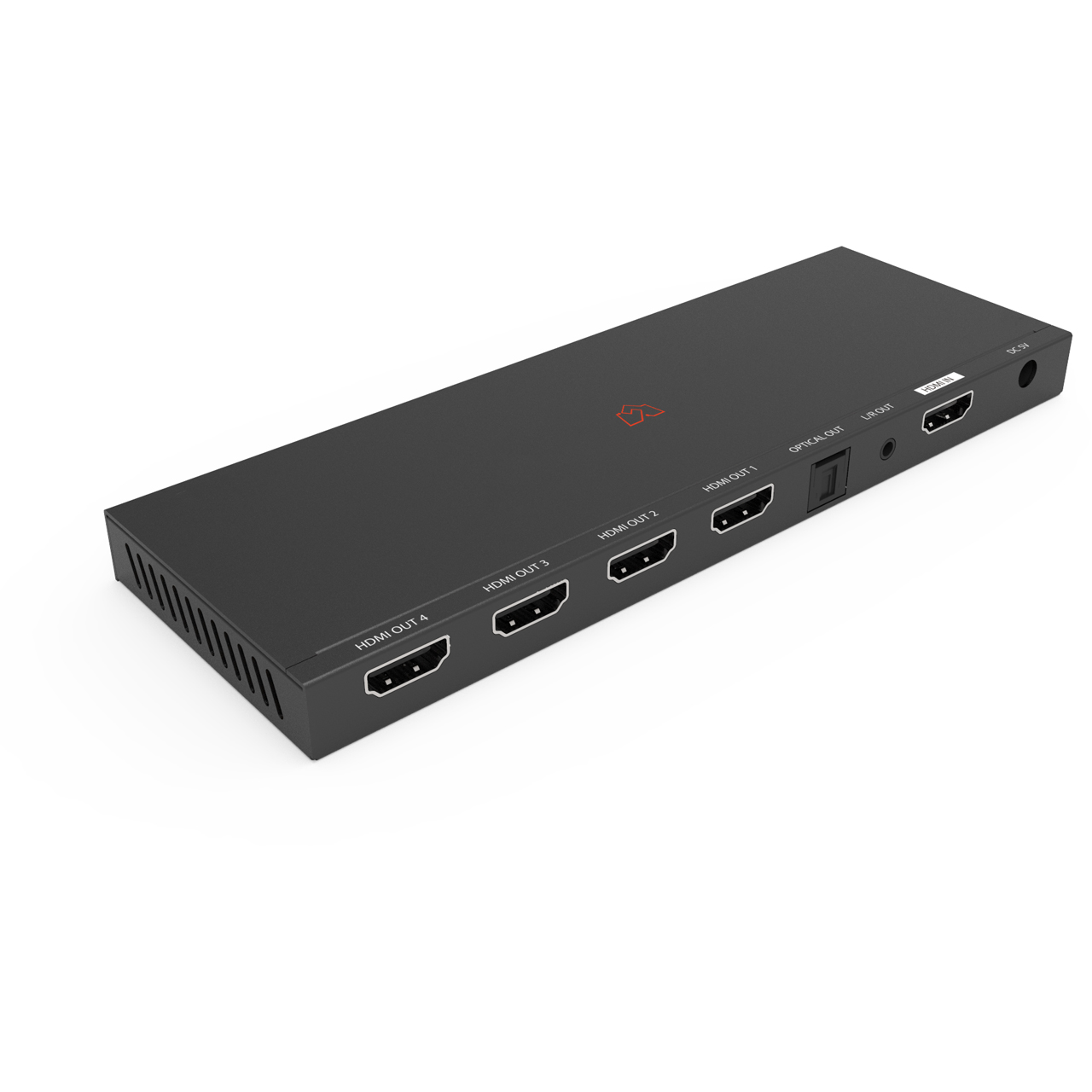

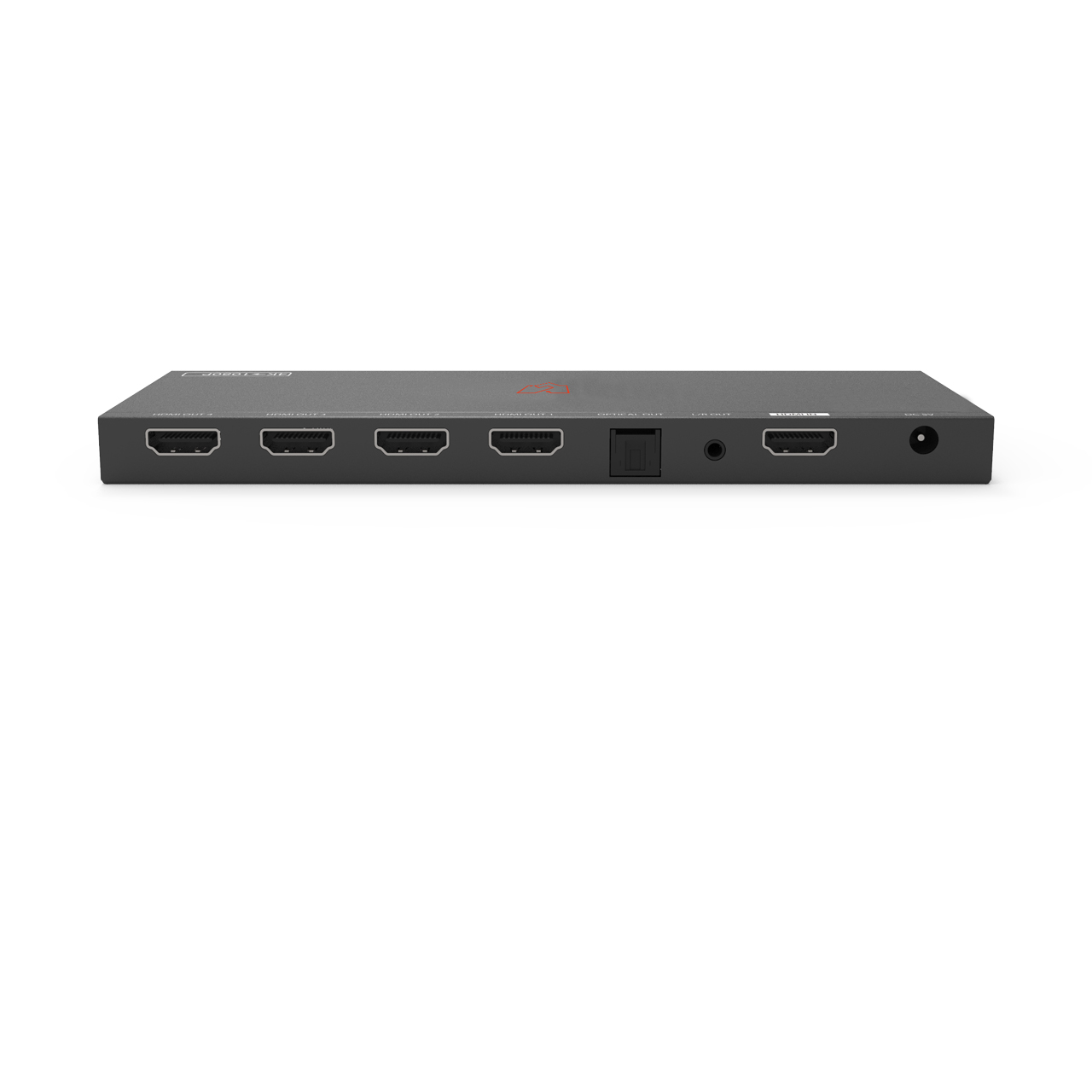

  Connections
- Input Ports: 1x HDMI Type A (19-pin female)
- Output Ports:
  - 4x HDMI Type A (19-pin female)
  - 1x L/R Audio out (3.5mm Stereo Mini-jack)
  - 1x Optical out (S/PDIF)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 7.08" x 2.44" x 0.55" (180mm x 62mm x 14mm)
- Weight: 0.50lbs (227g)
- Power Supply:
  - Input: AC 100V - 240V 50/60Hz
  - Output: DC5V/1A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 3.5W (max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (No condensation)
Item Includes:
- 1x 1x4 HDMI 2.0 Splitter
- 1x 5V/1A Power Adapter
- 1x User Manual
Warranty:
- 6 Years
