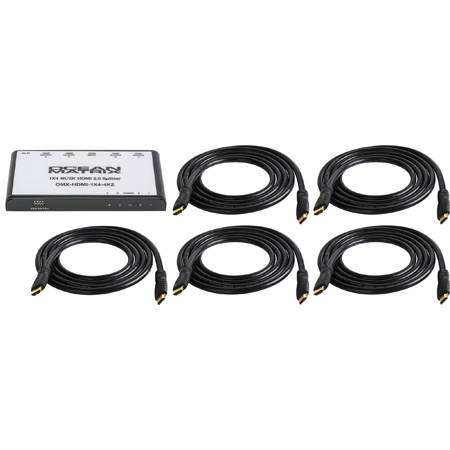

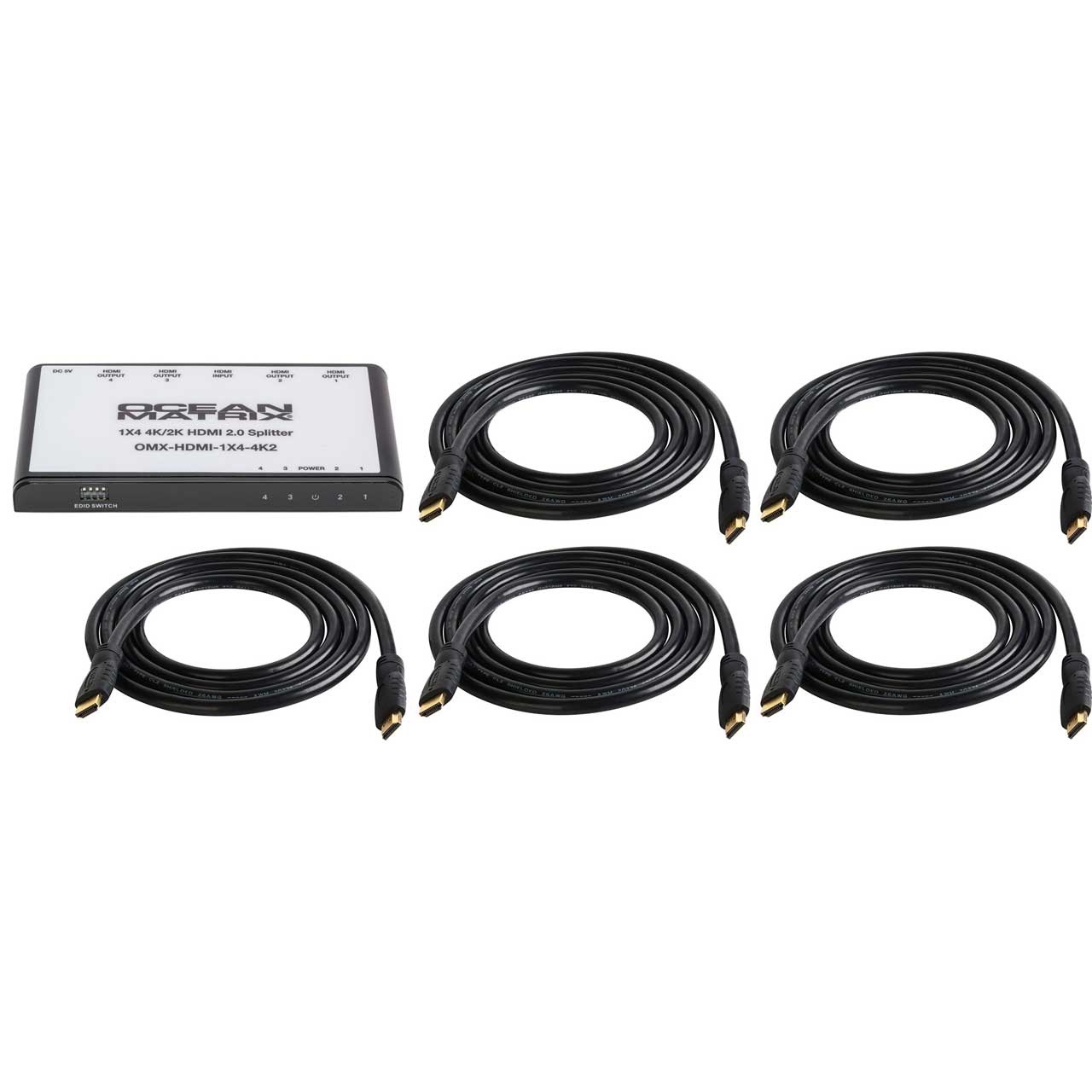

Ocean Matrix OMX-HDMI-1X4-4K2 4K UHD 1x4 HDMI 2.0 Splitter/Distribution Amplifier Bundle with 5x 6ft HDMI 2.0 Cables


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    MTK-OM-HDMI-SPL2 - Overview

    Save Over 15% With This Ocean Matrix HDMI Splitter Bundle!

    Are you seeing things? Got double vision? No, you're just splitting your HDMI signal! Make it happen with this Ocean Matrix HDMI Splitter/DA Bundle which includes all the necessary HDMI cables.

    The Ocean Matrix OMX-HDMI-1X4-4K2 is a compact 1x4 HDMI splitter/distribution amplifier that sends a single 4K HDMI signal from cameras, set top boxes, Blu-ray players and digital signage players simultaneously to four HDMI displays, projectors, extenders or other HDMI enabled devices. It supports resolutions up to 4K/UHD (4096x2160), works with HD & SD signals without loss while maintaining the highest standards, and also features an intelligent on-board EDID management system. The unit also meets all standards for HDMI 2.0 and HDCP 2.2 specifications.

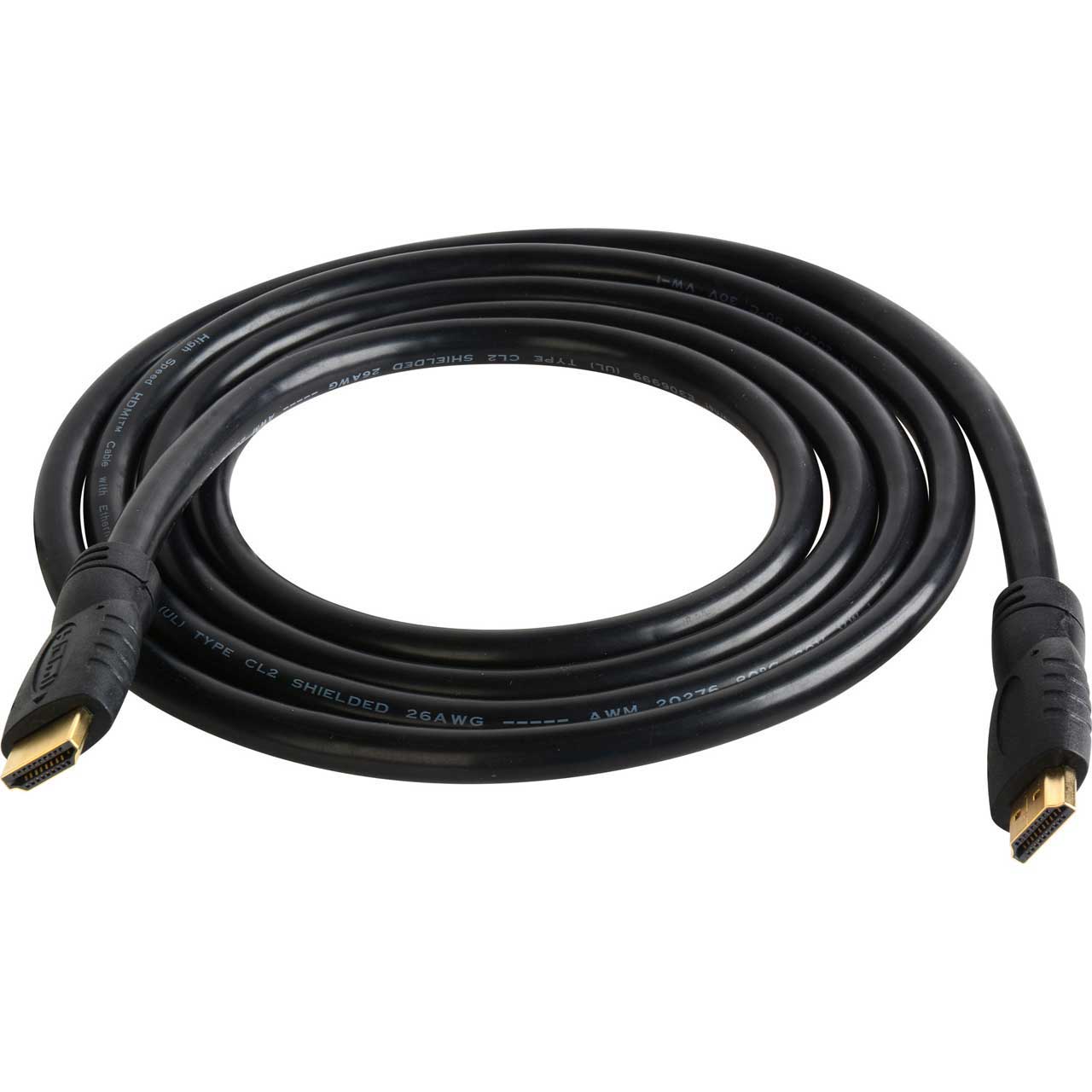

    The Connectronics HDMI-20-02 is the latest high speed HDMI 2.0 series cable version with ethernet built to support the evolution of 4K compatible HDMI hardware. The HDMI 2.0 standard brings support for [email protected]/60, (2160p) which quadruples the current 1080p/60 standard. In addition, there is support of 32 channels of audio at sample rates of up to 1536kHz sample frequency for the highest clarity in audio available. The Connectronics HDMI 2.0 series cable is also capable of the simultaneous delivery of dual video streams and multi-stream audio to multiple users (up to 4) where hardware supports these features.

    • Features:

      • Ocean Matrix OMX-HDMI-1X4-4K2
      • Distributes 1 HDMI Source to 4 HDMI Displays Simultaneously
      • Supports HDMI 3D and 4K x [email protected] when both the input and output devices support 4K x 2K
      • HDMI source and HDMI displays support 3D
      • Supports Bandwidth up to 18Gpbs
      • HDMI 2.0 Compliant
      • HDCP2.2 Compliant
      • Audio - Supports Standard, Direct Stream Digital, and HD/HBR

        Connectronics HDMI-20-02
      • High Speed HDMI Cable with Ethernet
      • Supports [email protected]/60, (2160p) as well as High-Frame Rate 2D Content
      • Supports Dual Video Streams
      • Supports the Highest Possible Frame Rates
      • Supports 21:9 Aspect Ratio
    • Specifications:

      • Ocean Matrix OMX-HDMI-1X4-4K2
      • Supports 12 Bit Full HD Video, 3D Video and [email protected]/60Hz Ultra HD Video
      • HDMI Resolutions: 480i/480p/756i/756p/720p/1080i/1080p/
      • [email protected]/25/30/60Hz
      • Compatible with DVI1.0, HDMI1.4, HDMI2.0
      • Input Port: 1x HDMI
      • Output Ports: 4x HDMI
      • Frequency Range: 25MHz - 600MHz
      • TMDS Signal: 0.5 - 1.5Vp-p (TMDS)
      • DDC Signal: 5Vp-p (TTL)
      • Power Consumption: 8W
      • Dimensions (WxDxH): 6.2" x 3.15" x 0.67" (158mm x 80mm x 17mm)
      • Weight: 6.9oz (196g)
    • Item Includes:

      • 1x Ocean Matrix OMX-HDMI-1X4-4K2 Splitter/DA
      • 5x Connectronics HDMI-20-02 HDMI 2.0 cables
      • 1x Power Supply
    • GTIN:
