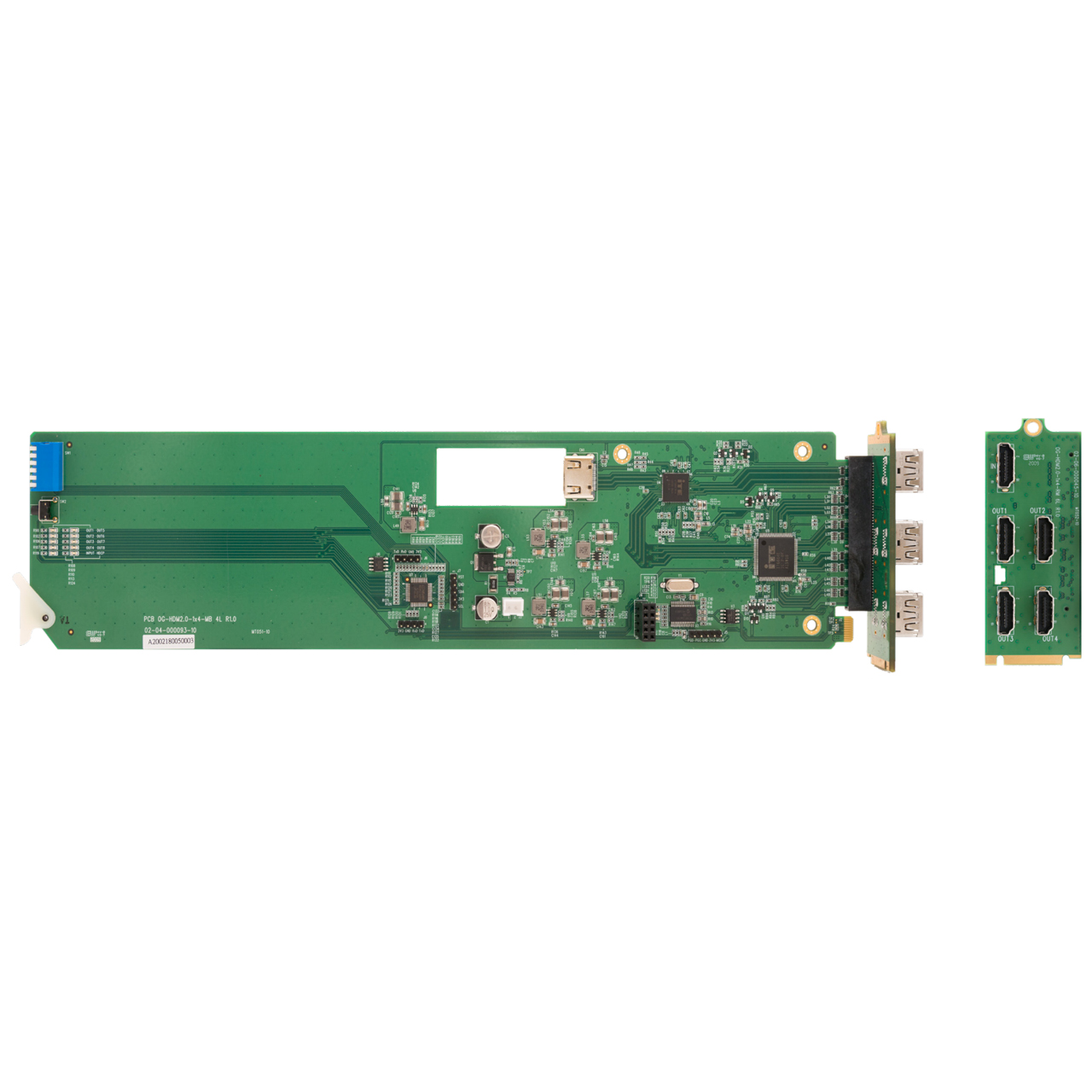

Apantac openGear OG-HDM2.0 1x4 HDMI 2.0 Splitter/Distribution Amplifier Bundle with Rear Module

OG-HDM2.0-1X4-SET-1 - Overview

• Features:

  • OGX/3.0 card-based form factor 4x HDMI outputs
  • Dashboard control enabled
  • Supports 4K/UHD 24/25/30/50/60Hz
  • Supports HDMI 2.0/HDCP 2.2/HDCP 1.4
  • Patent Pending Intelligent EDID management
  • Technology (iDOT™) that supports built-in down scaler, chroma re-sampler and color space conversion
  • Supports LPCM, Dolby True HD and Dolby Digital
  • Cascadable for input expansion up to 8 levels


• Specifications:

  • Input: 1x HDMI
  • Resolution: 4Kx2K (UHD)@60 (4:4:4, 8 bit)/(4:2:0, 12bit)
  • Outputs: 4x HDMI
  • Cable distance: 33 ft (10m)max
  • HDCP: HDCP 1.4/2.2
  • Dynamic Range: HDR/SDR, 4:4:4, 4:2:2
  • Color Space: BT 601, 709 and 2020
  • Audio Support: LPCM, Dolby True HD, Dolby Digital/Plus.EX, DTS, DTS-HD master
  • Control: Dashboard


• Item Includes:

  • 1x OG-HDM2.0-1x4
  • 1x OG-HDM2.0-1x4-RM


• Warranty:

  • 5 year limited
