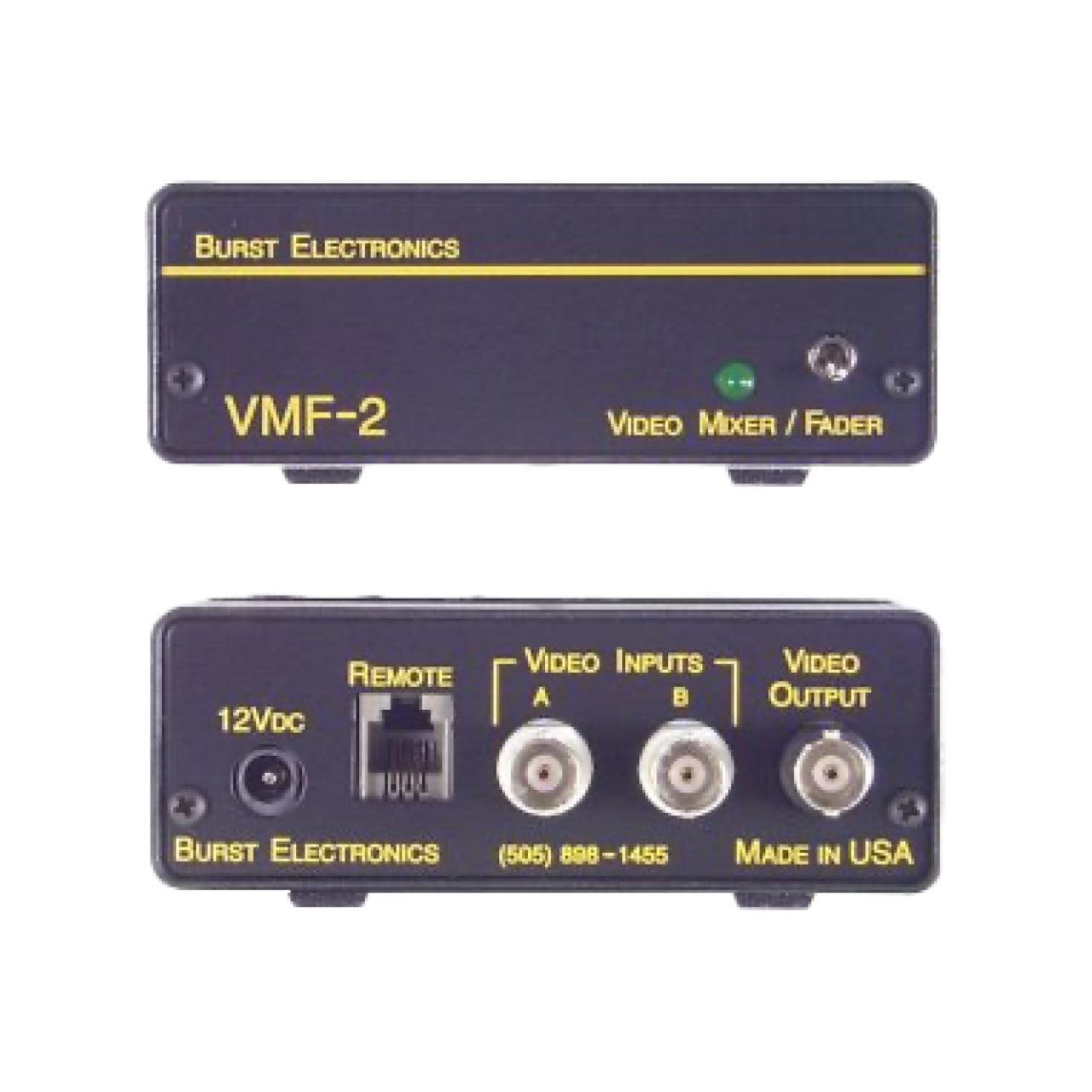

Burst VMF-2 Two Channel Mixer/Fader with Fade to Black

ITEM #: VMF-2 MFG #: VMF-2

free ship

List Price:

$525.00

Our Price:

$477.75

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    VMF-2 - Overview

    The VMF-2 is a 2 channel mixer/fader. It will fade from A to B, B to A or A to Black. There is an auto mode that allows the transition to be preset from 0.2 seconds (approx. 6 Frames) to 6 seconds. The transition occurs upon hitting the TAKE button or a GPI trigger. In the A to B mode, the sources must be genlocked. In the A to Black mode, no B input is required. The output is dc clamped to zero Volts. The VMF-2 is 12 Vdc powered, wall module included.

    • Features:

      • Input/Output: 1 Volt standard video
      • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
      • Output Impedance: 75 Ohms 1%
      • Video Connector: BNC, 4 pin MiniDIN for Y/C input
      • GPI Trigger: Contact closure initiates action
      • Output Protection: Open or Short, infinite duration
      • Black Output: Sync, Color Burst and 7.5 IRE setup (0 IRE PAL)
      • Bandwidth: 10 MHz @ 0.5 dB
      • Diff Gain: 0.1%
      • Diff Phase: 0.1 deg
      • S/N: 60 dB
      • Crosstalk: 60 dB
      • Size (Head End): 4.1 W x 5.5 D x 1.5 H inches
      • Size (RCU): 2.5 W x 6.0 D x 1.8 H inches


    VMF-2 - Required Accessories
