Wohler iAM1-12G 1RU Triple Touchcreen 6 Channel 12G-SDI & Analog Audio Monitor & Metering with Optional Signal Upgrades

ITEM #: WOH-IAM1-12G MFG #: 8114-0600

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$6,995.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    8114-0600 - Overview

    Wohler's iAM1-12G is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 12G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as Wohler's iAM-AUDIO-1 PLUS. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.
    iAM1-12G is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, Dante™, Ravenna™, SMPTE-2110 and SMPTE-2022-7.

    All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

    • Features:

      • Audio monitoring (up to 16 channels) from multiple sources
      • Up to 64 presets

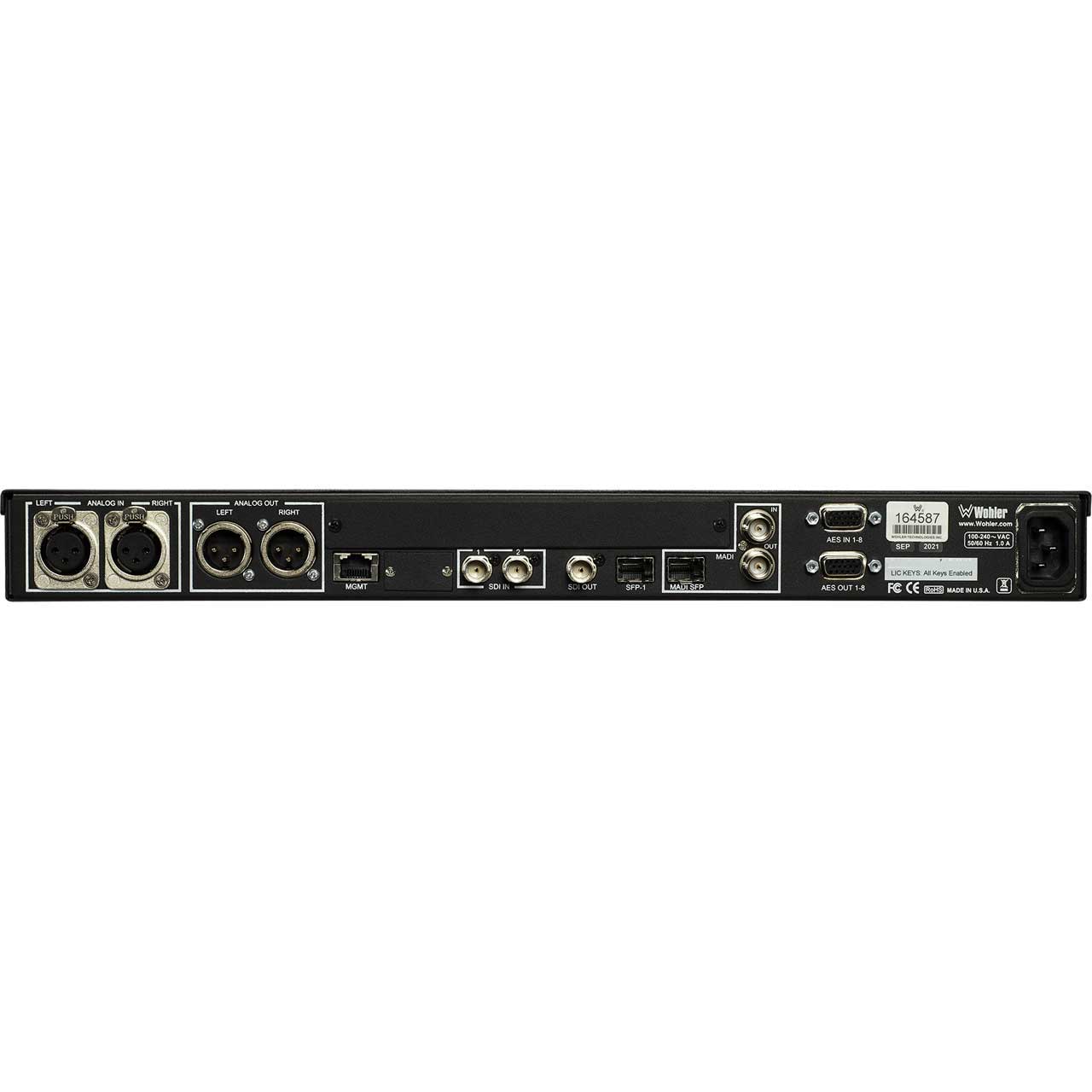

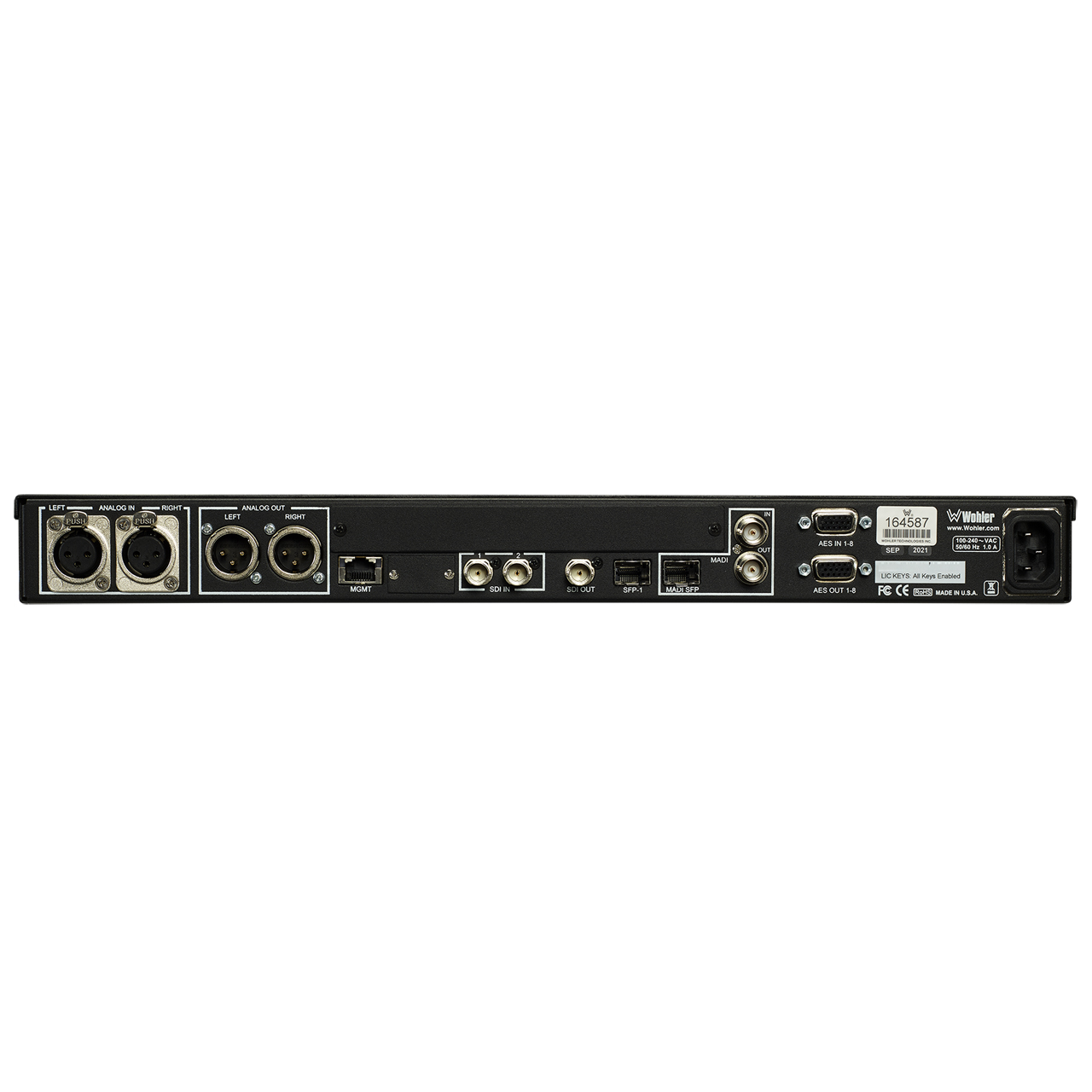

      • 2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog in/out on XLR
      • Optional Output Routing enables the flexibility to route input signals to various outputs
      • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Phase status
      • Phase status + Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Software upgradeable via USB or network

    • Specifications:

      • Speaker Power Output: RMS Each Side: 5W Continuous/12W Peak
      • Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2ft
      • AES Input Sampling Rate: 48 kHZ
      • Analog Input Impedance: 40k Ohms balanced
      • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
      • Hum and Noise: Better than -68 dB below full output
      • Meter Dynamics: Simultaneous VU & PPM

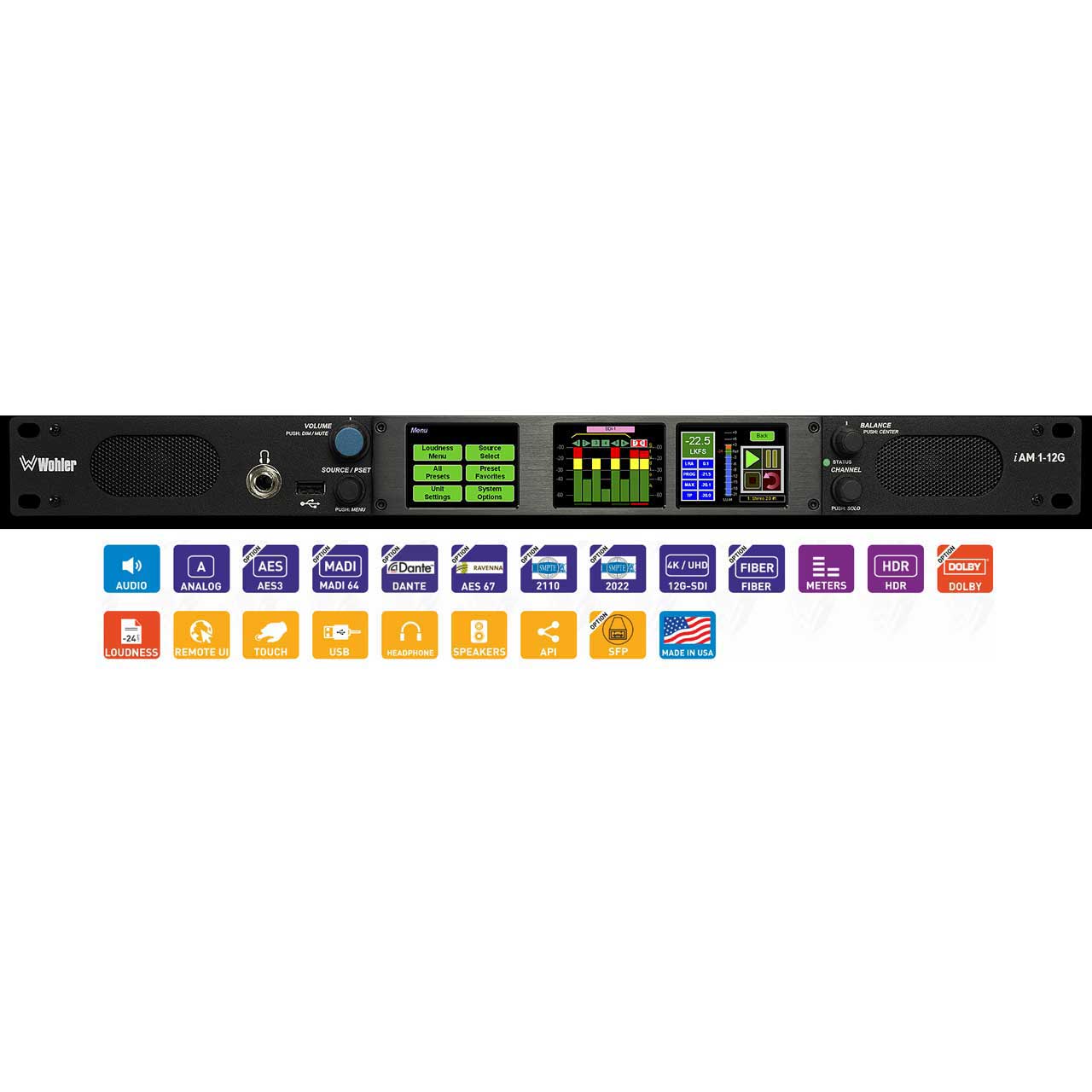

      • Display Type: Capacitive LCD Touchscreen x 3
      • Number of screens: 3
      • Diagonal Display Size: 2.4"
      • Display Resolution (HxV): 320Hx240V
      • Viewing Angle: 160 (H) x 160 (V)
      • Rack Height: 1RU
      • Power Consumption: 65 Watts typical
      • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved
      • Dimension Width: 19.0"
      • Dimension Height: 1.75"
      • Dimension Depth: 5.5"
      • Net Weight: 7.5 lbs.
      • Shipping Weight: 7.6 lbs
      • Shipping Dimensions: 23 x 12 x 6 in (LxWxH)

    • Item Includes:

      • 1x Wohler iAM1-12G 1RU Triple Touchcreen 6 Channel 12G-SDI & Analog Audio Monitor & Metering with Optional Signal Upgrades
