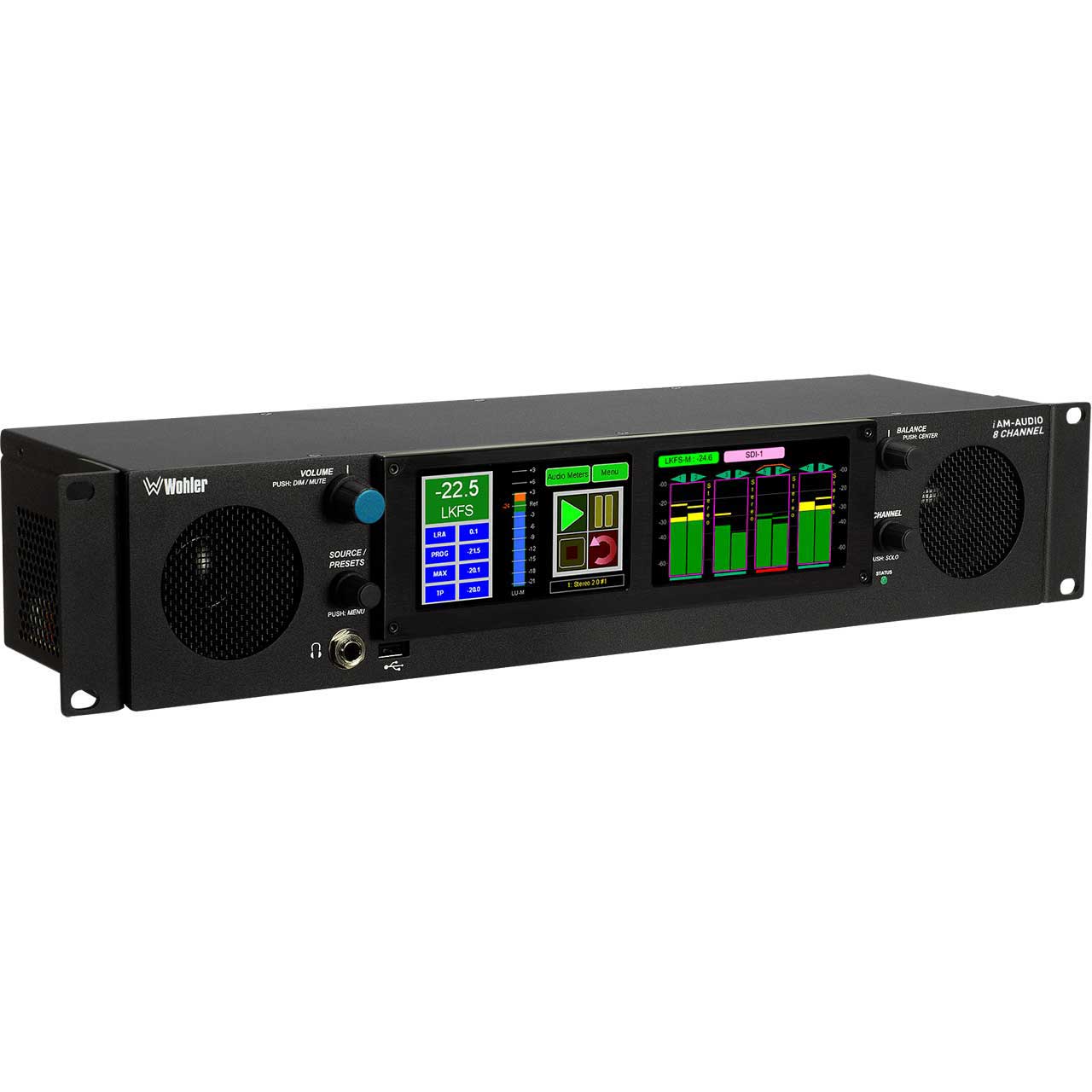

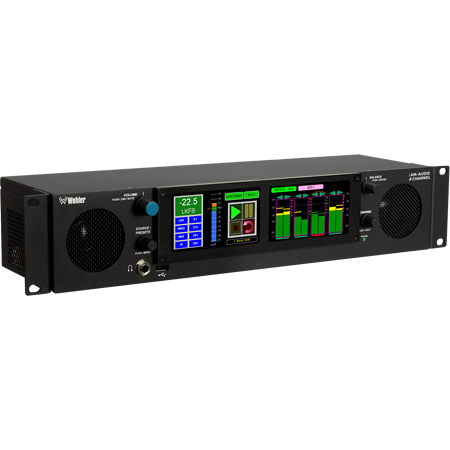

Wohler iAM2-8 2RU Dual Screen 8 Channel Dual Input 3G/HD/SD-SDI Rackmount Audio Monitor with Touch Screen Controls

ITEM #: WOH-IAM2-8 MFG #: IAM2-8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,995.00

Availability: In Stock
iAvailability Description Popup


    IAM2-8 - Overview

    An Audio Monitor that provides Value for Money!
    The Wohler iAM2-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from Wohler's fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.
    iAM2-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, Dante™, Ravenna™, SMPTE-2110 and SMPTE-2022-7.

    All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

    • Features:

      • SDI & 2110 video-audio monitor with options for Audio over IP, MADI and 2022.
      • Audio monitoring (up to 8 channels) from multiple sources
      • Up to 64 presets

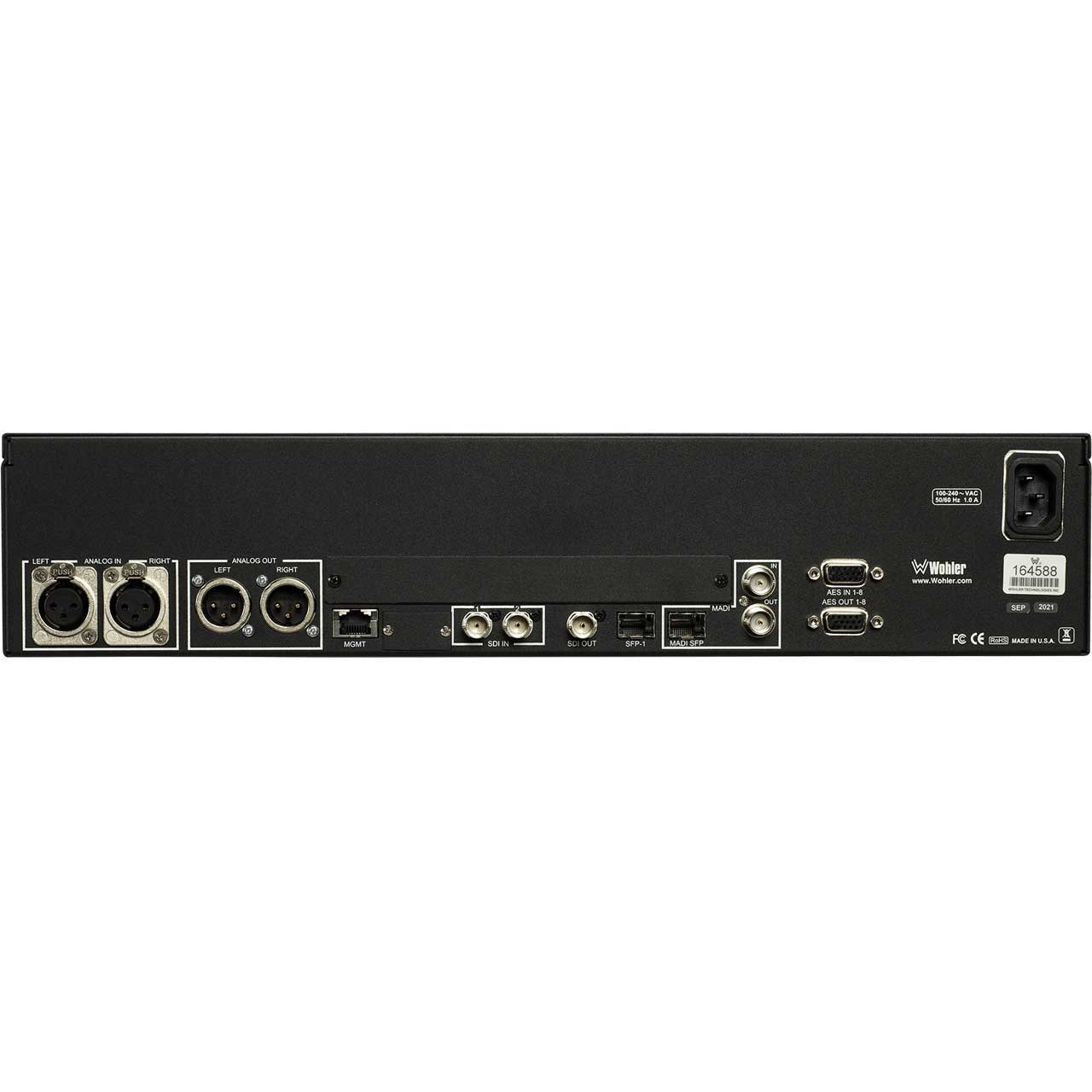

      • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
      • Optional Output Routing enables the flexibility to route input signals to various outputs
      • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
      • Software upgrades via USB or network.
      • APIs included for remote control

    • Specifications:

      • A-V Specs
      • Spkr Power Output: RMS Each Side: 15W Continuous/30W Peak
      • Peak Acoustic Output @ 2 feet: 104 dB SPL @ 2ft
      • AES Input Sampling Rate: 48 kHZ
      • Analog Input Impedance: 40k Ohms balanced
      • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
      • Hum and Noise: Better than -75 dB below full output
      • Meter Dynamics: Simultaneous VU & PPM

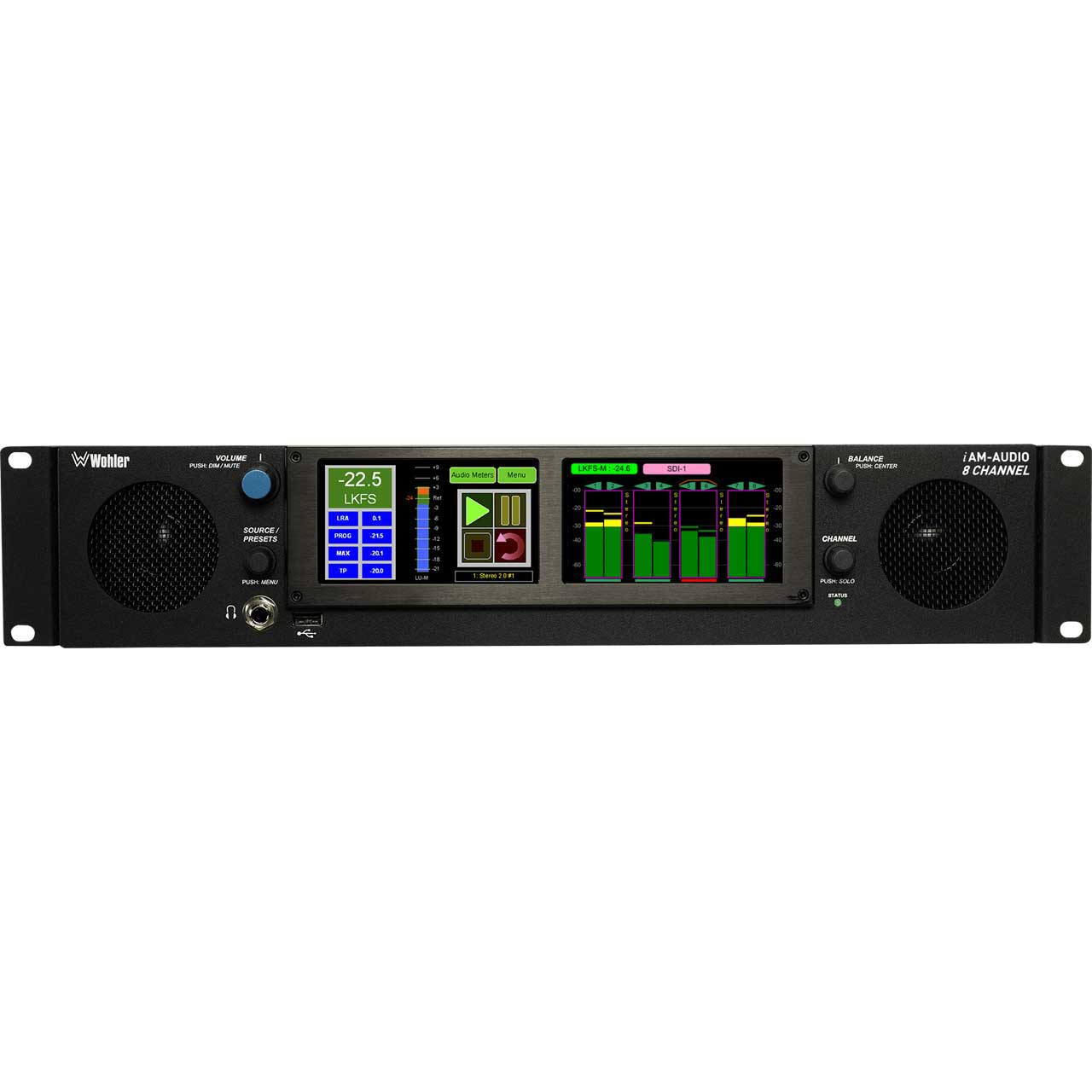

      • Display Type: Capacitive LCD Touchscreen
      • Number of screens: 2
      • Diagonal Display Size: 4.3" (109 mm) LCD Capacitive Touchscreen x 2
      • Display Resolution (HxV): 480Hx272V
      • Viewing Angle: 160 (H) x 160 (V)

        Physical Specs
      • Rack Height: 2RU
      • Power Consumption: 60 Watts typical
      • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
      • Dimension Width: 19.0"
      • Dimension Height: 3.5"
      • Dimension Depth: 5.5"
      • Net Weight: 10.0 lbs
      • Shipping Weight: 12.0 lbs
      • Shipping Dimensions: 24 x 17 x 8 in (LxWxH)

    • Item Includes:

      • 1x 2RU Base unit, includes SDI & Analog as standard
