West Penn 4346A 4-Pair 23AWG CAT6A UTP CMR/CMR-LP Cable - Black - 1000 Foot - Unshielded

4346ABK1000 - Overview

• Features:

  • UTP (unshielded) construction
  • CMR (riser) fire rating for vertical building runs
  • Small OD for higher-density installations
  • Optimized for 10-gigabit Ethernet and modern high-bandwidth applications


• Specifications:

  • Number Of Pairs: 4
  • AWG Size: 23
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 21Ω/1000ft
  • Insulation Type: Polyolefin
  • Insulation Color Code:
    - 1. Blue, White
    - 2. Orange, White
    - 3. Green, White
    - 4.Brown, White
  • Shield Type: Overall 100% Aluminum Foil (F/UTP)
  • Drain Wire AWG Size: 24 AWG
  • Drain Wire Type: Tinned Copper
  • Nominal Impedance: 100Ω
  • Nominal Capacitance Between Conductors: 16 pF/ft
  • Total Number of Conductors: 8
  • Jacket Type: PVC
  • Nominal Cable O.D.: 0.265"
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • ANSI/TIA Category: Category 6A TIA/EIA 568.2-D
  • TIA Test: ANSI/TIA-568.2-D
  • Pull Tension: 25lbs
  • Bend Radius: 1.25"
  • Cable Weight: 37lbs
  • Nominal Velocity of Propagation (VP): 70%

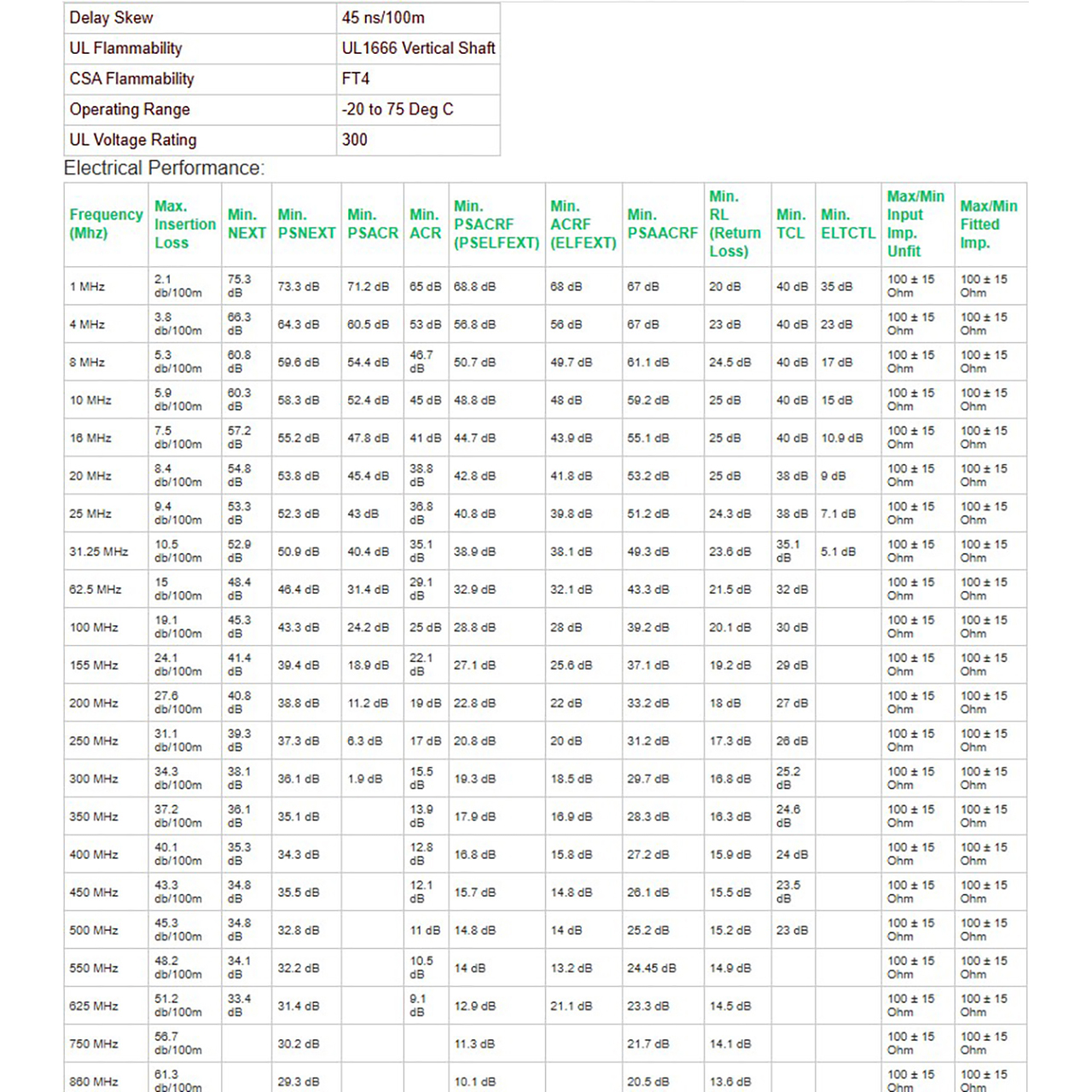

  • Delay Skew: 45 ns/100m
  • UL Flammability: UL1666 Vertical Shaft
  • CSA Flammability: FT4
  • Operating Range: -4°F - 167°F (-20°C - 75°C)
  • UL Voltage Rating: 300
