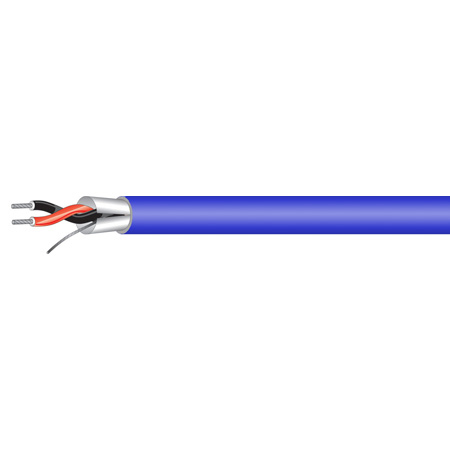

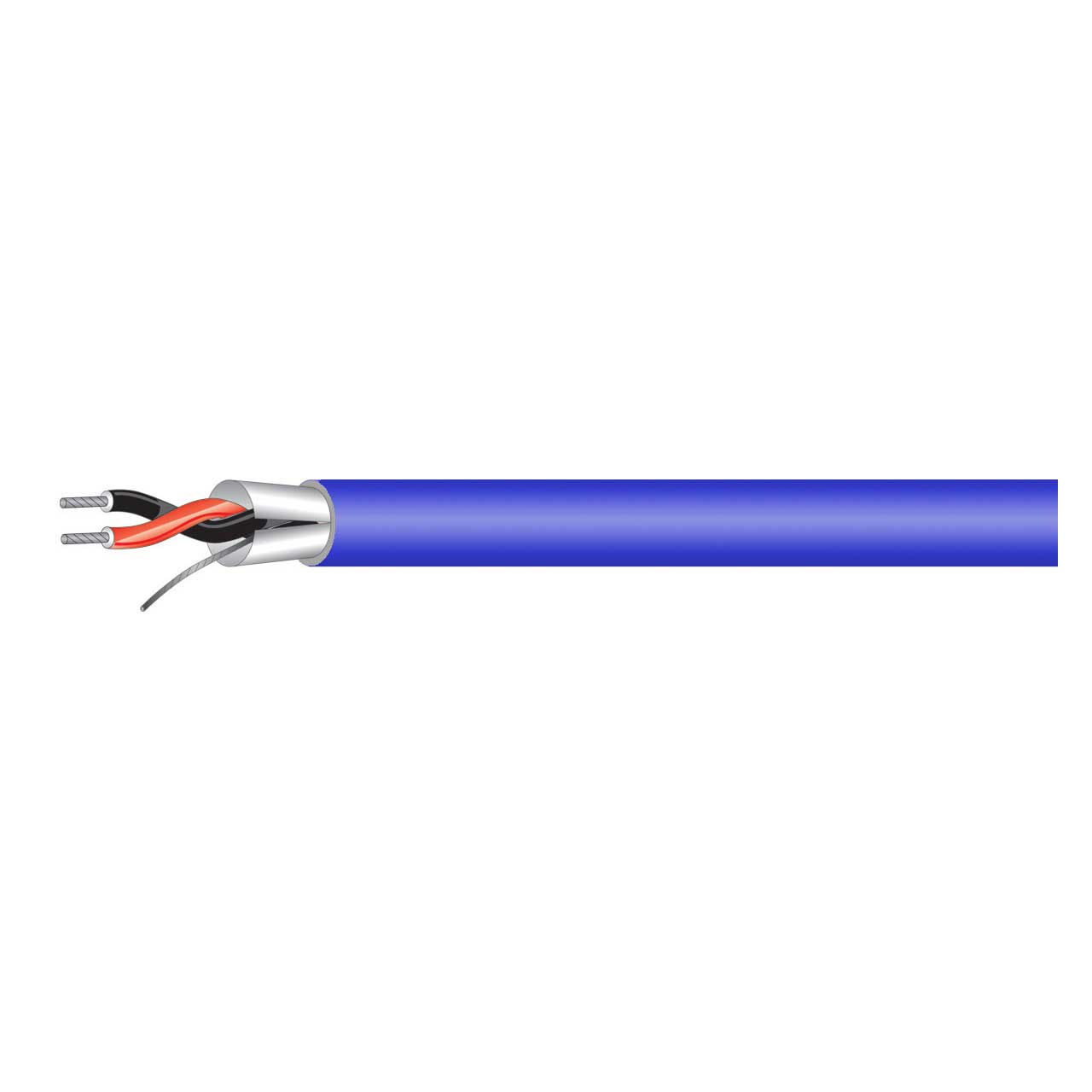

West Penn 454 22 AWG x2 w/ 22AWG Drain Shielded Cable 1000 Ft. Blue

ITEM #: WP-454-1000BE MFG #: 6454

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$139.80

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


6454 - Overview

West Penn 454-1000BE is a Miniature Line Level Audio Cable. 22/2 Stranded tinned copper conductors, shielded with an overall jacket. Rated for Indoor use in Post Production Facilities, Recording Studios, and most all Sound/Audio applications.

  • Specifications:

    • Conductor Parameter
    • Number of Pairs: 1
    • AWG Size: 22
    • Conductor Stranding: 7x30
    • Conductor Type: Tinned Copper
    • Nominal DCR: 17 Ohm/1000ft

      Overall Construction Parameters
    • Jacket Type: PVC
    • Jacket Thickness: 0.02"
    • Nominal Cable O.D.: 0.135"
    • Plenum: No
    • NEC UL Rating: CMR
    • RoHS Compliant: Yes
    • Pull Tension: 28Lbs
    • Bend Radius: 1.215"
    • Cable Weight: 15Lbs

      Insulation Parameter
    • Insulation Type: Polypropylene - PP
    • Insulation Thickness: 0.008"
    • Insulation Color Code: 1. Black 2.Red

      Shielding Parameter
    • Shield Type: Bonded Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 22 AWG

      Electrical Characteristics
    • Nominal Impedance: 45 Ohm
    • Nom. Cap. Between Conductors: 34 pF/ft
    • Nom. Cap. Conductor to Shield: 67 pF/ft

      Overall Electrical/Optical Characteristics
    • Nominal Velocity of Propagation (VP): 66 %
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • Operating Range: -4° to 140°F (-20 to 60°C)
    • UL Voltage Rating: 300
    • Color: Blue
    • Length: 1000'

  • GTIN:

    0612825054757
