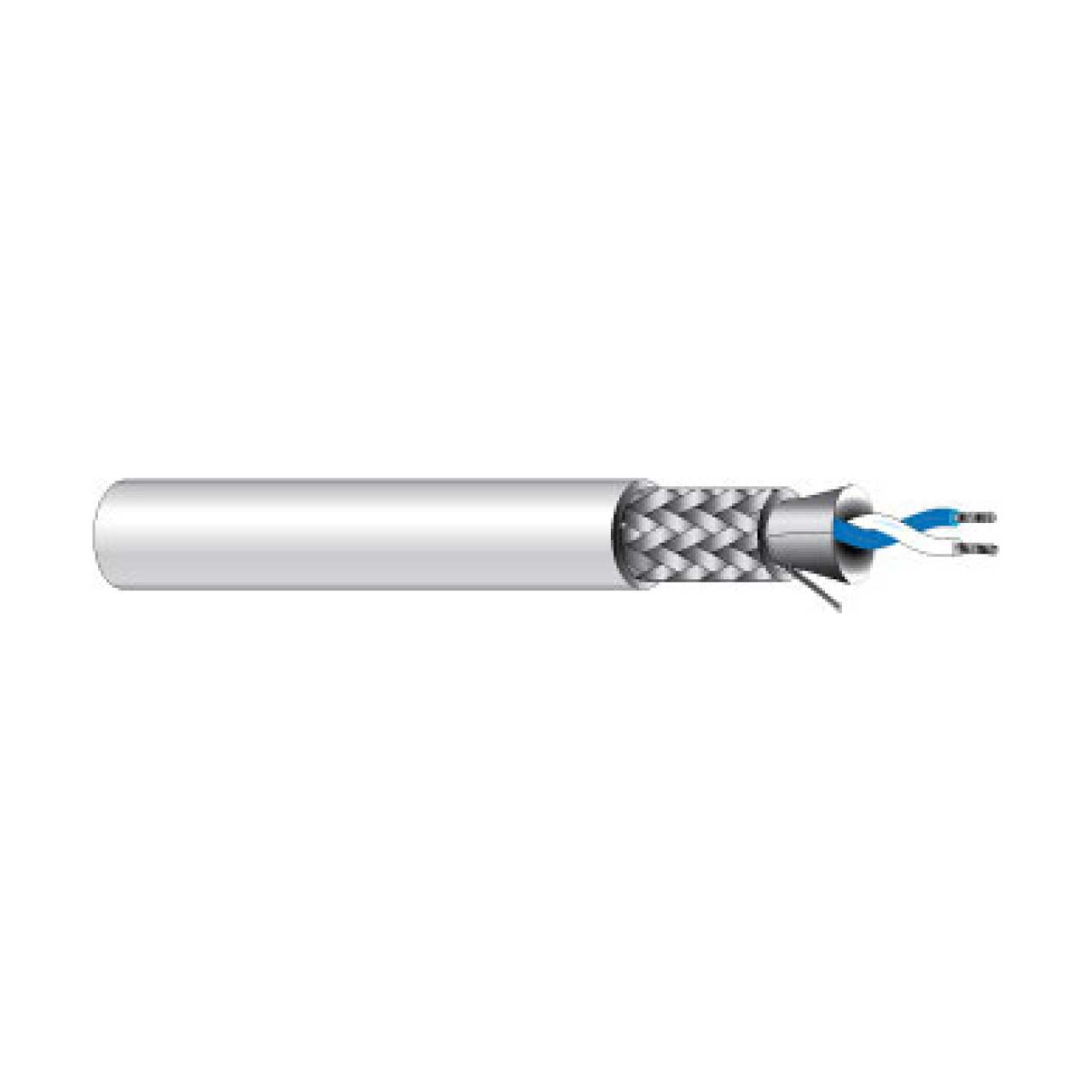

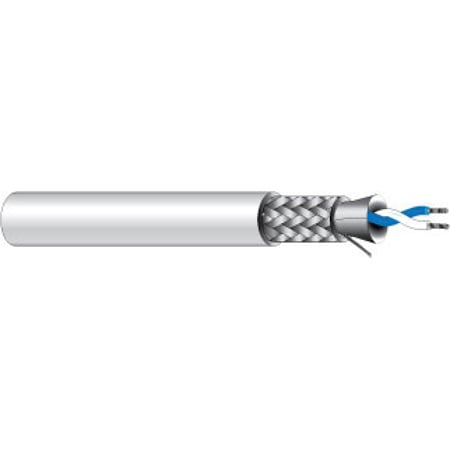

West Penn D4851GY1000 1 Pair 24G Stranded Braid - Shielded PVC - Reel-In-Box - 1000 Foot - Gray

D4851GY1000 - Overview

• Specifications:

  • Construction
  • Conductor: 24 AWG Tinned Copper
  • Stranding: 7x32
  • Insulation Material: Polyolefin
  • Insulation Thickness: 0.035" Nom.
  • Number of Conductors: 2 (1 pair)
  • Shield: 100% aluminum polyester foil / 95% aluminum braid
  • Drain: Stranded tinned copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.032" Nom.
  • Overall Cable Diameter: 0.275" Nom.
  • Approximate Cable Weight: 36 lbs/1M' Nom.
  • Flame Rating: UL 1685

    Electrical & Environmental Specifications
  • Temperature Range: -4 °F to +140°F (-20°C to +60°C)
  • Operating Voltage: 300 V RMS
  • Max Capacitance Between Conductors @ 1 kHz: 12.8 pf/ftNom.
  • Capacitance Between Conductors to Shield @ 1 kHz: 23 pf/ft Nom.
  • DC Resistance per Conductor @ 68°F: 24 Ohms/1M' Nom.
  • Velocity of Propagation: 66% Nom.
  • Impedance: 120 Ohms Nom
  • Insulation Colors: 1. Blue-White/Blue
  • Jacket Color: Gray
  • NEC Rating: CM, NEC Article 800
  • Approvals: UL Listed

    Mechanical Specifications
  • Max. Recommended Pull Tension: 72 lbs
  • Min. Bend Radius (install): 2.7


• GTIN:

  0612825028888
