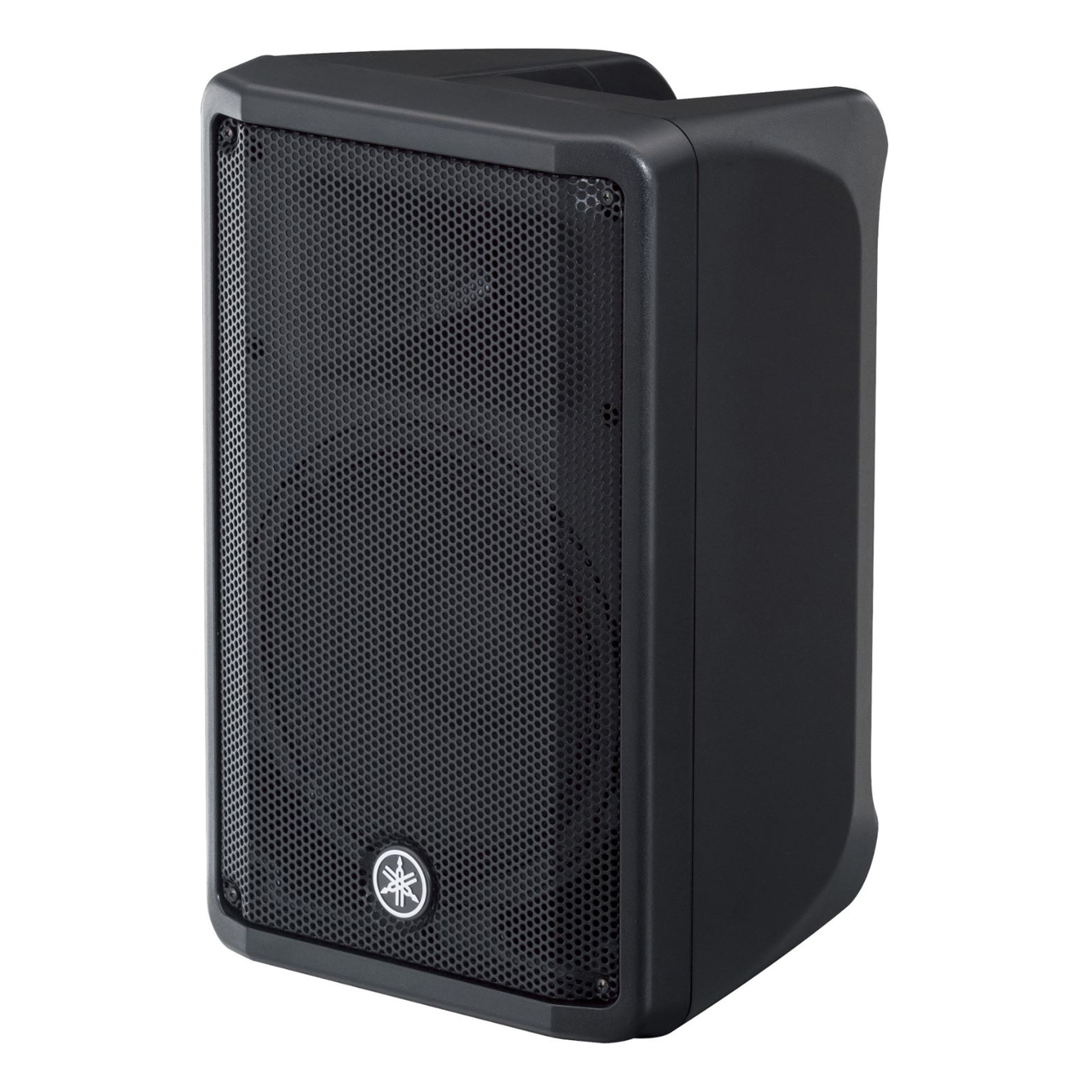

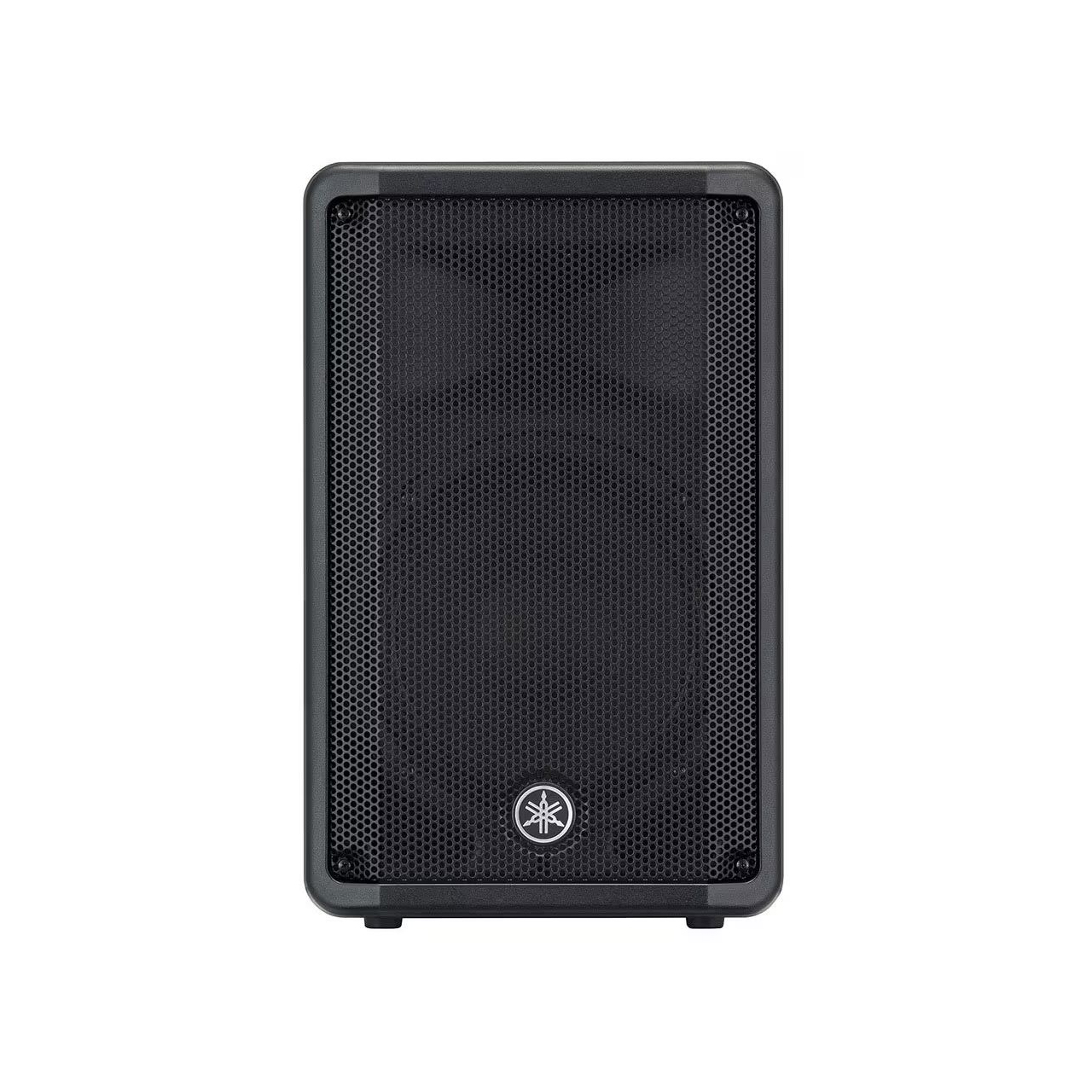

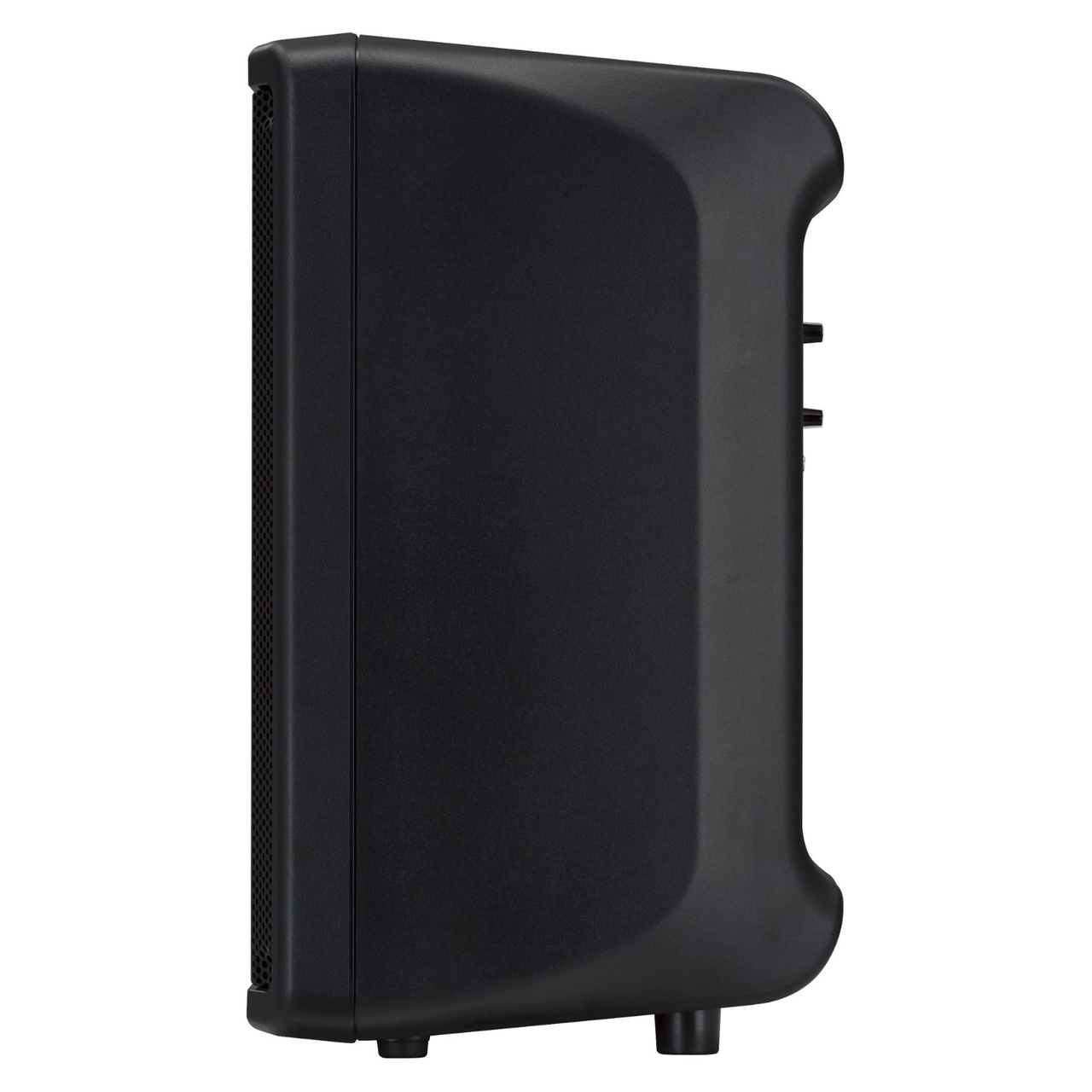

Yamaha DBR Series DBR10 700W 10 Inch 2-Way Powered Loudspeaker - 1-Inch HF Compression Driver

ITEM #: YMH-DBR10 MFG #: DBR10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$525.00

Our Price:

$399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DBR10 - Overview

The Yamaha DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10", 12" and 15" models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band's live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

  • Features:

    • High-Efficiency 700W Class-D Amplifiers - The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power delivered with remarkable clarity and dynamic characteristics.
    • Custom Designed Transducer - The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies.
    • A Rugged, Highly Portable Cabinet - The DBR10 speaker feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

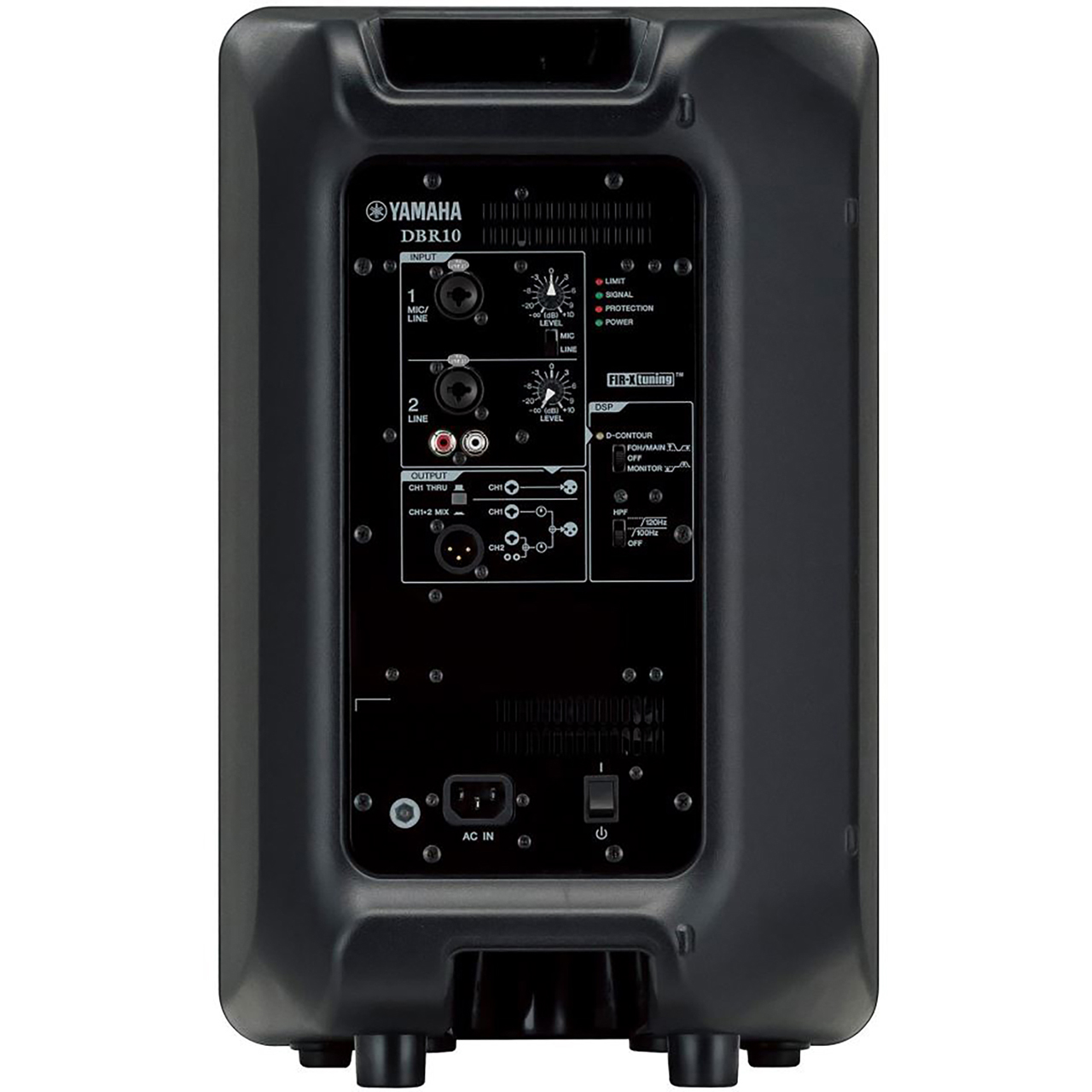

    • Easy-to-use Onboard 2-Channel Mixer - The DBR10 speaker has two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

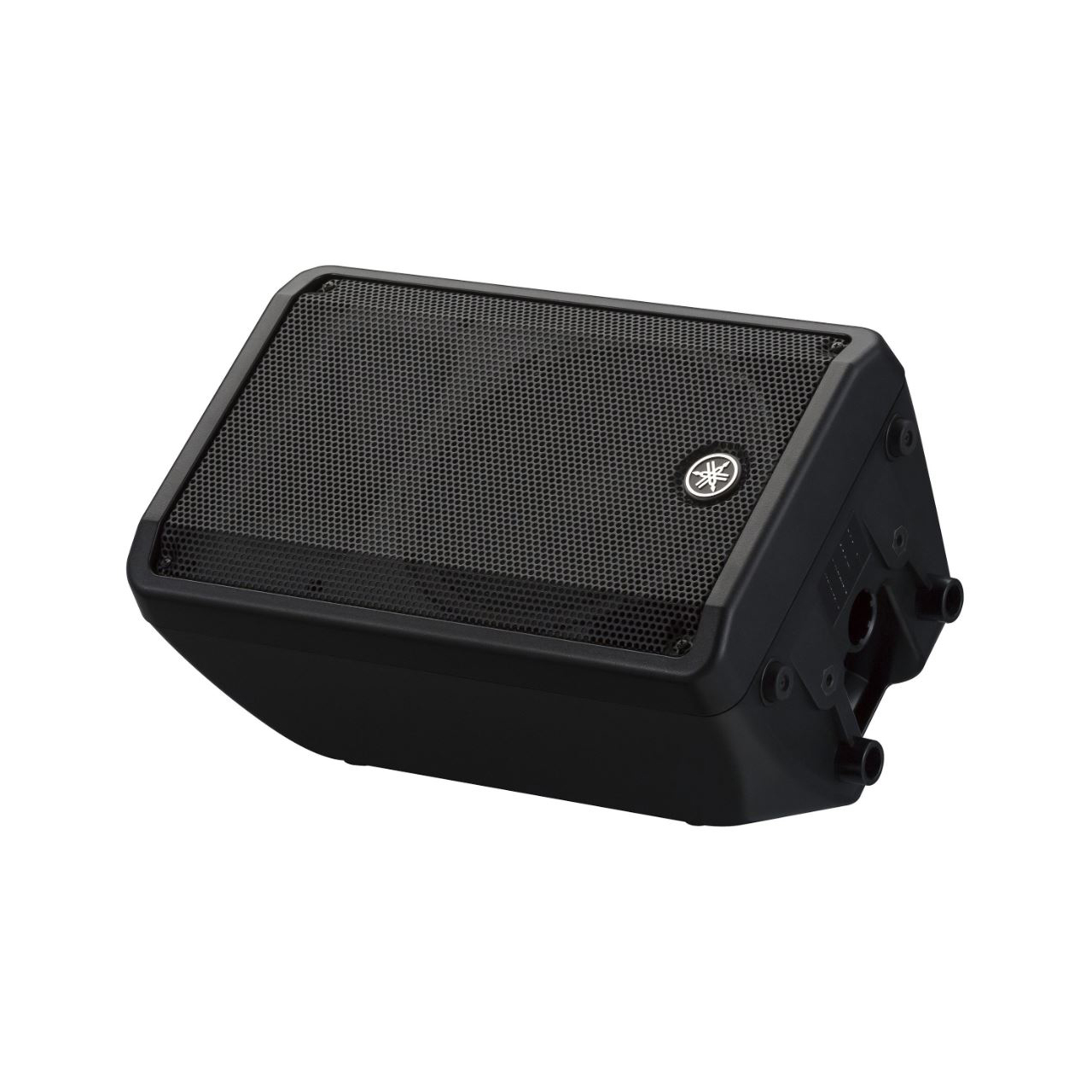

    • Smart Enclosure Design for Floor Monitoring - The DBR10 speaker features an optimized 50° wedge angle for floor monitoring.
    • Rigging Points for Installation Applications - The DBR10 speaker comes equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
      *Speaker brackets and eye-bolts are not included.

  • Specifications:

    • Speaker Type: 2-way, Bi-amp powered speaker, Bass-reflex type
    • Frequency Range (-10dB): 55Hz - 20kHz
    • Nominal Coverage:
      - H: 90°
      - V: 60°
    • Components:
      - LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
      - HF: Diaphragm: 1", Type: 1" throat compression driver, Magnet: Ferrite
    • Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
    • Output Power:
      - Dynamic: 700W (LF: 500W, HF: 200W)
      - Continuous: 325W (LF: 260W, HF: 65W)
    • Maximum Output Level (1m; on axis): 129dB SPL
    • I/O Connectors:
      - INPUT1: 1x Combo
      - INPUT2: 1x Combo + 2x RCA pin (Unbalanced)
      - OUTPUT: 1x XLR3-32 (CH1 Parallel Through or CH1+CH2 Mix)
    • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
    • Heat Dissipation: Fan cooling, 4 speeds
    • Power Requirements: 100V, 100V - 120V, 220V - 240V, 110V/127V/220V (Brazil), 50/60Hz
    • Power Consumption: 60W (1/8 Power Consumption), 18W (Idle)
    • Cabinet Material: Plastic
    • Finish: Black
    • Handle: 1x Top
    • Flying and Mounting Hardware: 2x Bottom (Fit for M8 x 15mm eyebolts)
    • Pole Socket: 35mm (1x Bottom)
    • Dimensions (HxWxD): 19.4" x 12.1" x 11.4" (493mm x 308mm x 289mm)
    • Net Weight: 23.2lbs (10.5kg)

  • Item Includes:

    • 1x Yamaha DBR10 Powered Loudspeaker
    • 1x AC power cord
