Yamaha DBR Series DBR15 1000 Watt Class-D Powered Loudspeaker - 15in LF - 1.4in HF Compression Driver - 2-Channel Mixer

ITEM #: YMH-DBR15 MFG #: DBR15

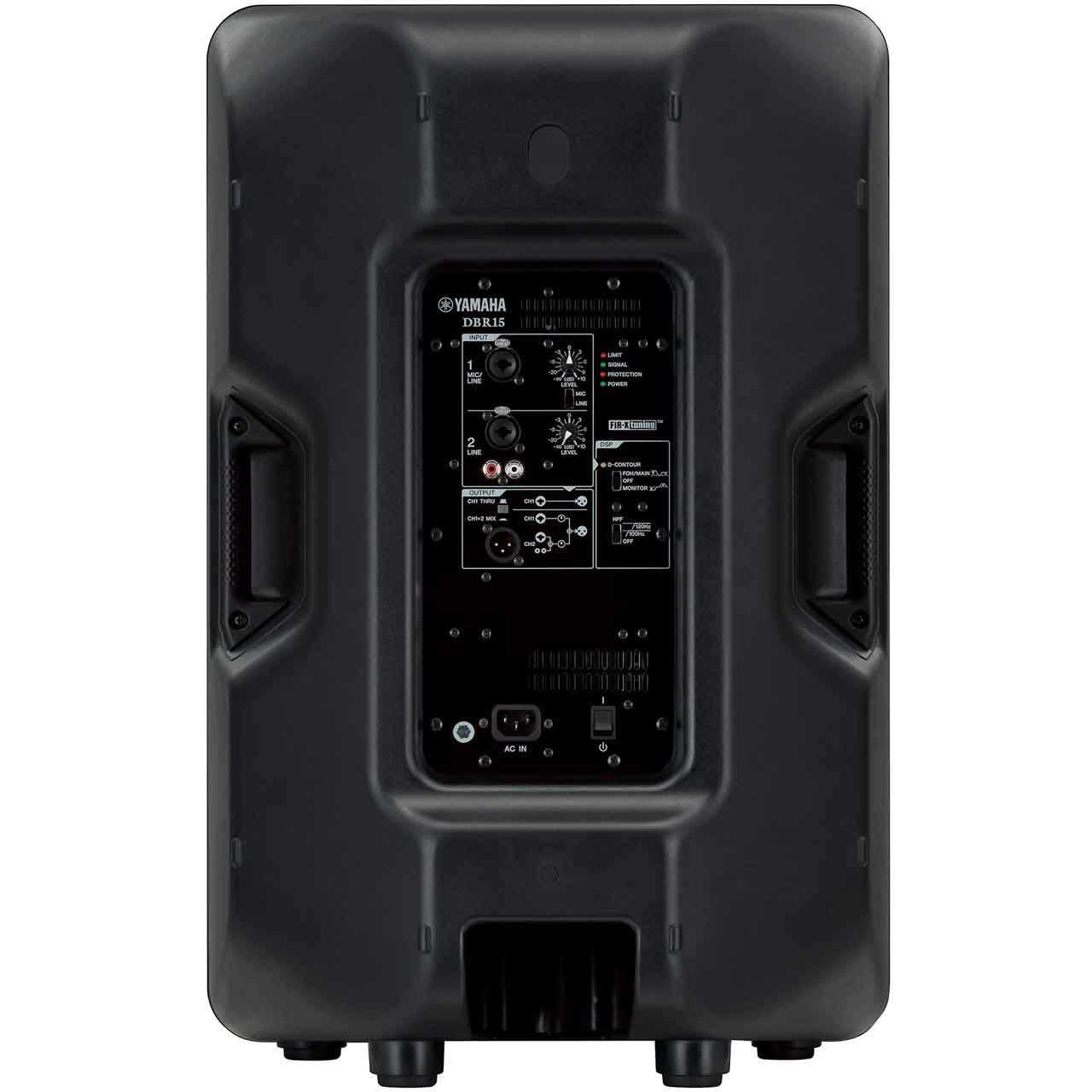

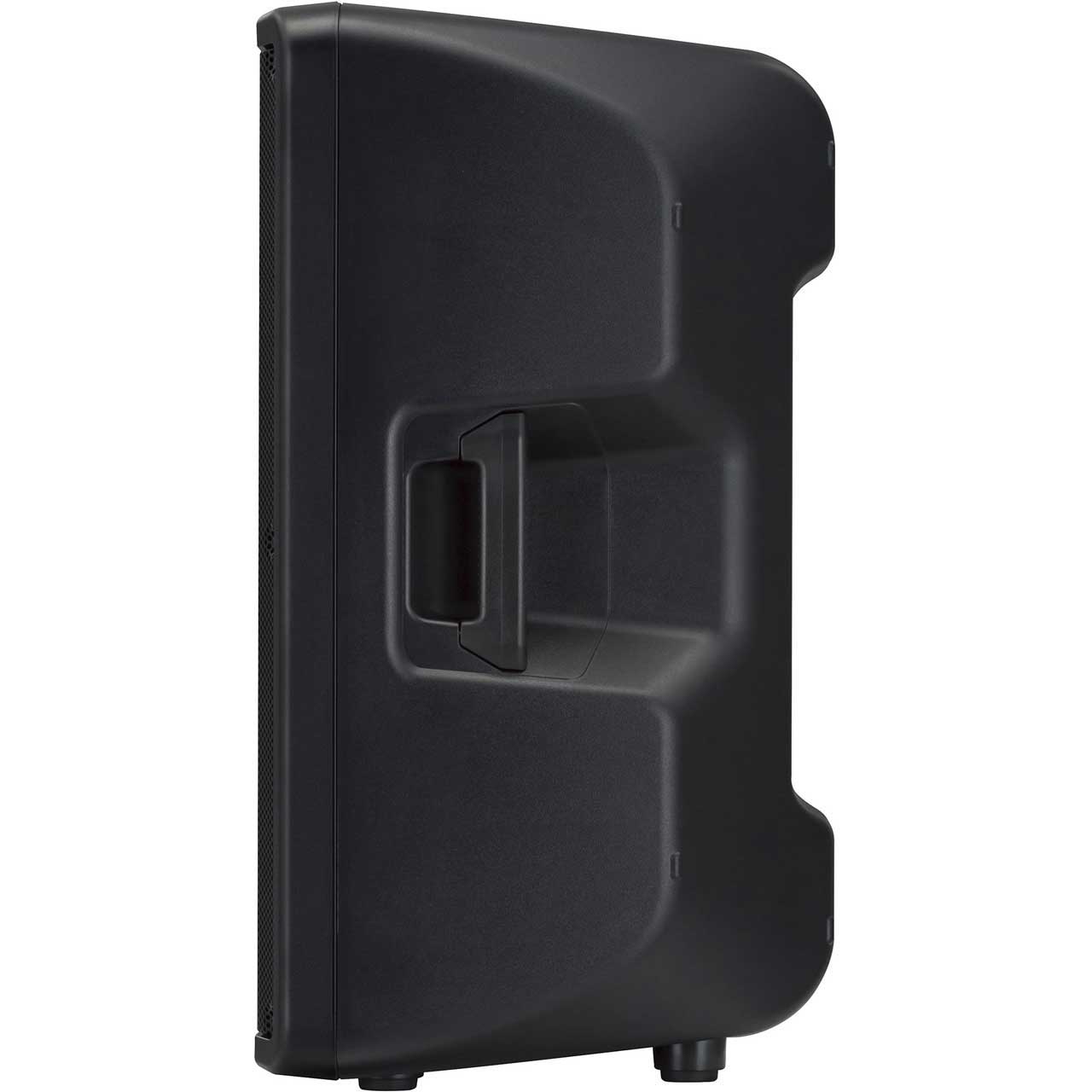

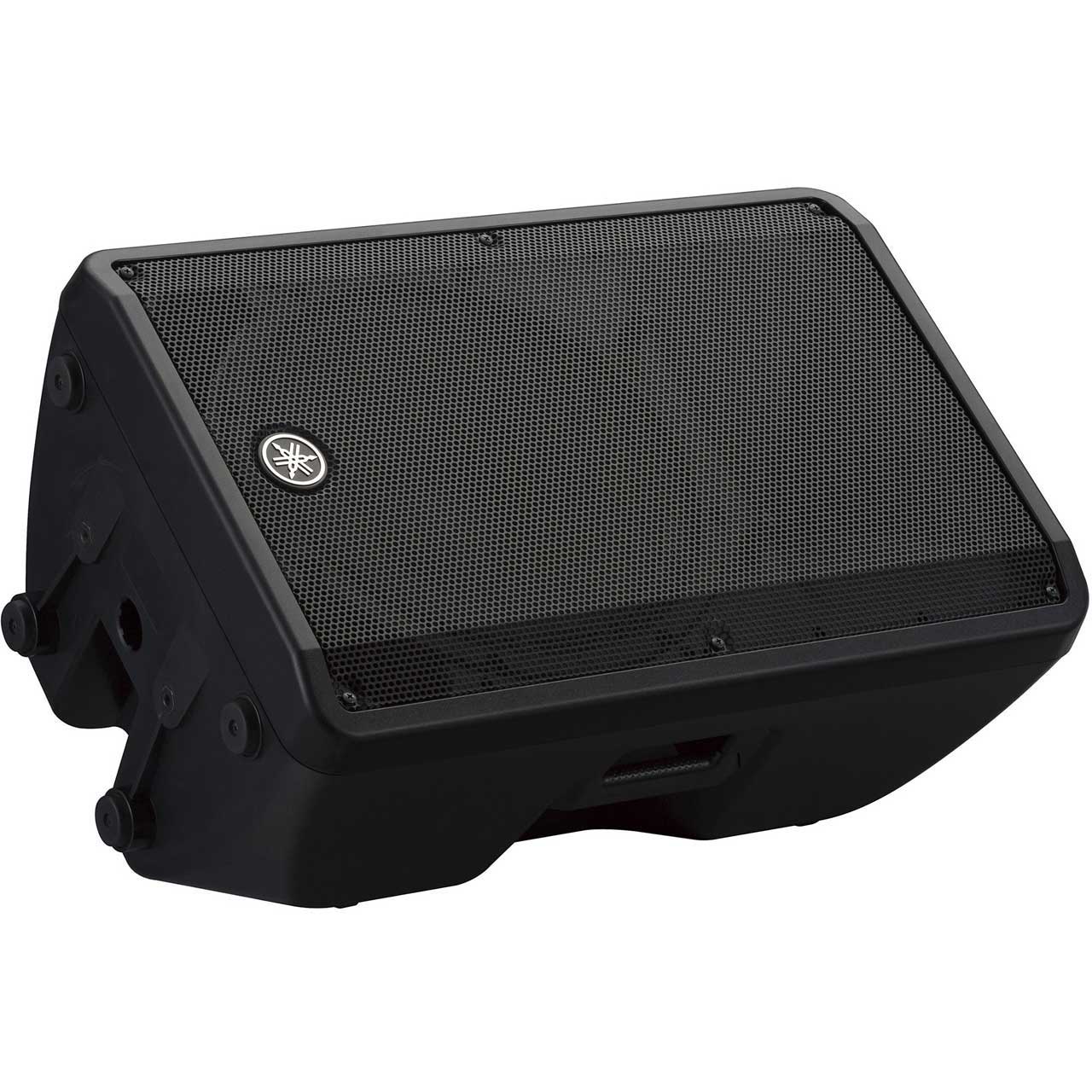

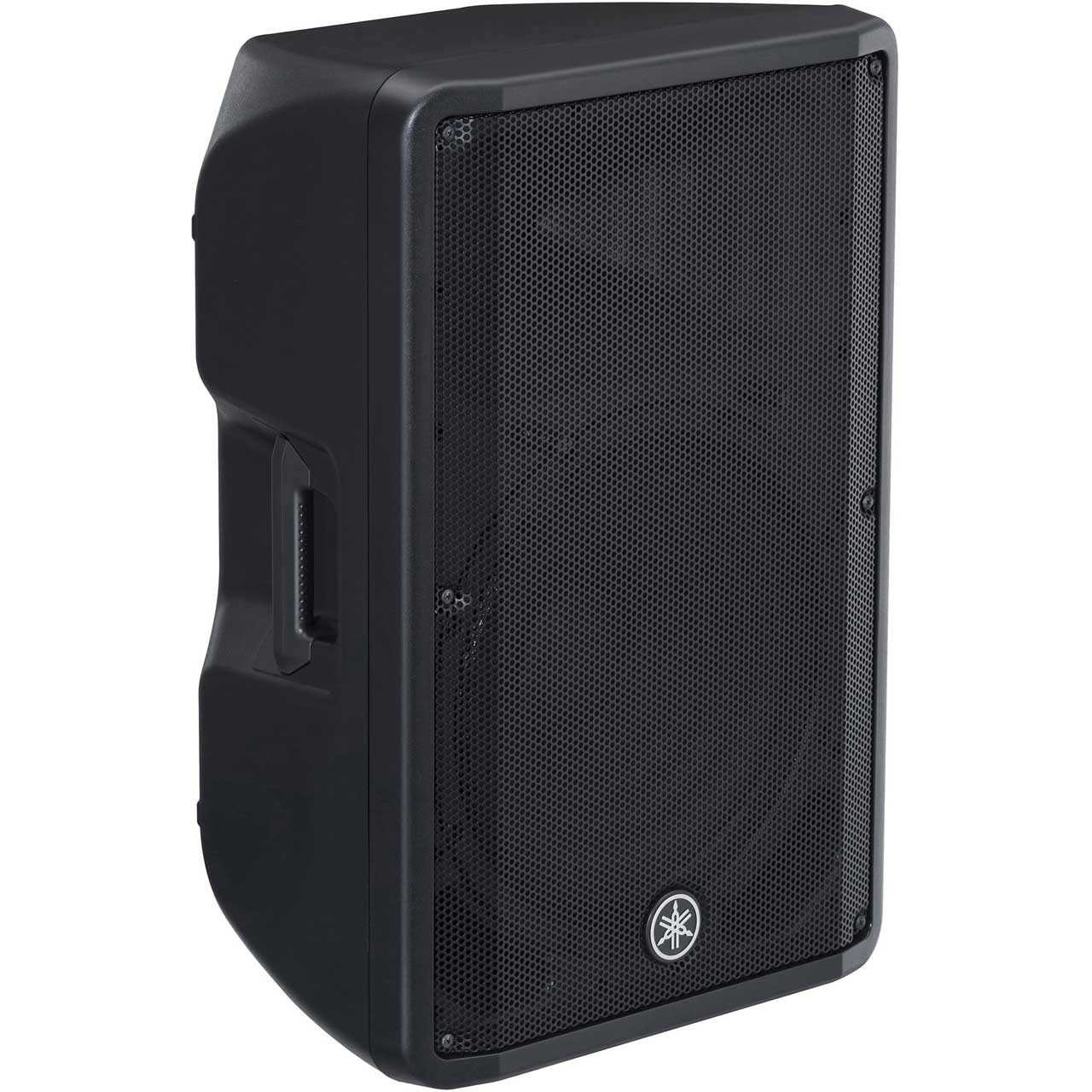

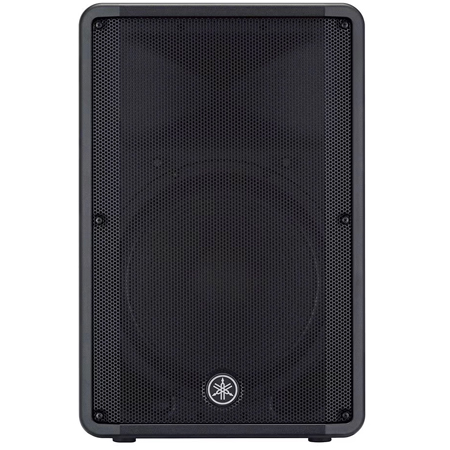

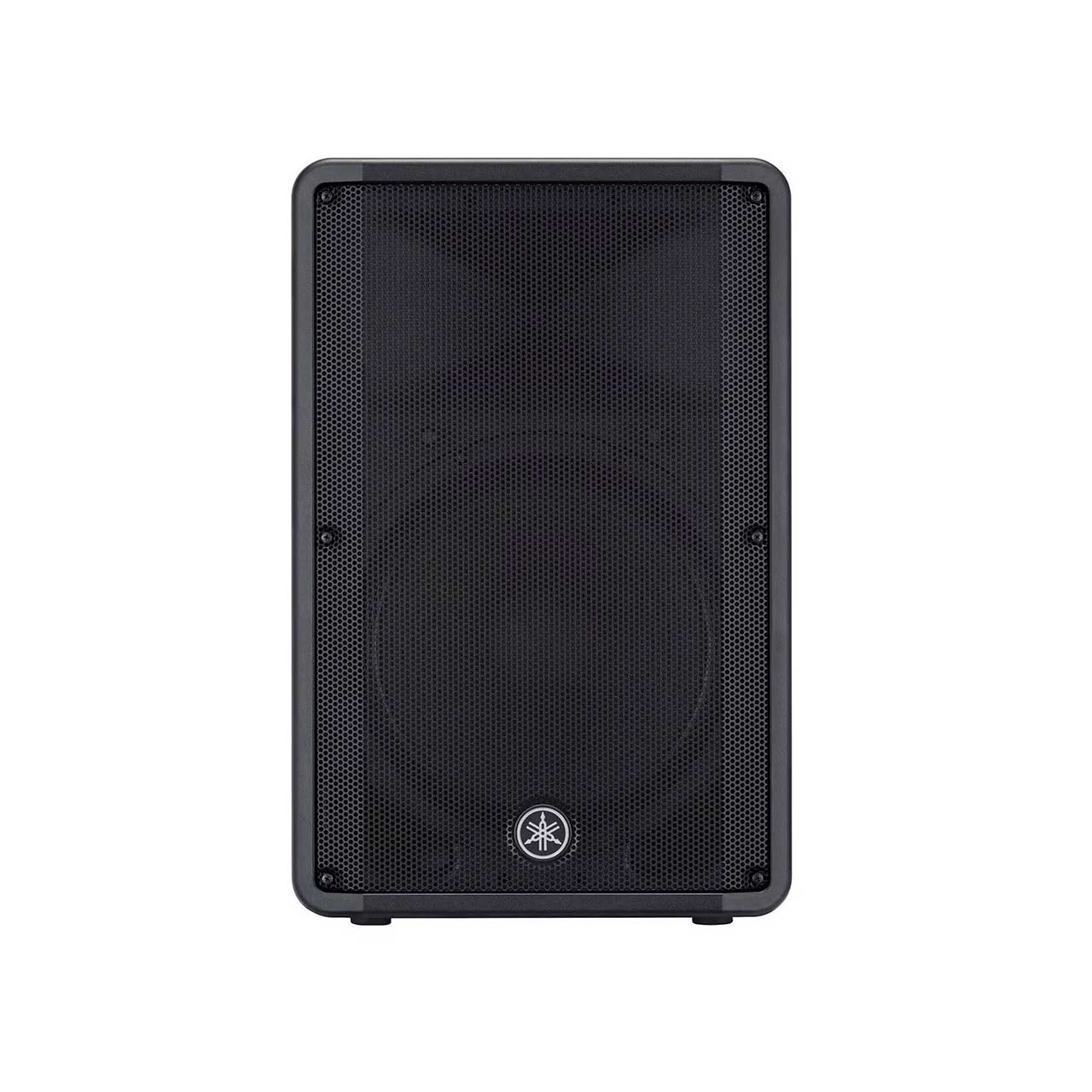

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$806.00

Our Price:

$549.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DBR15 - Overview

POWER TO PLAY

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band's live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

The Yamaha DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

  • Features:

    • High-Efficiency 1000W Class-D Amplifiers
    • Custom Designed Transducer
    • A Rugged, Highly Portable Cabinet
    • Easy-to-use Onboard 2-Channel Mixer
    • Smart Enclosure Design for Floor Monitoring
    • Rigging Points for Installation Applications

  • Specifications:

    • Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
    • Frequency range (-10dB): 50Hz - 20kHz
    • Nominal coverage: H - 90° / V - 60°
    • Components: LF - Diameter:15" cone, Voice Coil: 2.5", Magnet: Ferrite / HF - Diaphragm: 1.4", Type: 1" throat compression driver, Magnet:Ferrite
    • Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
    • Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
    • Maximum output level (1m; on axis): 132dB SPL
    • I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
    • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
    • Heat dissipation: Fan cooling, 4 speeds
    • Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
    • Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
    • Cabinet material: Plastic
    • Finish: Black
    • Handle: Side x 2
    • Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
    • Pole socket: 35mm (Bottom x 1)
    • Dimensions: 17.9 x 27.6 x 14.9"
    • Weight: 42.6lbs

  • Item Includes:

    • 1x Yamaha DBR15 Powered Loudspeaker
    • 1x AC power cord
