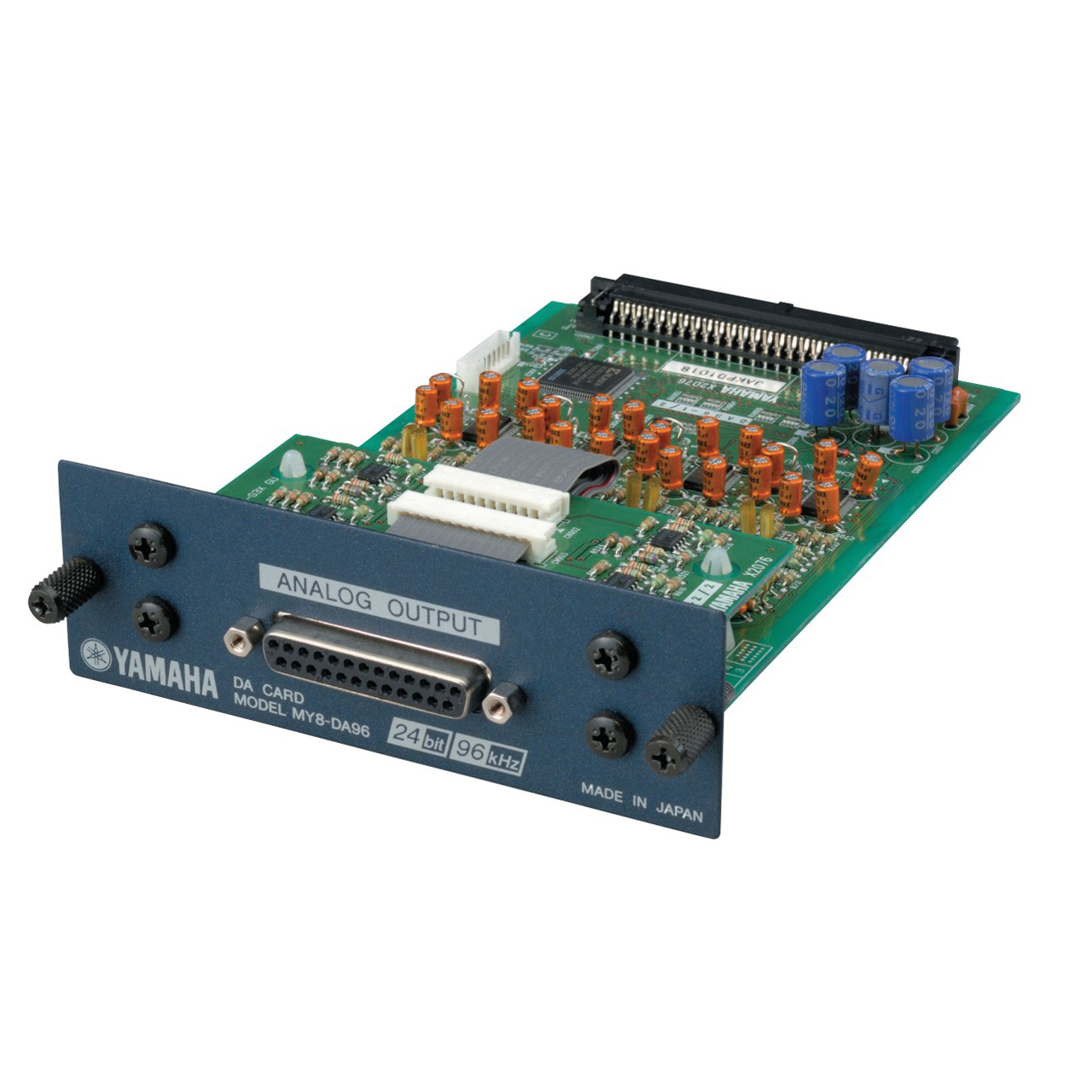

Yamaha MY8DA96 8-Channel Digital-to-Analog Output Card for Compatible Yamaha Digital Mixing Consoles & Signal Processors

MY8DA96 - Overview

• Features:

  • 24 bit resolution, 96kHz compatible 8-out analog audio interface
  • 1x D-sub 25 pin connector (balanced)
  • +18dBu max output level before clip


• Specifications:

  • Dimensions: 4.7" x 1.6" x 6.9" (120mm x 40mm x 176mm)
  • Channel Count: 96kHz Compatible 8OUT
  • Format: Analog
  • Sampling Frequency: 96kHz
  • Resolution: 24 bit
  • Connector: 1x D-sub 25 pin connector


• Item Includes:

  • 1x MY8DA96 8 Channel Digital-to-Analog Output Card


• Warranty:

  • 1 Year Limited Warranty
