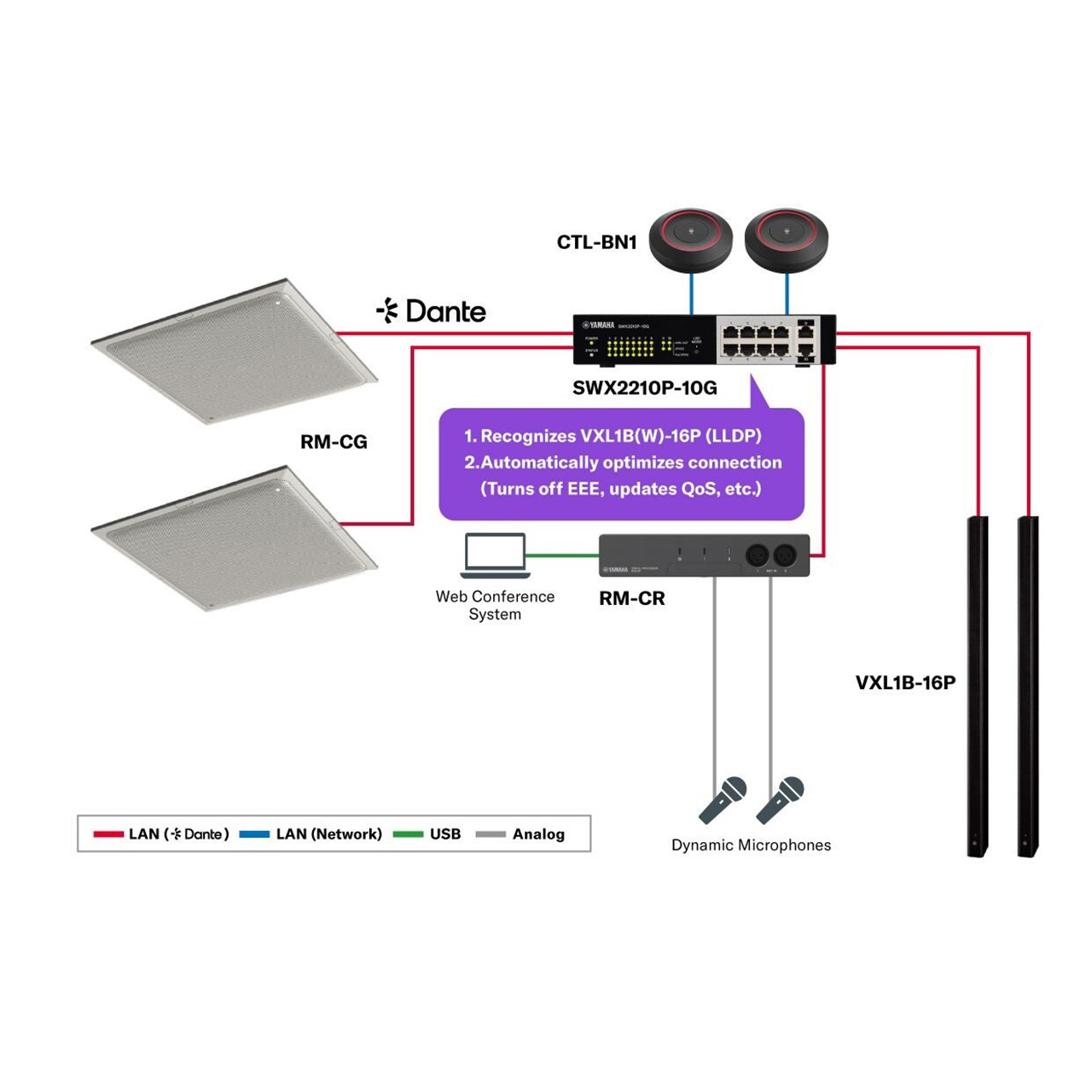

The Yamaha SWX2210P-10G is a smart L2 switch optimized for Dante networks, known worldwide for AoIP, allowing integrators to quickly establish stable networks by simplifying settings, monitoring, management, and operation. When Dante PoE devices, like the VXL1-16P, are connected to the SWX2210P-10G, settings optimized for Dante are automatically applied via LLDP, a protocol for exchanging system management data between neighboring devices. PoE+ compliant ports can supply up to 30W to each port simultaneously, powering not only PoE compliant devices like wireless access points, but also higher-output PoE+ devices such as the VXL1B-16P, VXL1W-16P, VXC2P, and RM-CR.
One-Click Optimization
You can automatically optimize IGMP and QoS settings for Dante networks by selecting the Dante profile in the web-based GUI. These network settings do not matter as much in simple systems. In larger Dante networks, proper configuration is needed for stability. The Web GUI's ProAV Settings let you assign profiles such as Dante and NDI to ports with a single click. This feature makes using both NDI and Dante on the same switch easy. In addition, the ProAV Settings screen in the Web GUI lets you quickly check multicast settings and operations. It shows multicast activity clearly and helps resolve common issues in ProAV networks quickly.

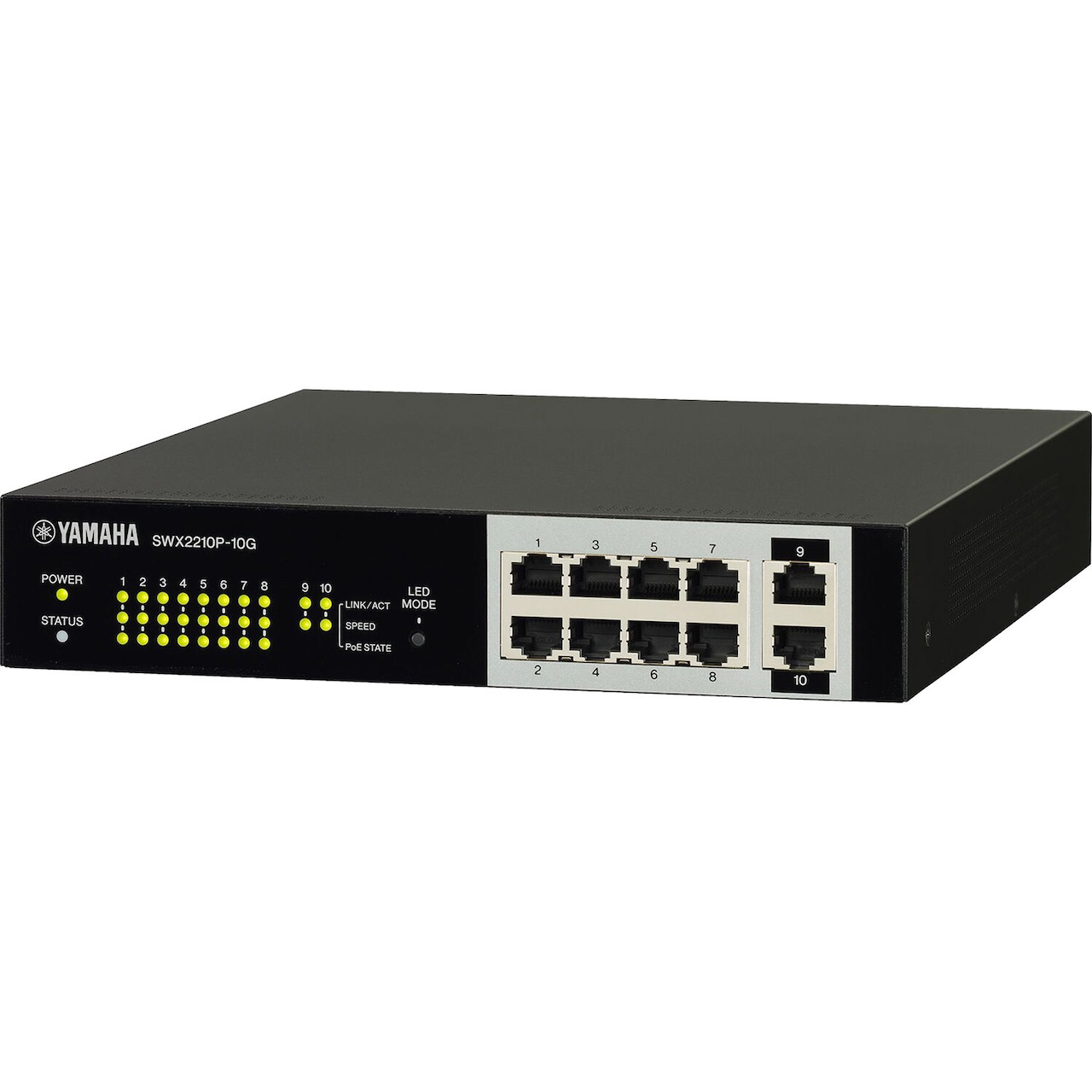

Smart L2 Switch with Dante Optimization Function and PoE+
The SWX2210P-10G is a smart L2 switch optimized for Dante networks, known worldwide for AoIP, allowing integrators to quickly establish stable networks by simplifying settings, monitoring, management, and operation. When Dante PoE devices, like the VXL1-16P, are connected to the SWX2210P-10G, settings optimized for Dante are automatically applied via LLDP, a protocol for exchanging system management data between neighboring devices. PoE+ compliant ports can supply up to 30W to each port simultaneously, powering not only PoE compliant devices like wireless access points, but also higher-output PoE+ devices such as the VXL1B-16P, VXL1W-16P, VXC2P, and RM-CR.
Complete Network Monitoring
Yamaha LAN Monitor is a dedicated software that allows for quick troubleshooting. Easily check PoE status, turn PoE on/off, and use the snapshot function to detect any differences or faults in the network state since setup. The web GUI provides a full range of monitoring functionality, including dead/alive monitoring for PoE devices, allowing you to restart a PoE device if a fault occurs and receive email notifications of faults.
