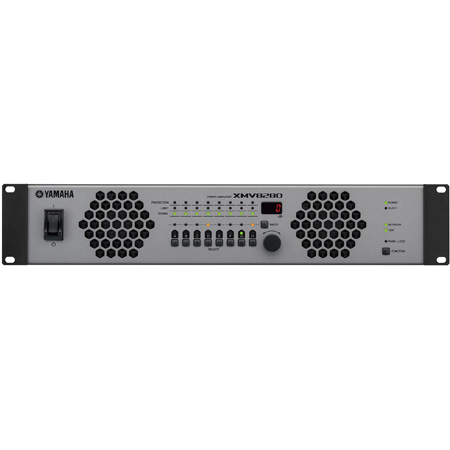

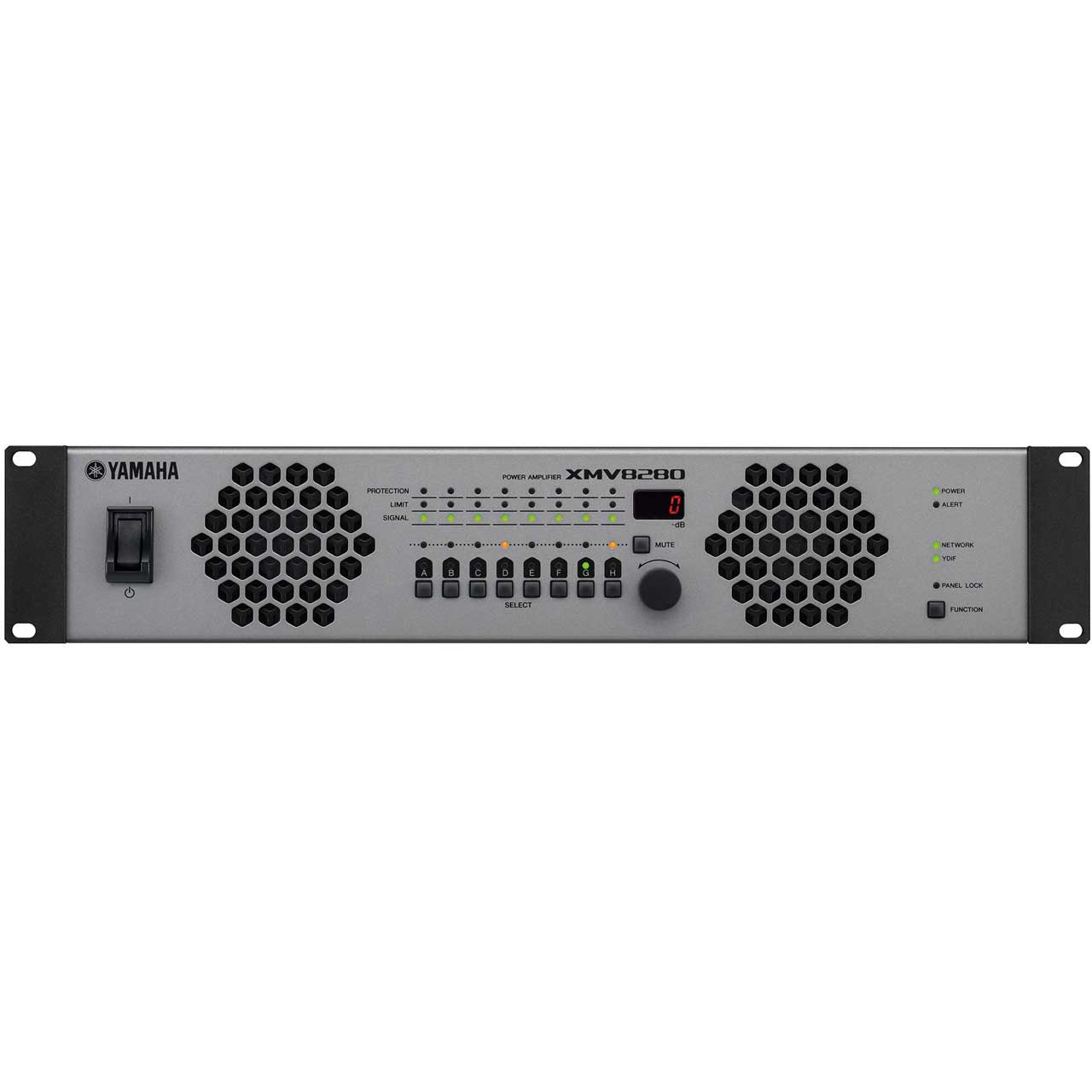

Yamaha XMV8280 8-Channel Power Amplifier

XMV8280 - Overview

• Features:

  • Equipped with the newly developed YDIF digital audio format for easy setup
  • High impedance and low impedance
  • New "Double Power Mode"
  • Selectable input formats for a wider range of applications
  • Support for AES67, Dante Device Lock (Dante models)
  • A perfect match for the MTX Series
  • Protection features for more reliable operation
  • External control via Ethernet
  • Source Select
  • Redundant functions
  • 8x 280W at 8Ω/4Ω
  • 8x 250W / 40Ω 100V/70V lines
  • 4x 560W at Double Power Mode (8Ω/4Ω)


• Specifications:

  • Output Power:
    1kHz (THD+N=1%: 4Ω)1kHz (THD+N=1%: 8Ω): 280W x 4
    1kHz (THD+N=1%: 4Ω / Double Power Mode): 280W x 4
    1kHz (THD+N=1%: 8Ω / Double Power Mode): 560W x 2
    High Impedance: 100V line: 560W x 2
    High Impedance: 70V line: 250W x 4 / 40 Ω
  • Voltage Gain:
    RL=8Ω: 31.7dB
    RL=8Ω / Double Power Mode: 34.7dB
    100V: 38.2dB
    70V: 35.2dB
  • Power Consumption: 1/8 power (4 Ω pink noise):250W, Idle (4 Ω):37W, Standby:18.5W
  • Total Harmonic Distortion: ≤ 0.2% (1kHz, half power)
  • Frequency Response: 0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz)
  • S/N ratio: ≥ 100dB(A-weighted)
  • Crosstalk: ≤ -60dB
  • Input Sensitivity: +4dBu
  • Input Impedance:20kΩ (balanced), 10k Ω (unbalanced)

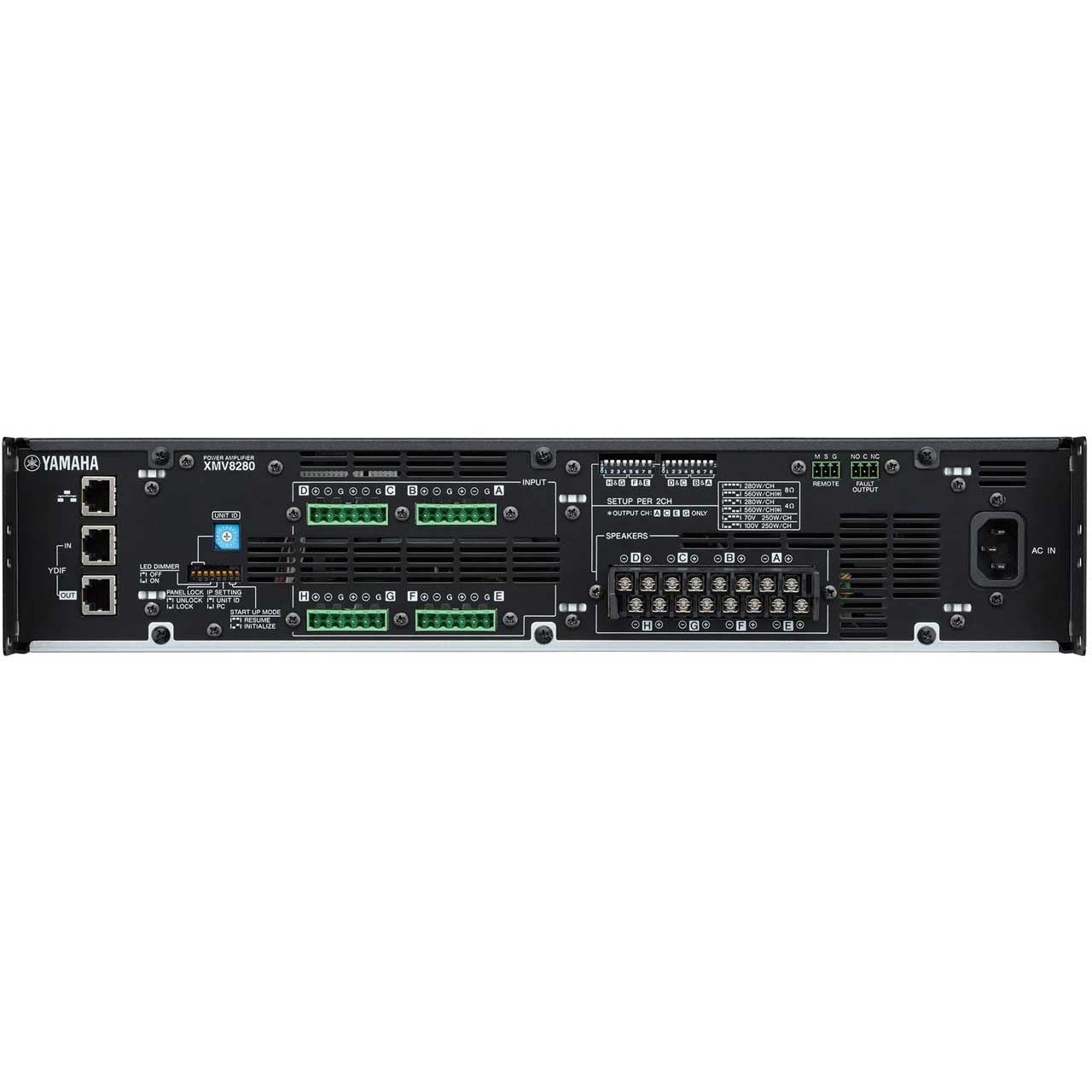

  • I/O Connectors:
    Analog I/O: Input: Euroblock x 2 (6P, balanced)
    Digital I/O: RJ45 x 2 (YDIF IN / OUT)
    Speaker Output: Barrier strip x 4 pairs
    Control Ports: Remote, Fault Output : Euroblock (3P) x 1
    Network: RJ45 x 1
    Others: AC Inlet x 1
  • Input Level: +24dBu (Maximum)
  • Protection Circuit:
    Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
    Amplifier Protection: Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output Mute (Restored Automatically), Low Load Impedance: Output mute (Restored automatically)
    Power Supply Protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C)
    Integrated Power: Gain reduction (Restored automatically)
  • Cooling: 3-Speed fan x 2, front-to-back airflow
  • Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions (WxHxD): 18.9 x 3.5 x 16.6" (480 x 88 x 422mm)
  • Net Weight: 17.9Lbs (8.1kg)


• GTIN:

  0086792974552
