Yamaha VXL1B-8 8 Full Range - 1.5 Inch Drivers - 40W - Program At 16 Ohm

ITEM #: YMH-VXL1B-8 MFG #: VXL1B-8

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$490.00

Our Price:

$417.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VXL1B-8 - Overview

    VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

    The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

    Sleek. Smart. Sound.
    VXL series line array speakers offer a unique combination of outstanding sound quality and slim form that is ideal for a variety of environments. Line array speakers offer excellent projection as well as uniform volume and sound quality over a wide service area, making them a great choice for multipurpose halls, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area. The VXL series includes three models with different numbers of speaker units. Models can be combined to optimally serve a variety of spaces and situations. Slim 54-millimeter-wide cabinets and elegantly curved grille designs blend beautifully with any d‚cor while delivering uniform, top-quality sound for speech and music reproduction in a wide range of applications.

    • Features:

      • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
      • 170° horizontal and 40° vertical dispersion for uniform SPL over a wide area
      • Slim design complements any interior décor
      • Available in black or white
      • Enclosures can be painted to match surroundings

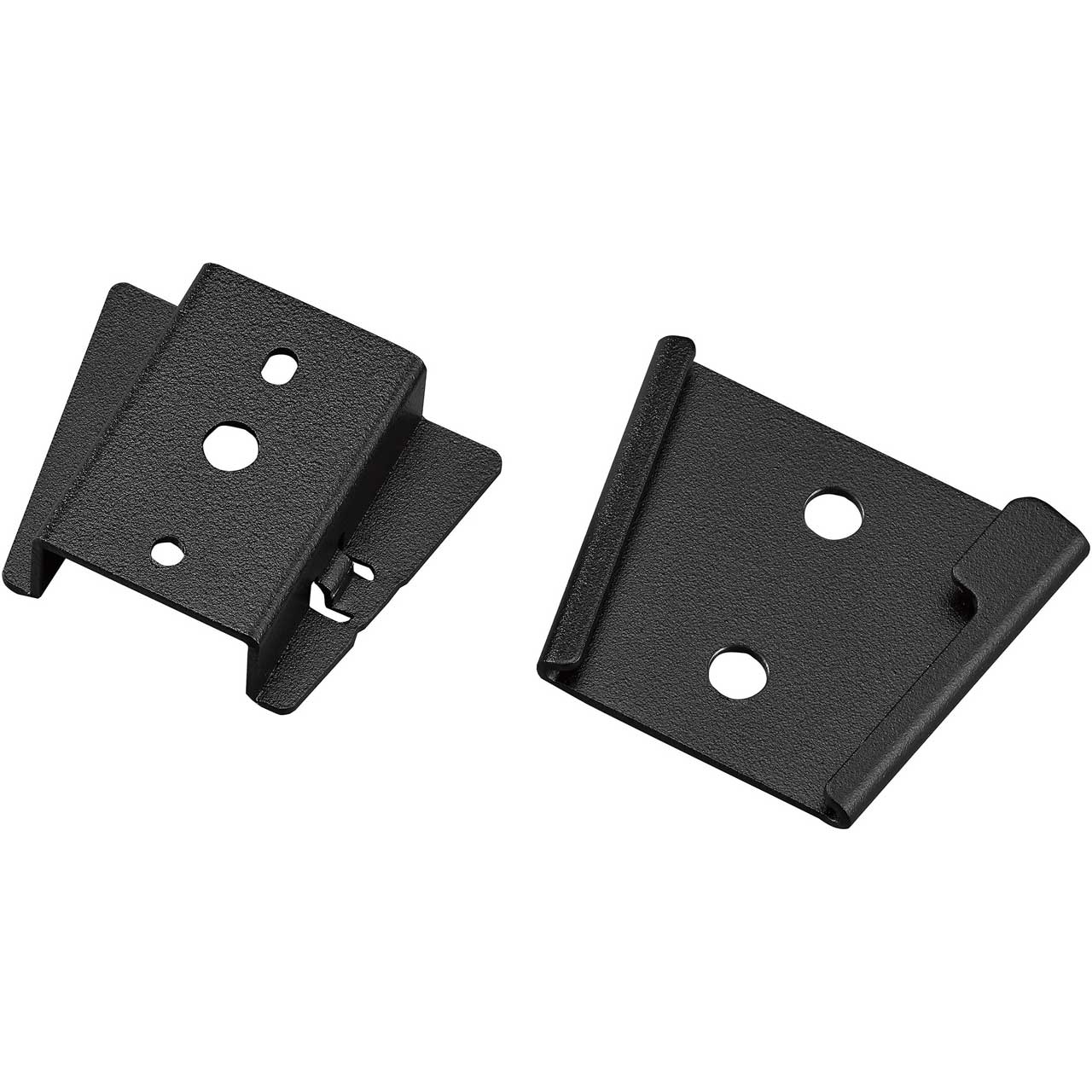

      • Wall mount bracket supplied
      • Optional hardware for a wide range of installation needs

    • Specifications:

      • Speaker Type: FUll-range, Bass reflex
      • Frequency Range (-10dB): 70 Hz - 20 kHz 110 Hz - 20kHz 1 (w/ port cover)
      • Coverage Area: Horizontal: 170°, Vertical:40°(+20° - -20°)
      • Components (LF-HF): 1.5" (3.75 cm) Cone + 8
      • Power Rating (Noise/PGM/Peak): 40 W / 80 W / 160 W
      • Nominal Impedance: 16Ω
      • SPL Sensitivity (W; 1m on axis): 89 dB SPL (1 m/1 W)
      • SPL Peak (Calculated): 111 dB SPL (1 m)
      • I/O Connectors: Euroblock (2 pin) + 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
      • Load Protection: Full-range power limiting to protecting network and transducers
      • Finish: Black painting (approximate value: Munsell N3.0)
      • IP-Rating: Dust and water resis tant : IP35
      • Dimensions (W x H x D): 2.1 x 18.9 x 4.1 in. (54 x 480 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54 x 1212 x 111.5 mm) - with Included Bracket
      • Weight: 2.1 kg / 4.6 lbs (Speaker only)

    • GTIN:

      0889025115278
