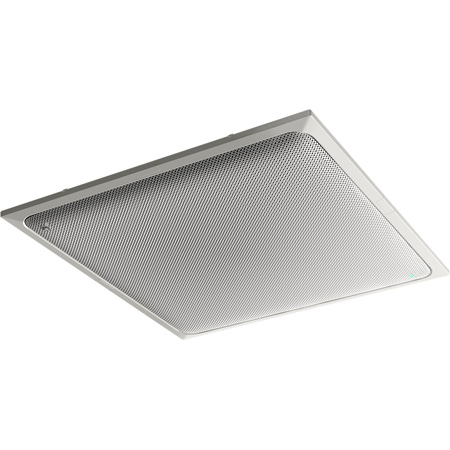

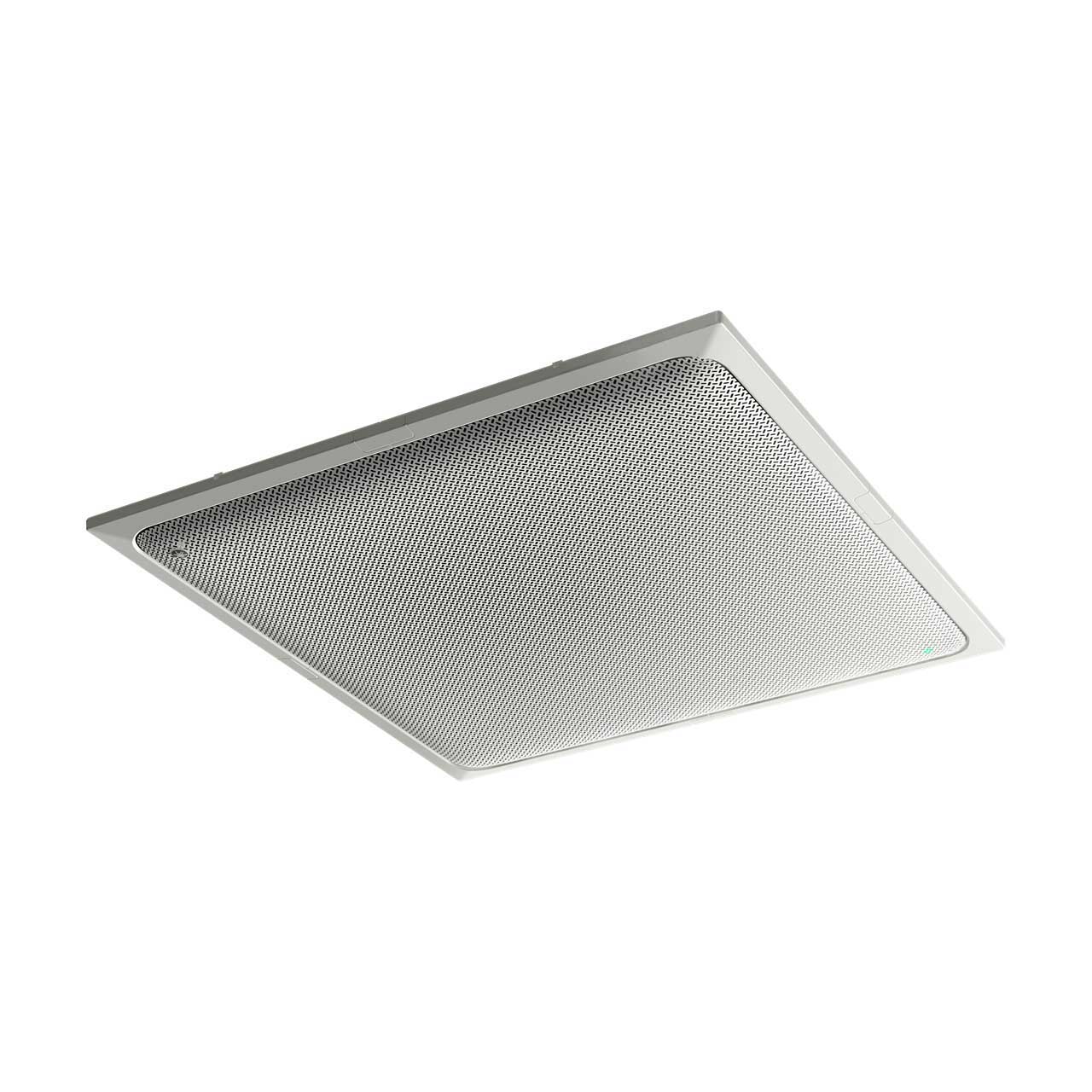

Yamaha ADCGW RM Ceiling Array Microphone - White - Dante Ready


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    ADCGW - Overview

    Yamaha Unified Communications ADCGW ADECIA Ceiling Solutions is a ceiling array microphone equipped with unique audio signal processing technology that enables high-quality communication.

    • Features:

      • "Dynamic Voice Tracking" that scans for human voice
      • Four "Auto Tracking Beams" track simultaneous speech allowing for lively conversations
      • Utilizes innovative Yamaha technologies like Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation

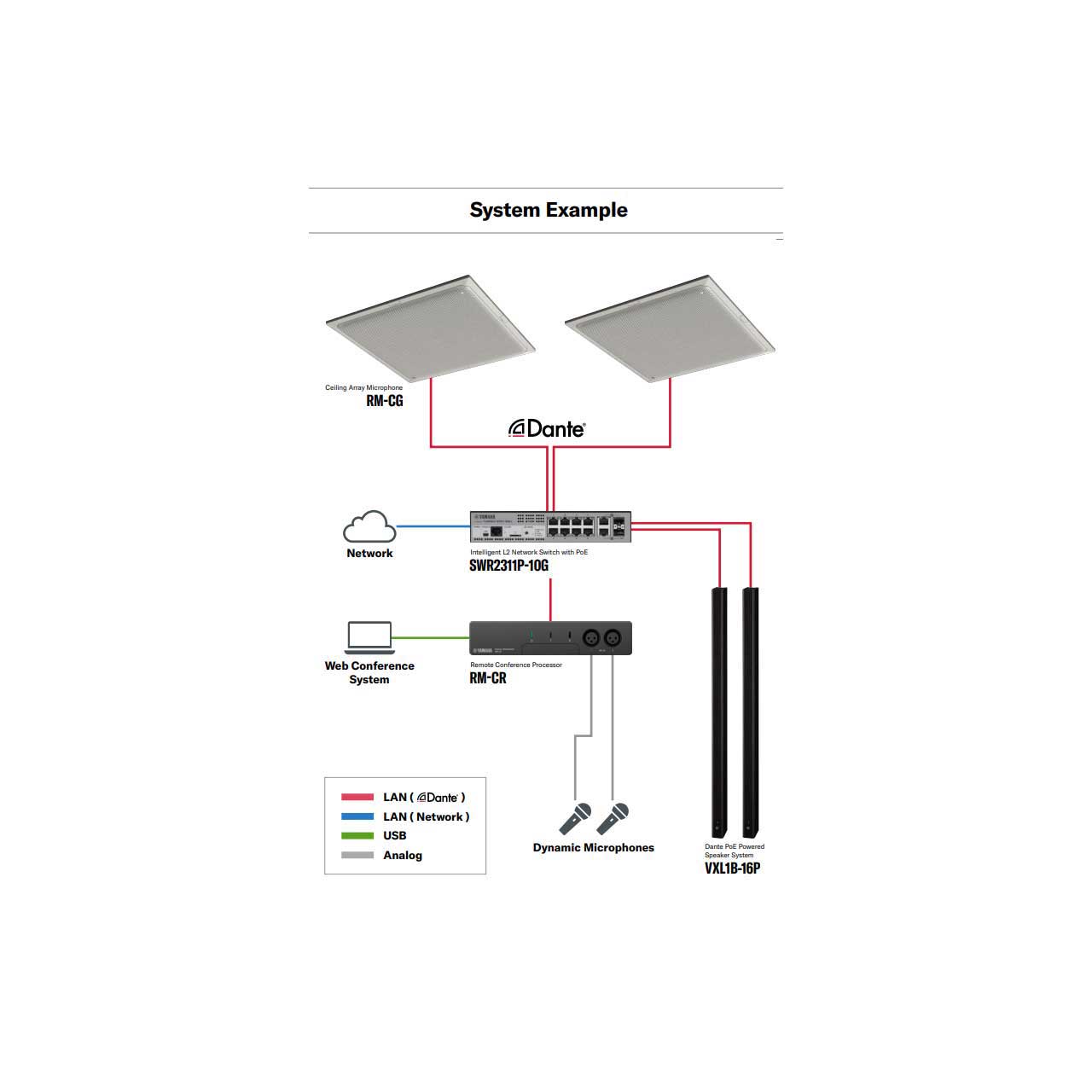

      • Automatic detection and configuration with Remote Conference Processor RM-CR
      • Standard network audio support for "Dante"
      • Utilizes one PoE+ network cable connection avoiding troublesome wiring and enabling audio control via Dante
      • Supports 3 types of mounting methods for use with a variety of ceiling conditions
    • Specifications:

      • General:
      • Dimensions (WxHxD): 22 x 3.54 x 22" (560 x 90 x 560mm) (includes protrusion/microphone panel: 22mm)
      • Weight: 12Lbs (5.6kg)
      • Power Requirements: PoE (IEEE 802.3af), DC 48V
      • Maximum Power Consumption: 7.2W
      • Connector: RJ45
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Operating Humidity: 30 to 90% (non-condensing)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Storage Humidity: 20 to 90% (non-condensing)
      • Indicator: Front indicator (Mute/Unmute & Status), Network port indicator
      • Mount: Ceiling mount, Wire mount, VESA mount (not included)
      • Dust Protection: IP5X equivalent (when using junction cover)
      • Plenum Rating: UL2043 (with junction cover)

      • Ether: Dante, Remote Control, Web UI, PoE
      • Cable Requirements: Cat 5e or higher (STP)

      • Audio I/O Dante: 1 In - 2 Out
      • Sampling Rate: 48kHz
      • Bit Depth: 24bit
      • Latency: 56ms (including DSP)
      • Frequency Response: 160Hz - 16kHz (-10dB)
      • Maximum Input Level of SPL (0dBFS): 117.8dB SPL
      • Self Noise: -0.8dBA SPL
      • SN Ratio (Ref. 94dB SPL at 1kHz): 94.8dBA
      • Sensitivity: -23.8dBFS/Pa
      • Dynamic Range: 118.6dBA
      • Signal Processing:
        Dynamic Voice Tracking
        Auto Tracking Beamforming
        Adaptive Echo Canceller
        Noise Reduction
        Auto Mixer
        Automatic Gain Control
        Parametric Equalizer
        Output Gain
    • Item Includes:

      • 1x Installation manual
      • 1x Grill
      • 5x Grill fixing screw (M3 x 8mm) with 1 spare
      • 4x Screw cover
      • 1x Drilling pattern
      • 1x C ring
      • 2x C ring fixing screw
      • 1x U-shaped bracket
      • 5x U-shaped bracket fixing screw (M4 x 20mm) with 1 spare
      • 1x Terminal cover
      • 1x Safety wire
      • 1x Cable tie
      • 2x Temporary retaining bracket
