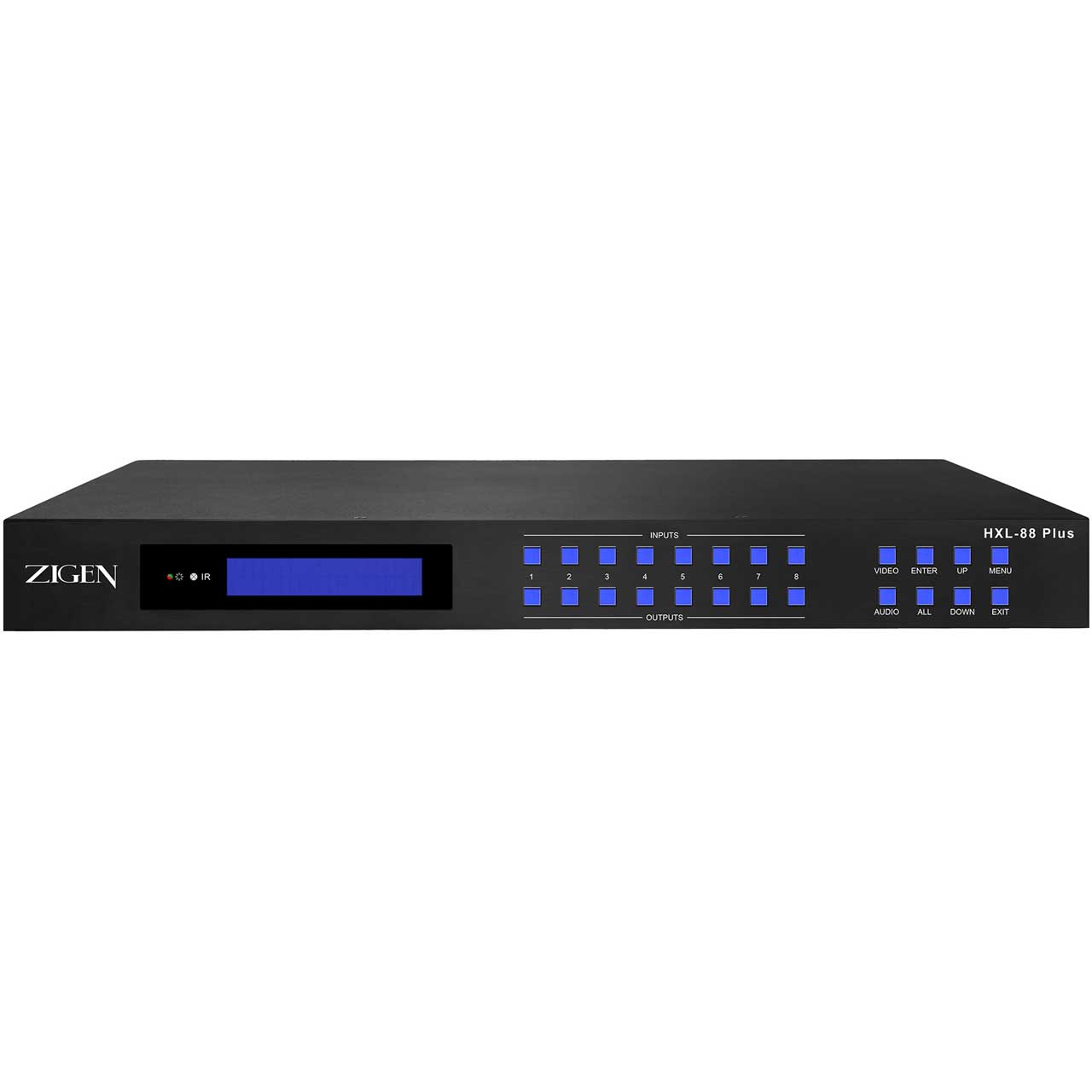

  • Product Image Thumbnail 1 of 2

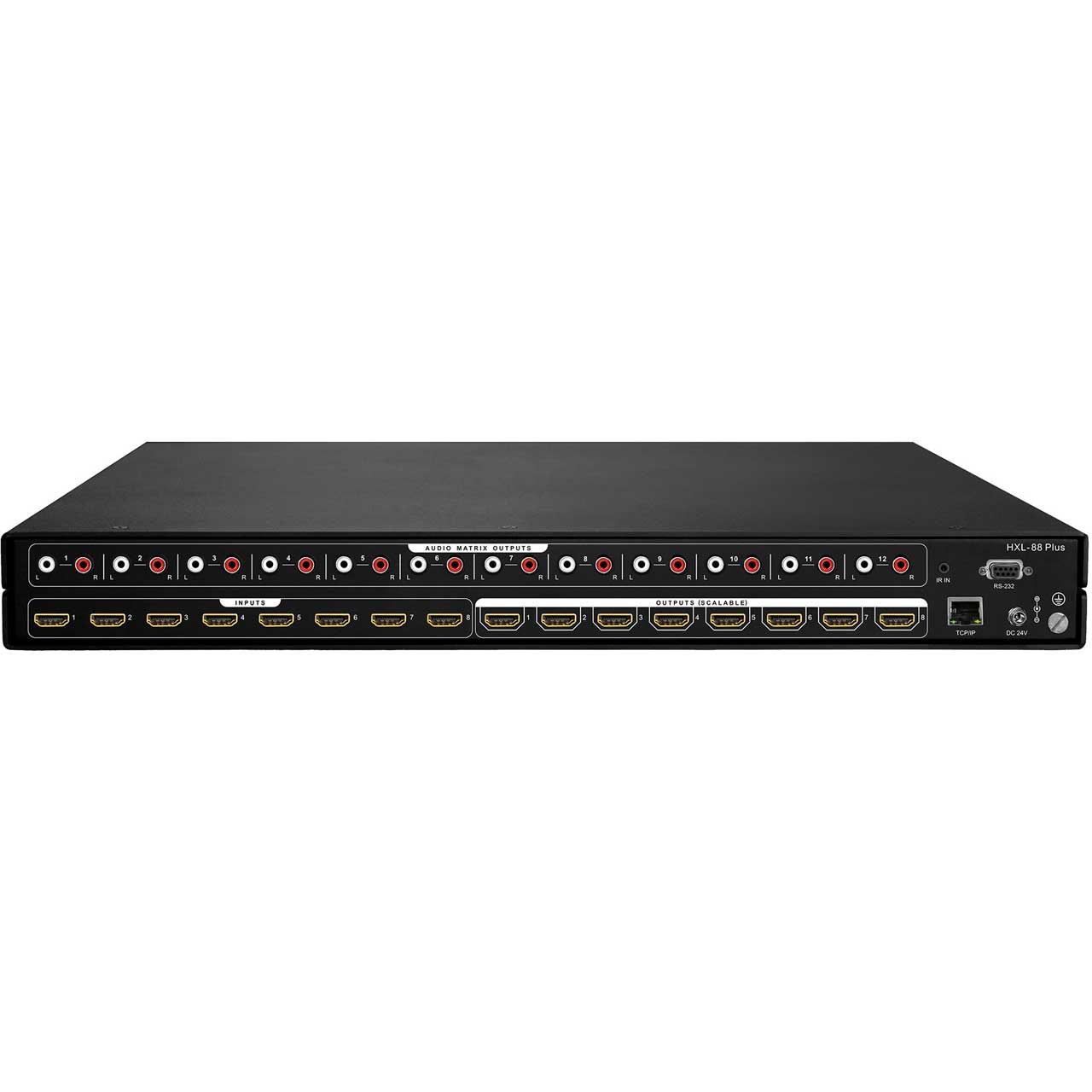

  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the ZIG-HXL-88PLUS

HXL-88PLUS - Overview

Today's 4K content requires 18-Gbps cross point switching with 12-bit Dolby Vision and 10-bit HDR support. Zigen has been a pioneer in the 4K video distribution space since 2010 with a multitude of award-winning products. Continuing that trend today, Zigen presents the HXL-88Plus series. The first 18-Gbps Matrices with built-in web diagnostics, Audio matrix, and independent scaled outputs for mixed resolution display environments.

HXL-88Plus series matrix router allows you to de-embed audio from all HDMI sources and route it to any and all 12-zone outputs independently. All zones allow for independent control of 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, and Surround Effect.

ZigNet, their free built-in diagnostics analyzer tool pulls real time data from all sources/displays and provides a visual overview of problems you may encounter with distributed systems. It eliminates the need for costly analyzers and time-consuming step by step troubleshooting. ZigNet may also be set-up to send system trouble alerts so that you can address issues before it becomes a problem.

  • Features:

    • Dolby Vision and ULTRA HD 4K Certified
    • HDMI 2.0 ([email protected] Hz (YUV 4:4:4, 8-bit)
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • Support 8x8 Video Matrix
    • Supports Independent Scaler per Output
    • Support 8x12 Audio Matrix
    • 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, Surround Effect.
    • Supports uncompressed PCM, Dolby Atmos, Dolby Digital, DTS, Dolby
    • TrueHD, DTS HD-Master Audio and more.
    • Supports Dolby Vision , HDR-10, HDR-10+ and HLG
    • Built in IR sensor plus 3.5mm jack and remote control
    • RS-232 - Control or integrate with 3-rd party control.
    • ZigNet Diagnostics

  • Specifications:

    • Video
    • Video Bandwidth: 18 GBPS
    • Video Resolutions: [email protected] Hz (YUV 4:4:4, 8-bit)
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • HDMI: 2.0
    • HDCP: 1.4 / 2.2
    • Color Space: RGB, YUV
    • Color Bit Depth: 8-bit, 10-bit, 12-bit
    • HDR: Dolby Vision, HDR, HDR-10 and HLG
    • Input / Output: 8x8 HDMI I/O Interface
    • Scaler: Independent for each of the outputs
    • Scaler Options: From 4K to 1080p

      Audio
    • Audio HDMI IN & OUT: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and All DTS-HD Master formats (HDMI Path)
    • Audio Sampling Rates: Up to 192 KHz (HDMI Path)
    • Analog Audio Sampling Rate: 96-KHz (RCA Path)
    • Audio IN: (HDMI ONLY)
    • Audio Out: 12x Unbalanced RCA L/R
    • Audio DSP: 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, Surround Effect

      General
    • ESD Protection: Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
    • EDID Management: Internal EDID bank or pull EDID from each display
    • Resolution Range: [email protected] to [email protected] 4:4:4
    • HDMI Cable Length: HDMI Up to 5M @ 4K/60Hz
    • HDMI Cable Distance (Using Zigen Premium Cable): HDMI Up to 10M @ 4K/60Hz
    • Dimension (WxHxD): 17.20 x 1.73 x 9.31" (437x44x236.5mm)
    • Temperature: 14° to 122°F (-10° to 50°C)
    • Reference Humidity: 10 to 90%
    • Weight: 3.85Lbs (1.75kg)
    • Power Consumption: 14W (Max)
    • Power Supply: 24VDC, 1.25A
    • ZigNet Diagnostics: Yes
