Zigen ZIG-POC-100 Contractor Series 4K/60Hz 4:4:4 18-GBPS HDMI 2.0 Extender with Bi-Directional Power

ITEM #: ZIG-POC-100 MFG #: ZIG-POC-100

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$660.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ZIG-POC-100 - Overview

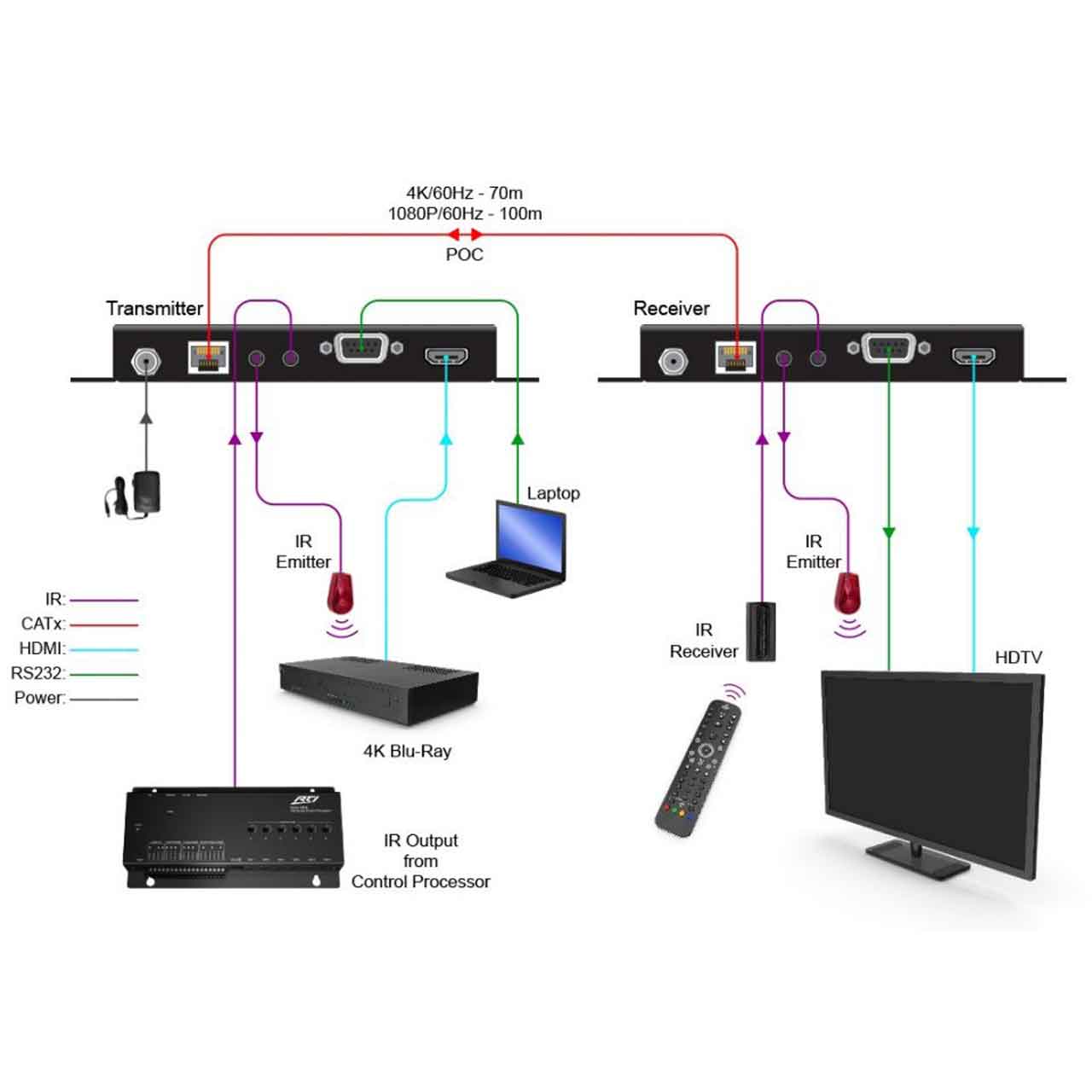

    The POC-100 is an innovative product from Zigen supporting 4K/60Hz 4:4:4 HDMI 2.0, Bi-Directional IR, and RS232 extension over single UTP/STP cable. If the application does not need ARC support, but requires robustness and cost effectiveness, then the POC-100 is deal for all your residential HDMI distribution.

    The ZIG-POC-100 is designed to be powered from either the Tx or Rx side. Ideal when cascading multiple extenders for longer reach or when powering from a particular side is not ideal.

    Zigen's POC and PoE-PRO line of HDMI extenders use a proprietary compression/decompression engine to allow high bit rate video resolutions, such as 4K60 4:4:4, to pass through the 9-GBps bandwidth limitation of HDBaseT. The transmitting device is configured to compress the incoming video stream to a reduced rate HDMI signal, while the receiving device is configured to decompress the original video stream back to normal rate HDMI with minimum distortion and artifacts. DSC type compression engines utilize intelligent predictive methods, such as Median-Adaptive, Block Prediction, Midpoint Prediction, and Flatness Detection, to efficiently perform data bandwidth reduction. Zigen's extenders strictly pass raw HDMI signals up to 4K/30Hz 4:4:4 without any compression, while supporting all color bit depths. Compression is only used for resolutions from 4K/30Hz 4:4:4 to 4K60Hz 4:4:4.

    • Features:

      • ULTRA HD 4K Certified HDBaseT Extender
      • HDMI 2.0 ([email protected] Hz (YUV 4:4:4, 8-bit)
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • HDCP 1.4 / 2.2
      • Autonomous EDID management
      • Supports Dolby Vision, HDR-10, HDR-10+ and HLG
      • Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus DTS HD-Master and more.
      • Supports all frequency band IR control (Bi-directional transfer)
      • Supports dual voltage IR 5-volt / 12-volt
      • Supports bi-directional RS-232 transfer.
      • Supports CEC pass-through
      • RJ-45 ports support HDBaseT up to 330-feet / 100-meter for 1080p
      • RJ-45 ports support HDBaseT up to 230-feet / 70-meter for 4K

    • Specifications:

      • Video
      • HDMI Input and Output: HDMI 2.0
      • Extension Transport: POC
      • Max. Resolution: HDMI 2.0 ([email protected] Hz (YUV 4:4:4, 8-bit)
      • HDCP: 1.4 / 2.2
      • EDID: Autonomous EDID mangement
      • HDR: Dolby Vision, HDR-10, HDR-10+ and HLG
      • Compression: DSC (Display Stream Compression)
      • Maximum Throughput: 18-GBPS

        General
      • ESD Protection: Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
      • Cable Distance: 100-M (Max.) for 1080p
      • Cable Distance: 70-M (Max) for 4K
      • Audio Support: Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus DTS HD-Master and more.
      • IR In /Out: Supports dual voltage IR 5-volt / 12-volt
      • RS-232: Supports bi-directional RS-232 transfer.
      • CEC Support: Yes
      • Housing: Aluminum
      • Weight: Tx ~ 182g | Rx ~ 182g
      • Universal Power Adapter: 110~240-VAC / DC 24-VDC with lock
      • Power Source: PoC
      • Power Consumption: 20W (MAX)

    • Item Includes:

      • 1x Transmitter
      • 1x Receiver
      • 1x User manual
      • 1x Power adapter DC 24V with lock
      • 1x IR receiver
      • 1x IR emitter
      • 4x Screws
      • 8x Foot pads
      • 2x Captive screw connectors?
