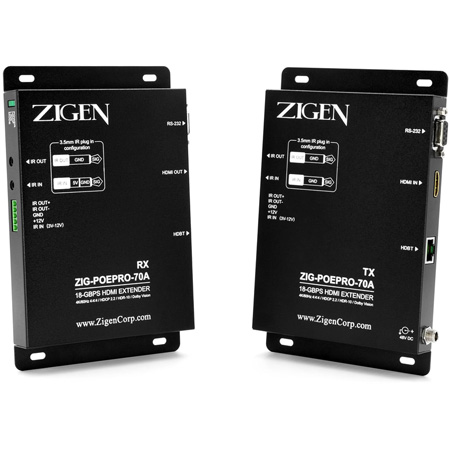

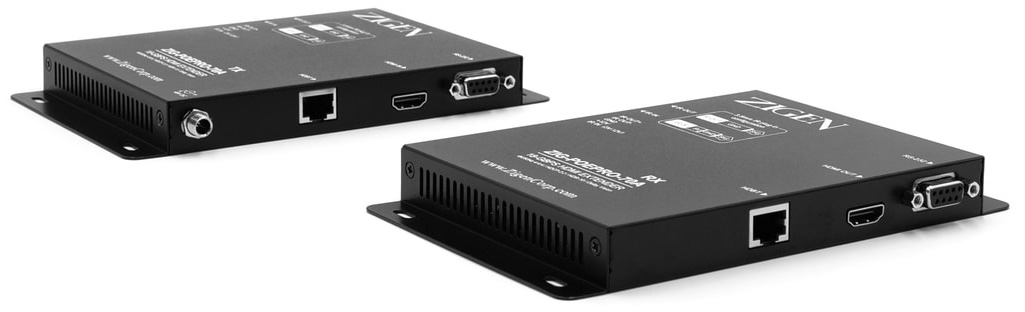

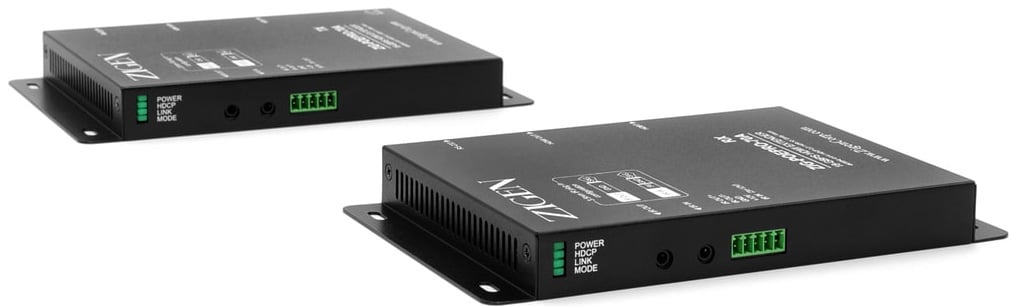

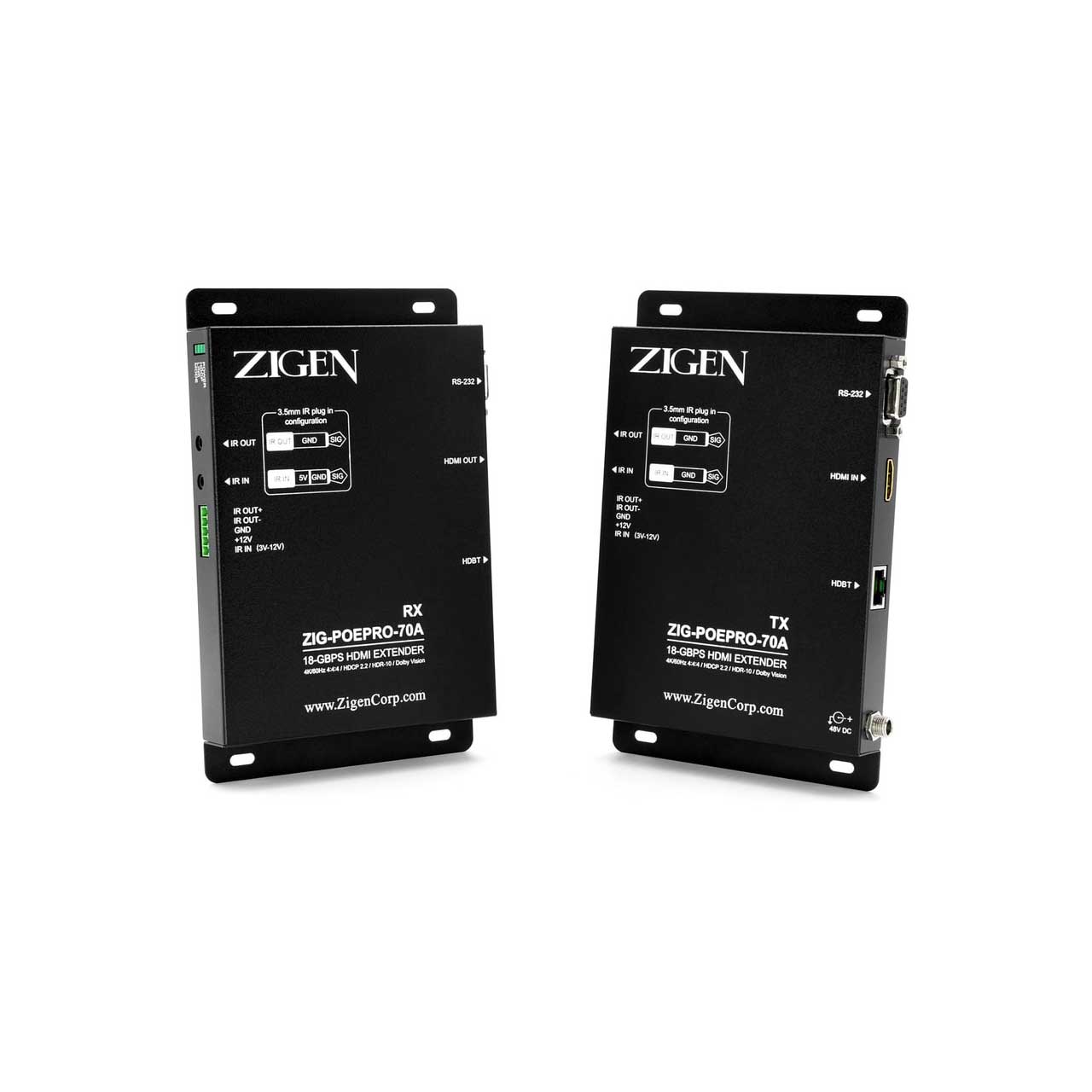

Zigen ZIG-POEPRO-70A 4K/60Hz 18G Extender Set - 48V POE Bi-Directional IR & RS232 supports ARC & HDR-10

ITEM #: ZIG-POEPRO-70A MFG #: ZIG-POEPRO-70A

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Zigen Corp
free ship

Our Price:

$590.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ZIG-POEPRO-70A - Overview

    The ZIG-POEPRO-70A is the latest innovative new product from Zigen. 4K/60Hz 4:4:4 HDMI extender over single UTP/STP, with Bi-Directional IR and RS232. Robust and cost effective - the ZIG-POEPRO-70A is the right HDMI extender for all of your projects requiring 24/7 flawless operation.

    The ZIG-POEPRO-70A(Tx/Rx) provides a complete solution for detection and powering of POE IEEE 802.3af devices such as the ZIG-POEPRO-70A(Tx/Rx). The ZIG-POEPRO-70A(Tx/Rx) POE solution will safely detect, classify, and provide 48V up to 25W power to RX device connected to the HDBaseT port. The Tx unit will first read a signature from the Tx and only enable power delivery if all constraints are met. During the power delivery the link is continuously monitored for any fault or overloading conditions and the current is limited to avoid hazardous conditions.

    The ZIG-POEPRO-70A(Tx/Rx) senses the removal of a powered device and turns off 48V power immediately when the Rx is disconnected.

    • Features:

      • HDBaseT technology.
      • Extend HDMI signals up to 70 meters/230 feet by using Cat-6A
      • Supports HDR-10
      • Supports Dolby Vision [email protected] 30Hz
      • Supports HDMI 2.0
      • HDCP 2.2 compliant
      • Supports ARC
      • Supports CEC pass-through
      • Supports RS-232 (Bi-direction transfer)
      • Supports all frequency band IR control (Bi-direction transfer)
      • POE Technology
      • Supports 12V or 5V IR Receiver/Emitter
      • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 2K and 4K
      • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Atmos, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more
      • Cable distance and limitations. 70-meter for 1080p and 40-meter for 4K/60Hz
      • Cat-6A is recommended


    • Specifications:

      • Enclosure: Metal
      • HDMI Connector: HDMI A-Type Female x 1
      • RJ-45 Connector: RJ-45 Jack x 1
      • RS232 Connector: DB9 Female x 1
      • IR IN: 3.5mm Stereo Jack x 1
      • IR OUT: 3.5mm Stereo Jack x 1
      • LED: 4-in 1 LED Stack
      • DC Jack: 48-v
      • Max. Resolution: [email protected] / 4:4:4
      • Cable Distance: 4K/60Hz 40 m (Max.) 1080P/60Hz 70 m (Max.)
      • Power Adapter (Min.): DC 48-V with lock
      • Power consumption: 25W (MAX)
      • Operating Temperature: 0 ~ +55°C
      • Storage Temperature: -10 ~ +50°C
      • External Power Supply Input: 100VAC~240VAC, 50/60Hz; 48-VDC 1A
      • Weight: 499g
      • Dimensions(L x H x W): 7.16 inch x 0.7 inch x 4.4 inch (182 x 20 x 114 mm)


    • Item Includes:

      • 1 x Transmitter
      • 1 x Receiver
      • 1 x User manual
      • 1 x Power adapter DC 48V with lock
      • 1 x IR receiver
      • 4 x Screws
      • 8 x Foot pads
      • 2 x Captive screw connectors
      • 2 x Phoenix connectors
