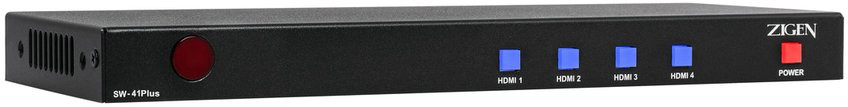

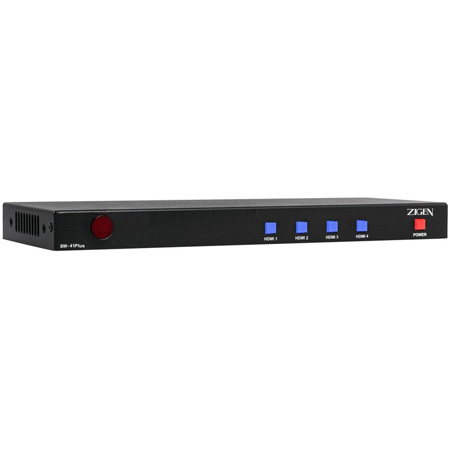

Zigen ZIG-SW41Plus HDMI 2.0 4x1 Switch 4K/18G with HDCP 2.2/System Diagnostics/IP/Buffering & Audio De-Embedding
  • Zigen ZIG-SW41Plus HDMI 2.0 4x1 Switch 4K/18G with HDCP 2.2/System Diagnostics/IP/Buffering & Audio De-Embedding
  • Zigen ZIG-SW41Plus HDMI 2.0 4x1 Switch 4K/18G with HDCP 2.2/System Diagnostics/IP/Buffering & Audio De-Embedding
  • Zigen ZIG-SW41Plus HDMI 2.0 4x1 Switch 4K/18G with HDCP 2.2/System Diagnostics/IP/Buffering & Audio De-Embedding


Zigen ZIG-SW41Plus HDMI 2.0 4x1 Switch 4K/18G with HDCP 2.2/System Diagnostics/IP/Buffering & Audio De-Embedding

Manufacturer: Zigen Corp

Item #: ZIG-SW41PLUS   •   MFG #: ZIG-SW41PLUS



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the ZIG-SW41PLUS

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





HDMI 2.0 - 600 MHz HDMI switcher perfect for switching between high bandwidth (2160P60 RGB/4:4:4) HDCP 2.2 content. Weather you need full bandwidth DCI content switching in a commercial environment or home environment, the Zigen ZIG-SW41Plus is for you. Robust technology designed, engineered and manufactured in the USA. Zigen's products are designed for the demanding professionals that are seeking robust and reliable performance. These products are not for just anyone, these products are designed for you!

Zigen wants to put you in the driver's seat and allow you to take control of your HDMI content. With the added tools such as HDID management, system diagnostics, Up/Down scaling, hot plug and audio de-embedding from source and or ARC; you now have full control over your system and can dictate as to how your system performs.


  • Features

    • 600 MHz HDMI 2.0 (2160P60 4:4:4) and HDCP 2.2 on all I/O
    • Supports 8-bit, 10-bit, 12-bit and 16-bit per pixel
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • Advanced EDID management
    • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more
    • Supports HDR-10, HDR-10+, Dolby Vision HDR
    • Supports ARC
    • Supports CEC
    • Built in IR sensor plus 3.5mm jack and remote control
    • Bi-directional RS-232 - Control switch or integrate 3rd party control
    • SPDIF and RCA for audio de-embedding
    • ZigNet Control

  • Specifications

    • Video Bandwidth
    • 18 GBPS

      Video Resolutions
    • All SMPTE & VESA in HDMI 2.0
    • Specification. Max SMPTE UHD - 4096x2160P60/RGB/4:4:4

      Color Space
    • RGB, YUV

      Color Bit Depth
    • 8-bit, 10-bit, 12-bit & 16-bit per pixel

      Chroma Subsampling
    • 4:4:4, 4:2:2, 4:2:0

      Audio
    • HDMI in & Out - Up to Dolby TrueHD and DTS-HD Master
    • SPDIF - Up to Dolby Digital & DTS 5.1
    • Audio Sampling Rates - Up to 1536 KHz
    • Distance - HDMI - Up to 5M @ 4K
    • HDCP - 2.2, 1.4 or None
    • CEC - Pass through

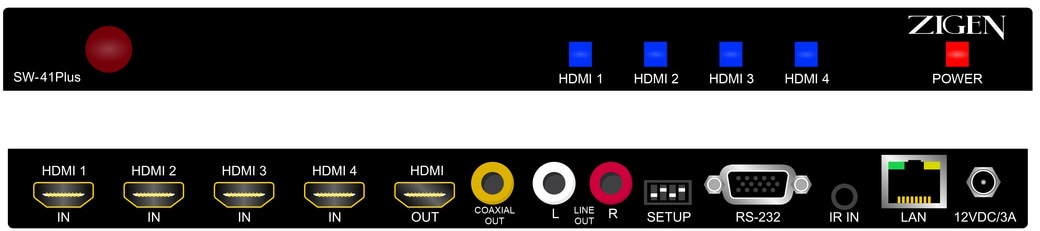

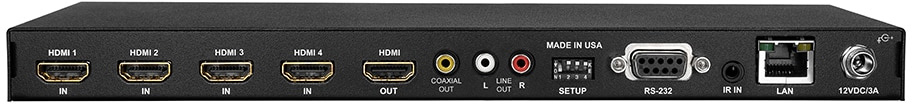

      Connections
    • 4 x HDMI type A HDMI Input
    • 1 x HDMI type A HDMI Output
    • 1 x SPDIF Digital Audio Output
    • 1 x RCA Analog Output
    • 1 x RJ45 LAN Port for TCP/IP Control
    • 1 x 9-pin RS-232 port
    • 1 x 3.5mm IR In Port
    • 1 x IR Sensor (In)
    • 1 x 12 VDC Locking Connector

      Temperature
    • Operating 32-122 F (0-50 C) Humidity: 20-90% non-condensing

      Dimensions
    • 1/2 RU

      Weight
    • .67 pounds
    • 303 grams

  • Item Includes

    • 1 x ZIG-SW41Plus
    • 1 x 12V/2.5A DC Power Supply
    • 1 x USA AC Cord 3'
    • 1 x Remote Control
    • 1 x User Manual
