Kramer 614R-T Single-Fiber Detachable DVI Optical Transmitter & Receiver
  • Kramer 614R-T Single-Fiber Detachable DVI Optical Transmitter & Receiver
  • Kramer 614R-T Single-Fiber Detachable DVI Optical Transmitter & Receiver

Questions? Ask a Markertek Expert:
800-522-2025 Email

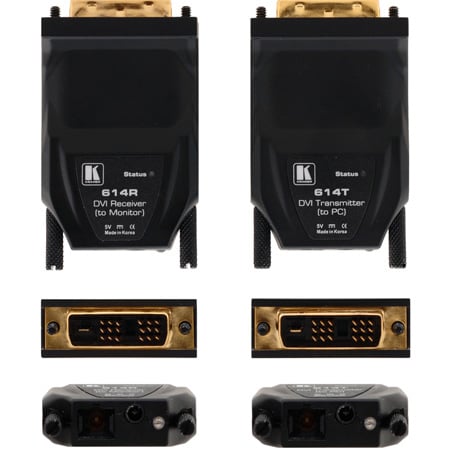

Kramer 614R-T Single-Fiber Detachable DVI Optical Transmitter & Receiver

Manufacturer: Kramer

Item #: KR-614R-T   •   MFG #: 614R-T



List Price:$950.00
Our Price:$760.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!

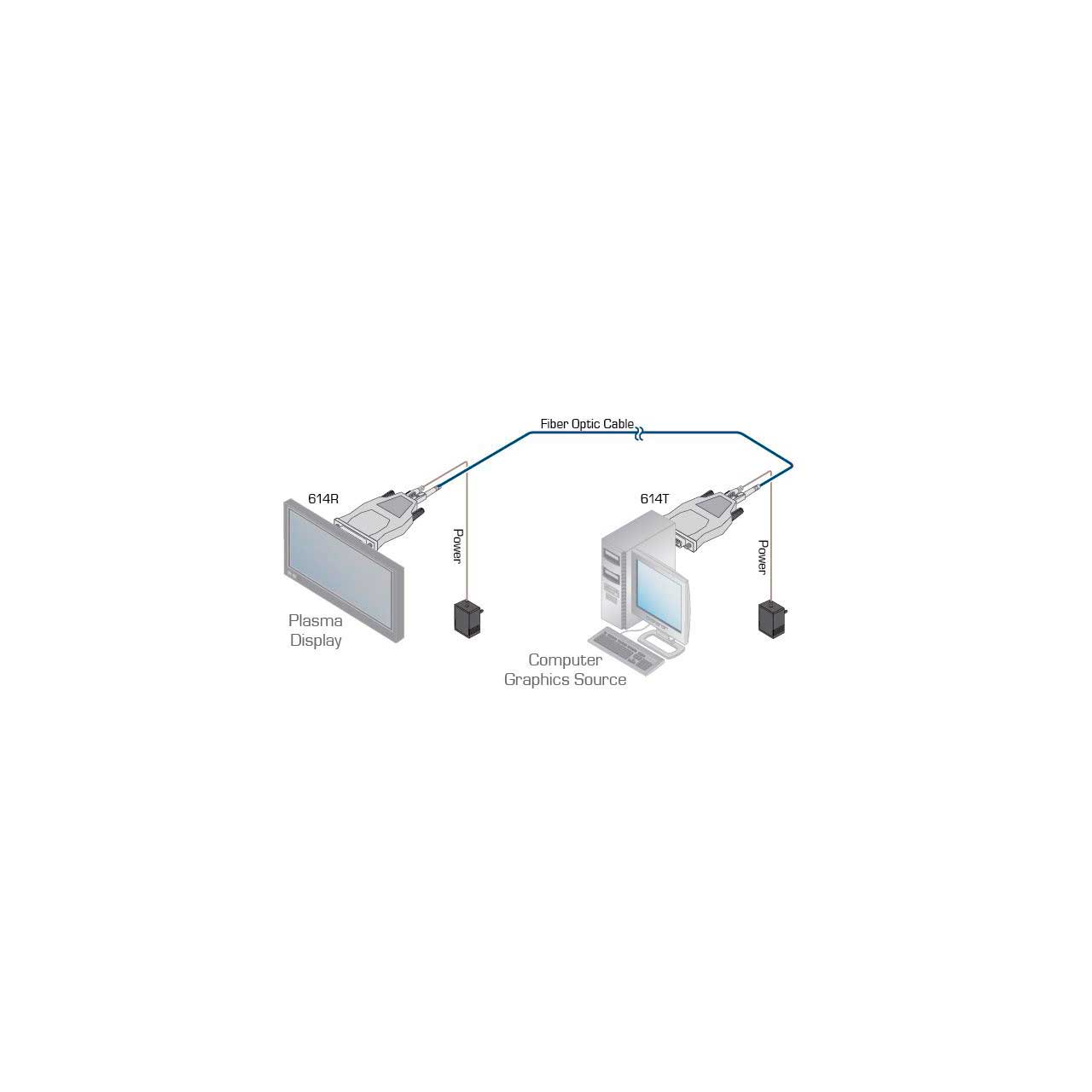

Kramer Electronics is pleased to introduce the 614T/R detachable fiber optical transmitter and receiver set for sending and receiving single link DVI signals with resolutions of up to 1920x1200 at 60Hz, over one multimode fiber optic cable with SC connectors. Kramer is also pleased to introduce the 616T/R detachable fiber optic transmitter and receiver set for sending and receiving dual link DVI signals with resolutions of up to WQXGA (2560x1600 @60Hz) or WQUXGA (3840x2400 @33Hz vertical refresh rate) over duplex multimode fiber optic cable with two LC connectors.

Both pairs of transmitters and receivers operate up to a range of 1,640 ft. (500m) and feature EDID capture on the transmitter side that copies and stores the EDID from a display device to ensure a proper image on the display device employed. Both models are HDTV compatible and both models fully support the DVI 1.0 specification.

The 614T/R operate together at a maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and support resolutions of up to WUXGA, including 2K and 1080p resolutions (XGA is not supported) utilizing one SC multimode fiber optic cable connector (Kramer C-SC/SC/OM series).

The 616T/R operate together at a maximum data rate of 13.5Gbps (2.25Gbps per graphic channel times two channels each) and support HDTV resolutions of 480p, 720p, 1080p and VESA computer graphics resolutions from VGA to WQUXGA @33Hz (XGA is not supported), utilizing duplex multimode fiber optic cable with two LC connectors (Kramer C-2LC/2LC series).

Both models come with external 5V DC power adapters (supporting auto-power switching function in the transmitters) and are housed in Kramer's rugged, yet compact Nano TOOLsT sized enclosures. Both models are also certified to FCC and CE standards for EMI/RFI emission, and both provide data security since they have negligible RFI/EMI emissions and prevent loss of video quality due to their lack of copper conductors.


  • Features

    • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
    • Max. Resolution - Up to WUXGA, 2K or 1080p (XGA not supported).
    • HDTV Compatible - Not HDCP compliant.
    • System Range - Up to 500m (1640ft) (multimode).
    • Standards Compliance - Supports DVI1.0, fully implemented by fiber-optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE.
    • EDID Capture - Copies and stores the EDID from a display device (614T).
    • EMI/RFI Free.
    • Cable - 1 SC multimode fiber optic cable.
    • Power - External power adapters (supplied) or 5V DC from source (auto detect).

  • Specifications

    • INPUTS: 1 DVI (614T), 1 multimode fiber optic with SC connector (614R).
    • OUTPUTS: 1 multimode fiber optic with SC connector (614T), 1 DVI (614R).
    • MAX DATA RATE: 6.75Gbps (2.25Gbps per graphic channel), up to WUXGA, 2K or 1080p @36bit color depth (does not support XGA).
    • MAX. RANGE: 500m (1640ft) over 50/125 multi-mode fiber at WUXGA (1920x1200), 60Hz refresh rate.
    • POWER SOURCE: 5V DC, 200mA max. (614T); 280mA max. (614R).
    • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
    • HUMIDITY: 10% to 85%, RHL non-condensing.
    • DIMENSIONS: 3.9cm x 5.6cm x 1.46cm (1.5" x 2.2" x 0.57") W, D, H.
    • WEIGHT: 0.14kg (0.31lbs) approx.
    • ACCESSORIES: Two 5V DC/1A power supplies.
